ABM12-116-26.000MHZ-T3,Abracon品牌晶振,ABM12晶振
频率：26.000MHZ

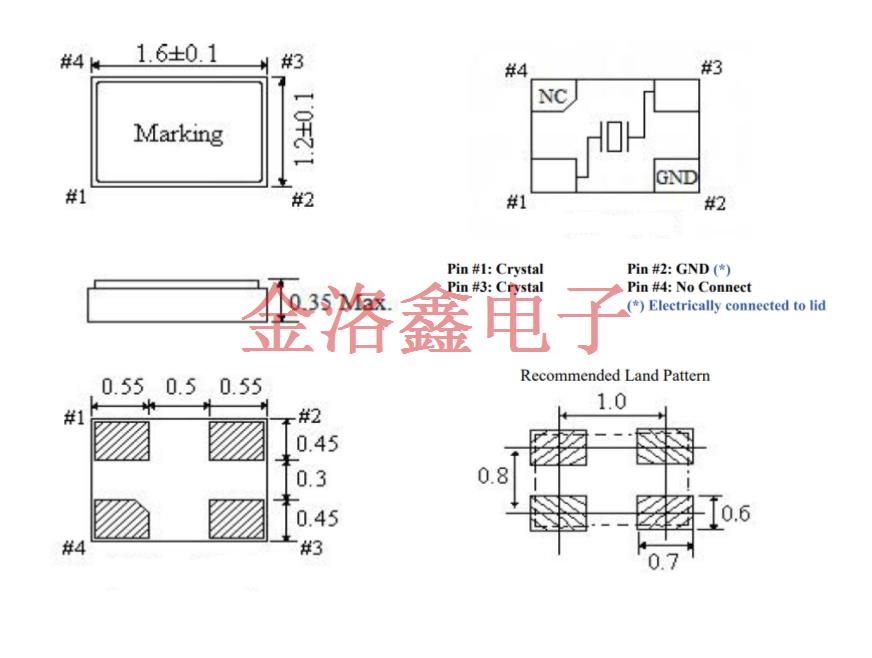

尺寸：1612mm
ABM12-116-26.000MHZ-T3,Abracon品牌晶振,ABM12晶振
依托Abracon在频率控制领域数十年的技术积淀,ABM12-116-26.000MHZ-T3晶振融入多项核心技术:其一,采用品牌自研的高精度石英晶振,通过先进的离子刻蚀工艺与真空镀膜技术,提升晶片的谐振稳定性,确保晶振在长期使用后,频率漂移仍控制在极小范围;其二,内置独家的抗电磁干扰(EMI)屏蔽结构,能有效抑制高频辐射对周边电路的干扰,符合FCCPart15ClassB,EN55032ClassB等国际电磁兼容标准,无需额外添加屏蔽组件即可满足多数电子设备的电磁兼容要求,降低设计成本;其三,优化的电路设计使晶振在26MHz工作频率下,典型工作电流仅为4mA,静态电流低至0.1μA,兼顾高频性能与低功耗需求.欢迎来电咨询0755-27837162
ABM12-116-26.000MHZ-T3,Abracon品牌晶振,ABM12晶振
| 原厂型号 Originalmodel： |
            ABM12-116-26.000MHZ-T3
|
品牌brand： |
   Abracon贴片晶振
|
| 型号名称 Modelname： |
     ABM12
|
Size/Dimension尺寸 | 1612mm |
| Type系列： | MHz Crystal | 高度PackageHeight： |
  0.35mm
|
| 频率 frequency： |
 26M
|
温度OperatingTemperature | -40℃~+85℃ |
| Frequency Stability频率稳定度 | - | 脚位Termination： |
  4pad
|
| frequencytolerance频率容差 | 10PP | 封装类型PackageType： |
   4-SMD
|
| Loadcapacitance 负载电容 | 8PF | 最小包装数MPQ： |
 3000
|
ABM12-116-26.000MHZ-T3,Abracon品牌晶振,ABM12晶振
ABM12-116-26.000MHZ-T3,Abracon品牌晶振,ABM12晶振
