NKG晶振,S2M48.0000F20M2Z-EXT,2520mm晶振,6G路由器晶振
频率：48MHZ
尺寸：2.5×2.0×0.5mm
NKG晶振,S2M48.0000F20M2Z-EXT,2520mm晶振,6G路由器晶振,NKG晶振,进口晶振,S2M无源晶振,贴片晶振,S2M48.0000F20M2Z-EXT晶振,2520mm晶振,四脚封装晶振,石英晶体谐振器,SMD晶振,频率48MHz,负载20pF,频率容差20ppm,工作温度-40~85°C,抗震动晶振,高可靠性晶振,低老化晶振,6G路由器晶振,网络交换机晶振,千兆以太网晶振,数字设备晶振.
NKG晶振,S2M48.0000F20M2Z-EXT,2520mm晶振,6G路由器晶振,NKG晶振,进口晶振,S2M无源晶振,贴片晶振,S2M48.0000F20M2Z-EXT晶振,2520mm晶振,四脚封装晶振,石英晶体谐振器,SMD晶振,频率48MHz,负载20pF,频率容差20ppm,工作温度-40~85°C,抗震动晶振,高可靠性晶振,低老化晶振,6G路由器晶振,网络交换机晶振,千兆以太网晶振,数字设备晶振.
NKG晶振,S2M48.0000F20M2Z-EXT,2520mm晶振,6G路由器晶振特点：

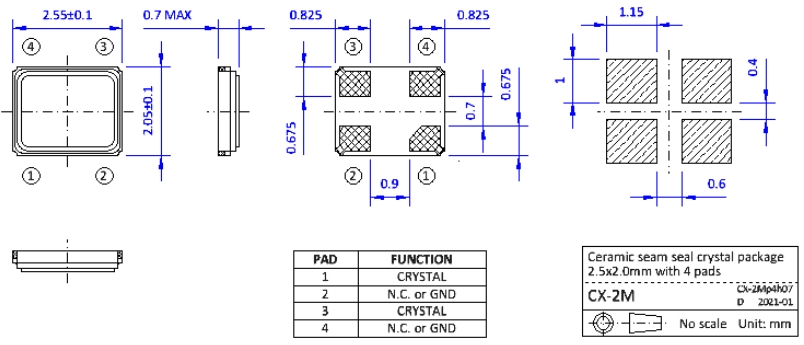

●微型包装尺寸2.5 x 2.0x 0.5mm与4个垫
●优异的耐热性和抗震性
●真空密封，可靠性高，老化率低
●符合AEC-Q200标准的汽车级产品可供选择

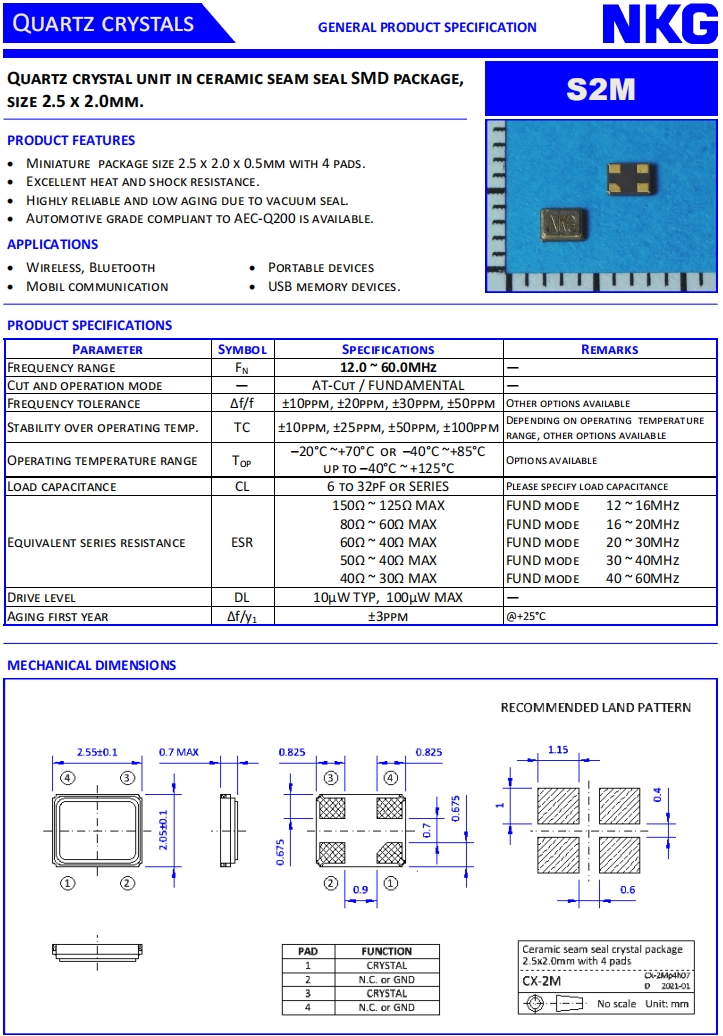

NKG晶振,S2M48.0000F20M2Z-EXT,2520mm晶振,6G路由器晶振规格表
Parameter
Symbol
Specifications
Remarks
Frequency range
FN
48MHz
-
Cut and operation mode
-
FUNDAMENTAL
-
Frequency tolerance
Δf/f
±20ppm
Other options available
Stability over operating temp.
TC
±25ppm
Depending on operating temperature range, other options available
Operating temperature range
TOP
–40°C ~+85°C
Options available
Load capacitance
CL
20pF
Please specify load capacitance
Equivalent series resistance
ESR
40Ω~30Ω MAX
FUND MODE 40~ 60MHz
Drive level
DL
10µW TYP, 100µW MAX
-
Aging first year
Δf/y1
±3ppm
@+25°C
