TX3-J25KP05-25.000M-TR,Transko高性能晶振,TX3温补晶振,5032晶振

频率：25.000M

尺寸：5032 mm

TX3-J25KP05-25.000M-TR,Transko高性能晶振,TX3温补晶振,5032晶振,作为Transko旗下TX3系列的高性能温补晶振,TX3-J25KP05-25.000M-TR承载了品牌30余年频率控制领域的技术沉淀.该晶振不仅通过ISO9001质量认证,更以25.000MHz标称频率为核心输出,搭配5032(5.0mm×3.2mm)贴片封装,在保证高精度频率信号的同时,满足小型化电子设备的空间需求,是Transko针对无线通讯,消费电子领域推出的标杆级温补晶振产品.

订购热线：0755-27837162

JLX-1

TX3-J25KP05-25.000M-TR,Transko高性能晶振,TX3温补晶振,5032晶振

TX3-J25KP05-25.000M-TR作为典型的TX3温补晶振,内置高精度温度补偿电路,可有效抵消环境温度变化对频率输出的影响.相较于普通晶振,其在-40℃至+85℃的宽温范围内,频率稳定度可控制在极低误差范围内,即使在工业级恶劣温度环境下,仍能保持25.000MHz频率的精准输出,为蓝牙模块,无线通讯设备等对频率稳定性要求严苛的场景提供可靠保障.

JLX-2

TX3-J25KP05-25.000M-TR,Transko高性能晶振,TX3温补晶振,5032晶振

原厂型号 Original model ：	TX3-J25KP05-25.000M-TR	品牌 brand ：	Transko晶振
Manufacturer品牌	Transko晶振	Operating Temperature温度	-20 to 70°C
Series型号	TX - J	Current - Supply (Max)	-
Type 类型	TCXO	Package Height高度	1.55MM
Frequency 频率	25.000M	Termination 脚位	4 pads
输出方式 Output：	Clipped sine wave	Package Type 封装类型	4-SMD
Voltage - Supply电压	3.3V	Packaging 包装	Tape and Reel
Frequency Stability频率稳定度	±0.25 ppm	安装方式 Installation ：	Surface mount
Size / Dimension 尺寸	5.0 x 3.2 mm	最小包装数 MPQ ：	1000

JLX-3

TX3-J25KP05-25.000M-TR,Transko高性能晶振,TX3温补晶振,5032晶振

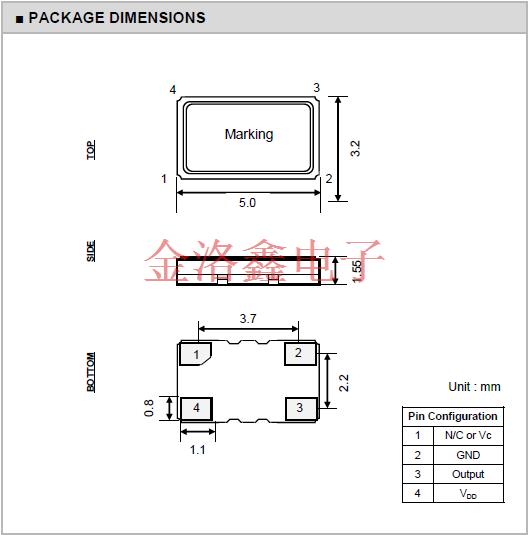

TX-J 5032 TCXO VCTCXO
