T-53A2070JXH-20.000MHz,KVG晶振,5032贴片振荡器,T-53温补晶振

当前位置：首页 » 贴片晶振 » KVG晶振 » T-53A2070JXH-20.000MHz,KVG晶振,5032贴片振荡器,T-53温补晶振

prevnext

T-53A2070JXH-20.000MHz,KVG晶振,5032贴片振荡器,T-53温补晶振

频率：20.000MHz

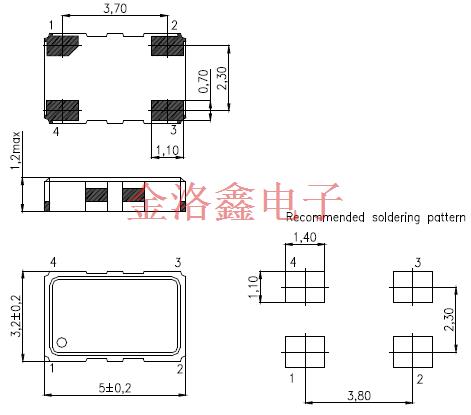

尺寸：5032mm

T-53A2070JXH-20.000MHz,KVG晶振,5032贴片振荡器,T-53温补晶振T-53A2070JXH-20.000MHz晶振,20.000MHz的频率输出如同精准的节拍器,稳定可靠,在电子设备的数据传输和信号处理过程中,始终保持高效运转,为设备的稳定运行筑牢根基,KVG晶振凭借品牌深厚的专业底蕴,5032贴片振荡器以5.0mm×3.2mm的精巧身形,轻松适配高密度电路板,T-53温补晶振则依靠温度补偿技术,在温度大幅波动时仍能坚守频率稳定,在频率精准度和稳定性上表现卓越,抗干扰能力突出,成为通信,工业控制等领域电子设备的信赖之选.

订购热线：0755-27837162

JLX-1

T-53A2070JXH-20.000MHz,KVG晶振,5032贴片振荡器,T-53温补晶振

T-53A2070JXH-20.000MHz晶振,20.000MHz频率输出稳定可靠,性能表现出色,能为各类需要稳定时钟信号的电子设备提供有力支持,在数据传输,信号处理等环节保障设备高效运转.
KVG晶振,依托品牌在晶振领域的专业积淀,兼具精准频率输出与良好稳定性,抗干扰能力强,广泛适配通信,工业控制等多个领域的电子设备,是品质与可靠性的有力保障.
5032贴片振荡器,以5032四脚贴片晶振的小巧封装设计,适配高密度电路板,便于自动化贴片安装,提升生产效率,频率稳定度佳,满足消费电子,物联网设备等的时钟需求.
T-53温补晶振,融入温度补偿技术,能在较宽温度范围内维持稳定频率输出,有效减少温度变化对设备的影响,适用于对频率精度有较高要求的工业仪器,通信终端等设备.

JLX-2

T-53A2070JXH-20.000MHz,KVG晶振,5032贴片振荡器,T-53温补晶振

原厂型号 Original model ：	T-53A2070JXH-20.000MHz	品牌 brand ：	KVG晶振
Manufacturer品牌	KVG进口晶振	Operating Temperature温度	-20 / +70 °C
Series型号	T-53	Current - Supply (Max)	-
Type 类型	TCXO	Package Height高度	1.2 mm
Frequency 频率	20.000MHz	Termination 脚位	4 pads
输出方式 Output：	HCMOS	Package Type 封装类型	4-SMD
Voltage - Supply电压	3.3V有源晶振	Packaging 包装	Tape and Reel
Frequency Stability频率稳定度	± 0.5ppm	安装方式 Installation ：	Surface mount
Size / Dimension 尺寸	5032mm	最小包装数 MPQ ：	1000

JLX-3

T-53A2070JXH-20.000MHz,KVG晶振,5032贴片振荡器,T-53温补晶振

CMR309T60.000MABJTR	Citizen	CMR309T	60 MHz	±50ppm	±30ppm
CMR309T66.666MABJTR	Citizen	CMR309T	66.666 MHz	±50ppm	±30ppm
CM309B24.576MBPKB	Citizen	CM309B	24.576 MHz	±40ppm	±50ppm
CM309S5.0000MBHJTR	Citizen	CM309S	5 MHz	±100ppm	±50ppm
CMJ145T32.768KDZFTR	Citizen	CMJ145	32.768 kHz	-	±20ppm
CS20-19.200MABJ-UT	Citizen	CS20	19.2 MHz	±50ppm	±30ppm
CM309S-4.000MAGJTR	Citizen	CM309S	4 MHz	±50ppm	±30ppm
CM51932768DZFT	Citizen	CM519	32.768 kHz	-	±20ppm
HCM49-24.0000MABUTR	Citizen	HCM49	24 MHz	±50ppm	±30ppm
HCM49-3.6864MAMKB	Citizen	HCM49	3.6864 MHz	±60ppm	±30ppm
HC49US-30.000MABJ	Citizen	HC49US	30 MHz	±50ppm	±30ppm
CFS308-32.768KDZF-UB	Citizen	CFS308	32.768 kHz	-	±20ppm
CSA310-3.579545MABJ-UB	Citizen	CSA310	3.579545 MHz	±50ppm	±30ppm
CSA310-3.6864MABJ-UB	Citizen	CSA310	3.6864 MHz	±50ppm	±30ppm
CSA310-4.000MABJ-UB	Citizen	CSA310	4 MHz	±50ppm	±30ppm
CFV206 153.600KAZF-UB	Citizen	CFV-206	153.6 kHz	-	±30ppm
CSA309-4.096MABJ-UB	Citizen	CSA309	4.096 MHz	±50ppm	±30ppm
CSA309-4.800MABJ-UB	Citizen	CSA309	4.8 MHz	±50ppm	±30ppm
CSA309-4.9152MABJ-UB	Citizen	CSA309	4.9152 MHz	±50ppm	±30ppm
CSA309-5.120MABJ-UB	Citizen	CSA309	5.12 MHz	±50ppm	±30ppm
CSA309-5.5296MABJ-UB	Citizen	CSA309	5.5296 MHz	±50ppm	±30ppm
CSA309-6.000MABJ-UB	Citizen	CSA309	6 MHz	±50ppm	±30ppm
CSA309-6.144MABJ-UB	Citizen	CSA309	6.144 MHz	±50ppm	±30ppm
CSA309-7.3728MABJ-UB	Citizen	CSA309	7.3728 MHz	±50ppm	±30ppm
CSA309-7.680MABJ-UB	Citizen	CSA309	7.68 MHz	±50ppm	±30ppm
CSA309-8.000MABJ-UB	Citizen	CSA309	8 MHz	±50ppm	±30ppm
CSA309-8.192MABJ-UB	Citizen	CSA309	8.192 MHz	±50ppm	±30ppm
CSA309-9.216MABJ-UB	Citizen	CSA309	9.216 MHz	±50ppm	±30ppm
CSA309-9.600MABJ-UB	Citizen	CSA309	9.6 MHz	±50ppm	±30ppm
CSA309-9.8304MABJ-UB	Citizen	CSA309	9.8304 MHz	±50ppm	±30ppm
CSA309-10.000MABJ-UB	Citizen	CSA309	10 MHz	±50ppm	±30ppm
CSA309-10.240MABJ-UB	Citizen	CSA309	10.24 MHz	±50ppm	±30ppm
CSA309-11.0592MABJ-UB	Citizen	CSA309	11.0592 MHz	±50ppm	±30ppm
CSA309-11.2896MABJ-UB	Citizen	CSA309	11.2896 MHz	±50ppm	±30ppm
CSA309-12.000MABJ-UB	Citizen	CSA309	12 MHz	±50ppm	±30ppm
CSA309-12.288MABJ-UB	Citizen	CSA309	12.288 MHz	±50ppm	±30ppm
CSA309-12.500MABJ-UB	Citizen	CSA309	12.5 MHz	±50ppm	±30ppm
CSA309-13.500MABJ-UB	Citizen	CSA309	13.5 MHz	±50ppm	±30ppm
CSA309-14.31818MABJ-UB	Citizen	CSA309	14.31818 MHz	±50ppm	±30ppm
CSA309-14.7456MABJ-UB	Citizen	CSA309	14.7456 MHz	±50ppm	±30ppm
CSA309-16.000MABJ-UB	Citizen	CSA309	16 MHz	±50ppm	±30ppm
CSA309-16.000312MABJ-UB	Citizen	CSA309	16.000312 MHz	±50ppm	±30ppm
CSA309-16.384MABJ-UB	Citizen	CSA309	16.384 MHz	±50ppm	±30ppm
CSA309-16.667MABJ-UB	Citizen	CSA309	16.667 MHz	±50ppm	±30ppm
CSA309-16.9344MABJ-UB	Citizen	CSA309	16.9344 MHz	±50ppm	±30ppm
CSA309-18.000MABJ-UB	Citizen	CSA309	18 MHz	±50ppm	±30ppm
CSA309-18.432MABJ-UB	Citizen	CSA309	18.432 MHz	±50ppm	±30ppm
CSA309-20.000MABJ-UB	Citizen	CSA309	20 MHz	±50ppm	±30ppm
CSA309-20.480MABJ-UB	Citizen	CSA309	20.48 MHz	±50ppm	±30ppm
CSA309-22.1184MABJ-UB	Citizen	CSA309	22.1184 MHz	±50ppm	±30ppm
CSA309-24.000MABJ-UB	Citizen	CSA309	24 MHz	±50ppm	±30ppm
CSA309-24.576MABJ-UB	Citizen	CSA309	24.576 MHz	±50ppm	±30ppm
CSA309-25.000MABJ-UB	Citizen	CSA309	25 MHz	±50ppm	±30ppm
CSA309-27.000MABJ-UB	Citizen	CSA309	27 MHz	±50ppm	±30ppm
CSA309-28.000MABJ-UB	Citizen	CSA309	28 MHz	±50ppm	±30ppm
CSA309-28.322MABJ-UB	Citizen	CSA309	28.322 MHz	±50ppm	±30ppm
CSA309-28.63636MABJ-UB	Citizen	CSA309	28.63636 MHz	±50ppm	±30ppm
CSA309-29.4912MABJ-UB	Citizen	CSA309	29.4912 MHz	±50ppm	±30ppm
CSA309-30.000MABJ-UB	Citizen	CSA309	30 MHz	±50ppm	±30ppm
CSA309-32.000MABJ-UB	Citizen	CSA309	32 MHz	±50ppm	±30ppm
