CTS晶振,LP24CF35IDT,HC-49US贴片晶振,6G微处理器晶振

频率：24.576MHZ

尺寸：11.1mm x 4.83mm

CTS晶振,LP24CF35IDT,HC-49US贴片晶振,6G微处理器晶振,CTS晶振,ATSSMLP无源晶振,LP24CF35IDT晶振,HC-49US贴片晶振,石英晶体谐振器,频率24.576MHz,负载18pF,频率稳定性50ppm,工作温度-40~85°C,无铅环保晶振,低老化晶振,6G微处理器晶振,网络应用晶振,便携式设备晶振,数码相机晶振.

订购热线：0755-27837162

CTS晶振,LP24CF35IDT,HC-49US贴片晶振,6G微处理器晶振,CTS晶振,ATSSMLP无源晶振,LP24CF35IDT晶振,HC-49US贴片晶振,石英晶体谐振器,频率24.576MHz,负载18pF,频率稳定性50ppm,工作温度-40~85°C,无铅环保晶振,低老化晶振,6G微处理器晶振,网络应用晶振,便携式设备晶振,数码相机晶振.

CTS晶振,LP24CF35IDT,HC-49US贴片晶振,6G微处理器晶振特征

•包装高度，最大3.2mm [HC-49/US-SM封装类型]

•基本和第三泛音晶体

•稳定的频率超过温度和驱动电平

•频率范围3.2 - 64MHz

•频率公差，从±10ppm到±30ppm的选项

•频率稳定性，从±10ppm到±50ppm的选项

•工作温度，-20°C至+70°C和-40°C至+85°C标准

•胶带和卷轴包装可用

•符合RoHS/绿色标准[6/6]

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

CTS晶振,LP24CF35IDT,HC-49US贴片晶振,6G微处理器晶振参数表

项目			数值
频率			24.576MHz
操作模式			Fundamental
晶体切割			AT-Cut
工作温度			-40°C to +85°C
保存温度			-40°C to +85°C
频率公差 @ +25°C			± 30PPM
工作温度范围内的频率稳定性 ( ref. to +25°C)			± 50PPM
等效串联电阻(R1)			30 Ω
并联电容 (C0)			7.0pF Maximum
负载电容 (CL)			18pF
激励功率			1000 μW Max
老化 @ +25°C			±3ppm/yr Typical

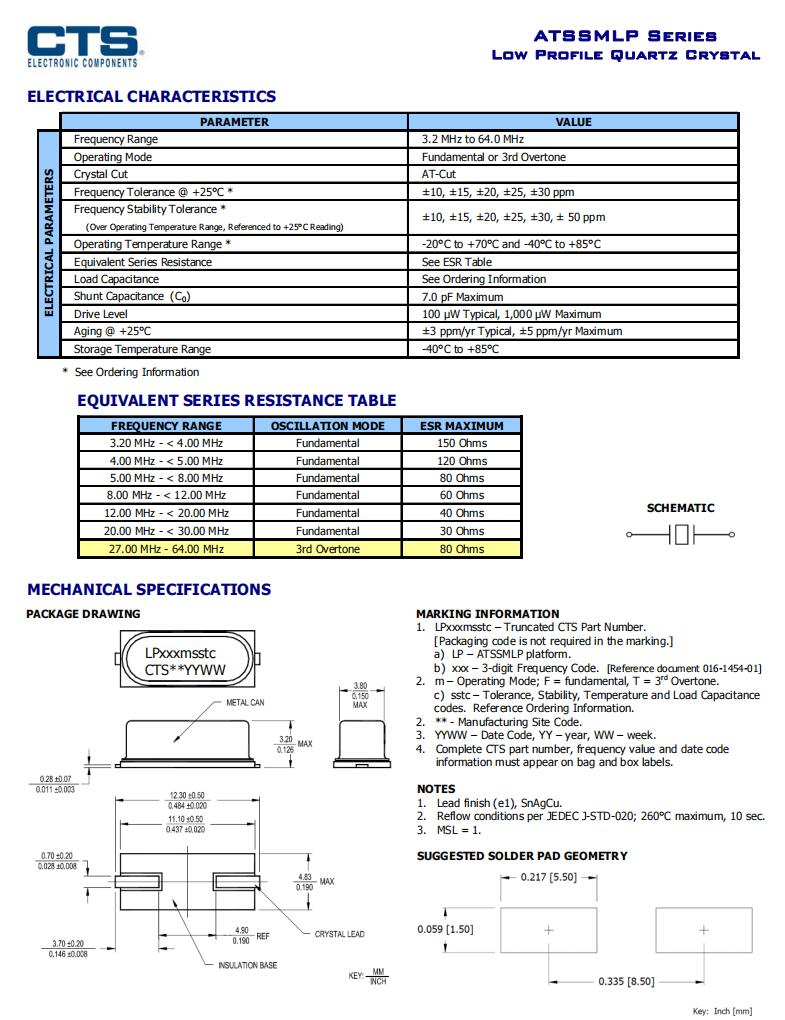

CTS晶振,LP24CF35IDT,HC-49US贴片晶振,6G微处理器晶振尺寸图

原厂编码	生产厂家	型号	频率	频率稳定度	频率偏差	负载电容	ESR电阻	工作温度
LP221F23CDT	CTS 晶振	ATSSMLP	22.1184MHz	±30ppm	±20ppm	18pF	30 Ohm	-20°C ~ 70°C
LP221F23CET	CTS 晶振	ATSSMLP	22.1184MHz	±30ppm	±20ppm	20pF	30 Ohm	-20°C ~ 70°C
LP240F35CDT	CTS 晶振	ATSSMLP	24MHz	±50ppm	±30ppm	18pF	30 Ohm	-20°C ~ 70°C
LP240F35CET	CTS 晶振	ATSSMLP	24MHz	±50ppm	±30ppm	20pF	30 Ohm	-20°C ~ 70°C
LP240F35IDT	CTS 晶振	ATSSMLP	24MHz	±50ppm	±30ppm	18pF	30 Ohm	-40°C ~ 85°C
LP240F35IET	CTS 晶振	ATSSMLP	24MHz	±50ppm	±30ppm	20pF	30 Ohm	-40°C ~ 85°C
LP24CF23CDT	CTS 晶振	ATSSMLP	24.576MHz	±30ppm	±20ppm	18pF	30 Ohm	-20°C ~ 70°C
LP24CF35CET	CTS 晶振	ATSSMLP	24.576MHz	±50ppm	±30ppm	20pF	30 Ohm	-20°C ~ 70°C
LP24CF35IDT	CTS 晶振	ATSSMLP	24.576MHz	±50ppm	±30ppm	18pF	30 Ohm	-40°C ~ 85°C
LP24CF35IET	CTS 晶振	ATSSMLP	24.576MHz	±50ppm	±30ppm	20pF	30 Ohm	-40°C ~ 85°C
LP250F23CDT	CTS 晶振	ATSSMLP	25MHz	±30ppm	±20ppm	18pF	30 Ohm	-20°C ~ 70°C
LP250F23CET	CTS 晶振	ATSSMLP	25MHz	±30ppm	±20ppm	20pF	30 Ohm	-20°C ~ 70°C
LP250F35IDT	CTS 晶振	ATSSMLP	25MHz	±50ppm	±30ppm	18pF	30 Ohm	-40°C ~ 85°C
LP250F35IET	CTS 晶振	ATSSMLP	25MHz	±50ppm	±30ppm	20pF	30 Ohm	-40°C ~ 85°C
LP260F23CDT	CTS 晶振	ATSSMLP	26MHz	±30ppm	±20ppm	18pF	30 Ohm	-20°C ~ 70°C
LP260F23CET	CTS 晶振	ATSSMLP	26MHz	±30ppm	±20ppm	20pF	30 Ohm	-20°C ~ 70°C
LP270F35CET	CTS 晶振	ATSSMLP	27MHz	±50ppm	±30ppm	20pF	30 Ohm	-20°C ~ 70°C
LP270F35IDT	CTS 晶振	ATSSMLP	27MHz	±50ppm	±30ppm	18pF	30 Ohm	-40°C ~ 85°C
LP270F35IET	CTS 晶振	ATSSMLP	27MHz	±50ppm	±30ppm	20pF	30 Ohm	-40°C ~ 85°C
LP041F23CDT	CTS 晶振	ATSSMLP	4.194304MHz	±30ppm	±20ppm	18pF	120 Ohm	-20°C ~ 70°C
LP041F23CET	CTS 晶振	ATSSMLP	4.194304MHz	±30ppm	±20ppm	20pF	120 Ohm	-20°C ~ 70°C
LP041F35IDT	CTS 晶振	ATSSMLP	4.194304MHz	±50ppm	±30ppm	18pF	120 Ohm	-40°C ~ 85°C
LP041F35IET	CTS 晶振	ATSSMLP	4.194304MHz	±50ppm	±30ppm	20pF	120 Ohm	-40°C ~ 85°C
LP049F23CDT	CTS 晶振	ATSSMLP	4.9152MHz	±30ppm	±20ppm	18pF	120 Ohm	-20°C ~ 70°C
LP049F23CET	CTS 晶振	ATSSMLP	4.9152MHz	±30ppm	±20ppm	20pF	120 Ohm	-20°C ~ 70°C
LP049F35IDT	CTS 晶振	ATSSMLP	4.9152MHz	±50ppm	±30ppm	18pF	120 Ohm	-40°C ~ 85°C
LP049F35IET	CTS 晶振	ATSSMLP	4.9152MHz	±50ppm	±30ppm	20pF	120 Ohm	-40°C ~ 85°C
LP061F23CDT	CTS 晶振	ATSSMLP	6.144MHz	±30ppm	±20ppm	18pF	80 Ohm	-20°C ~ 70°C
LP061F23CET	CTS 晶振	ATSSMLP	6.144MHz	±30ppm	±20ppm	20pF	80 Ohm	-20°C ~ 70°C
LP061F35IDT	CTS 晶振	ATSSMLP	6.144MHz	±50ppm	±30ppm	18pF	80 Ohm	-40°C ~ 85°C
LP061F35IET	CTS 晶振	ATSSMLP	6.144MHz	±50ppm	±30ppm	20pF	80 Ohm	-40°C ~ 85°C
LP073F23CDT	CTS 晶振	ATSSMLP	7.3728MHz	±30ppm	±20ppm	18pF	80 Ohm	-20°C ~ 70°C
LP073F23CET	CTS 晶振	ATSSMLP	7.3728MHz	±30ppm	±20ppm	20pF	80 Ohm	-20°C ~ 70°C
LP073F33CDT	CTS 晶振	ATSSMLP	7.3728MHz	±30ppm	±30ppm	18pF	80 Ohm	-20°C ~ 70°C
LP073F33CET	CTS 晶振	ATSSMLP	7.3728MHz	±30ppm	±30ppm	20pF	80 Ohm	-20°C ~ 70°C
LP073F35CDT	CTS 晶振	ATSSMLP	7.3728MHz	±50ppm	±30ppm	18pF	80 Ohm	-20°C ~ 70°C
LP073F35CET	CTS 晶振	ATSSMLP	7.3728MHz	±50ppm	±30ppm	20pF	80 Ohm	-20°C ~ 70°C
LP073F35IDT	CTS 晶振	ATSSMLP	7.3728MHz	±50ppm	±30ppm	18pF	80 Ohm	-40°C ~ 85°C
LP073F35IET	CTS 晶振	ATSSMLP	7.3728MHz	±50ppm	±30ppm	20pF	80 Ohm	-40°C ~ 85°C
LP081F23CDT	CTS 晶振	ATSSMLP	8.192MHz	±30ppm	±20ppm	18pF	60 Ohm	-20°C ~ 70°C
LP081F23CET	CTS 晶振	ATSSMLP	8.192MHz	±30ppm	±20ppm	20pF	60 Ohm	-20°C ~ 70°C
LP081F33CDT	CTS 晶振	ATSSMLP	8.192MHz	±30ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
LP081F33CET	CTS 晶振	ATSSMLP	8.192MHz	±30ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
LP081F35CDT	CTS 晶振	ATSSMLP	8.192MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
LP081F35CET	CTS 晶振	ATSSMLP	8.192MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
LP081F35IDT	CTS 晶振	ATSSMLP	8.192MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
LP081F35IET	CTS 晶振	ATSSMLP	8.192MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
LP098F23CDT	CTS 晶振	ATSSMLP	9.8304MHz	±30ppm	±20ppm	18pF	60 Ohm	-20°C ~ 70°C
LP098F23CET	CTS 晶振	ATSSMLP	9.8304MHz	±30ppm	±20ppm	20pF	60 Ohm	-20°C ~ 70°C
LP098F33CDT	CTS 晶振	ATSSMLP	9.8304MHz	±30ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
LP098F33CET	CTS 晶振	ATSSMLP	9.8304MHz	±30ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
LP098F35CDT	CTS 晶振	ATSSMLP	9.8304MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
LP098F35CET	CTS 晶振	ATSSMLP	9.8304MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
LP098F35IDT	CTS 晶振	ATSSMLP	9.8304MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
LP098F35IET	CTS 晶振	ATSSMLP	9.8304MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
LP100F23CDT	CTS 晶振	ATSSMLP	10MHz	±30ppm	±20ppm	18pF	60 Ohm	-20°C ~ 70°C
LP100F23CET	CTS 晶振	ATSSMLP	10MHz	±30ppm	±20ppm	20pF	60 Ohm	-20°C ~ 70°C
LP100F33CDT	CTS 晶振	ATSSMLP	10MHz	±30ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
LP100F33CET	CTS 晶振	ATSSMLP	10MHz	±30ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
LP100F35CDT	CTS 晶振	ATSSMLP	10MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
LP100F35CET	CTS 晶振	ATSSMLP	10MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
LP100F35IDT	CTS 晶振	ATSSMLP	10MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
LP100F35IET	CTS 晶振	ATSSMLP	10MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
LP111F23CDT	CTS 晶振	ATSSMLP	11.0592MHz	±30ppm	±20ppm	18pF	60 Ohm	-20°C ~ 70°C
LP111F23CET	CTS 晶振	ATSSMLP	11.0592MHz	±30ppm	±20ppm	20pF	60 Ohm	-20°C ~ 70°C
LP111F33CDT	CTS 晶振	ATSSMLP	11.0592MHz	±30ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
LP111F33CET	CTS 晶振	ATSSMLP	11.0592MHz	±30ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
LP111F35CDT	CTS 晶振	ATSSMLP	11.0592MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
LP111F35CET	CTS 晶振	ATSSMLP	11.0592MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
LP111F35IDT	CTS 晶振	ATSSMLP	11.0592MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
LP111F35IET	CTS 晶振	ATSSMLP	11.0592MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
LP120F23CDT	CTS 晶振	ATSSMLP	12MHz	±30ppm	±20ppm	18pF	40 Ohm	-20°C ~ 70°C
LP120F23CET	CTS 晶振	ATSSMLP	12MHz	±30ppm	±20ppm	20pF	40 Ohm	-20°C ~ 70°C
LP120F33CDT	CTS 晶振	ATSSMLP	12MHz	±30ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
LP120F33CET	CTS 晶振	ATSSMLP	12MHz	±30ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
LP120F35CDT	CTS 晶振	ATSSMLP	12MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
LP120F35CET	CTS 晶振	ATSSMLP	12MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
LP120F35IDT	CTS 晶振	ATSSMLP	12MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
LP120F35IET	CTS 晶振	ATSSMLP	12MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
LP122F23CDT	CTS 晶振	ATSSMLP	12.288MHz	±30ppm	±20ppm	18pF	40 Ohm	-20°C ~ 70°C
LP122F23CET	CTS 晶振	ATSSMLP	12.288MHz	±30ppm	±20ppm	20pF	40 Ohm	-20°C ~ 70°C
LP122F33CDT	CTS 晶振	ATSSMLP	12.288MHz	±30ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
LP122F33CET	CTS 晶振	ATSSMLP	12.288MHz	±30ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
LP122F35CDT	CTS 晶振	ATSSMLP	12.288MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
LP122F35CET	CTS 晶振	ATSSMLP	12.288MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
LP122F35IDT	CTS 晶振	ATSSMLP	12.288MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
LP122F35IET	CTS 晶振	ATSSMLP	12.288MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
LP130F23CDT	CTS 晶振	ATSSMLP	13MHz	±30ppm	±20ppm	18pF	40 Ohm	-20°C ~ 70°C
LP130F23CET	CTS 晶振	ATSSMLP	13MHz	±30ppm	±20ppm	20pF	40 Ohm	-20°C ~ 70°C
LP130F33CDT	CTS 晶振	ATSSMLP	13MHz	±30ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
LP130F33CET	CTS 晶振	ATSSMLP	13MHz	±30ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
LP130F35CDT	CTS 晶振	ATSSMLP	13MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
LP130F35CET	CTS 晶振	ATSSMLP	13MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
LP130F35IDT	CTS 晶振	ATSSMLP	13MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
LP130F35IET	CTS 晶振	ATSSMLP	13MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
LP143F23CDT	CTS 晶振	ATSSMLP	14.31818MHz	±30ppm	±20ppm	18pF	40 Ohm	-20°C ~ 70°C
LP143F23CET	CTS 晶振	ATSSMLP	14.31818MHz	±30ppm	±20ppm	20pF	40 Ohm	-20°C ~ 70°C
LP143F33CDT	CTS 晶振	ATSSMLP	14.31818MHz	±30ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
LP143F33CET	CTS 晶振	ATSSMLP	14.31818MHz	±30ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
LP143F35CDT	CTS 晶振	ATSSMLP	14.31818MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
LP143F35CET	CTS 晶振	ATSSMLP	14.31818MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
LP143F35IDT	CTS 晶振	ATSSMLP	14.31818MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
LP143F35IET	CTS 晶振	ATSSMLP	14.31818MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
LP147F23CDT	CTS 晶振	ATSSMLP	14.7456MHz	±30ppm	±20ppm	18pF	40 Ohm	-20°C ~ 70°C
LP147F23CET	CTS 晶振	ATSSMLP	14.7456MHz	±30ppm	±20ppm	20pF	40 Ohm	-20°C ~ 70°C
LP147F33CDT	CTS 晶振	ATSSMLP	14.7456MHz	±30ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
LP147F33CET	CTS 晶振	ATSSMLP	14.7456MHz	±30ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
LP147F35CDT	CTS 晶振	ATSSMLP	14.7456MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
LP147F35CET	CTS 晶振	ATSSMLP	14.7456MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
LP147F35IDT	CTS 晶振	ATSSMLP	14.7456MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
LP147F35IET	CTS 晶振	ATSSMLP	14.7456MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
LP150F23CDT	CTS 晶振	ATSSMLP	15MHz	±30ppm	±20ppm	18pF	40 Ohm	-20°C ~ 70°C
LP150F23CET	CTS 晶振	ATSSMLP	15MHz	±30ppm	±20ppm	20pF	40 Ohm	-20°C ~ 70°C
LP150F33CDT	CTS 晶振	ATSSMLP	15MHz	±30ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
