NKG车载多媒体晶振,S2SM进口晶振,S2SM18.0000F16M23-EXT超小型晶振
频率：18MHZ
尺寸：2016mm

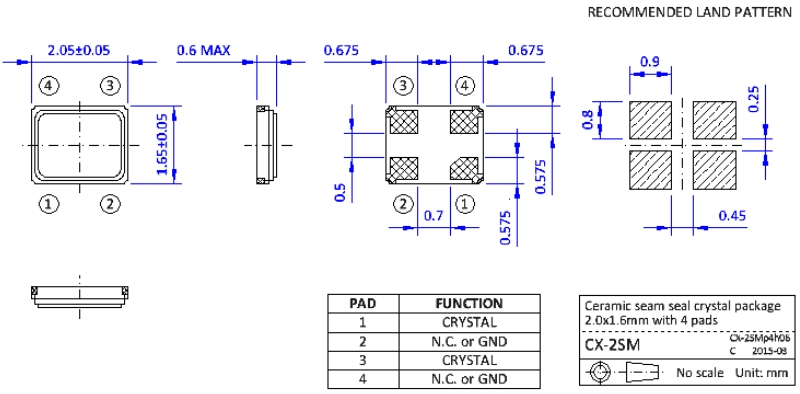

NKG车载多媒体晶振,S2SM进口晶振,S2SM18.0000F16M23-EXT超小型晶振,NKG晶振,S2SM晶振,石英晶振,无源晶振,S2SM18.0000F16M23-EXT晶振,四脚贴片晶振,石英晶体谐振器,2016mm晶振,SMD晶体,高精度晶振,轻薄小晶振,无铅环保晶振,6G无线模块晶振,笔记本电脑晶振,智能手机晶振,移动应用晶振.特点：微型包装尺寸2.0 x 1.6 x 0.5mm与4个垫,优异的耐热性和抗震性,真空密封，可靠性高，老化率低,符合AEC-Q200标准的汽车级产品可供选择
NKG车载多媒体晶振,S2SM进口晶振,S2SM18.0000F16M23-EXT超小型晶振,NKG晶振,S2SM晶振,石英晶振,无源晶振,S2SM18.0000F16M23-EXT晶振,四脚贴片晶振,石英晶体谐振器,2016mm晶振,SMD晶体,高精度晶振,轻薄小晶振,无铅环保晶振,6G无线模块晶振,笔记本电脑晶振,智能手机晶振,移动应用晶振.特点：微型包装尺寸2.0 x 1.6 x 0.5mm与4个垫,优异的耐热性和抗震性,真空密封，可靠性高，老化率低,符合AEC-Q200标准的汽车级产品可供选择
NKG车载多媒体晶振,S2SM进口晶振,S2SM18.0000F16M23-EXT超小型晶振

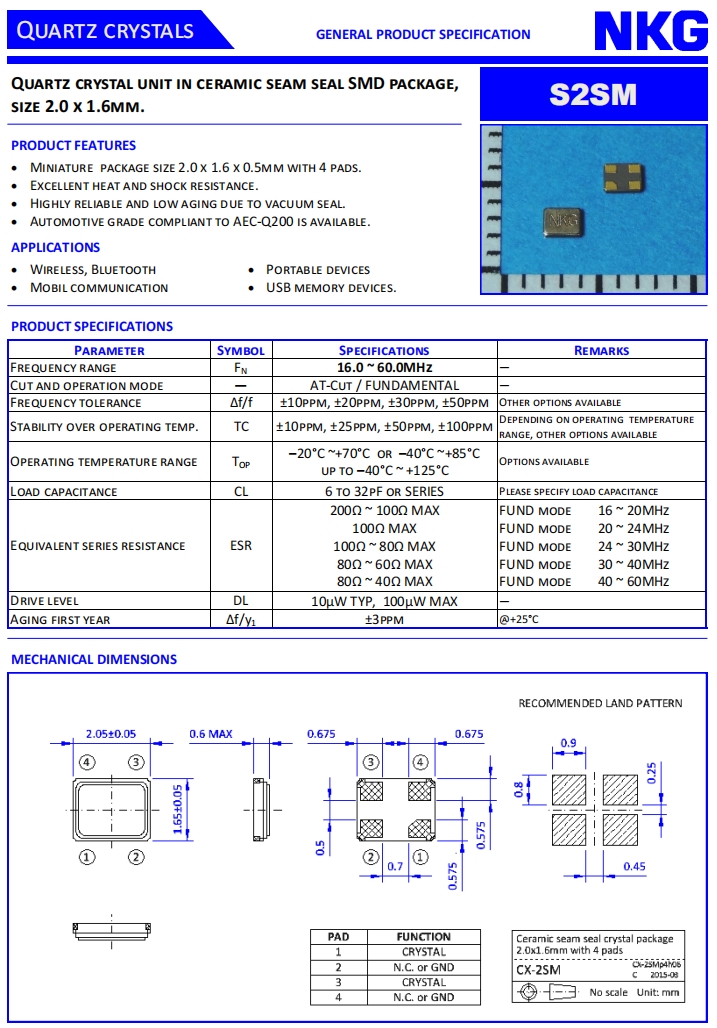

Parameter
Symbol
Specifications
Remarks
Frequency range
FN
20MHz
-
Cut and operation mode
-
FUNDAMENTAL
-
Frequency tolerance
Δf/f
±20ppm
Other options available
Stability over operating temp.
TC
±30ppm
Depending on operating temperature range, other options available
Operating temperature range
TOP
–40°C ~+85°C
Options available
Load capacitance
CL
16pF
Please specify load capacitance
Equivalent series resistance
ESR
100Ω MAX
FUND MODE 20~ 24MHz
Drive level
DL
10µW TYP, 100µW MAX
-
Aging first year
Δf/y1
±3ppm
@+25°C
