M12532JM 27.000000,MtronPTI超小型晶振,3225mm谐振器

频率：27MHz

尺寸：3.2x2.5mm

M12532JM 27.000000,MtronPTI超小型晶振,3225mm谐振器，美国MtronPTI晶振，麦特伦皮晶振，型号：M1253系列晶振，编码为：M12532JM 27.000000谐振器，频率：27MHz，频率稳定性：±50ppm，频率容差：±30ppm，负载电容：18pF，工作温度范围：-40℃至+85℃，小体积晶振尺寸：3.2x2.5mm封装，四脚贴片晶振，无源晶振，石英晶振，3225晶振，石英晶体谐振器，SMD晶振，具有超小型，轻薄型，高品质晶振，高性能，高质量等特点。进口晶振应用于：手持式电子设备，汽车电子晶振，便携式仪器，无线蓝牙晶振，智能家居等应用。

订购热线：0755-27837162

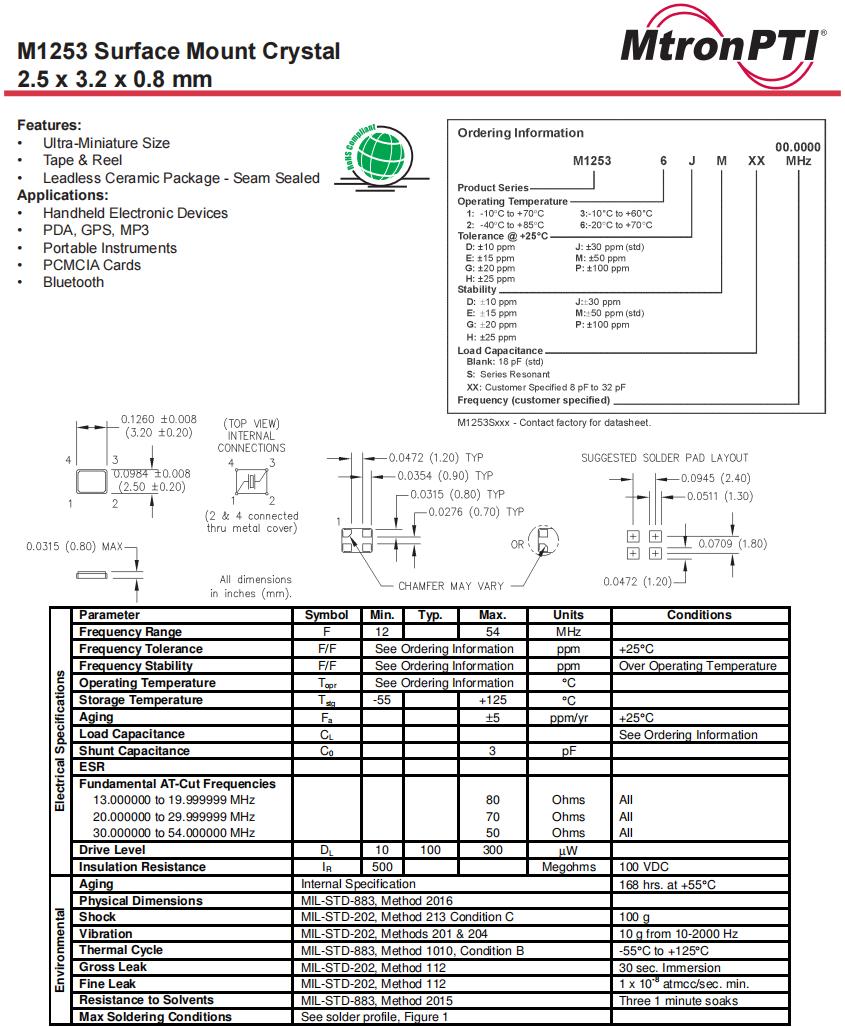

M12532JM 27.000000,MtronPTI超小型晶振,3225mm谐振器,参数表

品牌	MtronPTI麦特伦皮晶振
型号	M1253
物料编码	M12532JM 27.000000
频率	27MHz
频率稳定性	±50ppm
频率容差	±30ppm
负载电容	18pF
工作温度	-40℃至+85℃
尺寸	3.2x2.5mm

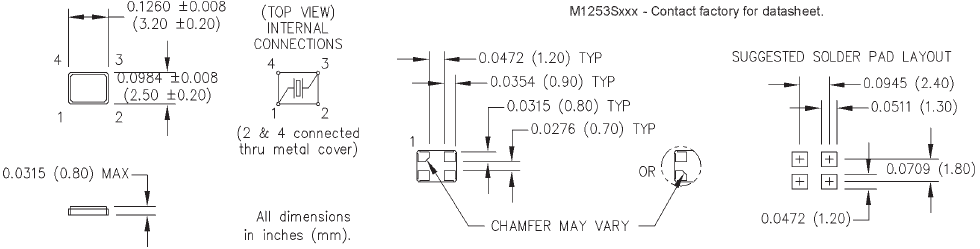

M12532JM 27.000000,MtronPTI超小型晶振,3225mm谐振器,尺寸图

产品编码	型号	频率	包装	频率稳定性	频率容差
M12532HH 30.000000	M1253	30MHz	2.5 x 3.2 mm	±25 ppm	±25 ppm
M12532HH 50.000000	M1253	50MHz	2.5 x 3.2 mm	±25 ppm	±25 ppm
M12532JJ 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M12532JJ 27.000000	M1253	27MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M12532JJ08 16.384000	M1253	16.384MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M12532JJ08 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M12532JJ09 50.000000	M1253	50MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M12532JM 15.360000	M1253	15.36MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12532JM 27.000000	M1253	27MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12532JM 29.491200	M1253	29.4912MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12532JM 40.000000	M1253	40MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12532JM20 25.000000	M1253	25MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12536GJ 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm	±20 ppm
M12536JM 24.000000	石英晶体	24MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12536JM 25.000000	M1253	25MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12536JM 50.000000	M1253	50MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M1253S072 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm	±30 ppm
M1253S107 52.000000	M1253	52MHz	2.5 x 3.2 mm	±15 ppm	±10 ppm
M1253S108 24.000000	M1253	24MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M1253S116 16.000000	M1253	16MHz	2.5 x 3.2 mm	±10 ppm, ±15 ppm	±10 ppm
M1253S162 24.000000	M1253	24MHz	2.5 x 3.2 mm	±15 ppm	±15 ppm
M1253S164 48.000000	M1253	48MHz	2.5 x 3.2 mm	±10 ppm	±10 ppm
M1253S204 25.000000	M1253	25MHz	2.5 x 3.2 mm	±100 ppm	±50 ppm
M1253S207 20.736000	M1253	20.736MHz	2.5 x 3.2 mm	±10 ppm	±10 ppm
M1253S208 26.000000	M1253	26MHz	2.5 x 3.2 mm	±9 ppm	±10 ppm
M1253S211 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm	±20 ppm
M1253S218 48.000000	M1253	48MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M1253S219 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm	±20 ppm
M1253S220 48.000000	M1253	48MHz	2.5 x 3.2 mm	±15 ppm	±10 ppm
M1253S224 32.000000	M1253	32MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M1253S225 26.000000	M1253	26MHz	2.5 x 3.2 mm	±10 ppm	±10 ppm
M1253S226 12.000000	M1253	12MHz	2.5 x 3.2 mm	±20 ppm	±20 ppm
M1253S227 25.000000	M1253	25MHz	2.5 x 3.2 mm	±25 ppm	±10 ppm
M1253S229 48.000000	M1253	48MHz	2.5 x 3.2 mm	±30 ppm	±20 ppm
M1253S230 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
