CTS晶振,ATSSM4P晶振,4P098F35IDT,6G微处理器晶振

频率：9.8304MHZ

尺寸：13.0mm x 4.95mm

CTS晶振,ATSSM4P晶振,4P098F35IDT,6G微处理器晶振,美国CTS晶振,ATSSM4P无源晶振,4P098F35IDT晶振,石英晶体谐振器,进口SMD晶振,频率9.8304MHz,负载18pF,频率稳定性30ppm,工作温度-40~85°C,无铅环保晶振,低老化晶振,6G微处理器晶振,网络应用晶振,消费电子产品晶振,无线通信晶振.

订购热线：0755-27837162

CTS晶振,ATSSM4P晶振,4P098F35IDT,6G微处理器晶振,美国CTS晶振,ATSSM4P无源晶振,4P098F35IDT晶振,石英晶体谐振器,进口SMD晶振,频率9.8304MHz,负载18pF,频率稳定性30ppm,工作温度-40~85°C,无铅环保晶振,低老化晶振,6G微处理器晶振,网络应用晶振,消费电子产品晶振,无线通信晶振.

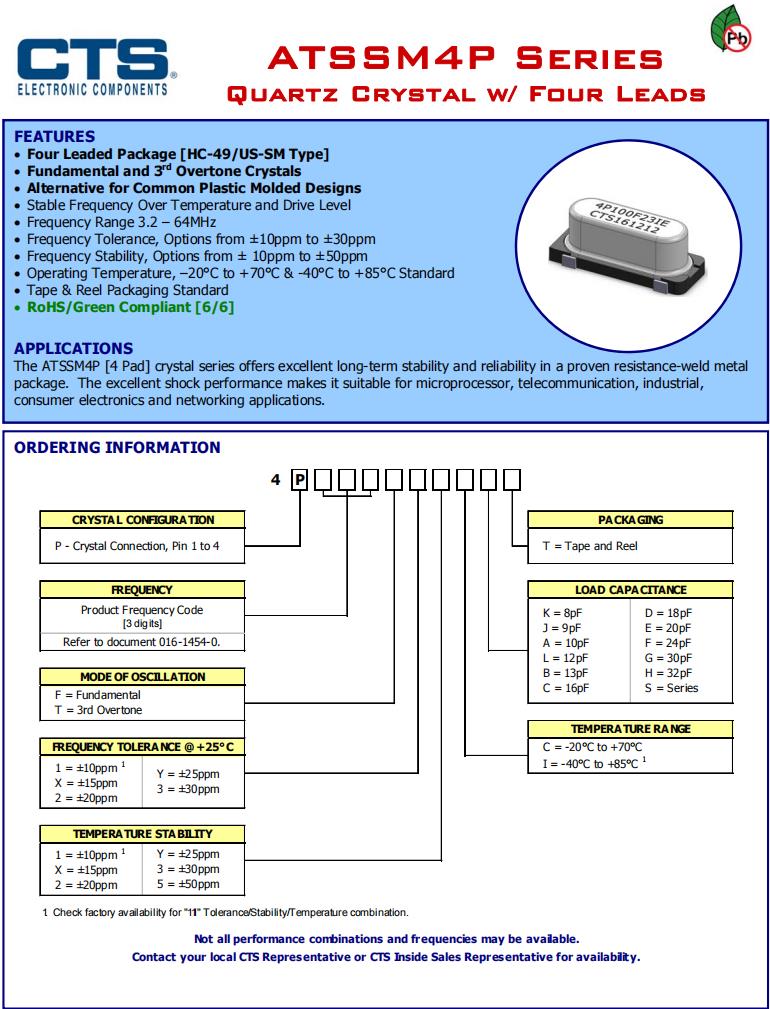

CTS晶振,ATSSM4P晶振,4P098F35IDT,6G微处理器晶振特征

•四脚封装[HC-49/US-SM型]

•基本和第三泛音晶体

•常见塑料模塑设计的替代方案

•稳定的频率过温和驱动电平

•频率范围3.2 - 64MHz

•频率公差，从±10ppm到±30ppm的选项

•频率稳定性，从±10ppm到±50ppm的选项

•工作温度，-20°C至+70°C和-40°C至+85°C标准

•胶带和卷轴包装可用

•符合RoHS/绿色标准[6/6]

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

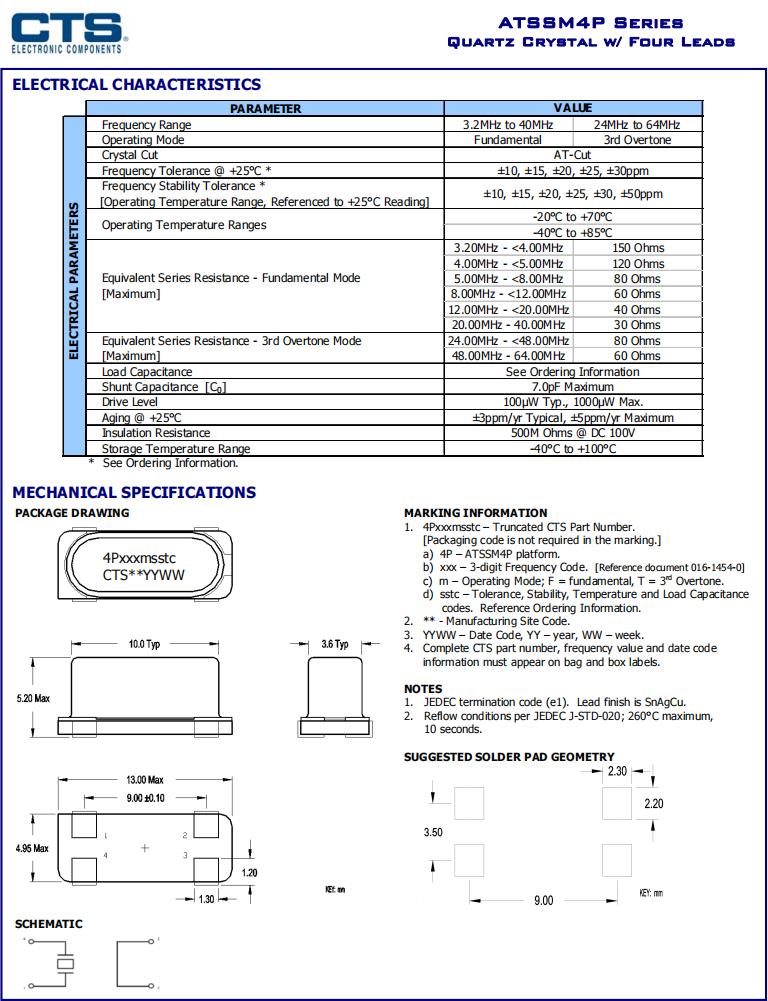

CTS晶振,ATSSM4P晶振,4P098F35IDT,6G微处理器晶振参数表

项目			数值
频率			9.8304MHz
操作模式			Fundamental
晶体切割			AT-Cut
工作温度			-40°C to +85°C
保存温度			-40°C to +100°C
频率公差 @ +25°C			± 30PPM
工作温度范围内的频率稳定性 ( ref. to +25°C)			± 50PPM
等效串联电阻(R1)			60 Ω
并联电容 (C0)			7.0pF Maximum
负载电容 (CL)			18pF
激励功率			1000 μW Max
老化 @ +25°C			±3ppm/yr Typical
绝缘电阻			500 Ohms @ DC 100V

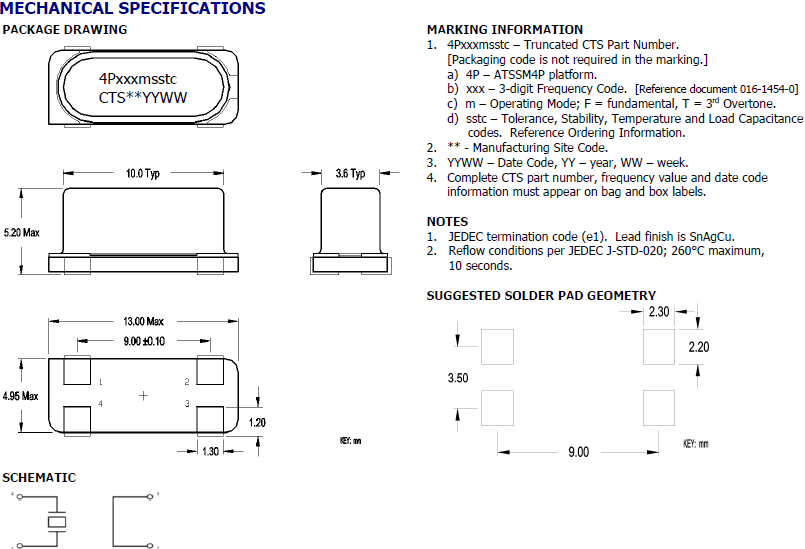

CTS晶振,ATSSM4P晶振,4P098F35IDT,6G微处理器晶振尺寸图

原厂编码	生产厂家	型号	频率	频率稳定度	频率偏差	负载电容	ESR电阻	工作温度
4P036F35CDT	CTS晶振	ATSSM4P	3.579545MHz	±50ppm	±30ppm	18pF	150 Ohm	-20°C ~ 70°C
4P036F35CET	CTS晶振	ATSSM4P	3.579545MHz	±50ppm	±30ppm	20pF	150 Ohm	-20°C ~ 70°C
4P036F35IST	CTS晶振	ATSSM4P	3.579545MHz	±50ppm	±30ppm	Series	150 Ohm	-40°C ~ 85°C
4P037F35CDT	CTS晶振	ATSSM4P	3.6864MHz	±50ppm	±30ppm	18pF	150 Ohm	-20°C ~ 70°C
4P037F35CET	CTS晶振	ATSSM4P	3.6864MHz	±50ppm	±30ppm	20pF	150 Ohm	-20°C ~ 70°C
4P037F35CST	CTS晶振	ATSSM4P	3.6864MHz	±50ppm	±30ppm	Series	150 Ohm	-20°C ~ 70°C
4P040F35IDT	CTS晶振	ATSSM4P	4MHz	±50ppm	±30ppm	18pF	120 Ohm	-40°C ~ 85°C
4P040F35IET	CTS晶振	ATSSM4P	4MHz	±50ppm	±30ppm	20pF	120 Ohm	-40°C ~ 85°C
4P040F35IST	CTS晶振	ATSSM4P	4MHz	±50ppm	±30ppm	Series	120 Ohm	-40°C ~ 85°C
4P049F35CDT	CTS晶振	ATSSM4P	4.9152MHz	±50ppm	±30ppm	18pF	120 Ohm	-20°C ~ 70°C
4P049F35CET	CTS晶振	ATSSM4P	4.9152MHz	±50ppm	±30ppm	20pF	120 Ohm	-20°C ~ 70°C
4P049F35CST	CTS晶振	ATSSM4P	4.9152MHz	±50ppm	±30ppm	Series	120 Ohm	-20°C ~ 70°C
4P050F35IDT	CTS晶振	ATSSM4P	5MHz	±50ppm	±30ppm	18pF	80 Ohm	-40°C ~ 85°C
4P050F35IET	CTS晶振	ATSSM4P	5MHz	±50ppm	±30ppm	20pF	80 Ohm	-40°C ~ 85°C
4P050F35IST	CTS晶振	ATSSM4P	5MHz	±50ppm	±30ppm	Series	80 Ohm	-40°C ~ 85°C
4P060F35CDT	CTS晶振	ATSSM4P	6MHz	±50ppm	±30ppm	18pF	80 Ohm	-20°C ~ 70°C
4P060F35CET	CTS晶振	ATSSM4P	6MHz	±50ppm	±30ppm	20pF	80 Ohm	-20°C ~ 70°C
4P060F35CHT	CTS晶振	ATSSM4P	6MHz	±50ppm	±30ppm	32pF	80 Ohm	-20°C ~ 70°C
4P073F35IDT	CTS晶振	ATSSM4P	7.3728MHz	±50ppm	±30ppm	18pF	80 Ohm	-40°C ~ 85°C
4P073F35IET	CTS晶振	ATSSM4P	7.3728MHz	±50ppm	±30ppm	20pF	80 Ohm	-40°C ~ 85°C
4P073F35IST	CTS晶振	ATSSM4P	7.3728MHz	±50ppm	±30ppm	Series	80 Ohm	-40°C ~ 85°C
4P080F35CCT	CTS晶振	ATSSM4P	8MHz	±50ppm	±30ppm	16pF	60 Ohm	-20°C ~ 70°C
4P080F35CDT	CTS晶振	ATSSM4P	8MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
4P080F35CET	CTS晶振	ATSSM4P	8MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
4P098F35IDT	CTS晶振	ATSSM4P	9.8304MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
4P098F35IET	CTS晶振	ATSSM4P	9.8304MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
4P098F35IST	CTS晶振	ATSSM4P	9.8304MHz	±50ppm	±30ppm	Series	60 Ohm	-40°C ~ 85°C
4P100F35CDT	CTS晶振	ATSSM4P	10MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
4P100F35CET	CTS晶振	ATSSM4P	10MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
4P100F35CST	CTS晶振	ATSSM4P	10MHz	±50ppm	±30ppm	Series	60 Ohm	-20°C ~ 70°C
4P100F35IDT	CTS晶振	ATSSM4P	10MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
4P100F35IET	CTS晶振	ATSSM4P	10MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
4P100F35IST	CTS晶振	ATSSM4P	10MHz	±50ppm	±30ppm	Series	60 Ohm	-40°C ~ 85°C
4P111F35CDT	CTS晶振	ATSSM4P	11.0592MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
4P111F35CET	CTS晶振	ATSSM4P	11.0592MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
4P111F35CST	CTS晶振	ATSSM4P	11.0592MHz	±50ppm	±30ppm	Series	60 Ohm	-20°C ~ 70°C
4P111F35IDT	CTS晶振	ATSSM4P	11.0592MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
4P111F35IET	CTS晶振	ATSSM4P	11.0592MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
4P111F35IST	CTS晶振	ATSSM4P	11.0592MHz	±50ppm	±30ppm	Series	60 Ohm	-40°C ~ 85°C
4P120F35CDT	CTS晶振	ATSSM4P	12MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
4P120F35CET	CTS晶振	ATSSM4P	12MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
4P120F35CHT	CTS晶振	ATSSM4P	12MHz	±50ppm	±30ppm	32pF	40 Ohm	-20°C ~ 70°C
4P120F35CST	CTS晶振	ATSSM4P	12MHz	±50ppm	±30ppm	Series	40 Ohm	-20°C ~ 70°C
4P120F35IDT	CTS晶振	ATSSM4P	12MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
4P120F35IET	CTS晶振	ATSSM4P	12MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
4P120F35IHT	CTS晶振	ATSSM4P	12MHz	±50ppm	±30ppm	32pF	40 Ohm	-40°C ~ 85°C
4P120F35IST	CTS晶振	ATSSM4P	12MHz	±50ppm	±30ppm	Series	40 Ohm	-40°C ~ 85°C
4P122F35CDT	CTS晶振	ATSSM4P	12.288MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
4P122F35CET	CTS晶振	ATSSM4P	12.288MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
4P122F35CST	CTS晶振	ATSSM4P	12.288MHz	±50ppm	±30ppm	Series	40 Ohm	-20°C ~ 70°C
4P122F35IDT	CTS晶振	ATSSM4P	12.288MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
4P122F35IET	CTS晶振	ATSSM4P	12.288MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
4P122F35IST	CTS晶振	ATSSM4P	12.288MHz	±50ppm	±30ppm	Series	40 Ohm	-40°C ~ 85°C
4P143F35CDT	CTS晶振	ATSSM4P	14.31818MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
4P143F35CET	CTS晶振	ATSSM4P	14.31818MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
4P143F35CST	CTS晶振	ATSSM4P	14.31818MHz	±50ppm	±30ppm	Series	40 Ohm	-20°C ~ 70°C
4P143F35IDT	CTS晶振	ATSSM4P	14.31818MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
4P143F35IET	CTS晶振	ATSSM4P	14.31818MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
4P143F35IST	CTS晶振	ATSSM4P	14.31818MHz	±50ppm	±30ppm	Series	40 Ohm	-40°C ~ 85°C
4P147F35CDT	CTS晶振	ATSSM4P	14.7456MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
4P147F35CET	CTS晶振	ATSSM4P	14.7456MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
4P147F35CST	CTS晶振	ATSSM4P	14.7456MHz	±50ppm	±30ppm	Series	40 Ohm	-20°C ~ 70°C
4P147F35IDT	CTS晶振	ATSSM4P	14.7456MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
4P147F35IET	CTS晶振	ATSSM4P	14.7456MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
4P147F35IST	CTS晶振	ATSSM4P	14.7456MHz	±50ppm	±30ppm	Series	40 Ohm	-40°C ~ 85°C
4P160F35CDT	CTS晶振	ATSSM4P	16MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
4P160F35CET	CTS晶振	ATSSM4P	16MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
4P160F35CST	CTS晶振	ATSSM4P	16MHz	±50ppm	±30ppm	Series	40 Ohm	-20°C ~ 70°C
4P160F35IDT	CTS晶振	ATSSM4P	16MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
4P160F35IET	CTS晶振	ATSSM4P	16MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
4P160F35IST	CTS晶振	ATSSM4P	16MHz	±50ppm	±30ppm	Series	40 Ohm	-40°C ~ 85°C
4P184F35CDT	CTS晶振	ATSSM4P	18.432MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
4P184F35CET	CTS晶振	ATSSM4P	18.432MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
4P184F35CST	CTS晶振	ATSSM4P	18.432MHz	±50ppm	±30ppm	Series	40 Ohm	-20°C ~ 70°C
4P184F35IDT	CTS晶振	ATSSM4P	18.432MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
4P184F35IET	CTS晶振	ATSSM4P	18.432MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
4P184F35IST	CTS晶振	ATSSM4P	18.432MHz	±50ppm	±30ppm	Series	40 Ohm	-40°C ~ 85°C
4P200F35CDT	CTS晶振	ATSSM4P	20MHz	±50ppm	±30ppm	18pF	30 Ohm	-20°C ~ 70°C
4P200F35CET	CTS晶振	ATSSM4P	20MHz	±50ppm	±30ppm	20pF	30 Ohm	-20°C ~ 70°C
4P200F35CST	CTS晶振	ATSSM4P	20MHz	±50ppm	±30ppm	Series	30 Ohm	-20°C ~ 70°C
4P200F35IDT	CTS晶振	ATSSM4P	20MHz	±50ppm	±30ppm	18pF	30 Ohm	-40°C ~ 85°C
4P200F35IET	CTS晶振	ATSSM4P	20MHz	±50ppm	±30ppm	20pF	30 Ohm	-40°C ~ 85°C
4P200F35IST	CTS晶振	ATSSM4P	20MHz	±50ppm	±30ppm	Series	30 Ohm	-40°C ~ 85°C
4P240F35CDT	CTS晶振	ATSSM4P	24MHz	±50ppm	±30ppm	18pF	30 Ohm	-20°C ~ 70°C
4P240F35CET	CTS晶振	ATSSM4P	24MHz	±50ppm	±30ppm	20pF	30 Ohm	-20°C ~ 70°C
4P240F35CST	CTS晶振	ATSSM4P	24MHz	±50ppm	±30ppm	Series	30 Ohm	-20°C ~ 70°C
4P240F35IDT	CTS晶振	ATSSM4P	24MHz	±50ppm	±30ppm	18pF	30 Ohm	-40°C ~ 85°C
4P240F35IET	CTS晶振	ATSSM4P	24MHz	±50ppm	±30ppm	20pF	30 Ohm	-40°C ~ 85°C
4P240F35IST	CTS晶振	ATSSM4P	24MHz	±50ppm	±30ppm	Series	30 Ohm	-40°C ~ 85°C
4P24MF35CDT	CTS晶振	ATSSM4P	24.7456MHz	±50ppm	±30ppm	18pF	30 Ohm	-20°C ~ 70°C
4P24MF35CET	CTS晶振	ATSSM4P	24.7456MHz	±50ppm	±30ppm	20pF	30 Ohm	-20°C ~ 70°C
4P24MF35CST	CTS晶振	ATSSM4P	24.7456MHz	±50ppm	±30ppm	Series	30 Ohm	-20°C ~ 70°C
4P24MF35IDT	CTS晶振	ATSSM4P	24.7456MHz	±50ppm	±30ppm	18pF	30 Ohm	-40°C ~ 85°C
4P24MF35IET	CTS晶振	ATSSM4P	24.7456MHz	±50ppm	±30ppm	20pF	30 Ohm	-40°C ~ 85°C
4P24MF35IST	CTS晶振	ATSSM4P	24.7456MHz	±50ppm	±30ppm	Series	30 Ohm	-40°C ~ 85°C
4P250F35CDT	CTS晶振	ATSSM4P	25MHz	±50ppm	±30ppm	18pF	30 Ohm	-20°C ~ 70°C
4P250F35CET	CTS晶振	ATSSM4P	25MHz	±50ppm	±30ppm	20pF	30 Ohm	-20°C ~ 70°C
4P250F35CST	CTS晶振	ATSSM4P	25MHz	±50ppm	±30ppm	Series	30 Ohm	-20°C ~ 70°C
4P250F35IDT	CTS晶振	ATSSM4P	25MHz	±50ppm	±30ppm	18pF	30 Ohm	-40°C ~ 85°C
4P250F35IET	CTS晶振	ATSSM4P	25MHz	±50ppm	±30ppm	20pF	30 Ohm	-40°C ~ 85°C
4P250F35IST	CTS晶振	ATSSM4P	25MHz	±50ppm	±30ppm	Series	30 Ohm	-40°C ~ 85°C
