535BB156M250DG,思佳讯贴片晶振,LVDS差分晶振,7050石英晶振

频率：156.25 MHz

尺寸：7.0mm x 5.0mm

535BB156M250DG,思佳讯贴片晶振,LVDS差分晶振,7050石英晶振,在高端路由器,智能电视盒子等消费电子设备中,535BB156M250DG晶振以156.250MHz高频输出,为设备的高速数据处理,车载多媒体晶振信号解码提供稳定时钟源.LVDS差分接口相比传统单端输出,能减少信号衰减与串扰,提升设备信号传输效率,7050封装的小巧尺寸,可灵活融入紧凑的产品内部结构,兼顾性能与设计便利性,助力消费电子产品实现轻薄化与高性能的平衡.

订购热线：0755-27837162

JLX-1

535BB156M250DG,思佳讯贴片晶振,LVDS差分晶振,7050石英晶振

535BB156M250DG晶振具备汽车电子级的环境适应性,可承受-40℃~105℃(宽温版本)的极端温度变化,同时通过振动,冲击等严苛测试,适配车载信息娱乐系统,ADAS辅助驾驶模块等应用.其LVDS差分输出能在汽车复杂的电路系统中,实现低噪声,低损耗的时钟信号传输,7050贴片晶振封装的高集成度,也为车载PCB板的小型化设计提供支持,是汽车电子领域的高性价比时钟解决方案.

JLX-2

535BB156M250DG,思佳讯贴片晶振,LVDS差分晶振,7050石英晶振

原厂型号 Originalmodel：	535BB156M250DG	品牌brand：	Skyworks晶振
Manufacturer品牌	Skyworks晶振	OperatingTemperature温度	-40°C ~ 85°C
Series型号	Si535	Current-Supply(Max)	98mA
Type类型	XO	PackageHeight高度	1.80mm
Frequency频率	156.25 MHz	Termination 脚位	6pad
输出方式 Output：	LVDS	PackageType 封装类型	6-SMD
Voltage-Supply电压	3.3V	Packaging 包装	TapeandReel
FrequencyStability频率稳定度	±20ppm	安装方式 Installation：	Surfacemount
Size/Dimension尺寸	7.00mm x 5.00mm	最小包装数MPQ：	1000

JLX-3

535BB156M250DG,思佳讯贴片晶振,LVDS差分晶振,7050石英晶振

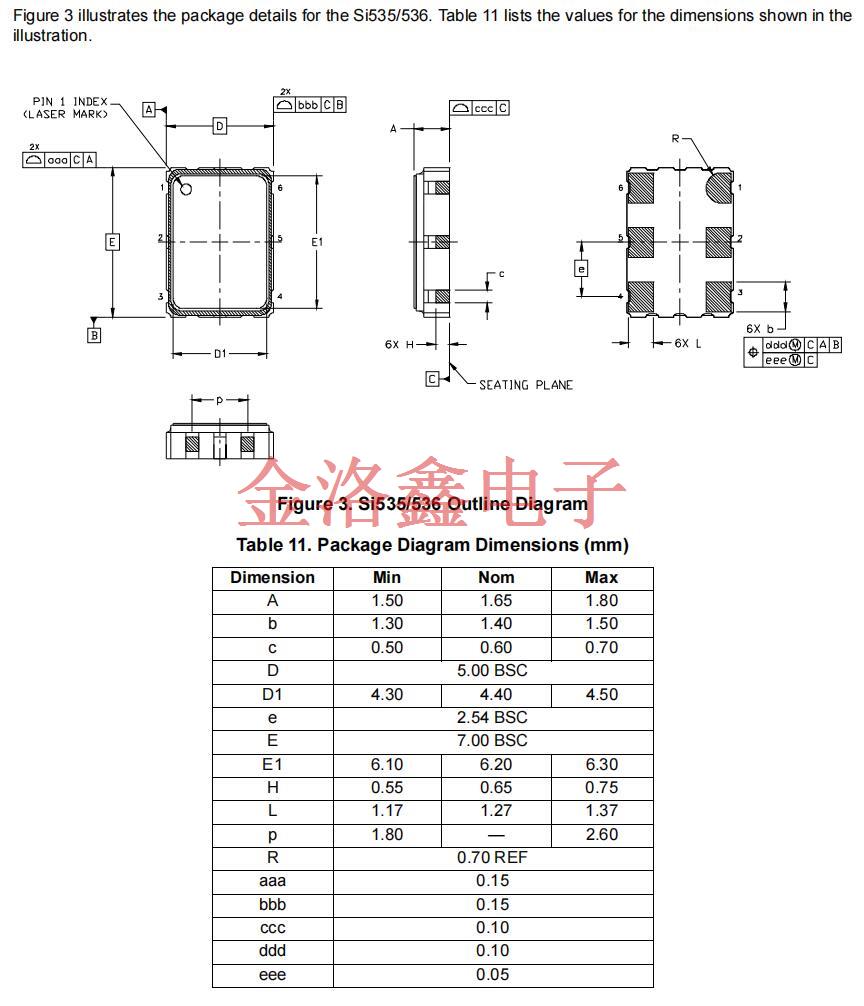

Si535-536

535BB156M250DG,思佳讯贴片晶振,LVDS差分晶振,7050石英晶振

510BBA156M250BAGR	Skyworks	Si510	XO	156.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511FBA000330BAGR	Skyworks	Si511	XO	125 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C
511BBA100M000BAG	Skyworks	Si511	XO	100 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511BBA125M000AAG	Skyworks	Si511	XO	125 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511BBA100M000AAG	Skyworks	Si511	XO	100 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511BBA200M000AAG	Skyworks	Si511	XO	200 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
530BB125M000DG	Skyworks	Si530	XO	125 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C
531BC125M000DG	Skyworks	Si531	XO	125 MHz	LVDS	3.3V	±7ppm	-40°C ~ 85°C
545BAA200M000BBG	Skyworks	Si545	XO	200 MHz	LVDS	1.8V, 2.5V, 3.3V	±20ppm	-40°C ~ 85°C
570BAB000544DG	Skyworks	Si570	XO	156.25 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C
510BBA125M000AAGR	Skyworks	Si510	XO	125 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510BBA156M250AAGR	Skyworks	Si510	XO	156.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511ABA156M250AAGR	Skyworks	Si511	XO	156.25 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C
511BBA200M000BAGR	Skyworks	Si511	XO	200 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510MCA50M0000AAGR	Skyworks	Si510	XO	50 MHz	CMOS	3.3V	±20ppm	-40°C ~ 85°C
511BCA160M000BAGR	Skyworks	Si511	XO	160 MHz	LVDS	3.3V	-	-40°C ~ 85°C
510KBA100M000BAG	Skyworks	Si510	XO	100 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
511BBA74M2500BAG	Skyworks	Si511	XO	74.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510BBA125M000BAG	Skyworks	Si510	XO	125 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511FBA125M000BAG	Skyworks	Si511	XO	125 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C
511BBA125M000BAG	Skyworks	Si511	XO	125 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510BBA100M000BAG	Skyworks	Si510	XO	100 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511FBA100M000BAG	Skyworks	Si511	XO	100 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C
510FBA125M000BAG	Skyworks	Si510	XO	125 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C
510KCA125M000BAG	Skyworks	Si510	XO	125 MHz	CMOS	1.8V	±20ppm	-40°C ~ 85°C
511BBA000110BAG	Skyworks	Si511	XO	148.35165 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511FBA156M250BAG	Skyworks	Si511	XO	156.25 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C
511BBA148M500BAG	Skyworks	Si511	XO	148.5 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511JBA125M000BAG	Skyworks	Si511	XO	125 MHz	LVDS	1.8V	±25ppm	-40°C ~ 85°C
511FBA200M000BAG	Skyworks	Si511	XO	200 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C
510BBA200M000BAG	Skyworks	Si510	XO	200 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511JBA100M000BAG	Skyworks	Si511	XO	100 MHz	LVDS	1.8V	±25ppm	-40°C ~ 85°C
511FCA25M0000BAG	Skyworks	Si511	XO	25 MHz	LVDS	2.5V	±20ppm	-40°C ~ 85°C
511FCA100M000BAG	Skyworks	Si511	XO	100 MHz	LVDS	2.5V	±20ppm	-40°C ~ 85°C
511SBA156M250BAG	Skyworks	Si511	XO	156.25 MHz	CMOS	1.8V	±50ppm	-40°C ~ 85°C
511JBA135M000BAG	Skyworks	Si511	XO	135 MHz	LVDS	1.8V	±25ppm	-40°C ~ 85°C
511JBA200M000BAG	Skyworks	Si511	XO	200 MHz	LVDS	1.8V	±25ppm	-40°C ~ 85°C
540BAA000274BBG	Skyworks	Si540	XO	322.265625 MHz	LVDS	1.8V, 2.5V, 3.3V	±20ppm	-40°C ~ 85°C
530BA125M000DG	Skyworks	Si530	XO	125 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C
531BC106M250DG	Skyworks	Si531	XO	106.25 MHz	LVDS	3.3V	±7ppm	-40°C ~ 85°C
535AC100M000DG	Skyworks	Si535	XO	100 MHz	LVPECL	3.3V	±7ppm	-40°C ~ 85°C
510CBA25M0000BAGR	Skyworks	Si510	XO	25 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
510CBA100M000BAGR	Skyworks	Si510	XO	100 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
510CBA125M000BAGR	Skyworks	Si510	XO	125 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
510CBA100M000AAGR	Skyworks	Si510	XO	100 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
510GBA25M0000BAG	Skyworks	Si510	XO	25 MHz	CMOS	2.5V	±25ppm	-40°C ~ 85°C
510KBA125M000BAGR	Skyworks	Si510	XO	125 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
511BBA106M250AAGR	Skyworks	Si511	XO	106.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510KBA28M6363BAG	Skyworks	Si510	XO	28.6363 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
511BBA106M250BAG	Skyworks	Si511	XO	106.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510KCA25M0000BAG	Skyworks	Si510	XO	25 MHz	CMOS	1.8V	±20ppm	-40°C ~ 85°C
510KCB25M0000BAG	Skyworks	Si510	XO	25 MHz	CMOS	1.8V	±20ppm	-40°C ~ 85°C
510CCA25M0000BAG	Skyworks	Si510	XO	25 MHz	CMOS	3.3V	±20ppm	-40°C ~ 85°C
510CCA100M000BAG	Skyworks	Si510	XO	100 MHz	CMOS	3.3V	±20ppm	-40°C ~ 85°C
511ABA156M250BAG	Skyworks	Si511	XO	156.25 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C
510CBA50M0000AAG	Skyworks	Si510	XO	50 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
510BBA156M250AAG	Skyworks	Si510	XO	156.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511BBA148M500AAG	Skyworks	Si511	XO	148.5 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511BBA156M250AAG	Skyworks	Si511	XO	156.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510ABA156M250AAG	Skyworks	Si510	XO	156.25 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C
