Skyworks振荡器,LVDS差分晶振,549BBAA000368BCGR,6G低抖动晶振
prevnext

Skyworks振荡器,LVDS差分晶振,549BBAA000368BCGR,6G低抖动晶振

频率：122.88MHZ

尺寸：5.0mm x 3.2mm

Skyworks振荡器,LVDS差分晶振,549BBAA000368BCGR,6G低抖动晶振,Skyworks晶振,Si549石英晶体振荡器,LVDS差分晶振,进口有源晶振,549BBAA000368BCGR晶振,5032mm晶振,频率122.88MHz,电压3.3V,工作温度-40~85°C,频率稳定性10ppm,6G低抖动晶振,高稳定性晶振,FPGA/ASIC时钟晶振,存储器晶振,搜索加速晶振,视频播放器晶振.





订购热线：0755-27837162
QQ咨询 点击这里给我发消息

ConnorWinfield-1Skyworks振荡器,LVDS差分晶振,549BBAA000368BCGR,6G低抖动晶振,Skyworks晶振,Si549石英晶体振荡器,549BBAA000368BCGR晶振,5032mm晶振,LVDS差分晶振,进口有源晶振,频率122.88MHz,电压3.3V,工作温度-40~85°C,频率稳定性10ppm,6G低抖动晶振,高稳定性晶振,FPGA/ASIC时钟晶振,存储器晶振,搜索加速晶振,视频播放器晶振.

Skyworks振荡器,LVDS差分晶振,549BBAA000368BCGR,6G低抖动晶振特点：

•I2C可编程到任何频率从0.2到1500 MHz，分辨率< 1 ppb

•超低抖动:95 fs类型RMS (12 kHz - 20 MHz)

•配置多达4引脚可选择的启动频率

•I2C接口支持100kbps、400kbps和1Mbps(快速模式+)

•出色的PSNR和电源抗噪性:-80 dBc类型

•3.3 V, 2.5 V和1.8 V VDD供电操作从相同的零件号

•LVPECL, LVDS, CML, HCSL, CMOS和Dual CMOS输出选项

•2.5x3.2, 3.2x5, 5x7 mm包装选项

•样品交付周期为1-2周

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

Skyworks振荡器,LVDS差分晶振,549BBAA000368BCGR,6G低抖动晶振参数表

项目 符号 规格说明 条件
额定频率 f_nom 122.88MHz 请联系我们以便获取其它可用频率的相关信息
电源电压 Vcc 3.3V
储存温度 T_stg -55℃~+125℃ 裸存
工作温度 T_use -40℃~ +85℃
频率稳定性 f_tol ±10 ppm +25℃,超出标准的规格说明请联系我们以便获取相关信息
电源电流 IDD 121mA Max
LVDS
对称性（占空比） SYM 45%~55% 在输出交叉点
输出电压 VOC 1.275V Max
LVDS
VO 0.9Vpp Max
输入电压 VIH 70%VDD Min

VIL 30%VDD Max
上升下降时间 tr/tf 350ps Max
LVDS
起始时间 t str 3ms Max
相位抖动 tpj 150fs Max
100 MHz ≤ FCLK < 200 MHz

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

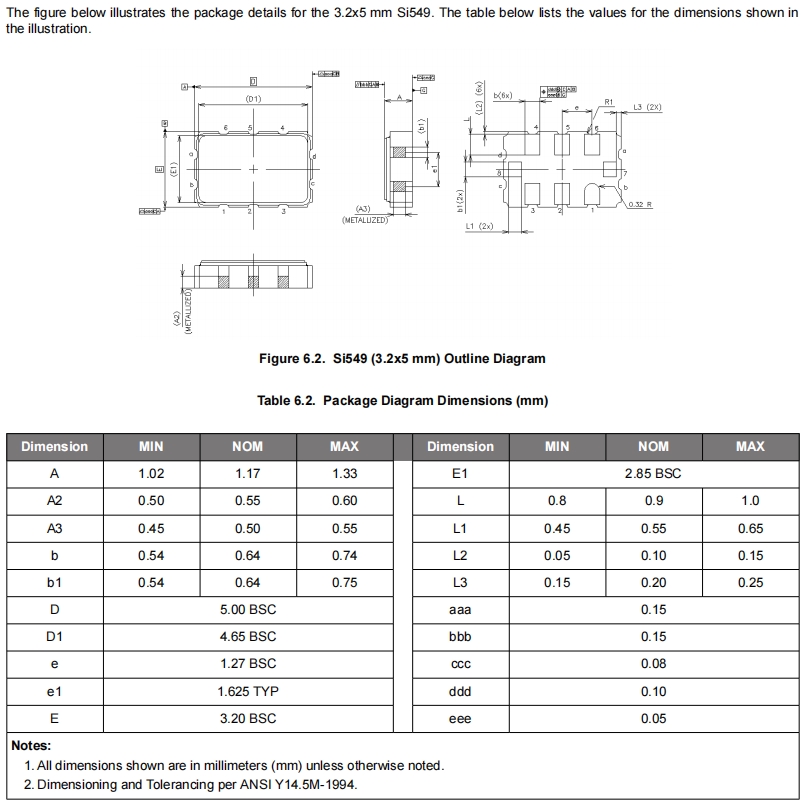

Skyworks振荡器,LVDS差分晶振,549BBAA000368BCGR,6G低抖动晶振尺寸图

si549-5032

si549

si549-1

原厂编码 品牌 型号 频率 输出 电压 频率稳定性 工作温度
549BAAB000212BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACB000148ACG Skyworks Solutions Inc. Ultra™ Si549 24.576 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAC000118ACG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB002128ACG Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CCCC000141ACG Skyworks Solutions Inc. Ultra™ Si549 56.32 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BABA000368ACG Skyworks Solutions Inc. Ultra™ Si549 122.88 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA000426ACG Skyworks Solutions Inc. Ultra™ Si549 145 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB001589ACG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAA001968ACG Skyworks Solutions Inc. Ultra™ Si549 1.2 GHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BAAC001741ACG Skyworks Solutions Inc. Ultra™ Si549 70.656 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAA000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB000118ACG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000141ACG Skyworks Solutions Inc. Ultra™ Si549 56.32 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAC000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAA001968ACG Skyworks Solutions Inc. Ultra™ Si549 1.2 GHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACA001937ACG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACA000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB002127ACG Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCBA000122ACG Skyworks Solutions Inc. Ultra™ Si549 1 GHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAA000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACB000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAB000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB002129ACG Skyworks Solutions Inc. Ultra™ Si549 199 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB000126ACG Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CBAC000508ACG Skyworks Solutions Inc. Ultra™ Si549 25 MHz CMOS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549DACB001619ACG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAA000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549CCAC000118ACG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549GCDC002122ACG Skyworks Solutions Inc. Ultra™ Si549 71.135 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549AAAA001372ACG Skyworks Solutions Inc. Ultra™ Si549 7 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAA000133ACG Skyworks Solutions Inc. Ultra™ Si549 500 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB001125ACG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549ACAA000111ACG Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549DAAB001963BCGR Skyworks Solutions Inc. Ultra™ Si549 304.125 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB002127ACGR Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAC000385BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA000426ACGR Skyworks Solutions Inc. Ultra™ Si549 145 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC000385BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CBAC000508ACGR Skyworks Solutions Inc. Ultra™ Si549 25 MHz CMOS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549DAAA000485BCG Skyworks Solutions Inc. Ultra™ Si549 625 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB002128ACGR Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAA000798BCG Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000111BCG Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549GAAA000956BCG Skyworks Solutions Inc. Ultra™ Si549 6.78 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000115BCG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAB000115BCGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BCAA000131BCGR Skyworks Solutions Inc. Ultra™ Si549 120 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CCAC002099BCG Skyworks Solutions Inc. Ultra™ Si549 1 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549AAAA000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC000306BCGR Skyworks Solutions Inc. Ultra™ Si549 22.5792 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAA000368BCGR Skyworks Solutions Inc. Ultra™ Si549 122.88 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BAAB000544BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAA000131BCG Skyworks Solutions Inc. Ultra™ Si549 120 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BCAC000177BCG Skyworks Solutions Inc. Ultra™ Si549 297 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAB000118ACGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB001623BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACA000420BCGR Skyworks Solutions Inc. Ultra™ Si549 644.53125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACA001937ACGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAC000118BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CABC000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAA000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BABC002152BCGR Skyworks Solutions Inc. Ultra™ Si549 21.3333333 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC000306BCG Skyworks Solutions Inc. Ultra™ Si549 22.5792 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000115BCGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB002129ACGR Skyworks Solutions Inc. Ultra™ Si549 199 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAA000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549GCDC002122ACGR Skyworks Solutions Inc. Ultra™ Si549 71.135 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549DACB001619ACGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAA000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BACB000148ACGR Skyworks Solutions Inc. Ultra™ Si549 24.576 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549GCAC000111BCG Skyworks Solutions Inc. Ultra™ Si549 25 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CBAC000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BACA000281BCG Skyworks Solutions Inc. Ultra™ Si549 840 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000111BCGR Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549GAAA000956BCGR Skyworks Solutions Inc. Ultra™ Si549 6.78 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA001372ACGR Skyworks Solutions Inc. Ultra™ Si549 7 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAA000133ACGR Skyworks Solutions Inc. Ultra™ Si549 500 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BABC002152BCG Skyworks Solutions Inc. Ultra™ Si549 21.3333333 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC001444BCG Skyworks Solutions Inc. Ultra™ Si549 38.4 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAA000313BCGR Skyworks Solutions Inc. Ultra™ Si549 300 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549AAAA000118BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB000212BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000141ACGR Skyworks Solutions Inc. Ultra™ Si549 56.32 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCAA000131BCG Skyworks Solutions Inc. Ultra™ Si549 120 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAA000115BCGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA000118BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAA000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAB001269BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAC000177BCGR Skyworks Solutions Inc. Ultra™ Si549 297 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAA001968ACGR Skyworks Solutions Inc. Ultra™ Si549 1.2 GHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC000148BCGR Skyworks Solutions Inc. Ultra™ Si549 24.576 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC001741ACGR Skyworks Solutions Inc. Ultra™ Si549 70.656 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAB000118BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549ACAA000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCAA000111BCG Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCAA000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB001125ACGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BACC000520BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000544BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAA000118BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549AADA000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCAC000118BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CBAC000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BACA000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAA000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAB000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BBAA000313BCG Skyworks Solutions Inc. Ultra™ Si549 300 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549CAAC000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000118BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC001840BCGR Skyworks Solutions Inc. Ultra™ Si549 33.33 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAB000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549CAAA000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAA000111ACGR Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAC000544BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC001840BCG Skyworks Solutions Inc. Ultra™ Si549 33.33 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAA000798BCGR Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAA001968ACGR Skyworks Solutions Inc. Ultra™ Si549 1.2 GHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BAAB000115BCG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCBA000122ACGR Skyworks Solutions Inc. Ultra™ Si549 1 GHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549DABB001895BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAC000118ACGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAA000131BCGR Skyworks Solutions Inc. Ultra™ Si549 120 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549CCAC000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549ACAA000118BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549DCAC000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz CML 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BACA000420BCG Skyworks Solutions Inc. Ultra™ Si549 644.53125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC000148BCG Skyworks Solutions Inc. Ultra™ Si549 24.576 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAA000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549CABC000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000118BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549DAAB001963BCG Skyworks Solutions Inc. Ultra™ Si549 304.125 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACB001812BCGR Skyworks Solutions Inc. Ultra™ Si549 148.5 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAB000115BCGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BAAA000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549DABB001895BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB001589ACGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549DCAC000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz CML 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BACA000281BCGR Skyworks Solutions Inc. Ultra™ Si549 840 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACB001812BCG Skyworks Solutions Inc. Ultra™ Si549 148.5 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000885BCGR Skyworks Solutions Inc. Ultra™ Si549 32.768 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BBAA000368BCG Skyworks Solutions Inc. Ultra™ Si549 122.88 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549ACAC002076BCGR Skyworks Solutions Inc. Ultra™ Si549 455 kHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549ACAC002076BCG Skyworks Solutions Inc. Ultra™ Si549 455 kHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAA000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000885BCG Skyworks Solutions Inc. Ultra™ Si549 32.768 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549GCAC000111BCGR Skyworks Solutions Inc. Ultra™ Si549 25 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAB000115BCGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC001444BCGR Skyworks Solutions Inc. Ultra™ Si549 38.4 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAA000111BCGR Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB000798BCG Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAC000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549GCCC000798BCGR Skyworks Solutions Inc. Ultra™ Si549 1 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB000798BCGR Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BBAB000115BCG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549AAAA000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549AADA000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BABA000368ACGR Skyworks Solutions Inc. Ultra™ Si549 122.88 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB001623BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACC000520BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000118ACGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAC000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAA000313BCG Skyworks Solutions Inc. Ultra™ Si549 300 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCAA000313BCGR Skyworks Solutions Inc. Ultra™ Si549 300 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549GCCC000798BCG Skyworks Solutions Inc. Ultra™ Si549 1 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CCAC002099BCGR Skyworks Solutions Inc. Ultra™ Si549 1 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549ACAB000118BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549ABAC001975BCGR Skyworks Solutions Inc. Ultra™ Si549 40.8 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BCCA000798BCGR Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCA000798BCG Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BBAB000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549CCCC000141ACGR Skyworks Solutions Inc. Ultra™ Si549 56.32 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAB000544BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB001269BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAA000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549ABAC001975BCG Skyworks Solutions Inc. Ultra™ Si549 40.8 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BAAA000115BCG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAA000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BACA001924BCGR Skyworks Solutions Inc. Ultra™ Si549 285 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACA001924BCG Skyworks Solutions Inc. Ultra™ Si549 285 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB000126ACGR Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549DAAA000485BCGR Skyworks Solutions Inc. Ultra™ Si549 625 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAB000115BCG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BACB000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C

JLX-6

RB-6

wxewm

公司名：深圳市金洛鑫电子有限公司

联系人：茹红青

手机：13510569637

电话：0755-27837162

QQ号：657116624

微信公众号：CITIZENCRYSTAL

搜狐公众号：晶振石英晶振NDK晶振

邮箱：jinluodz@163.com

地址：深圳市宝安区41区甲岸路19号

网址：http://www.quartzcrystal.cn/

关键词：Skyworks振荡器 LVDS差分晶振 549BBAA000368BCGR 6G低抖动晶振

相关的产品 / Related Products

O-14.74560-JO53-B-3.3-2-T1-LF,jauch有源晶振,低相位抖动晶振
O-14.74560-JO53-B-3.3-2-T1-LF,jauch有源晶振,低相位抖动晶振

O-14.74560-JO53-B-3.3-2-T1-LF,jauch有源晶振,低相位抖动晶振,14.74560MHz频率为通信协议解析,时序控制等场景提供精准时钟基准,3.3V低功耗供电设计契合便携电子设备的续航需求.产品采用小型化封装,节省PCB板空间,同时具备宽工作温度范围和优异的防潮,防腐蚀性能,适配室内外多种工作环境,广泛应用于智能家居,可穿戴设备,工业传感器等终端产品.


SXO75L3A481-100.000MT,Suntsu差分晶振,7050穿戴设备晶振
SXO75L3A481-100.000MT,Suntsu差分晶振,7050穿戴设备晶振

SXO75L3A481-100.000MT,Suntsu差分晶振,7050穿戴设备晶振,凭借100.000MT精准频率,为设备定位,心率监测等核心功能提供稳定频率支撑.差分结构大幅降低智能穿戴设备晶振内部电磁干扰影响,搭配低功耗芯片设计,完美契合穿戴设备"长续航,小体积"核心诉求.产品经过严格可靠性测试,适应穿戴设备日常运动,高低温等复杂使用场景,是高端穿戴设备的优选频率组件.


32.768K振荡器,进口CMOS晶振,SM22K有源晶振,Pletronics晶振,SM2220KC-32.768K晶体
32.768K振荡器,进口CMOS晶振,SM22K有源晶振,Pletronics晶振,SM2220KC-32.768K晶体
32.768K振荡器,进口CMOS晶振,SM22K有源晶振,Pletronics晶振,SM2220KC-32.768K晶体   SM2220KC - 32.768K晶体作为Pletronics出品的进口CMOS晶振，以32.768KHz的精准频率，为各类电子设备提供稳定的时钟信号。这款晶振采用高品质材料与先进制造工艺，确保在 - 40℃至 + 85℃的宽温度范围内，频率稳定性极佳，频率偏差能被严格控制在极小范围。其有源振荡器设计，内部集成振荡电路，无需复杂外部电路即可快速稳定地输出时钟信号。CMOS输出特性使其能与数字电路良好适配，广泛应用于对时钟精度要求高的实时时钟模块，为设备提供精确计时，是智能手表、电子日历等产品稳定运行的可靠保障。

JLX-PD

金洛鑫产品系列

PRODUCT LINE

石英晶振
QuartzCrystal

贴片晶振
SMDcrystal

谐振器滤波器
Resonator

温补晶振
TCXOcrystal

32.768K
32768Kcrystal

雾化片
AtomizationPiece

智能穿戴

车载安防

通讯网络

智能玩具

金洛鑫联系方式
咨询热线：0755-27837162

手机：13510569637

QQ：QQ

邮箱：jinluodz@163.com

地址：广东省深圳市宝安区宝安41区甲岸路

地址：广东省深圳市宝安区宝安41区甲岸路

E-mail：jinluodz@163.com

电话：0755-27837162

手机:135 1056 9637

在线ＱＱ：657116624 在线QQ

网站：www.quartzcrystal.cn

金洛鑫公众号
金洛鑫微信号
Copyright © 1996-2017 金洛鑫电子备案号：粤ICP备17072356号-1版权归金洛鑫电子有限公司所有©
