美国思佳讯晶振,515CAA000256AAGR晶振,6G路由器晶振

频率：256MHZ

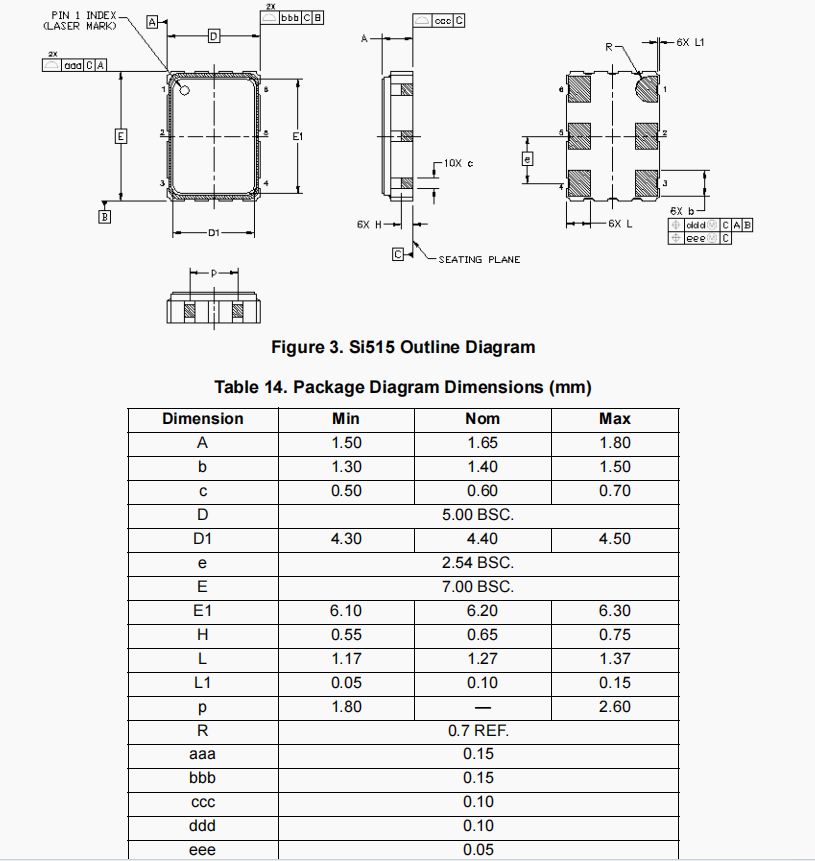

尺寸：7050mm

美国思佳讯晶振,515CAA000256AAGR晶振,6G路由器晶振，美国Skyworks晶振公司，欧美晶振，有源晶振，压控晶振，石英贴片晶振，VCXO晶振，6G交换机晶振，六脚晶振，贴片晶振，石英晶振，7050晶振，支持从100 kHz到250 MHz的任何频率低抖动工作前置时间短:<2周AT-cut基模晶体确保高可靠性/低老化高电源噪声抑制1%控制电压线性度CMOS, LVPECL, LVDS和HCSL输出可选集成1:2 CMOS风扇输出缓冲3.3和2.5 V电源选项工业标准5x7, 3.2x5和2.5x3.2 mm封装无铅/符合rohs可选Kv (60, 90, 120,150 ppm/V)

订购热线：0755-27837162

美国思佳讯晶振,515CAA000256AAGR晶振,6G路由器晶振，Skyworks晶振公司，欧美晶振，美国晶振，压控晶振，有源晶振，压控晶振，SMD晶振，石英贴片晶振，VCXO晶振，6G交换机晶振，六脚晶振，贴片晶振，石英晶振，7050晶振，支持从100 kHz到250 MHz的任何频率低抖动工作前置时间短:<2周AT-cut基模晶体确保高可靠性/低老化高电源噪声抑制1%控制电压线性度CMOS, LVPECL, LVDS和HCSL输出可选集成1:2 CMOS风扇输出缓冲3.3和2.5 V电源选项工业标准5x7, 3.2x5和2.5x3.2 mm封装无铅/符合rohs可选Kv (60, 90, 120,150 ppm/V)

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

美国思佳讯晶振,515CAA000256AAGR晶振,6G路由器晶振

参数	标志	使用环境	最小值	典型的	最大值	单位
电源电压	VDD	3.3 V option	2.97	3.3	3.63	V
电源电压	VDD	2.5 V option	2.25	2.5	2.75	V
供应电流	IDD	CMOS, 100 MHz,single-ended	—	24	29	mA
		LVDS(output enabled)	—	22	26	mA
		LVPECL(output enabled)	—	42	46	mA
		HCSL(output enabled)	—	44	47	mA
		Tristate (output disabled)	—	—	22	mA
工作温度	TA		–40	—	85	oC
标称频率	FO	CMOS, Dual CMOS	0.1	—	212.5	MHz
标称频率	FO	LVDS/LVPECL/HCSL	0.1	—	250	MHz
温度稳定度	ST	TA = –40 to +85 oC	–20	—	+20	ppm
老化	A	Frequency drift over 10 year life	—	—	±8.5	ppm
最小绝对拉力范围	APR	Ordering option	±30, ±50,±80, ±100			ppm
启动时间	TSU	Minimum VDD to output fre- quency (FO) within specification	—	—	10	ms
禁用时间	TD	FO ? 10 MHz	—	—	5	µs
禁用时间	TD	FO < 10 MHz			40	µs
启用时间	TE	FO ? 10 MHz	—	—	20	µs
启用时间	TE	FO < 10 MHz			60	µs

美国思佳讯晶振,515CAA000256AAGR晶振,6G路由器晶振

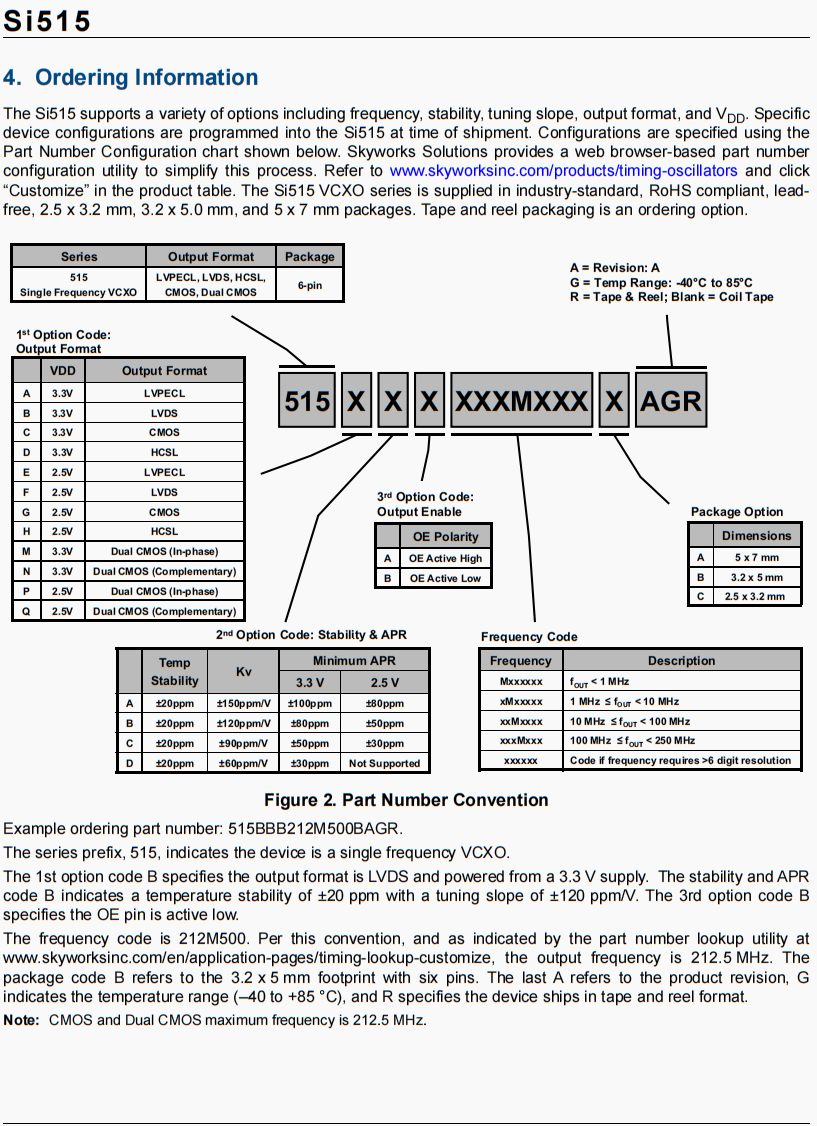

SKYWORKS原厂编码	生产商	型号	频率	输出	电源电压	频率稳定度
515CAAM100000AAGR	Skyworks晶振	Si515	100 kHz	CMOS	3.3V	±20ppm
515CAB32M7680AAGR	Skyworks晶振	Si515	32.768 MHz	CMOS	3.3V	±20ppm
515CBA4M09600AAGR	Skyworks晶振	Si515	4.096 MHz	CMOS	3.3V	±20ppm
515CDA8M00000AAGR	Skyworks晶振	Si515	8 MHz	CMOS	3.3V	±20ppm
515GCA10M0000AAGR	Skyworks晶振	Si515	10 MHz	CMOS	2.5V	±20ppm
515CAA000282CAGR	Skyworks晶振	Si515	14.31818 MHz	CMOS	3.3V	±20ppm
515CAAM100000AAG	Skyworks晶振	Si515	100 kHz	CMOS	3.3V	±20ppm
515CAB32M7680AAG	Skyworks晶振	Si515	32.768 MHz	CMOS	3.3V	±20ppm
515CBA4M09600AAG	Skyworks晶振	Si515	4.096 MHz	CMOS	3.3V	±20ppm
515CDA8M00000AAG	Skyworks晶振	Si515	8 MHz	CMOS	3.3V	±20ppm
515GCA10M0000AAG	Skyworks晶振	Si515	10 MHz	CMOS	2.5V	±20ppm
515CAA000256AAGR	Skyworks晶振	Si515	256 MHz	CMOS	3.3V	±20ppm
515CAA10M0000AAGR	Skyworks晶振	Si515	10 MHz	CMOS	3.3V	±20ppm
515CAA10M2400AAGR	Skyworks晶振	Si515	10.24 MHz	CMOS	3.3V	±20ppm
515CAA125M000AAGR	Skyworks晶振	Si515	125 MHz	CMOS	3.3V	±20ppm
515CAA24M5760AAGR	Skyworks晶振	Si515	24.576 MHz	CMOS	3.3V	±20ppm
515CAA25M0000AAGR	Skyworks晶振	Si515	25 MHz	CMOS	3.3V	±20ppm
515CAA27M0000AAGR	Skyworks晶振	Si515	27 MHz	CMOS	3.3V	±20ppm
515CAA30M0000AAGR	Skyworks晶振	Si515	30 MHz	CMOS	3.3V	±20ppm
515CAA32M7680AAGR	Skyworks晶振	Si515	32.768 MHz	CMOS	3.3V	±20ppm
515CAA40M0000AAGR	Skyworks晶振	Si515	40 MHz	CMOS	3.3V	±20ppm
515CAA44M7360AAGR	Skyworks晶振	Si515	44.736 MHz	CMOS	3.3V	±20ppm
515CAA70M6560AAGR	Skyworks晶振	Si515	70.656 MHz	CMOS	3.3V	±20ppm
515CAA74M2500AAGR	Skyworks晶振	Si515	74.25 MHz	CMOS	3.3V	±20ppm
515CAA7M37472AAGR	Skyworks晶振	Si515	7.37472 MHz	CMOS	3.3V	±20ppm
515CAA7M50000AAGR	Skyworks晶振	Si515	7.5 MHz	CMOS	3.3V	±20ppm
515CAAM928000AAGR	Skyworks晶振	Si515	928 kHz	CMOS	3.3V	±20ppm
515CAB16M3840AAGR	Skyworks晶振	Si515	16.384 MHz	CMOS	3.3V	±20ppm
515CAB49M1520AAGR	Skyworks晶振	Si515	49.152 MHz	CMOS	3.3V	±20ppm
515CAB98M0000AAGR	Skyworks晶振	Si515	98 MHz	CMOS	3.3V	±20ppm
515CBA23M1481AAGR	Skyworks晶振	Si515	23.1481 MHz	CMOS	3.3V	±20ppm
515CBA24M5760AAGR	Skyworks晶振	Si515	24.576 MHz	CMOS	3.3V	±20ppm
515CBA28M9350AAGR	Skyworks晶振	Si515	28.935 MHz	CMOS	3.3V	±20ppm
515CBA2M04800AAGR	Skyworks晶振	Si515	2.048 MHz	CMOS	3.3V	±20ppm
515CBA34M8160AAGR	Skyworks晶振	Si515	34.816 MHz	CMOS	3.3V	±20ppm
515CBA38M8800AAGR	Skyworks晶振	Si515	38.88 MHz	CMOS	3.3V	±20ppm
515CBA3M64000AAGR	Skyworks晶振	Si515	3.64 MHz	CMOS	3.3V	±20ppm
515CBA80M0000AAGR	Skyworks晶振	Si515	80 MHz	CMOS	3.3V	±20ppm
515CBAM240000AAGR	Skyworks晶振	Si515	24 kHz	CMOS	3.3V	±20ppm
515CBAM928571AAGR	Skyworks晶振	Si515	92.8571 MHz	CMOS	3.3V	±20ppm
515CBBM100000AAGR	Skyworks晶振	Si515	100 kHz	CMOS	3.3V	±20ppm
515CCA100M000AAGR	Skyworks晶振	Si515	100 MHz	CMOS	3.3V	±20ppm
515CCA10M0000AAGR	Skyworks晶振	Si515	10 MHz	CMOS	3.3V	±20ppm
515CCA122M880AAGR	Skyworks晶振	Si515	122.88 MHz	CMOS	3.3V	±20ppm
515CCA125M000AAGR	Skyworks晶振	Si515	125 MHz	CMOS	3.3V	±20ppm
515CCA12M8000AAGR	Skyworks晶振	Si515	12.8 MHz	CMOS	3.3V	±20ppm
515CCA15M3600AAGR	Skyworks晶振	Si515	15.36 MHz	CMOS	3.3V	±20ppm
515CCA16M3680AAGR	Skyworks晶振	Si515	16.368 MHz	CMOS	3.3V	±20ppm
515CCA19M4400AAGR	Skyworks晶振	Si515	19.44 MHz	CMOS	3.3V	±20ppm
515CCA25M0000AAGR	Skyworks晶振	Si515	25 MHz	CMOS	3.3V	±20ppm
515CCA27M0000AAGR	Skyworks晶振	Si515	27 MHz	CMOS	3.3V	±20ppm
515CCA30M0000AAGR	Skyworks晶振	Si515	30 MHz	CMOS	3.3V	±20ppm
515CCA30M7200AAGR	Skyworks晶振	Si515	30.72 MHz	CMOS	3.3V	±20ppm
515CCA32M7680AAGR	Skyworks晶振	Si515	32.768 MHz	CMOS	3.3V	±20ppm
515CCA35M0000AAGR	Skyworks晶振	Si515	35 MHz	CMOS	3.3V	±20ppm
515CCA40M0000AAGR	Skyworks晶振	Si515	40 MHz	CMOS	3.3V	±20ppm
515CCA49M1520AAGR	Skyworks晶振	Si515	49.152 MHz	CMOS	3.3V	±20ppm
515CCA56M3200AAGR	Skyworks晶振	Si515	56.32 MHz	CMOS	3.3V	±20ppm
515CCA5M00000AAGR	Skyworks晶振	Si515	5 MHz	CMOS	3.3V	±20ppm
515CCA61M4400AAGR	Skyworks晶振	Si515	61.44 MHz	CMOS	3.3V	±20ppm
515CCA70M6560AAGR	Skyworks晶振	Si515	70.656 MHz	CMOS	3.3V	±20ppm
515CCAM524288AAGR	Skyworks晶振	Si515	52.4288 MHz	CMOS	3.3V	±20ppm
515CCB000314AAGR	Skyworks晶振	Si515	314 MHz	CMOS	3.3V	±20ppm
515CCB19M4400AAGR	Skyworks晶振	Si515	19.44 MHz	CMOS	3.3V	±20ppm
515CCB1M95840AAGR	Skyworks晶振	Si515	1.9584 MHz	CMOS	3.3V	±20ppm
515CCB24M5760AAGR	Skyworks晶振	Si515	24.576 MHz	CMOS	3.3V	±20ppm
515CDA000256AAGR	Skyworks晶振	Si515	256 MHz	CMOS	3.3V	±20ppm
515CDA125M000AAGR	Skyworks晶振	Si515	125 MHz	CMOS	3.3V	±20ppm
515CDA22M5792AAGR	Skyworks晶振	Si515	22.5792 MHz	CMOS	3.3V	±20ppm
515CDA24M5760AAGR	Skyworks晶振	Si515	24.576 MHz	CMOS	3.3V	±20ppm
515CDA27M0000AAGR	Skyworks晶振	Si515	27 MHz	CMOS	3.3V	±20ppm
515CDA40M0000AAGR	Skyworks晶振	Si515	40 MHz	CMOS	3.3V	±20ppm
515CDA43M1000AAGR	Skyworks晶振	Si515	43.1 MHz	CMOS	3.3V	±20ppm
515CDA45M0000AAGR	Skyworks晶振	Si515	45 MHz	CMOS	3.3V	±20ppm
515CDA5M00000AAGR	Skyworks晶振	Si515	5 MHz	CMOS	3.3V	±20ppm
