530BB156M250DG,Skyworks思佳讯进口晶振,企业服务器晶振,电信应用晶振

当前位置：首页 » 贴片晶振 » Skyworks晶振 » 530BB156M250DG,Skyworks思佳讯进口晶振,企业服务器晶振,电信应用晶振

prevnext

530BB156M250DG,Skyworks思佳讯进口晶振,企业服务器晶振,电信应用晶振

频率：156.25 MHz

尺寸：7.0mm x 5.0mm

530BB156M250DG,Skyworks思佳讯进口晶振,企业服务器晶振,电信应用晶振,针对电信应用对时钟精度的严苛要求,530BB156M250DG思佳讯进口晶振具备优异的抗干扰性能.在基站信号收发,光纤通信数据传输等环节,能有效抵御外界电磁干扰,确保时钟信号精准同步,减少信号传输误码率,提升电信网络通信质量.此外,其适应电信设备复杂工作环境的特性,可在不同温度与湿度条件下保持稳定性能,保障电信网络持续可靠运行.

订购热线：0755-27837162

530BB156M250DG,Skyworks思佳讯进口晶振,企业服务器晶振,电信应用晶振

530BB156M250DG美国思佳讯晶振采用紧凑封装设计,完美适配企业服务器高密度PCB板布局需求.在服务器内部空间有限,元器件高度集成的环境中,小巧的封装尺寸可节省宝贵的板载空间,同时其稳定的电气性能,能在多元器件近距离工作的复杂电磁环境下,依然保持精准的时钟输出,助力服务器实现更高集成度与性能提升.经过严格的质量检测与老化测试,其使用寿命长,性能衰减率低,可适应电信基站,核心网设备等长期不间断运行的工作模式,减少设备维护频次与成本,为电信运营商降低运营压力,保障电信网络服务的连续性与稳定性.

JLX-2

530BB156M250DG,Skyworks思佳讯进口晶振,企业服务器晶振,电信应用晶振

原厂型号 Originalmodel：	530BB156M250DG	品牌brand：	Skyworks晶振
Manufacturer品牌	Skyworks进口晶振	OperatingTemperature温度	-40°C ~ 85°C
Series型号	Si530	Current-Supply(Max)	98mA
Type类型	XO	PackageHeight高度	1.80mm
Frequency频率	156.25 MHz	Termination 脚位	6pad
输出方式 Output：	LVDS	PackageType 封装类型	6-SMD
Voltage-Supply电压	3.3V	Packaging 包装	TapeandReel
FrequencyStability频率稳定度	±20ppm	安装方式 Installation：	Surfacemount
Size/Dimension尺寸	7.00mm x 5.00mm	最小包装数MPQ：	1000

JLX-3

530BB156M250DG,Skyworks思佳讯进口晶振,企业服务器晶振,电信应用晶振

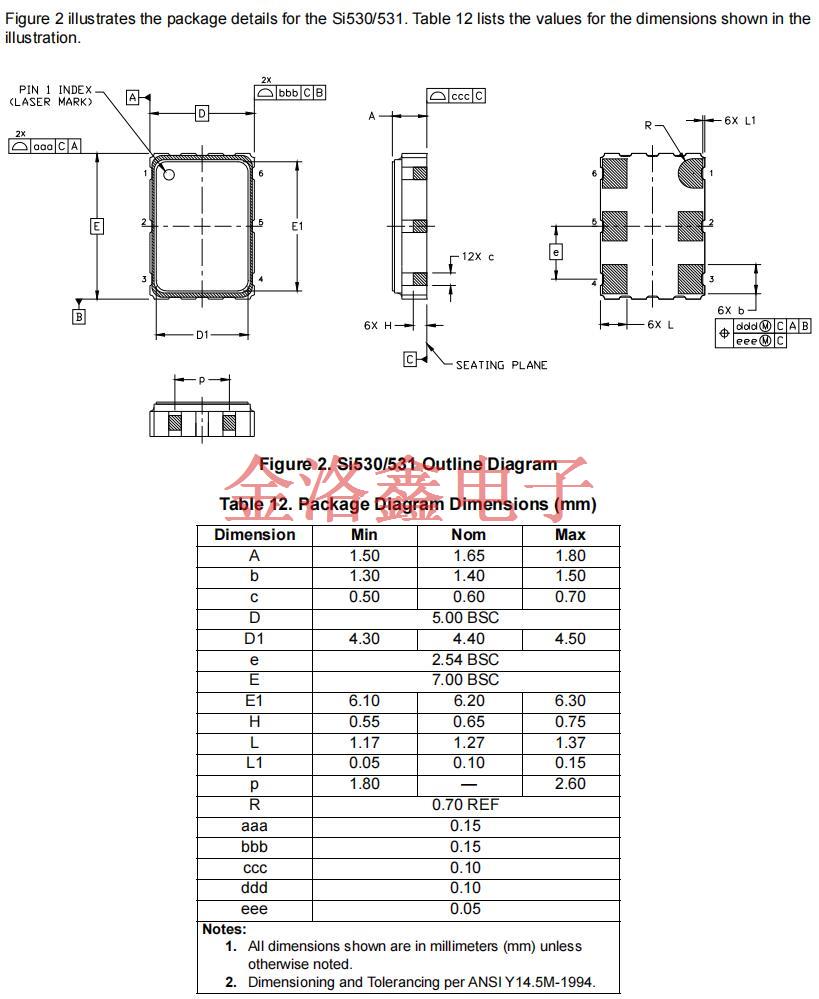

Si530-31-2

530BB156M250DG,Skyworks思佳讯进口晶振,企业服务器晶振,电信应用晶振

510BBA156M250BAGR	Skyworks	Si510	XO	156.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511FBA000330BAGR	Skyworks	Si511	XO	125 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C
511BBA100M000BAG	Skyworks	Si511	XO	100 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511BBA125M000AAG	Skyworks	Si511	XO	125 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511BBA100M000AAG	Skyworks	Si511	XO	100 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511BBA200M000AAG	Skyworks	Si511	XO	200 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
530BB125M000DG	Skyworks	Si530	XO	125 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C
531BC125M000DG	Skyworks	Si531	XO	125 MHz	LVDS	3.3V	±7ppm	-40°C ~ 85°C
545BAA200M000BBG	Skyworks	Si545	XO	200 MHz	LVDS	1.8V, 2.5V, 3.3V	±20ppm	-40°C ~ 85°C
570BAB000544DG	Skyworks	Si570	XO	156.25 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C
510BBA125M000AAGR	Skyworks	Si510	XO	125 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510BBA156M250AAGR	Skyworks	Si510	XO	156.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511ABA156M250AAGR	Skyworks	Si511	XO	156.25 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C
511BBA200M000BAGR	Skyworks	Si511	XO	200 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510MCA50M0000AAGR	Skyworks	Si510	XO	50 MHz	CMOS	3.3V	±20ppm	-40°C ~ 85°C
511BCA160M000BAGR	Skyworks	Si511	XO	160 MHz	LVDS	3.3V	-	-40°C ~ 85°C
510KBA100M000BAG	Skyworks	Si510	XO	100 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
511BBA74M2500BAG	Skyworks	Si511	XO	74.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510BBA125M000BAG	Skyworks	Si510	XO	125 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511FBA125M000BAG	Skyworks	Si511	XO	125 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C
511BBA125M000BAG	Skyworks	Si511	XO	125 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510BBA100M000BAG	Skyworks	Si510	XO	100 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511FBA100M000BAG	Skyworks	Si511	XO	100 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C
510FBA125M000BAG	Skyworks	Si510	XO	125 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C
510KCA125M000BAG	Skyworks	Si510	XO	125 MHz	CMOS	1.8V	±20ppm	-40°C ~ 85°C
511BBA000110BAG	Skyworks	Si511	XO	148.35165 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511FBA156M250BAG	Skyworks	Si511	XO	156.25 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C
511BBA148M500BAG	Skyworks	Si511	XO	148.5 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511JBA125M000BAG	Skyworks	Si511	XO	125 MHz	LVDS	1.8V	±25ppm	-40°C ~ 85°C
511FBA200M000BAG	Skyworks	Si511	XO	200 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C
510BBA200M000BAG	Skyworks	Si510	XO	200 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511JBA100M000BAG	Skyworks	Si511	XO	100 MHz	LVDS	1.8V	±25ppm	-40°C ~ 85°C
511FCA25M0000BAG	Skyworks	Si511	XO	25 MHz	LVDS	2.5V	±20ppm	-40°C ~ 85°C
511FCA100M000BAG	Skyworks	Si511	XO	100 MHz	LVDS	2.5V	±20ppm	-40°C ~ 85°C
511SBA156M250BAG	Skyworks	Si511	XO	156.25 MHz	CMOS	1.8V	±50ppm	-40°C ~ 85°C
511JBA135M000BAG	Skyworks	Si511	XO	135 MHz	LVDS	1.8V	±25ppm	-40°C ~ 85°C
511JBA200M000BAG	Skyworks	Si511	XO	200 MHz	LVDS	1.8V	±25ppm	-40°C ~ 85°C
540BAA000274BBG	Skyworks	Si540	XO	322.265625 MHz	LVDS	1.8V, 2.5V, 3.3V	±20ppm	-40°C ~ 85°C
530BA125M000DG	Skyworks	Si530	XO	125 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C
531BC106M250DG	Skyworks	Si531	XO	106.25 MHz	LVDS	3.3V	±7ppm	-40°C ~ 85°C
535AC100M000DG	Skyworks	Si535	XO	100 MHz	LVPECL	3.3V	±7ppm	-40°C ~ 85°C
510CBA25M0000BAGR	Skyworks	Si510	XO	25 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
510CBA100M000BAGR	Skyworks	Si510	XO	100 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
510CBA125M000BAGR	Skyworks	Si510	XO	125 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
510CBA100M000AAGR	Skyworks	Si510	XO	100 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
510GBA25M0000BAG	Skyworks	Si510	XO	25 MHz	CMOS	2.5V	±25ppm	-40°C ~ 85°C
510KBA125M000BAGR	Skyworks	Si510	XO	125 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
511BBA106M250AAGR	Skyworks	Si511	XO	106.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510KBA28M6363BAG	Skyworks	Si510	XO	28.6363 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
511BBA106M250BAG	Skyworks	Si511	XO	106.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510KCA25M0000BAG	Skyworks	Si510	XO	25 MHz	CMOS	1.8V	±20ppm	-40°C ~ 85°C
510KCB25M0000BAG	Skyworks	Si510	XO	25 MHz	CMOS	1.8V	±20ppm	-40°C ~ 85°C
510CCA25M0000BAG	Skyworks	Si510	XO	25 MHz	CMOS	3.3V	±20ppm	-40°C ~ 85°C
510CCA100M000BAG	Skyworks	Si510	XO	100 MHz	CMOS	3.3V	±20ppm	-40°C ~ 85°C
511ABA156M250BAG	Skyworks	Si511	XO	156.25 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C
510CBA50M0000AAG	Skyworks	Si510	XO	50 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
510BBA156M250AAG	Skyworks	Si510	XO	156.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511BBA148M500AAG	Skyworks	Si511	XO	148.5 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511BBA156M250AAG	Skyworks	Si511	XO	156.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510ABA156M250AAG	Skyworks	Si510	XO	156.25 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C
