405C35B25M00000-25MHz-13pf-美国CTS无源晶振

频率：25MHz

尺寸：5.0mm x 3.2mm

405C35B25M00000晶振,频率25MHz,负载13pf,美国CTS无源晶振,欧美进口晶振,5032mm晶振,无铅环保晶振,无线网络晶振,USB接口晶振,手持式设备晶振,网络终端晶振,通信设备晶振.

订购热线：0755-27837162

405C35B25M00000-25MHz-13pf-美国CTS无源晶振,405C35B25M00000晶振,频率25MHz,负载13pf,美国CTS无源晶振,欧美进口晶振,5032mm晶振,无铅环保晶振,无线网络晶振,USB接口晶振,手持式设备晶振,网络终端晶振,通信设备晶振.

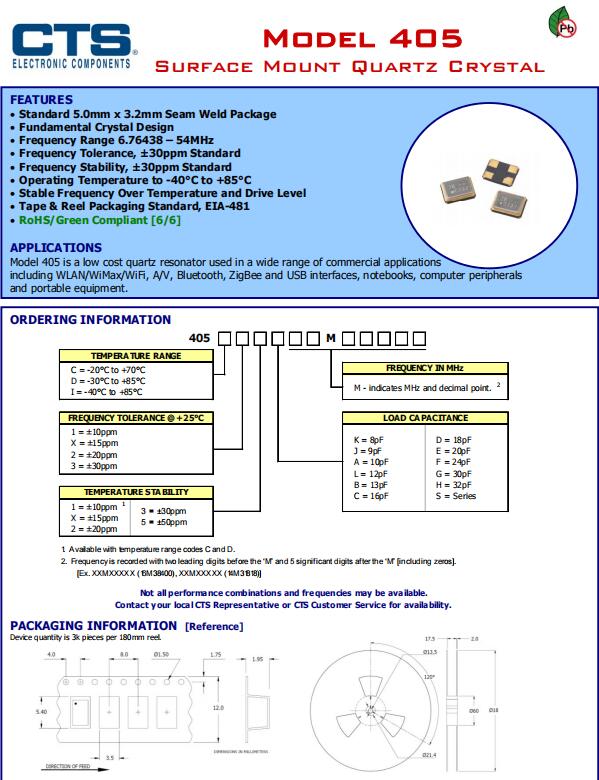

405C35B25M00000-25MHz-13pf-美国CTS无源晶振特征

1.标准5.0mm x 3.2mm焊缝封装基本晶体设计

2.频率范围6.76438 - 54MHz 频率公差±30ppm标准频率稳定性±30ppm标准工作温度-40℃~ +85℃

3.胶带和卷轴包装标准, EIA-481 符合RoHS/绿色标准

4.405型是一种低成本的石英谐振器,广泛用于商业应用,包括WLAN/WiMax/WiFi, A/V,蓝牙,ZigBee和USB接口,笔记本电脑,电脑外围设备,便携式设备。

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

405C35B25M00000-25MHz-13pf-美国CTS无源晶振参数

项目			数值
频率			25MHz
操作模式			Fundamental
晶体切割			AT-Cut
工作温度			-20°C to +70°C
保存温度			-40°C to +100°C
频率公差 @ +25°C			± 30PPM
工作温度范围内的频率稳定性 ( ref. to +25°C)			± 30PPM
等效串联电阻(R1)			50 Ω
并联电容 (C0)			5.0pF Typical, 7.0pF Maximum
负载电容 (CL)			13 pF
激励功率			200 μW Max
老化 @ +25°C			±3ppm/yr Typical
绝缘电阻			500M Ohms @ DC 100V

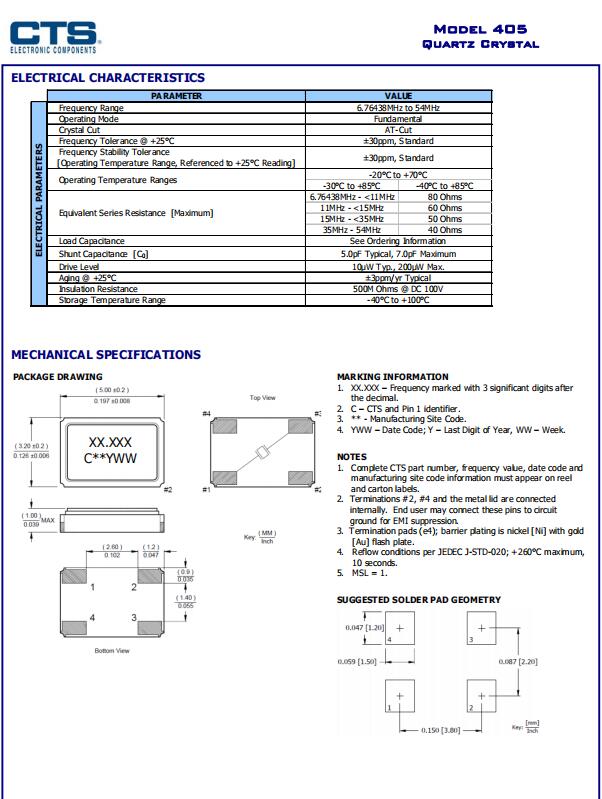

405C35B25M00000-25MHz-13pf-美国CTS无源晶振尺寸图

原厂编码	生产厂家	型号	频率	频率稳定度	频率偏差	负载电容	ESR电阻	工作温度
405C35B16M00000	CTS 晶振	405	16MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
405I35D12M00000	CTS 晶振	405	12MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
405C35B25M00000	CTS 晶振	405	25MHz	±50ppm	±30ppm	13pF	50 Ohm	-20°C ~ 70°C
405I35D25M00000	CTS 晶振	405	25MHz	±50ppm	±30ppm	18pF	50 Ohm	-40°C ~ 85°C
405C35D12M00000	CTS 晶振	405	12MHz	±50ppm	±30ppm	18pF	80 Ohm	-20°C ~ 70°C
405C35B24M00000	CTS 晶振	405	24MHz	±50ppm	±30ppm	13pF	50 Ohm	-20°C ~ 70°C
405C35D27M00000	CTS 晶振	405	27MHz	±50ppm	±30ppm	18pF	50 Ohm	-20°C ~ 70°C
405C35B16M36800	CTS 晶振	405	16.368MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
405C35B19M20000	CTS 晶振	405	19.2MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
405I35D48M00000	CTS 晶振	405	48MHz	±50ppm	±30ppm	18pF	50 Ohm	-40°C ~ 85°C
405C35B11M05920	CTS 晶振	405	11.0592MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
405C35E16M00000	CTS 晶振	405	16MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
405C35D10M00000	CTS 晶振	405	10MHz	±50ppm	±30ppm	18pF	80 Ohm	-20°C ~ 70°C
405C11B26M00000	CTS 晶振	405	26MHz	±10ppm	±10ppm	13pF	50 Ohm	-20°C ~ 70°C
405C11A16M00000	CTS 晶振	405	16MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
405C11A19M20000	CTS 晶振	405	19.2MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
405C35B12M80000	CTS 晶振	405	12.8MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
405C35B13M00000	CTS 晶振	405	13MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
405C35E12M00000	CTS 晶振	405	12MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
405I35B40M00000	CTS 晶振	405	40MHz	±50ppm	±30ppm	13pF	50 Ohm	-40°C ~ 85°C
405C35D14M31818	CTS 晶振	405	14.31818MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
405C35D12M28800	CTS 晶振	405	12.288MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
405I35B16M00000	CTS 晶振	405	16MHz	±50ppm	±30ppm	13pF	60 Ohm	-40°C ~ 85°C
405C35D30M00000	CTS 晶振	405	30MHz	±50ppm	±30ppm	18pF	50 Ohm	-20°C ~ 70°C
405I35D20M00000	CTS 晶振	405	20MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
405C35B26M00000	CTS 晶振	405	26MHz	±50ppm	±30ppm	13pF	50 Ohm	-20°C ~ 70°C
405C35E10M00000	CTS 晶振	405	10MHz	±50ppm	±30ppm	20pF	80 Ohm	-20°C ~ 70°C
405C35D24M00000	CTS 晶振	405	24MHz	±50ppm	±30ppm	18pF	50 Ohm	-20°C ~ 70°C
405I35E25M00000	CTS 晶振	405	25MHz	±50ppm	±30ppm	20pF	50 Ohm	-40°C ~ 85°C
405C35B20M00000	CTS 晶振	405	20MHz	±50ppm	±30ppm	13pF	50 Ohm	-20°C ~ 70°C
405C35B20M00000	CTS 晶振	405	20MHz	±50ppm	±30ppm	13pF	50 Ohm	-20°C ~ 70°C
405C35B20M00000	CTS 晶振	405	20MHz	±50ppm	±30ppm	13pF	50 Ohm	-20°C ~ 70°C
405C11A25M00000	CTS 晶振	405	25MHz	±10ppm	±10ppm	10pF	50 Ohm	-20°C ~ 70°C
405C11A25M00000	CTS 晶振	405	25MHz	±10ppm	±10ppm	10pF	50 Ohm	-20°C ~ 70°C
405C11A25M00000	CTS 晶振	405	25MHz	±10ppm	±10ppm	10pF	50 Ohm	-20°C ~ 70°C
405C11A40M00000	CTS 晶振	405	40MHz	±10ppm	±10ppm	10pF	50 Ohm	-20°C ~ 70°C
405C11A40M00000	CTS 晶振	405	40MHz	±10ppm	±10ppm	10pF	50 Ohm	-20°C ~ 70°C
405C11A40M00000	CTS 晶振	405	40MHz	±10ppm	±10ppm	10pF	50 Ohm	-20°C ~ 70°C
405C11A26M00000	CTS 晶振	405	26MHz	±10ppm	±10ppm	10pF	50 Ohm	-20°C ~ 70°C
405C11A26M00000	CTS 晶振	405	26MHz	±10ppm	±10ppm	10pF	50 Ohm	-20°C ~ 70°C
405C11A26M00000	CTS 晶振	405	26MHz	±10ppm	±10ppm	10pF	50 Ohm	-20°C ~ 70°C
405C11A18M43200	CTS 晶振	405	18.432MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
405C11A18M43200	CTS 晶振	405	18.432MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
405C11A18M43200	CTS 晶振	405	18.432MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
405C11A14M74560	CTS 晶振	405	14.7456MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
405C11A14M74560	CTS 晶振	405	14.7456MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
405C11A14M74560	CTS 晶振	405	14.7456MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
405C11A20M00000	CTS 晶振	405	20MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
405C11A20M00000	CTS 晶振	405	20MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
405C11A20M00000	CTS 晶振	405	20MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
405C11A30M00000	CTS 晶振	405	30MHz	±10ppm	±10ppm	10pF	50 Ohm	-20°C ~ 70°C
405C11A30M00000	CTS 晶振	405	30MHz	±10ppm	±10ppm	10pF	50 Ohm	-20°C ~ 70°C
405C11A30M00000	CTS 晶振	405	30MHz	±10ppm	±10ppm	10pF	50 Ohm	-20°C ~ 70°C
