思佳讯晶振,3225mm晶振,549ACAA002302CCGR,6G无线网络晶振
prevnext

思佳讯晶振,3225mm晶振,549ACAA002302CCGR,6G无线网络晶振

频率：100MHZ

尺寸：3.2mm x 2.5mm

思佳讯晶振,3225mm晶振,549ACAA002302CCGR,6G无线网络晶振,思佳讯晶振,Si549有源晶振,549ACAA002302CCGR晶振,贴片石英晶振,LV-PECL Crystal,3225mm石英振荡器,频率100MHz,电压3.3V,工作温度-40~85°C,频率稳定性7ppm,高精度晶振,高品质晶振,6G无线网络晶振,相干光学晶振,物联网应用晶振,网络终端晶振.




订购热线：0755-27837162
QQ咨询 点击这里给我发消息

ConnorWinfield-1思佳讯晶振,3225mm晶振,549ACAA002302CCGR,6G无线网络晶振,思佳讯晶振,Si549有源晶振,549ACAA002302CCGR晶振,贴片石英晶振,LV-PECL Crystal,3225mm石英振荡器,频率100MHz,电压3.3V,工作温度-40~85°C,频率稳定性7ppm,高精度晶振,高品质晶振,6G无线网络晶振,相干光学晶振,物联网应用晶振,网络终端晶振.

思佳讯晶振,3225mm晶振,549ACAA002302CCGR,6G无线网络晶振特点：

•I2C可编程到任何频率从0.2到1500 MHz，分辨率< 1 ppb

•超低抖动:95 fs类型RMS (12 kHz - 20 MHz)

•配置多达4引脚可选择的启动频率

•I2C接口支持100kbps、400kbps和1Mbps(快速模式+)

•出色的PSNR和电源抗噪性:-80 dBc类型

•3.3 V, 2.5 V和1.8 V VDD供电操作从相同的零件号

•LVPECL, LVDS, CML, HCSL, CMOS和Dual CMOS输出选项

•2.5x3.2, 3.2x5, 5x7 mm包装选项

•样品交付周期为1-2周

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

思佳讯晶振,3225mm晶振,549ACAA002302CCGR,6G无线网络晶振参数表

项目 符号 规格说明 条件
额定频率 f_nom 100MHz 请联系我们以便获取其它可用频率的相关信息
电源电压 Vcc 3.3V
储存温度 T_stg -55℃~+125℃ 裸存
工作温度 T_use -40℃~ +85℃
频率稳定性 f_tol ±7 ppm +25℃,超出标准的规格说明请联系我们以便获取相关信息
电源电流 IDD 153mA Max
LVPECL
对称性（占空比） SYM 45%~55% 在输出交叉点
输出电压 VOC 1.275V Max
LVPECL
VO 0.9Vpp Max
输入电压 VIH 70%VDD Min

VIL 30%VDD Max
上升下降时间 tr/tf 350ps Max
LVPECL
起始时间 t str 3ms Max
相位抖动 tpj 150fs Max
100 MHz ≤ FCLK < 200 MHz

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

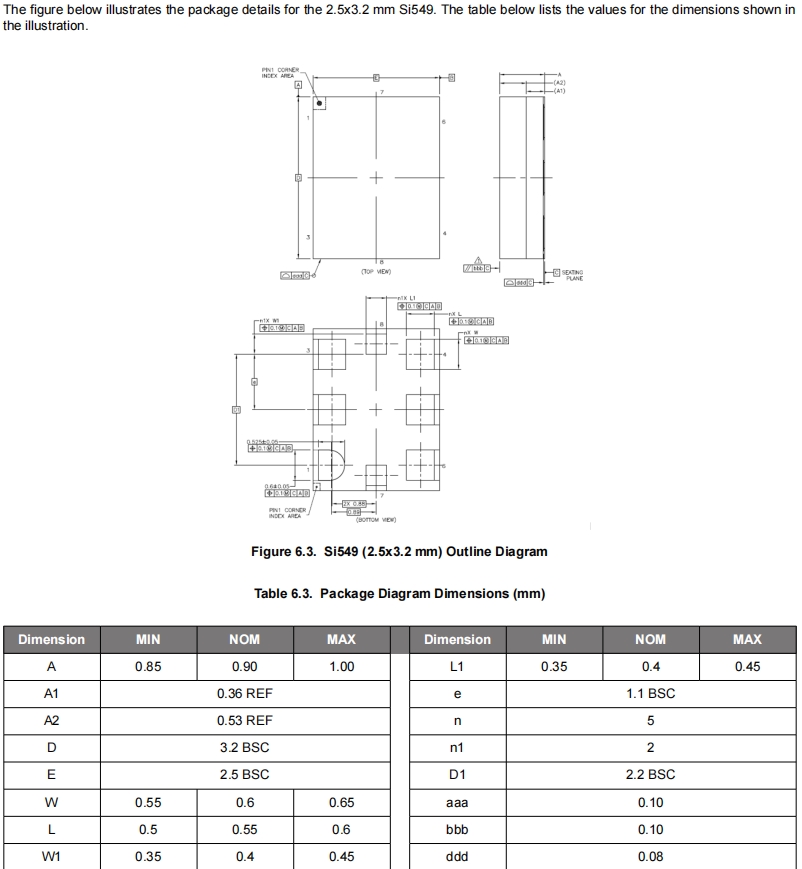

思佳讯晶振,3225mm晶振,549ACAA002302CCGR,6G无线网络晶振尺寸图

si549-3225

si549

si549-1

原厂编码 品牌 型号 频率 输出 电压 频率稳定性 工作温度
549BAAB000212BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACB000148ACG Skyworks Solutions Inc. Ultra™ Si549 24.576 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAC000118ACG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB002128ACG Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CCCC000141ACG Skyworks Solutions Inc. Ultra™ Si549 56.32 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BABA000368ACG Skyworks Solutions Inc. Ultra™ Si549 122.88 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA000426ACG Skyworks Solutions Inc. Ultra™ Si549 145 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB001589ACG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAA001968ACG Skyworks Solutions Inc. Ultra™ Si549 1.2 GHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BAAC001741ACG Skyworks Solutions Inc. Ultra™ Si549 70.656 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAA000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB000118ACG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000141ACG Skyworks Solutions Inc. Ultra™ Si549 56.32 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAC000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAA001968ACG Skyworks Solutions Inc. Ultra™ Si549 1.2 GHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACA001937ACG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACA000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB002127ACG Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCBA000122ACG Skyworks Solutions Inc. Ultra™ Si549 1 GHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAA000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACB000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAB000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB002129ACG Skyworks Solutions Inc. Ultra™ Si549 199 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB000126ACG Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CBAC000508ACG Skyworks Solutions Inc. Ultra™ Si549 25 MHz CMOS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549DACB001619ACG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAA000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549CCAC000118ACG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549GCDC002122ACG Skyworks Solutions Inc. Ultra™ Si549 71.135 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549AAAA001372ACG Skyworks Solutions Inc. Ultra™ Si549 7 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAA000133ACG Skyworks Solutions Inc. Ultra™ Si549 500 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB001125ACG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549ACAA000111ACG Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549DAAB001963BCGR Skyworks Solutions Inc. Ultra™ Si549 304.125 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB002127ACGR Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAC000385BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA000426ACGR Skyworks Solutions Inc. Ultra™ Si549 145 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC000385BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CBAC000508ACGR Skyworks Solutions Inc. Ultra™ Si549 25 MHz CMOS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549DAAA000485BCG Skyworks Solutions Inc. Ultra™ Si549 625 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB002128ACGR Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAA000798BCG Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000111BCG Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549GAAA000956BCG Skyworks Solutions Inc. Ultra™ Si549 6.78 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000115BCG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAB000115BCGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BCAA000131BCGR Skyworks Solutions Inc. Ultra™ Si549 120 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CCAC002099BCG Skyworks Solutions Inc. Ultra™ Si549 1 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549AAAA000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC000306BCGR Skyworks Solutions Inc. Ultra™ Si549 22.5792 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAA000368BCGR Skyworks Solutions Inc. Ultra™ Si549 122.88 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BAAB000544BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAA000131BCG Skyworks Solutions Inc. Ultra™ Si549 120 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BCAC000177BCG Skyworks Solutions Inc. Ultra™ Si549 297 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAB000118ACGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB001623BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACA000420BCGR Skyworks Solutions Inc. Ultra™ Si549 644.53125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACA001937ACGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAC000118BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CABC000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAA000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BABC002152BCGR Skyworks Solutions Inc. Ultra™ Si549 21.3333333 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC000306BCG Skyworks Solutions Inc. Ultra™ Si549 22.5792 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000115BCGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB002129ACGR Skyworks Solutions Inc. Ultra™ Si549 199 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAA000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549GCDC002122ACGR Skyworks Solutions Inc. Ultra™ Si549 71.135 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549DACB001619ACGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAA000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BACB000148ACGR Skyworks Solutions Inc. Ultra™ Si549 24.576 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549GCAC000111BCG Skyworks Solutions Inc. Ultra™ Si549 25 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CBAC000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BACA000281BCG Skyworks Solutions Inc. Ultra™ Si549 840 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000111BCGR Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549GAAA000956BCGR Skyworks Solutions Inc. Ultra™ Si549 6.78 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA001372ACGR Skyworks Solutions Inc. Ultra™ Si549 7 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAA000133ACGR Skyworks Solutions Inc. Ultra™ Si549 500 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BABC002152BCG Skyworks Solutions Inc. Ultra™ Si549 21.3333333 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC001444BCG Skyworks Solutions Inc. Ultra™ Si549 38.4 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAA000313BCGR Skyworks Solutions Inc. Ultra™ Si549 300 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549AAAA000118BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB000212BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000141ACGR Skyworks Solutions Inc. Ultra™ Si549 56.32 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCAA000131BCG Skyworks Solutions Inc. Ultra™ Si549 120 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAA000115BCGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA000118BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAA000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAB001269BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAC000177BCGR Skyworks Solutions Inc. Ultra™ Si549 297 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAA001968ACGR Skyworks Solutions Inc. Ultra™ Si549 1.2 GHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC000148BCGR Skyworks Solutions Inc. Ultra™ Si549 24.576 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC001741ACGR Skyworks Solutions Inc. Ultra™ Si549 70.656 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAB000118BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549ACAA000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCAA000111BCG Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCAA000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB001125ACGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BACC000520BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000544BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAA000118BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549AADA000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCAC000118BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CBAC000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BACA000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAA000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAB000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BBAA000313BCG Skyworks Solutions Inc. Ultra™ Si549 300 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549CAAC000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000118BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC001840BCGR Skyworks Solutions Inc. Ultra™ Si549 33.33 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAB000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549CAAA000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAA000111ACGR Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAC000544BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC001840BCG Skyworks Solutions Inc. Ultra™ Si549 33.33 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAA000798BCGR Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAA001968ACGR Skyworks Solutions Inc. Ultra™ Si549 1.2 GHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BAAB000115BCG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCBA000122ACGR Skyworks Solutions Inc. Ultra™ Si549 1 GHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549DABB001895BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAC000118ACGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAA000131BCGR Skyworks Solutions Inc. Ultra™ Si549 120 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549CCAC000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549ACAA000118BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549DCAC000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz CML 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BACA000420BCG Skyworks Solutions Inc. Ultra™ Si549 644.53125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC000148BCG Skyworks Solutions Inc. Ultra™ Si549 24.576 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAA000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549CABC000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000118BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549DAAB001963BCG Skyworks Solutions Inc. Ultra™ Si549 304.125 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACB001812BCGR Skyworks Solutions Inc. Ultra™ Si549 148.5 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAB000115BCGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BAAA000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549DABB001895BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB001589ACGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549DCAC000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz CML 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BACA000281BCGR Skyworks Solutions Inc. Ultra™ Si549 840 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACB001812BCG Skyworks Solutions Inc. Ultra™ Si549 148.5 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000885BCGR Skyworks Solutions Inc. Ultra™ Si549 32.768 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BBAA000368BCG Skyworks Solutions Inc. Ultra™ Si549 122.88 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549ACAC002076BCGR Skyworks Solutions Inc. Ultra™ Si549 455 kHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549ACAC002076BCG Skyworks Solutions Inc. Ultra™ Si549 455 kHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAA000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000885BCG Skyworks Solutions Inc. Ultra™ Si549 32.768 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549GCAC000111BCGR Skyworks Solutions Inc. Ultra™ Si549 25 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAB000115BCGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC001444BCGR Skyworks Solutions Inc. Ultra™ Si549 38.4 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAA000111BCGR Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB000798BCG Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAC000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549GCCC000798BCGR Skyworks Solutions Inc. Ultra™ Si549 1 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB000798BCGR Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BBAB000115BCG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549AAAA000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549AADA000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BABA000368ACGR Skyworks Solutions Inc. Ultra™ Si549 122.88 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB001623BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACC000520BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000118ACGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAC000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAA000313BCG Skyworks Solutions Inc. Ultra™ Si549 300 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCAA000313BCGR Skyworks Solutions Inc. Ultra™ Si549 300 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549GCCC000798BCG Skyworks Solutions Inc. Ultra™ Si549 1 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CCAC002099BCGR Skyworks Solutions Inc. Ultra™ Si549 1 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549ACAB000118BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549ABAC001975BCGR Skyworks Solutions Inc. Ultra™ Si549 40.8 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BCCA000798BCGR Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCA000798BCG Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BBAB000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549CCCC000141ACGR Skyworks Solutions Inc. Ultra™ Si549 56.32 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAB000544BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB001269BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAA000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549ABAC001975BCG Skyworks Solutions Inc. Ultra™ Si549 40.8 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BAAA000115BCG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAA000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BACA001924BCGR Skyworks Solutions Inc. Ultra™ Si549 285 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACA001924BCG Skyworks Solutions Inc. Ultra™ Si549 285 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB000126ACGR Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549DAAA000485BCGR Skyworks Solutions Inc. Ultra™ Si549 625 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAB000115BCG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BACB000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C

JLX-6

RB-6

wxewm

公司名：深圳市金洛鑫电子有限公司

联系人：茹红青

手机：13510569637

电话：0755-27837162

QQ号：657116624

微信公众号：CITIZENCRYSTAL

搜狐公众号：晶振石英晶振NDK晶振

邮箱：jinluodz@163.com

地址：深圳市宝安区41区甲岸路19号

网址：http://www.quartzcrystal.cn/

关键词：思佳讯晶振 3225mm晶振 549ACAA002302CCGR 6G无线网络晶振

相关的产品 / Related Products

T-53652FS-LF-16.000MHz,KVG欧美进口晶振,T-53000低功耗晶振
T-53652FS-LF-16.000MHz,KVG欧美进口晶振,T-53000低功耗晶振

T-53652FS-LF-16.000MHz,KVG欧美进口晶振,T-53000低功耗晶振T-53652FS-LF-16.000MHz贴片晶振,彰显KVG欧美进口的卓越品质,16.000MHz的精准频率输出经过多重严格测试与校准,能完美适配基站,交换机等电信核心设备,在数据传输过程中确保信号的稳定与准确,为通信网络的高效运行提供坚实保障,T-53000低功耗晶振,具备轻量化且能耗低的显著特点,其低功耗设计能有效降低物联网设备的能量消耗,助力设备实现长期稳定运行,同时减少了设备维护和电池更换的频率,大幅降低了维护成本

NKG车载多媒体晶振,S2SM进口晶振,S2SM18.0000F16M23-EXT超小型晶振
NKG车载多媒体晶振,S2SM进口晶振,S2SM18.0000F16M23-EXT超小型晶振

NKG车载多媒体晶振,S2SM进口晶振,S2SM18.0000F16M23-EXT超小型晶振,NKG晶振,S2SM晶振,石英晶振,无源晶振,S2SM18.0000F16M23-EXT晶振,四脚贴片晶振,石英晶体谐振器,2016mm晶振,SMD晶体,高精度晶振,轻薄小晶振,无铅环保晶振,6G无线模块晶振,笔记本电脑晶振,智能手机晶振,移动应用晶振.特点：微型包装尺寸2.0 x 1.6 x 0.5mm与4个垫,优异的耐热性和抗震性,真空密封，可靠性高，老化率低,符合AEC-Q200标准的汽车级产品可供选择

Oscilent耐高温晶振,278高品质晶振,278-24.0M-20-W-TR汽车空调系统晶振
Oscilent耐高温晶振,278高品质晶振,278-24.0M-20-W-TR汽车空调系统晶振
Oscilent耐高温晶振,278高品质晶振,278-24.0M-20-W-TR汽车空调系统晶振，美国Oscilent晶振公司，奥斯康利晶振，3225晶振，超小型晶振，276晶振，278-24.0M-20-W-TR晶振，紧凑和薄(0.65mm型材)，耐热和耐冲击，适用于包括电信设备，短距离无线电链路模块，DVC, DSC, PDA和PC，符合RoHs/无铅标准，超薄型晶振，低损耗晶振，石英晶振，欧美进口晶振，高品质晶振，北斗卫星定位模块晶振，无人机晶振，6G无线网晶振，高精度晶振，贴片晶振，无源晶振，高精度晶振，6G通讯设备晶振，无线传输晶振，局域网晶振，小体积晶振，低损耗晶振。

JLX-PD

金洛鑫产品系列

PRODUCT LINE

石英晶振
QuartzCrystal

贴片晶振
SMDcrystal

谐振器滤波器
Resonator

温补晶振
TCXOcrystal

32.768K
32768Kcrystal

雾化片
AtomizationPiece

智能穿戴

车载安防

通讯网络

智能玩具

金洛鑫联系方式
咨询热线：0755-27837162

手机：13510569637

QQ：QQ

邮箱：jinluodz@163.com

地址：广东省深圳市宝安区宝安41区甲岸路

地址：广东省深圳市宝安区宝安41区甲岸路

E-mail：jinluodz@163.com

电话：0755-27837162

手机:135 1056 9637

在线ＱＱ：657116624 在线QQ

网站：www.quartzcrystal.cn

金洛鑫公众号
金洛鑫微信号
Copyright © 1996-2017 金洛鑫电子备案号：粤ICP备17072356号-1版权归金洛鑫电子有限公司所有©
