SG5032VAN 156.250000M-KJGA|156.25MHz|5032mm|50ppm|LVDS差分输出晶振

频率：156.25MHZ

尺寸：5.0mm×3.2mm

SG5032VAN 156.250000M-KJGA|156.25MHz|5032mm|50ppm|LVDS差分输出晶振 ,SG5032VAN 156.250000M-KJGA晶振,频率156.25MHz,尺寸5032mm,精度50ppm,LVDS差分输出晶振,工作温度-40~85℃,卫星通讯晶振,智能家居晶振,车载安防晶振.

订购热线：0755-27837162

EPSON-1

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

SG5032VAN156.250000MKJGA|156.25MHz|5032mm|50ppm|LVDS差分输出晶振

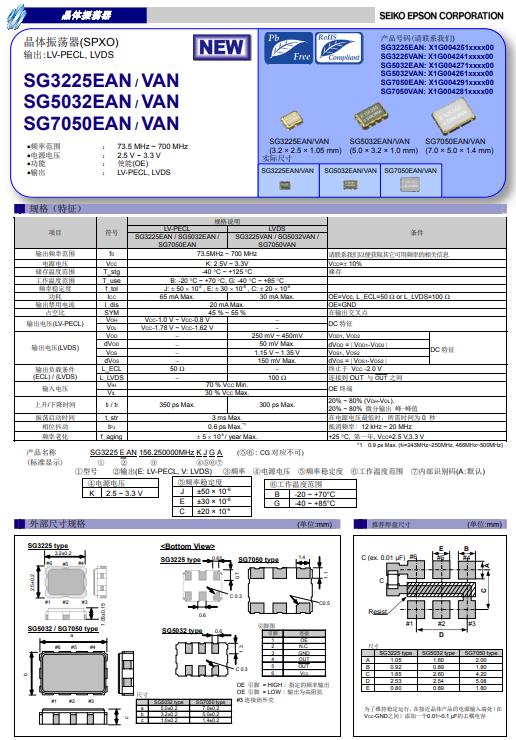

爱普生晶振规格	SG5032VAN晶振	石英晶振基本条件
标准频率	156.25MHz	标准频率，可提供其他频率
储存温度	-40℃~+125℃	裸存
工作温度	-40℃~+85℃	标准温度
上升(Tr) /下降(Tf)时间	3 ns Max.
频率稳定度	±50ppm	+25°C 对于超出标准的规格说明, 请联系我们以便获取相关的信息,http://www.quartzcrystal.cn/
启动时间	3 ms Max.	超出标准的规格请联系我们.
输出负载	15pF	超出标准说明,请联系我们.
输出方式	LVDS
电源电流	30mA Max.
电源电压	2.5~3.3V
频率老化	±5×10-6/year Max.	+25°C,第一年

SG5032VAN 156.250000M-KJGA|156.25MHz|5032mm|50ppm|LVDS差分输出晶振

编码	Model/型号	Frequency/频率	LxWxH/尺寸	Output Wave/输出方式	Supply Voltage/电源电压	Ope Temperature/工作温度
X1G0042610001	SG5032VAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610002	SG5032VAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610003	SG5032VAN	125.006250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610005	SG5032VAN	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610006	SG5032VAN	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610007	SG5032VAN	400.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610008	SG5032VAN	106.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610009	SG5032VAN	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610010	SG5032VAN	74.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610011	SG5032VAN	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610012	SG5032VAN	75.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610013	SG5032VAN	150.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610015	SG5032VAN	312.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610016	SG5032VAN	312.515625 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610017	SG5032VAN	161.132800 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610020	SG5032VAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610021	SG5032VAN	125.006250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610023	SG5032VAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610024	SG5032VAN	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610025	SG5032VAN	400.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610026	SG5032VAN	106.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610027	SG5032VAN	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610028	SG5032VAN	74.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610029	SG5032VAN	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610030	SG5032VAN	75.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610031	SG5032VAN	150.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610033	SG5032VAN	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610034	SG5032VAN	312.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610035	SG5032VAN	312.515625 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610036	SG5032VAN	161.132800 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610039	SG5032VAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
