TG2016SMN高精度温补晶振X1G005441030800用于无人机无线通信应用

返回列表 来源:金洛鑫 浏览:- 发布日期:2022-09-29 15:58:26【
分享到:
无人机的发展可以说是非常的迅速,在安防,农业,交通,电力,直播等领域经常能看到无人机大显身手。无人机的应用场景是非常的广泛,功能更强,性能更高。随之更加智能化,更加小型化也是无人机发展的趋势。通常来说减少无人机自身体积和重量,可以帮助提升挂载能力,减少电能消耗,延长电池续航能力。

爱普生晶振TG2016SMN是一款超小型体积2.0x1.6mm高精度温补晶振,在-40℃到+85℃温度范围内,频率精度可达±0.5ppm,同时提供±2ppm精度的型号可供选择,为无线通信提供高精度时钟,确保了无线频率的稳定,保证了接收灵敏度,提升通信可靠性和通信距离,让无人机飞的更高更远。频率范围10MHz至55MHz。TG2016SMN石英晶体振荡器可以提供例如无人机无线通信常用的16MHz,19.2MHz,24MHz,25MHz,38.4MHZ等频点,工作电源电压1.7V至3.63V,可以满足1.8V,2.8V,3.0V,3.3V不同电压应用需求。同时具备低工作电流1.5mA左右,可以减少无人机电流消耗,提升电池使用时间,提升无人机飞行时间。

TG2016SMN高精度温补晶振X1G005441030800用于无人机无线通信应用

产品编码 型号 频率 爱普生晶振 输出波 电源电压 精度 工作温度
X1G005441001200 TG2016SMN 40.000000MHz 2.00x1.60x0.61mm Clippedsinewave 2.800 to 3.630V +/-1.5ppm 40 to +85°C
X1G005441003100 TG2016SMN 19.200000MHz 2.00x1.60x0.61mm Clippedsinewave 2.660 to 2.940V +/-1.5ppm 40 to +85°C
X1G005441003300 TG2016SMN 39.000000MHz 2.00x1.60x0.61mm Clippedsinewave 3.135 to 3.465V +/-1.5ppm 40 to +85°C
X1G005441004700 TG2016SMN 19.200000MHz 2.00x1.60x0.61mm Clippedsinewave 3.135 to 3.465V +/-1.5ppm 40 to +85°C
X1G005441006500 TG2016SMN 38.400000MHz 2.00x1.60x0.61mm Clippedsinewave 1.700 to 1.900V +/-1.5ppm 40 to +85°C
X1G005441020100 TG2016SMN 16.368000MHz 2.00x1.60x0.73mm Clippedsinewave 1.700 to 1.900V +/-1.5ppm -40 to +85°C
X1G005441020200 TG2016SMN 16.369000MHz 2.00x1.60x0.73mm Clippedsinewave 1.700 to 1.900V +/-1.5ppm -40 to +85°C
X1G005441020300 TG2016SMN 19.200000MHz 2.00x1.60x0.73mm Clippedsinewave 1.700 to 1.900V +/-1.5ppm -40 to +85°C
X1G005441020400 TG2016SMN 26.000000MHz 2.00x1.60x0.73mm Clippedsinewave 1.700 to 1.900V +/-1.5ppm -40 to +85°C
X1G005441020500 TG2016SMN 32.000000MHz 2.00x1.60x0.73mm Clippedsinewave 1.700 to 1.900V +/-1.5ppm -40 to +85°C
X1G005441020600 TG2016SMN 38.400000MHz 2.00x1.60x0.73mm Clippedsinewave 1.700 to 1.900V +/-1.5ppm -40 to +85°C
X1G005441020700 TG2016SMN 40.000000MHz 2.00x1.60x0.73mm Clippedsinewave 1.700 to 1.900V +/-1.5ppm -40 to +85°C
X1G005441020800 TG2016SMN 16.000000MHz 2.00x1.60x0.73mm Clippedsinewave 1.700 to 1.900V +/-1.5ppm -40 to +85°C
X1G005441021100 TG2016SMN 20.000000MHz 2.00x1.60x0.73mm TCXO晶振 1.700 to 1.900V +/-1.5ppm -40 to +85°C
X1G005441021200 TG2016SMN 24.000000MHz 2.00x1.60x0.73mm Clippedsinewave 1.700 to 1.900V +/-1.5ppm -40 to +85°C
X1G005441021300 TG2016SMN 25.000000MHz 2.00x1.60x0.73mm Clippedsinewave 1.700 to 1.900V +/-1.5ppm -40 to +85°C
X1G005441021400 TG2016SMN 27.000000MHz 2.00x1.60x0.73mm Clippedsinewave 1.700 to 1.900V +/-1.5ppm -40 to +85°C
X1G005441021500 TG2016SMN 30.000000MHz 2.00x1.60x0.73mm Clippedsinewave 1.700 to 1.900V +/-1.5ppm -40 to +85°C
X1G005441021600 TG2016SMN 48.000000MHz 2.00x1.60x0.73mm Clippedsinewave 1.700 to 1.900V +/-1.5ppm -40 to +85°C

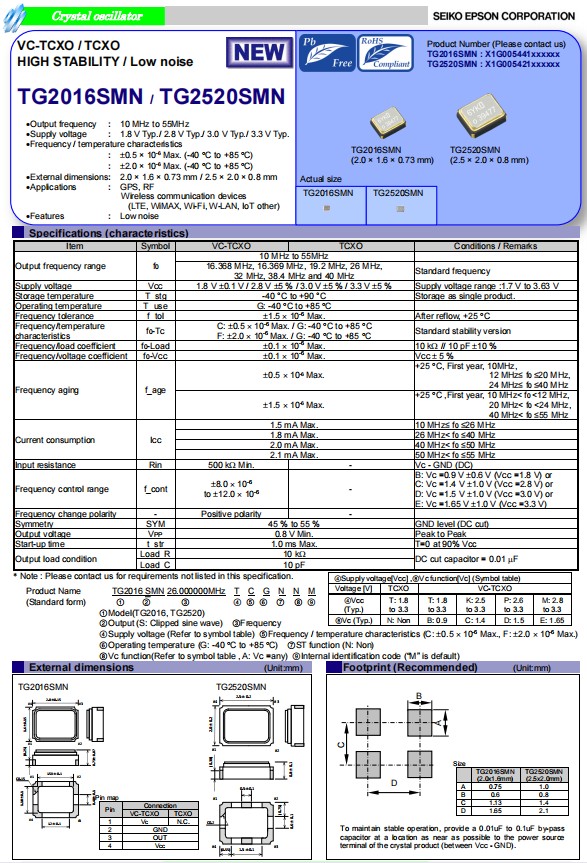

TG2016SMN,TG2520SMN

X1G005441022000 TG2016SMN 52.000000MHz 2.00x1.60x0.73mm Clippedsinewave 1.700 to 1.900V +/-1.5ppm -40 to +85°C
X1G005441022100 TG2016SMN 27.600000MHz 2.00x1.60x0.73mm Clippedsinewave 1.700 to 1.900V +/-1.5ppm -40 to +85°C
X1G005441030100 TG2016SMN 16.368000MHz 2.00x1.60x0.73mm Clippedsinewave 2.660 to 3.465V +/-1.5ppm -40 to +85°C
X1G005441030200 TG2016SMN 16.369000MHz 2.00x1.60x0.73mm Clippedsinewave 2.660 to 3.465V +/-1.5ppm -40 to +85°C
X1G005441030300 TG2016SMN 19.200000MHz 2.00x1.60x0.73mm Clippedsinewave 2.660 to 3.465V +/-1.5ppm -40 to +85°C
X1G005441030400 TG2016SMN 26.000000MHz 2.00x1.60x0.73mm Clippedsinewave 2.660 to 3.465V +/-1.5ppm -40 to +85°C
X1G005441030500 TG2016SMN 32.000000MHz 2.00x1.60x0.73mm Clippedsinewave 2.660 to 3.465V +/-1.5ppm -40 to +85°C
X1G005441030600 TG2016SMN 38.400000MHz 2.00x1.60x0.73mm Clippedsinewave 2.660 to 3.465V +/-1.5ppm -40 to +85°C
X1G005441030700 TG2016SMN 40.000000MHz 2.00x1.60x0.73mm Clippedsinewave 2.660 to 3.465V +/-1.5ppm -40 to +85°C
X1G005441030800 TG2016SMN 16.000000MHz 2.00x1.60x0.73mm Clippedsinewave 2.660 to 3.465V +/-1.5ppm -40 to +85°C
X1G005441031100 TG2016SMN 20.000000MHz 2.00x1.60x0.73mm Clippedsinewave 2.660 to 3.465V +/-1.5ppm -40 to +85°C
X1G005441031200 TG2016SMN 24.000000MHz 2.00x1.60x0.73mm Clippedsinewave 2.660 to 3.465V +/-1.5ppm -40 to +85°C
X1G005441031300 TG2016SMN 25.000000MHz 2.00x1.60x0.73mm Clippedsinewave 2.660 to 3.465V +/-1.5ppm -40 to +85°C
X1G005441031400 TG2016SMN 27.000000MHz 2.00x1.60x0.73mm Clippedsinewave 2.660 to 3.465V +/-1.5ppm -40 to +85°C
X1G005441031500 TG2016SMN 30.000000MHz 2.00x1.60x0.73mm Clippedsinewave 2.660 to 3.465V +/-1.5ppm -40 to +85°C
X1G005441031600 TG2016SMN 48.000000MHz 2.00x1.60x0.73mm Clippedsinewave 2.660 to 3.465V +/-1.5ppm -40 to +85°C
X1G005441032000 TG2016SMN 52.000000MHz 2.00x1.60x0.73mm Clippedsinewave 2.660 to 3.465V +/-1.5ppm -40 to +85°C
X1G005441032100 TG2016SMN 27.600000MHz 2.00x1.60x0.73mm Clippedsinewave 2.660 to 3.465V +/-1.5ppm -40 to +85°C

TG2016SMN高精度温补晶振X1G005441030800用于无人机无线通信应用

无人机在电子控制部分包括了电机驱动,导航避障,数传模块,图传模块等部分。这些电子部分的工作都需要晶振为系统提供稳定的时钟源。尤其是定位导航,数据和图像传输方面,需要无线通信对时钟的要求更高,需要用到高精度晶振的地方很多,例如WIFI,蓝牙,GPS,北斗,4G,等等,TG2016SMN有源晶振是最好的选择可以发挥作用了
