蓝牙模块专用晶振SG3225CAN编码X1G005961002215

返回列表 来源:金洛鑫 浏览:- 发布日期:2022-09-30 15:08:15【
分享到:

晶振在蓝牙模块中无处不在,蓝牙模块是蓝牙适配器的半成品,是一种集成蓝牙功能的芯片基本电路集合,用于无线络通讯。蓝牙模块如同晶振一般,种类奇多。

低功耗蓝牙模块支持蓝牙协议4.0或更高的模块,也称为BLE模块,最大的特点是成本和功耗的降低,应用于实时性要求比较高的产品中,比如:智能家居类(蓝牙锁、蓝牙灯),消费类电子(电子烟、遥控玩具)等。

MC-146

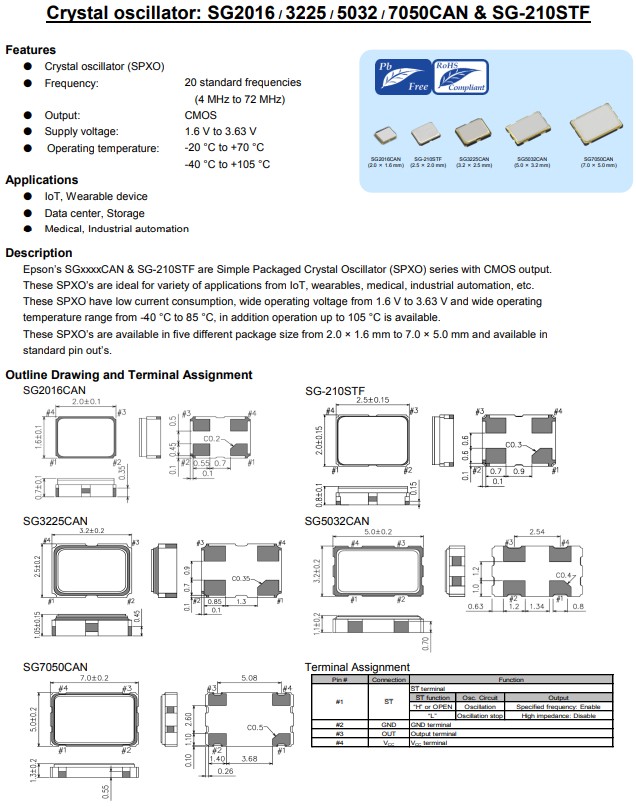

日本爱普生晶振SG3225CAN是一款支持CMOS输出的石英晶体振荡器(SPXO)系列,小体积尺寸3.2x2.5mm有源晶振,四脚贴片晶振,具有超小型,轻薄型,低功耗,低电流消耗特点,1.6V至3.63V的宽工作电压和宽工作温度范围从-40℃到+105这些SPXO提供从2.0x1.6mm到7.0x5.0mm的五种不同封装尺寸,并提供标准引脚排列。非常适合物联网、蓝牙模块,便捷式设备,可穿戴设备、医疗、工业自动化等各种应用。

蓝牙模块专用晶振SG3225CAN编码X1G005961002215

产品编码 型号 频率 石英晶振 输出波 电源电压 工作温度
X1G005961000115 SG3225CAN 24.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961000215 SG3225CAN 25.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961000315 SG3225CAN 48.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961000415 SG3225CAN 8.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961000515 SG3225CAN 10.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961000615 SG3225CAN 12.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961000715 SG3225CAN 20.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961000815 SG3225CAN 24.576000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961000915 SG3225CAN 40.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961001015 SG3225CAN 50.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961001115 SG3225CAN 4.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961001215 SG3225CAN 4.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961001315 SG3225CAN 8.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961001415 SG3225CAN 10.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961001515 SG3225CAN 12.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -20 to 70 °C
X1G005961001615 SG3225CAN 12.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961001715 SG3225CAN 12.288000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -20 to 70 °C
X1G005961001815 SG3225CAN 12.288000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961001915 SG3225CAN 12.288000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961002015 SG3225CAN 14.745600MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961002115 SG3225CAN 14.745600MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961002215 SG3225CAN 16.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961002315 SG3225CAN 16.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961002415 SG3225CAN 20.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -20 to 70 °C

SG2016CAN,SG3225CAN,SG5032CAN,SG7050CAN,SG-210STF

X1G005961002515 SG3225CAN 20.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961002615 SG3225CAN 24.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -20 to 70 °C
X1G005961002715 SG3225CAN 24.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961002815 SG3225CAN 24.576000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961002915 SG3225CAN 25.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -20 to 70 °C
X1G005961003015 SG3225CAN 25.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961003115 SG3225CAN 26.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961003215 SG3225CAN 26.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961003315 SG3225CAN 27.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961003415 SG3225CAN 27.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961003515 SG3225CAN 32.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961003615 SG3225CAN 32.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961003715 SG3225CAN 33.330000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961003815 SG3225CAN 33.330000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961003915 SG3225CAN 33.333300MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961004015 SG3225CAN 33.333300MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961004115 SG3225CAN 40.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961004215 SG3225CAN 48.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -20 to 70 °C
X1G005961004315 SG3225CAN 48.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961004415 SG3225CAN 50.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -20 to 70 °C
X1G005961004515 SG3225CAN 50.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961004615 SG3225CAN 72.000000MHz 3.20x2.50x1.05mm CMOS 1.710 to 3.630 V -20 to 70 °C
X1G005961004715 SG3225CAN 72.000000MHz 3.20x2.50x1.05mm CMOS 1.710 to 3.630 V -40 to 85 °C
X1G005961004815 SG3225CAN 72.000000MHz 3.20x2.50x1.05mm CMOS 2.250 to 3.630 V -40 to 105 °C

蓝牙模块专用晶振SG3225CAN编码X1G005961002215

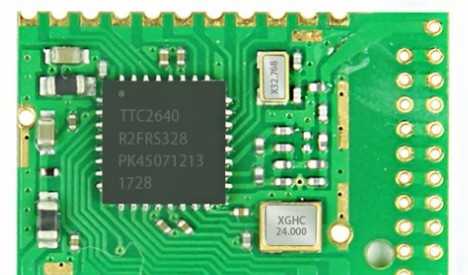

蓝牙模块中最佳贴片晶振组合常用到一款MHZ晶振和32.768KHZ晶振,MHZ晶振中常用频率最为广泛应用,12MHZ,16MHZ,24MHZ,26MHZ,32MHZ。通常使用到的封装为2016mm贴片晶振,2520mm贴片晶振,3225mm贴片晶振。
