TX-T30-25JP05-19.44M-TR,5032石英振荡器,TX-T削峰正弦波输出晶振

频率：19.44MHz

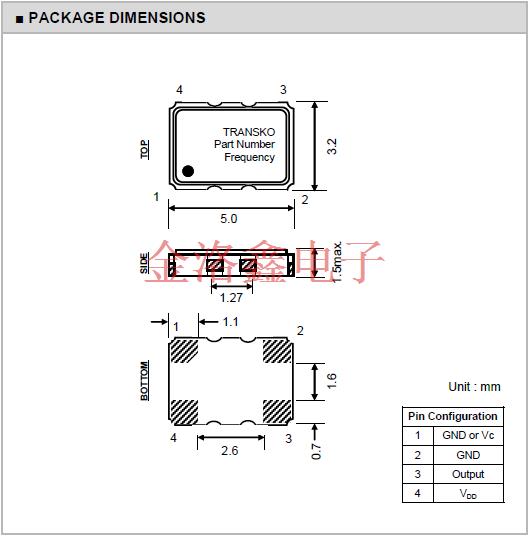

尺寸：5.00mm x 3.20mm

TX-T30-25JP05-19.44M-TR,5032石英振荡器,TX-T削峰正弦波输出晶振,作为典型的5032石英振荡器,TX-T30-25JP05-19.44M-TR采用5.0mm×3.2mm的贴片封装设计,在尺寸上实现"性能与空间"的平衡:相较于更大尺寸的振荡器,其体积更小巧,可灵活嵌入PCB板密集布局中,为路由器,工业网关等设备的小型化设计节省空间;同时,贴片式结构完全兼容全自动SMT贴装工艺,焊盘布局符合行业通用标准,能减少人工干预带来的误差,提升批量生产效率.此外,封装外壳采用高强度陶瓷材质,具备良好的抗振动,抗冲击性能,有效降低外部机械干扰对振荡器性能的影响.

订购热线：0755-27837162

JLX-1

TX-T30-25JP05-19.44M-TR,5032石英振荡器,TX-T削峰正弦波输出晶振

TX-T30-25JP05-19.44M-TR作为专注高频稳定输出的石英振荡器,以19.44MHz精准标称频率为核心,隶属于性能导向的TX-T系列.型号中"T30"标识对应专属电路架构,"TR"代表标准化封装工艺,既保障频率信号的高精准度,又通过优化设计实现稳定运行.其作为5032石英振荡器,在5.0mm×3.2mm的紧凑尺寸内,融合TX-T削峰正弦波输出晶振的独特信号特性,可满足通讯设备,工业控制等领域对高频时钟信号的严苛需求,是兼顾"高频精度+工艺适配"的优质频率控制元件.

JLX-2

TX-T30-25JP05-19.44M-TR,5032石英振荡器,TX-T削峰正弦波输出晶振

原厂型号 Original model ：	TX-T30-25JP05-19.44M-TR	品牌 brand ：	Transko晶振
Manufacturer品牌	Transko晶振	Operating Temperature温度	-10º to 70ºC
Series型号	TX - T	Current - Supply (Max)	-
Type 类型	TCXO	Package Height高度	1.5mm
Frequency 频率	19.44M	Termination 脚位	4 pads
输出方式 Output：	Clipped sine wave	Package Type 封装类型	4-SMD
Voltage - Supply电压	3.3V	Packaging 包装	Tape and Reel
Frequency Stability频率稳定度	±2.5ppm	安装方式 Installation ：	Surface mount
Size / Dimension 尺寸	5032振荡器	最小包装数 MPQ ：	1000

JLX-3

TX-T30-25JP05-19.44M-TR,5032石英振荡器,TX-T削峰正弦波输出晶振

TX-T 5032 TCXO VCTCXO
