当前位置：首页 » 贴片晶振 » Suntsu晶振 » SXT21410BB17-18.432M|2016mm|10pf|欧美松图晶振
SXT21410BB17-18.432M|2016mm|10pf|欧美松图晶振
prevnext

SXT21410BB17-18.432M|2016mm|10pf|欧美松图晶振

频率：18.432MHz

尺寸：2.0mm x 1.6mm

SXT21410BB17-18.432M|2016mm|10pf|欧美松图晶振,SXT21410BB17-18.432M晶振,2016mm晶振,负载10pf,工作温度-10~70°C,欧美松图晶振,SMD石英晶振,进口无源晶振,低老化晶振,USB接口晶振,办公自动化晶振,音频设备晶振,视觉蓝牙应用晶振,小型通信设备晶振.




订购热线：0755-27837162
QQ咨询 点击这里给我发消息

ConnorWinfield-1SXT21410BB17-18.432M|2016mm|10pf|欧美松图晶振,SXT21410BB17-18.432M晶振,2016mm晶振,负载10pf,工作温度-10~70°C,欧美松图晶振,SMD石英晶振,进口无源晶振,低老化晶振,USB接口晶振,办公自动化晶振,音频设备晶振,视觉蓝牙应用晶振,小型通信设备晶振.

SXT21410BB17-18.432M|2016mm|10pf|欧美松图晶振 特征

•±10 ppm /±10 ppm(公差/稳定)可用

•超小型封装

•AT-Cut基本原理

•磁带和卷轴

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

SXT21410BB17-18.432M|2016mm|10pf|欧美松图晶振 参数

项目 数值 附注
频率 18.432MHz AT-Cut Fundamental.
频率公差 @ +25°C ±30PPM See part numbering guide for options.
频率稳定性 ±30PPM See part numbering guide for options.
频率稳定性与老化 ±2ppm Max First year @ +25ºC.
工作温度 -10°C to +70°C See part numbering guide for options.
保存温度 -40°C to +125°C
并联电容 (C0) 5pF Max
负载电容 (CL) 10pF See part numbering guide for options.
激励功率 100μW Max
绝缘电阻 500MΩ @ 100VDC ± 15V.
ESR-16.000MHz ~ 20.999MHz 100Ω AT-Cut Fundamental.

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

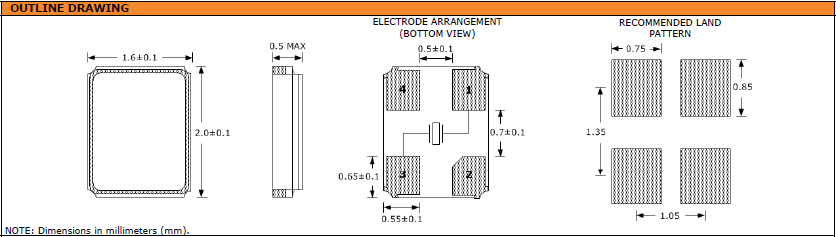

SXT21410BB17-18.432M|2016mm|10pf|欧美松图晶振 尺寸图

SXT214 2016

SUNTSU晶振编码 尺寸 负载 频率公差 频率稳定度 工作温度 频率
SXT21410BB17-18.432M 2.0X1.6 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±30ppm -10°C - +70°C 18.432M
SXT21410BB17-20.000M 2.0X1.6 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±30ppm -10°C - +70°C 20.000M
SXT21410BB17-22.1184M 2.0X1.6 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±30ppm -10°C - +70°C 22.1184M
SXT21410BB17-24.000M 2.0X1.6 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±30ppm -10°C - +70°C 24.000M
SXT21410BB17-24.576M 2.0X1.6 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±30ppm -10°C - +70°C 24.576M
SXT21410BB17-25.000M 2.0X1.6 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±30ppm -10°C - +70°C 25.000M
SXT21410BB17-26.000M 2.0X1.6 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±30ppm -10°C - +70°C 26.000M
SXT21410BB17-27.000M 2.0X1.6 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±30ppm -10°C - +70°C 27.000M
SXT21410BB17-27.120M 2.0X1.6 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±30ppm -10°C - +70°C 27.120M
SXT21410BB17-30.000M 2.0X1.6 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±30ppm -10°C - +70°C 30.000M
SXT21410BB17-32.000M 2.0X1.6 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±30ppm -10°C - +70°C 32.000M
SXT21410BB17-37.400M 2.0X1.6 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±30ppm -10°C - +70°C 37.400M
SXT21410BB17-38.400M 2.0X1.6 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±30ppm -10°C - +70°C 38.400M
SXT21411DB16-18.432M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±30ppm -10°C - +60°C 18.432M
SXT21411DB16-22.1184M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±30ppm -10°C - +60°C 22.1184M
SXT21411DB16-37.400M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±30ppm -10°C - +60°C 37.400M
SXT21411DB16-50.000M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±30ppm -10°C - +60°C 50.000M
SXT21411DB17-16.384M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±30ppm -10°C - +70°C 16.384M
SXT21411DB17-18.432M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±30ppm -10°C - +70°C 18.432M
SXT21411DB17-22.1184M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±30ppm -10°C - +70°C 22.1184M
SXT21411DB17-37.400M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±30ppm -10°C - +70°C 37.400M
SXT21411DB17-50.000M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±30ppm -10°C - +70°C 50.000M
SXT21411DB27-16.384M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±30ppm -20°C - +70°C 16.384M
SXT21411DB27-18.432M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±30ppm -20°C - +70°C 18.432M
SXT21411DB27-22.1184M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±30ppm -20°C - +70°C 22.1184M
SXT21411DB27-37.400M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±30ppm -20°C - +70°C 37.400M
SXT21411DB27-50.000M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±30ppm -20°C - +70°C 50.000M
SXT21411DB38-16.384M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±30ppm -30°C - +85°C 16.384M
SXT21411DB38-18.432M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±30ppm -30°C - +85°C 18.432M
SXT21411DB38-22.1184M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±30ppm -30°C - +85°C 22.1184M
SXT21411DB38-37.400M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±30ppm -30°C - +85°C 37.400M
SXT21411DB38-50.000M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±30ppm -30°C - +85°C 50.000M
SXT21411DB48-16.384M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±30ppm -40°C - +85°C 16.384M
SXT21411DB48-18.432M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±30ppm -40°C - +85°C 18.432M
SXT21411DB48-22.1184M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±30ppm -40°C - +85°C 22.1184M
SXT21411DB48-37.400M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±30ppm -40°C - +85°C 37.400M
SXT21411DB48-50.000M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±30ppm -40°C - +85°C 50.000M
SXT21411DC07-16.384M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm 0°C - +70°C 16.384M
SXT21411DC07-18.432M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm 0°C - +70°C 18.432M
SXT21411DC07-22.1184M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm 0°C - +70°C 22.1184M
SXT21411DC07-37.400M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm 0°C - +70°C 37.400M
SXT21411DC07-50.000M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm 0°C - +70°C 50.000M
SXT21411DC16-16.384M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm -10°C - +60°C 16.384M
SXT21411DC16-18.432M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm -10°C - +60°C 18.432M
SXT21411DC16-22.1184M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm -10°C - +60°C 22.1184M
SXT21411DC16-37.400M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm -10°C - +60°C 37.400M
SXT21411DC16-50.000M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm -10°C - +60°C 50.000M
SXT21411DC17-16.384M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm -10°C - +70°C 16.384M
SXT21411DC17-18.432M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm -10°C - +70°C 18.432M
SXT21411DC17-22.1184M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm -10°C - +70°C 22.1184M
SXT21411DC17-37.400M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm -10°C - +70°C 37.400M
SXT21411DC17-50.000M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm -10°C - +70°C 50.000M
SXT21411DC27-16.384M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm -20°C - +70°C 16.384M
SXT21411DC27-18.432M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm -20°C - +70°C 18.432M
SXT21411DC27-22.1184M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm -20°C - +70°C 22.1184M
SXT21411DC27-37.400M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm -20°C - +70°C 37.400M
SXT21411DC27-50.000M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm -20°C - +70°C 50.000M
SXT21411DC38-16.384M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm -30°C - +85°C 16.384M
SXT21411DC38-18.432M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm -30°C - +85°C 18.432M
SXT21411DC38-22.1184M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm -30°C - +85°C 22.1184M
SXT21411DC38-37.400M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm -30°C - +85°C 37.400M
SXT21411DC38-50.000M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm -30°C - +85°C 50.000M
SXT21411DC48-16.384M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm -40°C - +85°C 16.384M
SXT21411DC48-18.432M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm -40°C - +85°C 18.432M
SXT21411DC48-22.1184M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm -40°C - +85°C 22.1184M
SXT21411DC48-37.400M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm -40°C - +85°C 37.400M
SXT21411DC48-50.000M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±25ppm -40°C - +85°C 50.000M
SXT21411DD07-16.384M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±20ppm 0°C - +70°C 16.384M
SXT21411DD07-18.432M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±20ppm 0°C - +70°C 18.432M
SXT21411DD07-22.1184M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±20ppm 0°C - +70°C 22.1184M
SXT21411DD07-37.400M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±20ppm 0°C - +70°C 37.400M
SXT21411DD07-50.000M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±20ppm 0°C - +70°C 50.000M
SXT21411DD16-16.384M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±20ppm -10°C - +60°C 16.384M
SXT21411DD16-18.432M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±20ppm -10°C - +60°C 18.432M
SXT21411DD16-22.1184M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±20ppm -10°C - +60°C 22.1184M
SXT21411DD16-37.400M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±20ppm -10°C - +60°C 37.400M
SXT21411DD16-50.000M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±20ppm -10°C - +60°C 50.000M
SXT21411DD17-16.384M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±20ppm -10°C - +70°C 16.384M
SXT21411DD17-18.432M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±20ppm -10°C - +70°C 18.432M
SXT21411DD17-22.1184M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±20ppm -10°C - +70°C 22.1184M
SXT21411DD17-37.400M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±20ppm -10°C - +70°C 37.400M
SXT21411DD17-50.000M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±20ppm -10°C - +70°C 50.000M
SXT21411DD27-16.384M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±20ppm -20°C - +70°C 16.384M
SXT21411DD27-18.432M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±20ppm -20°C - +70°C 18.432M
SXT21411DD27-22.1184M 2.0X1.6 SMD (4 PAD) CRYSTAL 11pF ±20ppm ±20ppm -20°C - +70°C 22.1184M

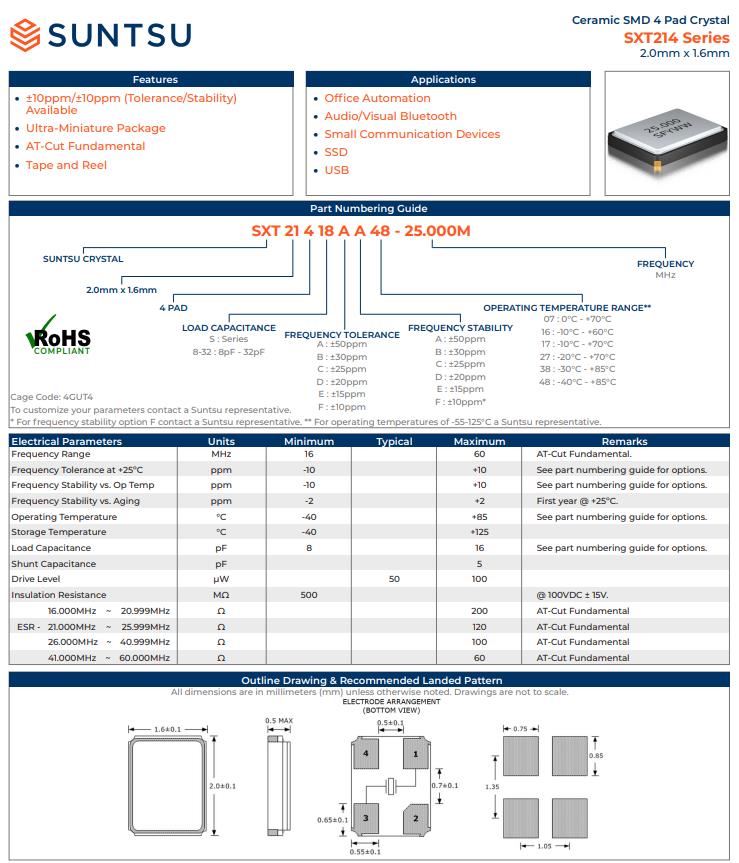

SXT21410BB17-18.432M|2016mm|10pf|欧美松图晶振规格书与内部识别码

SXT214
