XRCHA21M000F0A01R0,日本Murata村田晶振,XRCHA晶体谐振器,2520小型贴片晶振

频率：20MHz

尺寸：2.50mm x 2.00mm

XRCHA21M000F0A01R0,日本Murata村田晶振,XRCHA晶体谐振器,2520小型贴片晶振具备显著的空间优势,相较于更大尺寸的晶振(如3225封装),在PCB板上占用面积减少约30%,尤其适合智能穿戴设备晶振,小型IoT终端,便携式消费电子等对空间敏感的产品,贴片式设计兼容自动化SMT贴片工艺,能提升生产效率,降低人工焊接误差,同时其紧凑的结构设计可减少外部应力对晶体的影响,提升安装后的稳定性,适配批量生产的工业化需求,满足各类小型电子设备的组装适配标准.

订购热线：0755-27837162

XRCHA21M000F0A01R0,日本Murata村田晶振,XRCHA晶体谐振器,2520小型贴片晶振

XRCHA21M000F0A01R0是日本Murata村田旗下XRCHA系列中的一款晶体谐振器,专为对元器件尺寸与性能有双重要求的电子设备设计.作为典型的小型贴片晶振,其采用2520晶振封装规格(即2.5mm×2.0mm),在尺寸上较传统封装大幅缩减,能轻松适配电子设备小型化,高密度布局需求,标称频率为21MHz,属于中高频晶体谐振器范畴,无内置振荡电路,需配合外部驱动电路工作,依托村田在晶体材料与制造工艺上的技术积累,可提供稳定的时钟信号输出,为设备核心功能运行奠定基础.

JLX-2

XRCHA21M000F0A01R0,日本Murata村田晶振,XRCHA晶体谐振器,2520小型贴片晶振

原厂型号 Originalmodel：	XRCHA20M000F0A01R0	品牌brand：	Murata村田晶振
品牌brand：	村田晶振	ESR（等效串联电阻）Resistance)	80 Ohms
型号名称 Modelname：	XRCHA	温度OperatingTemperature	-40°C~125°C
Type系列：	MHz Crystal	脚位Termination：	2pad
频率 frequency：	20 MHz	封装类型PackageType：	2-SMD
FrequencyStability频率稳定度	±100ppm	高度PackageHeight：	0.80mm
frequencytolerance频率容差	±30ppm	最小包装数MPQ：	3000
Loadcapacitance 负载电容	8pF	包装Packaging：	TapeandReel
Size/Dimension尺寸	2.50mm x 2.00mm	安装方式MountingStyle：	SurfaceMount

JLX-3

XRCHA21M000F0A01R0,日本Murata村田晶振,XRCHA晶体谐振器,2520小型贴片晶振

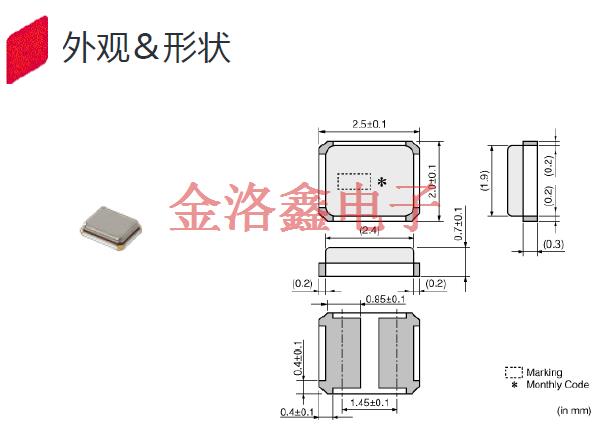

XRCHA16M000F0A01R0 2.5_2.0

JLXNR-4

XRCHA21M000F0A01R0,日本Murata村田晶振,XRCHA晶体谐振器,2520小型贴片晶振

XRCGB25M000F3M00R0	Murata村田晶振	XRCGB	MHz Crystal	25 MHz	±40ppm	±30ppm	6pF	150 Ohms
XRCGB27M120F3M00R0	Murata村田晶振	XRCGB	MHz Crystal	27.12 MHz	±40ppm	±30ppm	6pF	150 Ohms
XRCGB24M000F3M00R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±40ppm	±30ppm	6pF	150 Ohms
XRCGB24M000F2P00R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±20ppm	±20ppm	6pF	150 Ohms
XRCGB32M000F1H01R0	Murata村田晶振	-	MHz Crystal	32 MHz	±10ppm	±10ppm	8pF	60 Ohms
XRCGB32M000F1H00R0	Murata村田晶振	XRCGB	MHz Crystal	32 MHz	±10ppm	±10ppm	6pF	60 Ohms
XRCGB25M000F3A00R0	Murata村田晶振	XRCGB	MHz Crystal	25 MHz	±35ppm	±35ppm	6pF	100 Ohms
XRCGB24M000F0L00R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±50ppm	±100ppm	6pF	150 Ohms
XRCGB48M000F4M00R0	Murata村田晶振	XRCGB	MHz Crystal	48 MHz	±40ppm	±45ppm	6pF	100 Ohms
XRCGB24M000F3N00R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±30ppm	±30ppm	6pF	150 Ohms
XRCGB27M120F3M10R0	Murata村田晶振	XRCGB	MHz Crystal	27.12 MHz	±40ppm	±30ppm	10pF	80 Ohms
XRCGB25M000F3M18R0	Murata村田晶振	-	MHz Crystal	25 MHz	±40ppm	±30ppm	12pF	80 Ohms
XRCGB32M000F2P01R0	Murata村田晶振	-	MHz Crystal	32 MHz	±20ppm	±20ppm	8pF	100 Ohms
XRCGB32M000F2P00R0	Murata村田晶振	XRCGB	MHz Crystal	32 MHz	±20ppm	±20ppm	6pF	100 Ohms
XRCGB25M000F2P02R0	Murata村田晶振	-	MHz Crystal	25 MHz	±20ppm	±20ppm	10pF	150 Ohms
XRCGB27M120F2P00R0	Murata村田晶振	XRCGB	MHz Crystal	27.12 MHz	±20ppm	±20ppm	6pF	150 Ohms
XRCGB25M000F2P00R0	Murata村田晶振	XRCGB	MHz Crystal	25 MHz	±20ppm	±20ppm	6pF	150 Ohms
XRCGB24M000F2P01R0	Murata村田晶振	-	MHz Crystal	24 MHz	±20ppm	±20ppm	8pF	150 Ohms
XRCGB27M120F3M13R0	Murata村田晶振	-	MHz Crystal	27.12 MHz	±40ppm	±30ppm	10pF	60 Ohms
XRCGB32M000F2P2CR0	Murata村田晶振	XRCGB	MHz Crystal	32 MHz	±20ppm	±20ppm	8pF	70 Ohms
XRCGB32M000FBH50R0	Murata村田晶振	-	MHz Crystal	32 MHz	±10ppm	±15ppm	10pF	60 Ohms
XRCGB24M000F2P91R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±20ppm	±20ppm	8pF	60 Ohms
XRCGB16M000FXN00R0	Murata村田晶振	-	MHz Crystal	16 MHz	±40ppm	±40ppm	6pF	200 Ohms
XRCGB32M000F1H02R0	Murata村田晶振	-	MHz Crystal	32 MHz	±10ppm	±10ppm	10pF	60 Ohms
XRCGB32M000F1H19R0	Murata村田晶振	-	MHz Crystal	32 MHz	±10ppm	±10ppm	6pF	50 Ohms
XRCGB40M000F5A00R0	Murata村田晶振	-	MHz Crystal	40 MHz	±65ppm	±50ppm	6pF	70 Ohms
XRCGB24M000F3A00R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±35ppm	±30ppm	6pF	120 Ohms
XRCGB27M120F3A00R0	Murata村田晶振	XRCGB	MHz Crystal	27.12 MHz	±35ppm	±30ppm	6pF	80 Ohms
XRCGB25M000F3A01R0	Murata村田晶振	XRCGB	MHz Crystal	25 MHz	±35ppm	±30ppm	8pF	100 Ohms
XRCGB48M000F5A00R0	Murata村田晶振	-	MHz Crystal	48 MHz	±65ppm	±50ppm	6pF	60 Ohms
XRCGE25M000FBA1AR0	Murata村田晶振	XRCFD	MHz Crystal	25 MHz	±35ppm	±15ppm	6pF	100 Ohms
XRCHA20M000F0A01R0	Murata村田晶振	XRCHA	MHz Crystal	20 MHz	±100ppm	±100ppm	8pF	80 Ohms
XRCGB27M120F0L00R0	Murata村田晶振	-	MHz Crystal	27.12 MHz	±50ppm	±100ppm	6pF	150 Ohms
XRCGB32M000F0L00R0	Murata村田晶振	-	MHz Crystal	32 MHz	±50ppm	±100ppm	6pF	100 Ohms
XRCGB24M000FAN00R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±40ppm	±25ppm	6pF	150 Ohms
XRCGB38M400F4M00R0	Murata村田晶振	-	MHz Crystal	38.4 MHz	±40ppm	±45ppm	6pF	100 Ohms
XRCGB50M000F4M00R0	Murata村田晶振	-	MHz Crystal	50 MHz	±40ppm	±45ppm	6pF	65 Ohms
XRCGB32M000F3M00R0	Murata村田晶振	-	MHz Crystal	32 MHz	±40ppm	±30ppm	6pF	100 Ohms
XRCGB24M000F3M13R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±40ppm	±30ppm	6pF	150 Ohms
XRCGB32M000F2P02R0	Murata村田晶振	-	MHz Crystal	32 MHz	±20ppm	±20ppm	10pF	100 Ohms
XRCGB30M000F2P00R0	Murata村田晶振	XRCGB	MHz Crystal	30 MHz	±20ppm	±20ppm	6pF	100 Ohms
XRCGB27M120F2P02R0	Murata村田晶振	-	MHz Crystal	27.12 MHz	±20ppm	±20ppm	10pF	150 Ohms
XRCGB32M000F2P26R0	Murata村田晶振	-	MHz Crystal	32 MHz	±20ppm	±20ppm	5pF	70 Ohms
XRCGB31M250F2P00R0	Murata村田晶振	XRCGB	MHz Crystal	31.25 MHz	±20ppm	±20ppm	6pF	100 Ohms
XRCGB27M120F3G00R0	Murata村田晶振	-	MHz Crystal	27.12 MHz	±50ppm	±30ppm	6pF	150 Ohms
XRCGB16M000FXN22R0	Murata村田晶振	XRCGB	MHz Crystal	16 MHz	±40ppm	±40ppm	8pF	200 Ohms
XRCGB27M600F2C00R0	Murata村田晶振	-	MHz Crystal	27.6 MHz	±20ppm	±20ppm	6pF	80 Ohms
XRCGB24M000F1H01R0	Murata村田晶振	-	MHz Crystal	24 MHz	±10ppm	±10ppm	8pF	80 Ohms
XRCGB26M000F1H02R0	Murata村田晶振	-	MHz Crystal	26 MHz	±10ppm	±10ppm	10pF	60 Ohms
XRCGB24M000F1H70R0	Murata村田晶振	-	MHz Crystal	24 MHz	±20ppm	±10ppm	6pF	80 Ohms
XRCGB32M000F1H83R0	Murata村田晶振	-	MHz Crystal	32 MHz	±15ppm	±10ppm	9pF	60 Ohms
XRCGE27M000FBA1AR0	Murata村田晶振	XRCGE	MHz Crystal	27 MHz	±35ppm	±15ppm	6pF	80 Ohms
XRCGB26M000F3A00R0	Murata村田晶振	-	MHz Crystal	26 MHz	±35ppm	±30ppm	6pF	80 Ohms
XRCGE26M000FBA1BR0	Murata村田晶振	XRCGE	MHz Crystal	26 MHz	±35ppm	±15ppm	8pF	80 Ohms
XRCGE20M000F3A1AR0	Murata村田晶振	XRCFD	MHz Crystal	20 MHz	±45ppm	±30ppm	6pF	150 Ohms
XRCGB24M000F2A01R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±35ppm	±20ppm	8pF	120 Ohms
XRCGB27M120F3P00R0	Murata村田晶振	-	MHz Crystal	27.12 MHz	±20ppm	±30ppm	6pF	150 Ohms
XRCGB32M000F2P55R0	Murata村田晶振	XRCGB	MHz Crystal	32 MHz	±20ppm	±20ppm	6pF	80 Ohms
XRCPB26M000F2P00R0	Murata村田晶振	XRCPB	MHz Crystal	26 MHz	±20ppm	±20ppm	6pF	150 Ohms
XRCGB32M000F1H18R0	Murata村田晶振	XRCFD	MHz Crystal	32 MHz	±15ppm	±10ppm	9pF	40 Ohms
