XJDDDLNANF-8.000000,Taitien台产晶振,49SMD晶振

当前位置：首页 » 石英晶振 » XJDDDLNANF-8.000000,Taitien台产晶振,49SMD晶振

prevnext

XJDDDLNANF-8.000000,Taitien台产晶振,49SMD晶振

频率：8MHz

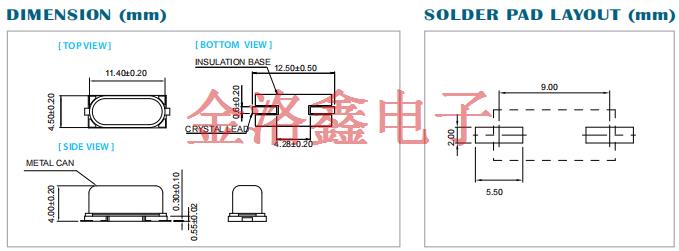

尺寸：13*4.85mm

XJDDDLNANF-8.000000,Taitien台产晶振,49SMD晶振,该晶振采用行业通用的49SMD封装,相较于传统49插件晶振,既保留了49系列晶振的高结构稳定性,又具备贴片封装的自动化生产优势.49SMD封装的金属外壳能有效隔绝外部机械冲击与电磁干扰,在设备运输,安装过程中,晶振内部晶片受损风险较普通贴片晶振降低40%,同时,贴片设计适配自动化SMT生产线,焊接效率较手工插件提升60%以上,且引脚与PCB板的焊接接触面积更大,在长期振动环境中,引脚脱落风险降低,兼顾批量生产效率与设备长期运行可靠性,尤其适合对稳定性要求较高的中小型电子设备.

订购热线：0755-27837162

XJDDDLNANF-8.000000,Taitien台产晶振,49SMD晶振

XJDDDLNANF-8.000000作为Taitien台产晶振的经典型号,以8.000000MHz稳定频率输出,成为消费电子,无线通信应用晶振终端,工业控制等领域的基础时钟核心.在消费电子领域,如蓝牙音箱,智能台灯的主控电路中,该频率可确保设备指令响应延迟≤5ms,避免操作卡顿,在通信设备(如路由器,调制解调器)的信号处理模块中,稳定的时钟信号能支撑数据帧的精准解析,其出厂前经Taitien台产线的"双级精密校准工艺",频率误差严格控制在±15ppm以内,能直接与主流主控芯片无缝兼容,无需额外调试即可集成,为设备稳定运行奠定时钟基础.

JLX-2

XJDDDLNANF-8.000000,Taitien台产晶振,49SMD晶振

原厂型号 Originalmodel：	XJDDDLNANF-8.000000	品牌brand：	Taitien
品牌brand：	Taitien台湾进口晶振	ESR（等效串联电阻）Resistance)	-
型号名称 Modelname：	XJ	温度OperatingTemperature	-40+85
Type系列：	MHz Crystal	脚位Termination：	2pad
频率 frequency：	8M	封装类型PackageType：	49SMD
FrequencyStability频率稳定度	-	高度PackageHeight：	4.0 mm
frequencytolerance频率容差	±25PPm	最小包装数MPQ：	-
Loadcapacitance 负载电容	12PF	包装Packaging：	TapeandReel
Size/Dimension尺寸	13*4.85mm	安装方式MountingStyle：	SurfaceMount

JLX-3

XJDDDLNANF-8.000000,Taitien台产晶振,49SMD晶振

NI-10M-3510	Taitien	NI-10M-3500	OCXO	10 MHz	CMOS	5V	±0.2ppb
NI-10M-3560	Taitien	NI-10M-3500	OCXO	10 MHz	CMOS	5V	±0.1ppb
OXETECJANF-40.000000	Taitien	OX	XO (Standard)	40 MHz	CMOS	2.8V ~ 3.3V	±30ppm
OXETGCJANF-25.000000	Taitien	OX	XO (Standard)	25 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXETGLJANF-24.576000	Taitien	OX	XO (Standard)	24.576 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXETHEJANF-12.000000	Taitien	OX	XO (Standard)	12 MHz	CMOS	2.8V ~ 3.3V	±100ppm
OXETGCJANF-36.000000	Taitien	OX	XO (Standard)	36 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXETGLJANF-40.000000	Taitien	OX	XO (Standard)	40 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXETGCJANF-16.000000	Taitien	OX	XO (Standard)	16 MHz	CMOS	3.3V	±50ppm
OXETGCJANF-24.576000	Taitien	OX	XO (Standard)	24.576 MHz	CMOS	3.3V	±50ppm
OXETGCJANF-27.000000	Taitien	OX	XO (Standard)	27 MHz	CMOS	3.3V	±50ppm
OXETGLJANF-16.000000	Taitien	OX	XO (Standard)	16 MHz	CMOS	3.3V	±50ppm
OXKTGLJANF-19.200000	Taitien	OX	XO (Standard)	19.2 MHz	CMOS	1.8V	±50ppm
OXKTGLJANF-26.000000	Taitien	OX	XO (Standard)	26 MHz	CMOS	1.8V	±50ppm
OXETGCJANF-50.000000	Taitien	OX	XO (Standard)	50 MHz	CMOS	3.3V	±50ppm
OXETGCJANF-54.000000	Taitien	OX	XO (Standard)	54 MHz	CMOS	3.3V	±50ppm
OXETGLJANF-27.000000	Taitien	OX	XO (Standard)	27 MHz	CMOS	3.3V	±50ppm
OXKTGLKANF-26.000000	Taitien	OX	XO (Standard)	26 MHz	CMOS	1.8V	±50ppm
OCETDCJTNF-66.000000MHZ	Taitien	OC	XO (Standard)	66 MHz	CMOS	2.8V ~ 3.3V	±25ppm
OXETECJANF-27.000000	Taitien	OX	XO (Standard)	27 MHz	CMOS	2.8V ~ 3.3V	±30ppm
OXETGJJANF-7.680000	Taitien	OX	XO (Standard)	7.68 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OYETCCJANF-12.288000	Taitien	OY	XO (Standard)	12.288 MHz	CMOS	2.8V ~ 3.3V	±20ppm
OXETGLJANF-38.880000	Taitien	OX	XO (Standard)	38.88 MHz	CMOS	3.3V	±50ppm
OCETDCKANF-12.800000	Taitien	OC	XO (Standard)	12.8 MHz	CMOS	3.3V	±25ppm
OCETECJANF-25.000000	Taitien	OC	XO (Standard)	25 MHz	CMOS	3.3V	±30ppm
OCETCCJANF-12.000000	Taitien	OC	XO (Standard)	12 MHz	CMOS	3.3V	±20ppm
OCETCCJANF-25.000000	Taitien	OC	XO (Standard)	25 MHz	CMOS	3.3V	±20ppm
OCETDCKTNF-50.000000	Taitien	OC	XO (Standard)	50 MHz	CMOS	3.3V	±25ppm
OCETDLJANF-2.048000	Taitien	OC	XO (Standard)	2.048 MHz	CMOS	3.3V	±25ppm
OCETELJANF-8.000000	Taitien	OC	XO (Standard)	8 MHz	CMOS	3.3V	±30ppm
OCETGCJANF-12.000000	Taitien	OC	XO (Standard)	12 MHz	CMOS	3.3V	±50ppm
OCETGCJANF-24.576000	Taitien	OC	XO (Standard)	24.576 MHz	CMOS	3.3V	±50ppm
OCETGCJANF-4.000000	Taitien	OC	XO (Standard)	4 MHz	CMOS	3.3V	±50ppm
OCETGCJTNF-100.000000	Taitien	OC	XO (Standard)	100 MHz	CMOS	3.3V	±50ppm
OCETGLJTNF-50.000000	Taitien	OC	XO (Standard)	50 MHz	CMOS	3.3V	±50ppm
OCETGLKANF-20.000000	Taitien	OC	XO (Standard)	20 MHz	CMOS	3.3V	±50ppm
OCETGLKANF-25.000000	Taitien	OC	XO (Standard)	25 MHz	CMOS	3.3V	±50ppm
OCETHCJTNF-100.000000	Taitien	OC	XO (Standard)	100 MHz	CMOS	1.8V	±100ppm
OCKTGLJANF-20.000000	Taitien	OC	XO (Standard)	20 MHz	CMOS	1.8V	±50ppm
OCKTGLJANF-30.000000	Taitien	OC	XO (Standard)	30 MHz	CMOS	1.8V	±50ppm
OCKTGLJANF-12.000000	Taitien	OC	XO (Standard)	12 MHz	CMOS	1.8V	±50ppm
OCKTGLJANF-31.250000	Taitien	OC	XO (Standard)	31.25 MHz	CMOS	1.8V	±50ppm
OCETDCJANF-12.000000	Taitien	OC	XO (Standard)	12 MHz	CMOS	3.3V	±25ppm
OCETDCJTNF-50.000000	Taitien	OC	XO (Standard)	50 MHz	CMOS	3.3V	±25ppm
OCETGCJANF-33.333000	Taitien	OC	XO (Standard)	33.333 MHz	CMOS	3.3V	±50ppm
OCETGLJTNF-66.667000	Taitien	OC	XO (Standard)	66.667 MHz	CMOS	3.3V	±50ppm
OCETGLJANF-27.000000	Taitien	OC	XO (Standard)	27 MHz	CMOS	3.3V	±50ppm
OCETGLJANF-33.333000	Taitien	OC	XO (Standard)	33.333 MHz	CMOS	3.3V	±50ppm
OCETGLJTNF-66.000000	Taitien	OC	XO (Standard)	66 MHz	CMOS	3.3V	±50ppm
OCETGLJTNF-80.000000	Taitien	OC	XO (Standard)	80 MHz	CMOS	3.3V	±50ppm
OCJTDCJANF-25.000000	Taitien	OC	XO (Standard)	25 MHz	CMOS	2.5V	±25ppm
OCKTGLJANF-24.000000	Taitien	OC	XO (Standard)	24 MHz	CMOS	1.8V	±50ppm
OXETGLJANF-12.000000	Taitien	OX	XO (Standard)	12 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXETDLJANF-8.704000	Taitien	OX	XO (Standard)	8.704 MHz	CMOS	2.8V ~ 3.3V	±25ppm
OXKTGCJANF-37.125000	Taitien	OX	XO (Standard)	37.125 MHz	CMOS	1.8V	±50ppm
OXETCLJANF-26.000000	Taitien	OX	XO (Standard)	26 MHz	CMOS	2.8V ~ 3.3V	±20ppm
OXETDLJANF-25.000000	Taitien	OX	XO (Standard)	25 MHz	CMOS	2.8V ~ 3.3V	±25ppm
OXETGLJANF-48.000000	Taitien	OX	XO (Standard)	48 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXJTDLJANF-25.000000	Taitien	OX	XO (Standard)	25 MHz	CMOS	2.5V	±25ppm
OXJTGLJANF-25.000000	Taitien	OX	XO (Standard)	25 MHz	CMOS	2.5V	±50ppm
