X1M0000910008-HCSL输出晶振-爱普生进口振荡器

频率：156.25MHZ

尺寸：7.0mm×5.0mm×1.2mm

X1M0000910008-HCSL输出晶振-爱普生进口振荡器 ,EG-2102CA有源晶振,X1M0000910008晶振,HCSL输出晶振,爱普生进口晶振,石英晶体振荡器,六脚贴片晶振,频率156.25MHz,电压3.3V,工作温度0~70°C,频率稳定性50ppm,7050mm差分晶振,低抖动晶振耐高温晶振,通讯设备晶振,无线网络晶振,医疗设备晶振,北斗导航晶振,智能家具应用晶振.

订购热线：0755-27837162

X1M0000910008-HCSL输出晶振-爱普生进口振荡器 ,EG-2102CA有源晶振,X1M0000910008晶振,HCSL输出晶振,爱普生进口晶振,石英晶体振荡器,六脚贴片晶振,频率156.25MHz,电压3.3V,工作温度0~70°C,频率稳定性50ppm,7050mm差分晶振,低抖动晶振耐高温晶振,通讯设备晶振,无线网络晶振,医疗设备晶振,北斗导航晶振,智能家具应用晶振.

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

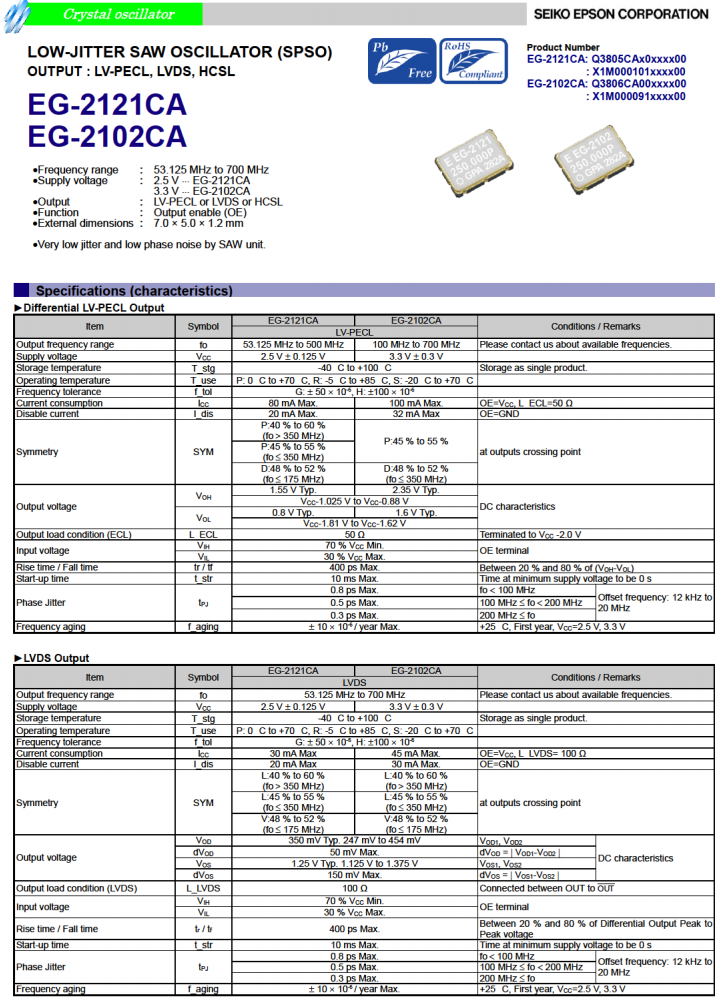

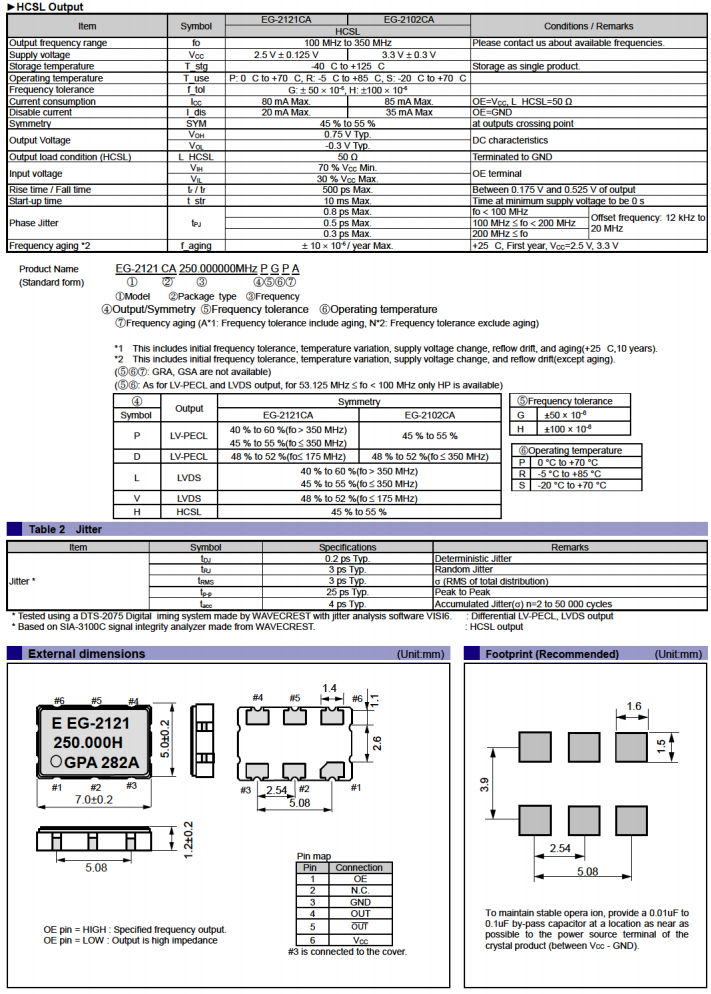

X1M0000910008-HCSL输出晶振-爱普生进口振荡器参数表

项目	符号	规格说明	条件
额定频率	f_nom	156.25MHz	请联系我们以便获取其它可用频率的相关信息
电源电压	Vcc	3.3V±0.3V
储存温度	T_stg	-40℃~+125℃	裸存
工作温度	T_use	0℃~ +70℃
频率公差（标准）	f_tol	±50 ppm	+25℃,超出标准的规格说明请联系我们以便获取相关信息
电流消耗	f_tem	85mA Max	OE=Vcc,L HCSL=50Ω
禁用电流	I_dis	35mA Max	OE=GND
输出电压	VOH	0.75V Typ	DC charactenistics
输出电压	VOL	-0.3V Typ	DC charactenistics
输出负载条件（HCSL）	L HCSL	50Ω	Terminated to GND
输入电压	VIH	70%Vcc Min	OE terminal
输入电压	VIL	30%Vcc Max	OE terminal
上升下降时间	tr/tf	500ps Max	Between 0.175V and 0.525V of output
起始时间	t str	10ms Max	Time at minimum supply voltage to be 0
相位抖动	tpj	0.5ps Max	100MHz≤fo<200MHz
老化	f_aging	±10ppm/year	+25℃,第一年，Vcc=2.5V,3.3V

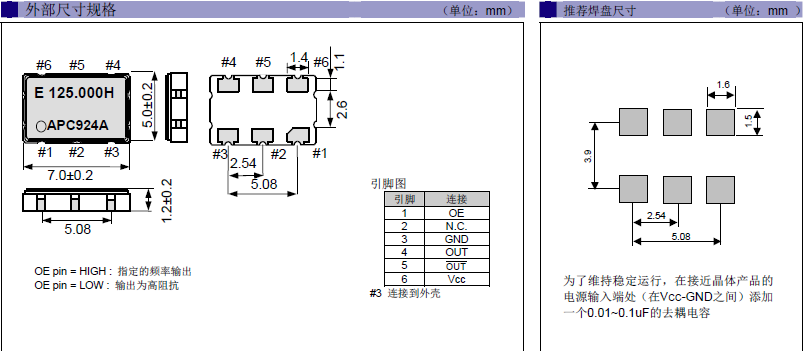

X1M0000910008-HCSL输出晶振-爱普生进口振荡器尺寸图

编码	型号	频率	LxWxH/尺寸	输出方式	电源电压	工作温度	频率偏差
X1M0000910001	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C	+/-50 ppm
X1M0000910002	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C	+/-100 ppm
X1M0000910003	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C	+/-100 ppm
X1M0000910004	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	-5 to 85 °C	+/-50 ppm
X1M0000910005	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	-20 to 70 °C	+/-50 ppm
X1M0000910006	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C	+/-50 ppm
X1M0000910007	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	-5 to 85 °C	+/-100 ppm
X1M0000910008	EG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C	+/-50 ppm
X1M0000910009	EG-2102CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C	+/-50 ppm
X1M0000910010	EG-2102CA	322.265625 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	-5 to 85 °C	+/-50 ppm
X1M0001010002	EG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	2.375 to 2.625 V	0 to 70 °C	+/-100 ppm
X1M0001210001	EG-2103CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	3.000 to 3.600 V	-5 to 85 °C	+/-100 ppm
X1M0001410001	EG-4101CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1M0001410002	EG-4101CA	281.333300 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1M0001410003	EG-4101CA	106.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1M0001410004	EG-4101CA	698.812300 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1M0001410007	EG-4101CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1M0001410008	EG-4101CA	400.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1M0001410010	EG-4101CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1M0001410013	EG-4101CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1M0001410014	EG-4101CA	644.531200 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1M0001410017	EG-4101CA	156.253906 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1M0001510002	EG-4101CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C	+/-50 ppm
X1M0001510003	EG-4101CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C	+/-50 ppm
X1M0001510004	EG-4101CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C	+/-50 ppm
X1M0001510005	EG-4101CA	148.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C	+/-50 ppm
X1M0001510006	EG-4101CA	240.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C	+/-50 ppm
X1M0001510007	EG-4101CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C	+/-50 ppm
X1M0001510008	EG-4101CA	148.351640 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C	+/-50 ppm
X1M0001510009	EG-4101CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C	+/-50 ppm
X1M0001810001	EG-4121CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C	+/-50 ppm
X1M0001810002	EG-4121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C	+/-50 ppm
X1M0001810003	EG-4121CA	148.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C	+/-50 ppm
X1M0001810004	EG-4121CA	375.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C	+/-50 ppm
X1M0001810005	EG-4121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C	+/-50 ppm
X1M0001810006	EG-4121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C	+/-50 ppm
