TYETBLSANF-38.400000,TCXO晶振,智能手机晶振,2520四脚贴片晶振

频率：38.4 MHz

尺寸：2.50mm x 2.00mm

TYETBLSANF-38.400000,TCXO晶振,智能手机晶振,2520四脚贴片晶振,针对智能手机对通信信号稳定性的严苛要求,TYETBLSANF-38.400000晶振凭借TCXO技术,将频率稳定度控制在±0.5ppm(典型值),有效抵消不同使用环境下的温度波动(支持-30℃~+85℃宽温域),确保5G/4G信号接收与传输的连贯性.2520四脚贴片封装不仅简化了主板焊接工艺,还提升了元件与电路板的连接稳定性,适配主流智能手机的射频模块与基带芯片,为高清通话,高速数据传输提供可靠频率基准.

订购热线：0755-27837162

TYETBLSANF-38.400000,TCXO晶振,智能手机晶振,2520四脚贴片晶振

作为专为智能手机研发的高精度频率元件,TYETBLSANF-38.400000搭载TCXO(温补晶体振荡器)技术,以38.400000MHz精准频率为核心,可实时补偿温度变化对频率的影响,确保手机通信,定位,多媒体播放等功能的时钟信号稳定.其采用2520四脚贴片封装,体积小巧(2.5mm×2.0mm),能灵活适配智能手机紧凑的主板布局,同时低功耗设计满足手机续航需求,是保障智能手机应用晶振高效运行的关键时钟组件.

JLX-2

TYETBLSANF-38.400000,TCXO晶振,智能手机晶振,2520四脚贴片晶振

原厂型号 Originalmodel：	TYETBLSANF-38.400000	品牌brand：	Taitien泰艺晶振
Manufacturer品牌	Taitien	OperatingTemperature温度	-40°C ~ 85°C
Series型号	TY	Current-Supply(Max)	2.5mA
Type类型	TCXO	PackageHeight高度	0.80mm
Frequency频率	38.4 MHz	Termination 脚位	4pad
输出方式 Output：	Clipped Sine Wave	PackageType 封装类型	4-SMD
Voltage-Supply电压	2.8V ~ 3.3V	Packaging 包装	TapeandReel
FrequencyStability频率稳定度	±1ppm	安装方式 Installation：	Surfacemount
Size/Dimension尺寸	2520微型贴片晶振	最小包装数MPQ：	3000

JLX-3

TYETBLSANF-38.400000,TCXO晶振,智能手机晶振,2520四脚贴片晶振

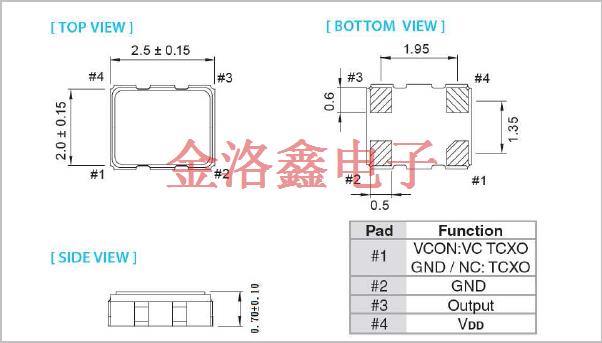

TY 2520

TYETBLSANF-38.400000,TCXO晶振,智能手机晶振,2520四脚贴片晶振

OCETGCJTNF-48.000000	Taitien	OC	XO (Standard)	48 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
OXETDCJANF-0.032768	Taitien	OX	XO (Standard)	32.768 kHz	CMOS	3.3V	±25ppm	-20°C ~ 70°C
OCETDLJANF-25.000000	Taitien	OC	XO (Standard)	25 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
TZKTADSANF-26.000000	Taitien	TZ	TCXO	26 MHz	Clipped Sine Wave	1.8V	±500ppb	-30°C ~ 85°C
TXEABLSANF-24.000000	Taitien	TX	VCTCXO	24 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXEABLSANF-26.000000	Taitien	TX	VCTCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXKTPCSANF-32.000000	Taitien	TX	TCXO	32 MHz	Clipped Sine Wave	1.8V	±1.5ppm	-20°C ~ 70°C
TXEAADSANF-20.000000	Taitien	TX	VCTCXO	20 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-30°C ~ 85°C
TXETALSANF-10.000000	Taitien	TX	TCXO	10 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-40°C ~ 85°C
TYETBCSANF-32.000000	Taitien	TY	TCXO	32 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-20°C ~ 70°C
TYETBLSANF-40.000000	Taitien	TY	TCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TYEAPLSANF-40.000000	Taitien	TY	VCTCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1.5ppm	-40°C ~ 85°C
TYETACSANF-26.000000	Taitien	TY	TCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-20°C ~ 70°C
TYEAACSANF-38.400000	Taitien	TY	VCTCXO	38.4 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-20°C ~ 70°C
VLCUWCWTNF-100.000000	Taitien	VLCU	VCXO	100 MHz	Sine Wave	5V	±35ppm	-20°C ~ 70°C
TSEAALJANF-10.000000	Taitien	TS	VCTCXO	10 MHz	CMOS	3.3V	±500ppb	-40°C ~ 85°C
TWETALJANF-40.000000	Taitien	TW	TCXO	40 MHz	CMOS	3.3V	±500ppb	-40°C ~ 85°C
TWEAKLJANF-20.000000	Taitien	TW	VCTCXO	20 MHz	CMOS	3.3V	±280ppb	-40°C ~ 85°C
TTETKLJANF-10.000000	Taitien	TT	TCXO	10 MHz	CMOS	3.3V	±280ppb	-40°C ~ 85°C
TTEAKLJANF-10.000000	Taitien	TT	VCTCXO	10 MHz	CMOS	3.3V	±280ppb	-40°C ~ 85°C
TTETKLSANF-10.000000	Taitien	TT	TCXO	10 MHz	Clipped Sine Wave	3.3V	±280ppb	-40°C ~ 85°C
TSEATLJANF-10.000000	Taitien	TS	VCTCXO	10 MHz	CMOS	3.3V	±4.6ppm	-40°C ~ 85°C
TWETMCJANF-10.000000	Taitien	TW	TCXO	10 MHz	CMOS	3.3V	±100ppb	-20°C ~ 70°C
TTEAALJANF-50.000000	Taitien	TT	VCTCXO	50 MHz	CMOS	3.3V	±500ppb	-40°C ~ 85°C
NNENCLJNNF-10.000000	Taitien	NN	OCXO	10 MHz	CMOS	3.3V	±20ppb	-40°C ~ 85°C
NI-10M-2400	Taitien	NI-10M-2400	OCXO	10 MHz	LVTTL	5V	±3ppb	-30°C ~ 70°C
NI-10M-2403	Taitien	NI-10M-2400	OCXO	10 MHz	LVTTL	5V	±3ppb	-40°C ~ 85°C
NI-10M-2503	Taitien	NI-10M-2500	OCXO	10 MHz	Sine Wave	5V	±3ppb	-40°C ~ 85°C
NI-100M-2900	Taitien	NI-100M-2900	OCXO	100 MHz	Sine Wave	12V	±50ppb	-40°C ~ 85°C
NA-100M-6822	Taitien	NA-100M-6800	OCXO	100 MHz	Sine Wave	12V	±100ppb	-40°C ~ 85°C
OCKTGLJANF-0.032768	Taitien	OC	XO (Standard)	32.768 kHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
OCETGLJTNF-100.000000	Taitien	OC	XO (Standard)	100 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
TXETCLSANF-40.000000	Taitien	TX	TCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2ppm	-40°C ~ 85°C
TXETDDSANF-16.000000	Taitien	TX	TCXO	16 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2.5ppm	-30°C ~ 85°C
TXETDCSANF-20.000000	Taitien	TX	TCXO	20 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2.5ppm	-20°C ~ 70°C
TXETBLSANF-40.000000	Taitien	TX	TCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXEABDSANF-32.000000	Taitien	TX	VCTCXO	32 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-30°C ~ 85°C
TXETDDSANF-30.000000	Taitien	TX	TCXO	30 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2.5ppm	-30°C ~ 85°C
TXETBLSANF-26.000000	Taitien	TX	TCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXEAPDSANF-19.200000	Taitien	TX	VCTCXO	19.2 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1.5ppm	-30°C ~ 85°C
TXEAPLSANF-40.000000	Taitien	TX	VCTCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1.5ppm	-40°C ~ 85°C
TXEACDSANF-26.000000	Taitien	TX	VCTCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2ppm	-30°C ~ 85°C
TXEACDSANF-20.000000	Taitien	TX	VCTCXO	20 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2ppm	-30°C ~ 85°C
TXETBLSANF-27.000000	Taitien	TX	TCXO	27 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXETBLSANF-19.200000	Taitien	TX	TCXO	19.2 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXETALSANF-26.000000	Taitien	TX	TCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-40°C ~ 85°C
TXEAACSANF-40.000000	Taitien	TX	VCTCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-20°C ~ 70°C
TXEAADSANF-25.000000	Taitien	TX	VCTCXO	25 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-30°C ~ 85°C
TYETBLSANF-38.400000	Taitien	TY	TCXO	38.4 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TYETBCSANF-50.000000	Taitien	TY	TCXO	50 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-20°C ~ 70°C
TYETACSANF-32.000000	Taitien	TY	TCXO	32 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-20°C ~ 70°C
TYETACSANF-20.000000	Taitien	TY	TCXO	20 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-20°C ~ 70°C
PYEUCJJANF-100.000000	Taitien	FASTXO	XO (Standard)	100 MHz	CMOS	2.8V ~ 3.3V	±20ppm	-40°C ~ 105°C
TWEAALSANF-10.000000	Taitien	TW	VCTCXO	10 MHz	Clipped Sine Wave	3.3V	±500ppb	-40°C ~ 85°C
TTETKLJANF-30.720000	Taitien	TT	TCXO	30.72 MHz	CMOS	3.3V	±280ppb	-40°C ~ 85°C
TTEAMCSANF-10.000000	Taitien	TT	VCTCXO	10 MHz	Clipped Sine Wave	3.3V	±100ppb	-20°C ~ 70°C
OYKTGLJANF-0.032768	Taitien	OY	XO (Standard)	32.768 kHz	CMOS	1.8V	±50ppm	-40°C ~ 85°C
OYETDLJANF-25.000000	Taitien	OY	XO	25 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
TXETDDSANF-19.200000	Taitien	TX	TCXO	19.2 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2.5ppm	-30°C ~ 85°C
TXETCLSANF-25.000000	Taitien	TX	TCXO	25 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2ppm	-40°C ~ 85°C
