Q 19.2-JXS22-12-10/10-WA-LF,19.2MHz,Jauch进口晶振

频率：19.2MHz

尺寸：2.5mm x 2.0mm

Q 19.2-JXS22-12-10/10-WA-LF,19.2MHz,Jauch进口晶振,Q 19.2-JXS22-12-10/10-WA-LF晶振,JXS22-WA无源晶振,石英晶体谐振器,频率19.2MHz,Jauch进口晶振,2520mm晶振,超小型晶振,低老化晶振,负载12pf,工作温度-20~70°C,四脚贴片晶振,家电影音系统晶振,数码相机晶振,小型通信设备晶振,智能家居晶振.

订购热线：0755-27837162

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

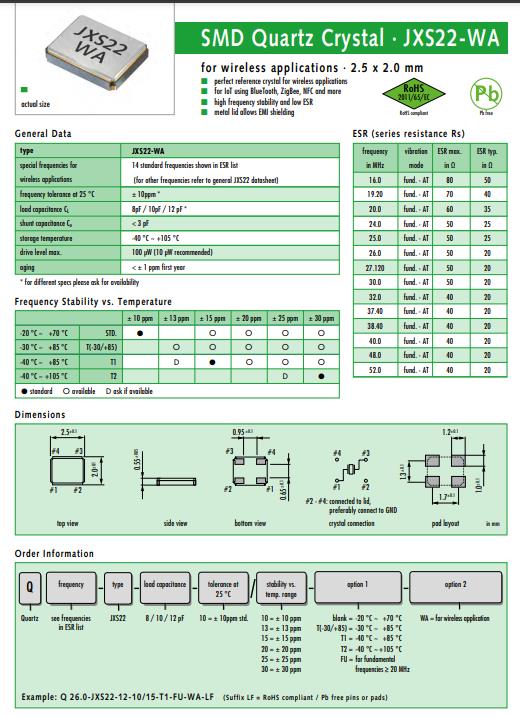

Q 19.2-JXS22-12-10/10-WA-LF,19.2MHz,Jauch进口晶振 参数

型号		JXS22-WA
频率		19.2MHz
频率公差 at 25 °C		± 10 ppm
频率稳定度		± 10 ppm
负载电容 CL		12pF
工作温度		-20°C ~ +70 °C
并联电容 Co		<3 pF
串联电阻最大值 (ESR)		70Ω Max
储存温度		-40°C ~ +105 °C
最大驱动电平		100 µW
第一年老化		< ± 1 ppm

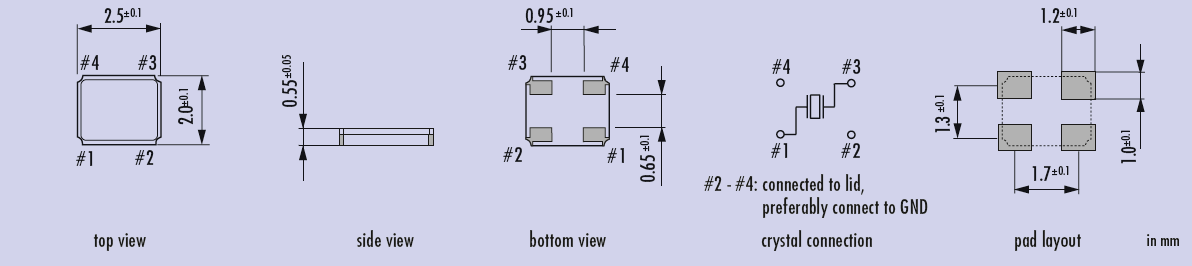

Q 19.2-JXS22-12-10/10-WA-LF,19.2MHz,Jauch进口晶振尺寸图

Jauch晶振原厂编码	制造商	型号	频率	频率容差	负载电容	Operating Mode	工作温度
Q 19.2-JXS22-10-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	10pF	Fundamental	-20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	12pF	Fundamental	-20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	10pF	Fundamental	-20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	12pF	Fundamental	-20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	10pF	Fundamental	-20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	12pF	Fundamental	-20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	10pF	Fundamental	-20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	12pF	Fundamental	-20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 27.12-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	27.12MHz	±10ppm	10pF	Fundamental	-20°C ~ 70°C
Q 27.12-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	27.12MHz	±10ppm	12pF	Fundamental	-20°C ~ 70°C
Q 27.12-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	27.12MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 27.12-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	27.12MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 16.0-JXS22-10-10/10-WA-LF	Jauch晶振	JXS22-WA	16MHz	±10ppm	10pF	Fundamental	-20°C ~ 70°C
Q 16.0-JXS22-12-10/10-WA-LF	Jauch晶振	JXS22-WA	16MHz	±10ppm	12pF	Fundamental	-20°C ~ 70°C
Q 16.0-JXS22-8-10/10-WA-LF	Jauch晶振	JXS22-WA	16MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 16.0-JXS22-8-10/10-WA-LF	Jauch晶振	JXS22-WA	16MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 16.0-JXS22-8-10/10-WA-LF	Jauch晶振	JXS22-WA	16MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 16.0-JXS22-9-10/10-WA-LF	Jauch晶振	JXS22-WA	16MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 16.0-JXS22-9-10/10-WA-LF	Jauch晶振	JXS22-WA	16MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 16.0-JXS22-9-10/10-WA-LF	Jauch晶振	JXS22-WA	16MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 19.2-JXS22-10-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	10pF	Fundamental	-40°C ~ 85°C
Q 19.2-JXS22-10-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	10pF	Fundamental	-40°C ~ 85°C
Q 19.2-JXS22-10-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	10pF	Fundamental	-40°C ~ 85°C
Q 19.2-JXS22-12-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	12pF	Fundamental	-40°C ~ 85°C
Q 19.2-JXS22-12-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	12pF	Fundamental	-40°C ~ 85°C
Q 19.2-JXS22-12-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	12pF	Fundamental	-40°C ~ 85°C
Q 19.2-JXS22-8-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	8pF	Fundamental	-40°C ~ 85°C
Q 19.2-JXS22-8-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	8pF	Fundamental	-40°C ~ 85°C
Q 19.2-JXS22-8-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	8pF	Fundamental	-40°C ~ 85°C
Q 19.2-JXS22-9-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	9pF	Fundamental	-40°C ~ 85°C
Q 19.2-JXS22-9-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	9pF	Fundamental	-40°C ~ 85°C
Q 19.2-JXS22-9-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	9pF	Fundamental	-40°C ~ 85°C
Q 20.0-JXS22-10-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	10pF	Fundamental	-40°C ~ 85°C
Q 20.0-JXS22-10-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	10pF	Fundamental	-40°C ~ 85°C
Q 20.0-JXS22-10-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	10pF	Fundamental	-40°C ~ 85°C
Q 20.0-JXS22-12-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	12pF	Fundamental	-40°C ~ 85°C
Q 20.0-JXS22-12-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	12pF	Fundamental	-40°C ~ 85°C
Q 20.0-JXS22-12-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	12pF	Fundamental	-40°C ~ 85°C
Q 20.0-JXS22-8-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	8pF	Fundamental	-40°C ~ 85°C
