O 40.0-JO22-G-3.3V-1-T1-LF,SMD振荡器,6G无线网络晶振

频率:40MHz

尺寸:2.5mm×2.0mm

O 40.0-JO22-G-3.3V-1-T1-LF,SMD振荡器,6G无线网络晶振,Jauch进口晶振,JO22有源晶振,O 40.0-JO22-G-3.3V-1-T1-LF晶振,2520晶振,SMD振荡器,频率40MHz,工作温度-40~85°C,电压3.3V,低电源电压晶振,无铅环保晶振,6G无线网络晶振,便携式多媒体设备晶振,网络终端晶振,智能家居应用晶振.




订购热线:0755-27837162
QQ咨询 点击这里给我发消息

Jau-1

O 40.0-JO22-G-3.3V-1-T1-LF,SMD振荡器,6G无线网络晶振,Jauch进口晶振,JO22有源晶振,O 40.0-JO22-G-3.3V-1-T1-LF晶振,2520晶振,SMD振荡器,频率40MHz,工作温度-40~85°C,电压3.3V,低电源电压晶振,无铅环保晶振,6G无线网络晶振,便携式多媒体设备晶振,网络终端晶振,智能家居应用晶振.

O 40.0-JO22-G-3.3V-1-T1-LF,SMD振荡器,6G无线网络晶振特点:

-带停止功能的SMD振荡器2.5 x 2.0mm

- LVCMOS / HCMOS兼容输出

-可变电源电压1.8伏~ 3.3伏

-极低的电流消耗

-接缝密封陶瓷/金属封装


高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

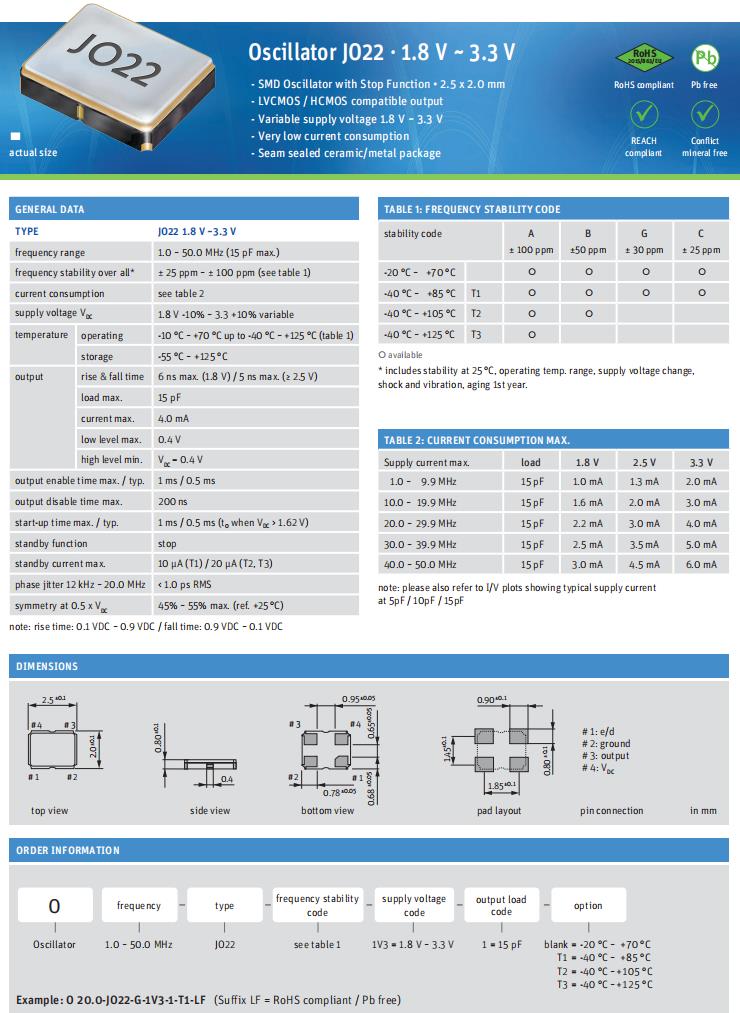

O 40.0-JO22-G-3.3V-1-T1-LF,SMD振荡器,6G无线网络晶振参数表

 型号 JO22
 频率 40MHz
频率稳定性 ± 30 ppm
电流消耗 6mA
电源电压 3.3V
工作温度 -40°C ~ +85 °C
储存温度 -55°C ~ +125°C
上升下降时间 6 ns max. (1.8 V) / 5 ns max. (≥ 2.5 V)
输出负载 15 pF
最大启动时间 1 ms / 0.5 ms (t0 when VDC > 1.62 V)
最大待机电流 10 µA (T1) / 20 µA (T2, T3)
相位抖动12 kHz ~ 20.0 MHz < 1.0 ps RMS
0.5 x VDC时的对称性 45% ~ 55% max. (ref. +25 °C)

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

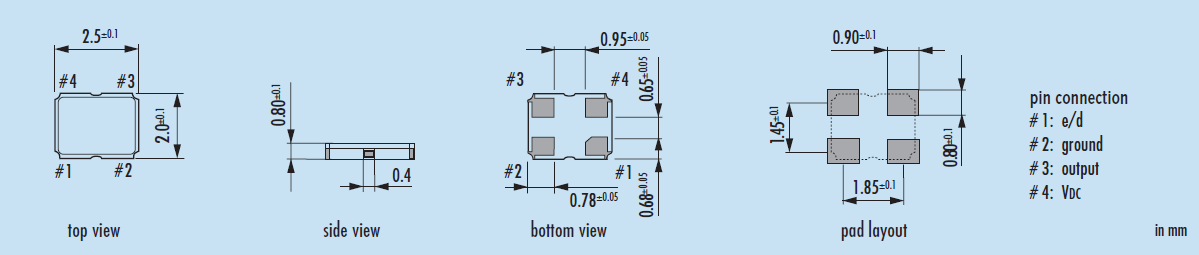

O 40.0-JO22-G-3.3V-1-T1-LF,SMD振荡器,6G无线网络晶振尺寸

jo22-3.0V-2520 OSC

Jauch晶振原厂编码 制造商 型号 频率 频率容差 负载电容 Operating Mode 工作温度
Q 0.032768-JTX410-7-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-8-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 8pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-10-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 10pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-12.5-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-9-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-7-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-8-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-10-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-12.5-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-9-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-8-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 8pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-7-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-12.5-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-10-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 10pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-7-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 125°C
Q 19.2-JXS32-10-10/10-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS32-10-10/10-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS32-10-10/10-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS32-12-10/10-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 19.2-JXS32-12-10/10-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-12-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS32-12-10/10-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 27.12-JXS32-10-10/10-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 27.12-JXS32-12-10/10-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 27.12-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 27.12-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 16.0-JXS32-10-10/10-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 16.0-JXS32-12-10/10-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 16.0-JXS32-8-10/10-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 16.0-JXS32-9-10/10-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 38.4-JXS32-10-10/10-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 38.4-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 32.0-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 19.2-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-8-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-8-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-8-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-9-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-9-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-9-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-8-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 38.4-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 38.4-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 38.4-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 38.4-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 105°C
Q 19.2-JXS22-10-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-10-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-9-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-10-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-9-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 9pF Fundamental -20°C ~ 70°C

JO22


JLX-6

RB-6

wxewm

公司名:深圳市金洛鑫电子有限公司

联系人:茹红青

手机:13510569637

电话:0755-27837162

QQ号:657116624

微信公众号:CITIZENCRYSTAL

搜狐公众号:晶振石英晶振NDK晶振

邮箱:jinluodz@163.com

地址:深圳市宝安区41区甲岸路19号

网址:http://www.quartzcrystal.cn/

相关的产品 / Related Products

NKG车载多媒体晶振,S2SM进口晶振,S2SM18.0000F16M23-EXT超小型晶振
NKG车载多媒体晶振,S2SM进口晶振,S2SM18.0000F16M23-EXT超小型晶振

NKG车载多媒体晶振,S2SM进口晶振,S2SM18.0000F16M23-EXT超小型晶振,NKG晶振,S2SM晶振,石英晶振,无源晶振,S2SM18.0000F16M23-EXT晶振,四脚贴片晶振,石英晶体谐振器,2016mm晶振,SMD晶体,高精度晶振,轻薄小晶振,无铅环保晶振,6G无线模块晶振,笔记本电脑晶振,智能手机晶振,移动应用晶振.特点:微型包装尺寸2.0 x 1.6 x 0.5mm与4个垫,优异的耐热性和抗震性,真空密封,可靠性高,老化率低,符合AEC-Q200标准的汽车级产品可供选择

NKG香港晶体,CT25M13.4456F10V1T-100航天飞机晶振,CT25M贴片晶振
NKG香港晶体,CT25M13.4456F10V1T-100航天飞机晶振,CT25M贴片晶振


NKG香港晶体,CT25M13.4456F10V1T-100,2520智能手机晶振,CT25M贴片晶振,NKG晶振,CT25M晶振,CT25M13.7456F10V1T-100晶振,2520晶振,进口晶振,热敏晶振,四脚贴片晶振,SMD晶振,高品质晶振,高精度晶振,轻薄小晶振,6G移动通信晶振,便携式设备晶振,蓝牙音响晶振,消费电子晶振,数码产品晶振.特点:内置热敏电阻100kΩ用于温度测量,非常适合与内置温度补偿振荡器电路的ICs一起使用,高度可靠的包装尺寸2.5x2.0x0.8mm,带有4个衬垫。

FC2BAEBDI20.0-T1笔记本电脑晶振,FC2BA进口贴片晶振,福克斯低损耗晶振
FC2BAEBDI20.0-T1笔记本电脑晶振,FC2BA进口贴片晶振,福克斯低损耗晶振
FC2BAEBDI20.0-T1笔记本电脑晶振,FC2BA进口贴片晶振,福克斯低损耗晶振,石英晶体2520晶振美国FOX晶振福克斯晶振,FC2BA晶振FC2BAEBDI20.0-T1晶振四脚晶振,进口晶振,小型晶振,低成本晶振,移动网络晶振,无源晶振,智能手表晶振,环保晶振微型晶振SMD晶振,无人机晶振,高精度晶振.无源晶振低损耗晶振环保无铅晶振,超小型晶振特点:公差低至10ppm,稳定性低至10ppm,温度范围宽至-40C+85C。

JLX-PD

金洛鑫产品系列

PRODUCT LINE

石英晶振
QuartzCrystal

贴片晶振
SMDcrystal

谐振器滤波器
Resonator

温补晶振
TCXOcrystal

32.768K
32768Kcrystal

雾化片
AtomizationPiece

智能穿戴

车载安防

通讯网络

智能玩具

金洛鑫联系方式
咨询热线:0755-27837162

手机:13510569637

QQ:QQ

邮箱:jinluodz@163.com

地址:广东省深圳市宝安区宝安41区甲岸路
