台湾加高晶振,HSX221SA石英晶体,X2B038400BA1H-U,6G无线应用晶振
频率：38.4MHZ
尺寸：2.5x 2.0mm
台湾加高晶振,HSX221SA石英晶体,X2B038400BA1H-U,6G无线应用晶振,台湾加高晶振,HSX221SA进口晶振,2520晶振,X2B038400BA1H-U晶振,频率32MHz,负载10pf,工作温度-20~70°C,频率稳定性10ppm,耐热性晶振,高稳定性晶振,6G无线应用晶振,射频应用晶振,物料网应用晶振,RFID应用晶振.
订购热线：0755-27837162
台湾加高晶振,HSX221SA石英晶体,X2B038400BA1H-U,6G无线应用晶振,台湾加高晶振,HSX221SA进口晶振,2520晶振,X2B038400BA1H-U晶振,频率32MHz,负载10pf,工作温度-20~70°C,频率稳定性10ppm,耐热性晶振,高稳定性晶振,6G无线应用晶振,射频应用晶振,物料网应用晶振,RFID应用晶振.
台湾加高晶振,HSX221SA石英晶体,X2B038400BA1H-U,6G无线应用晶振特点 :
■微型超薄贴片产品尺寸（2.5×2.0× 0.5 max)
■精度高，可靠性好，耐热性好
■射频应用、无线模块设备、RFID应用和其他消费类产品的最佳解决方案

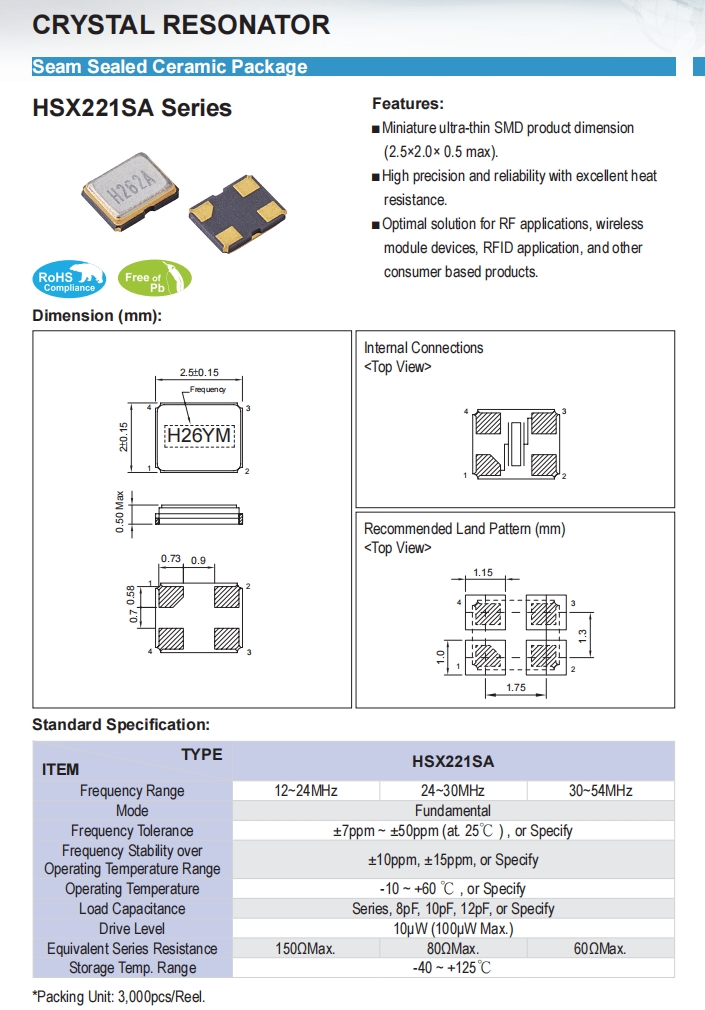

台湾加高晶振,HSX221SA石英晶体,X2B038400BA1H-U,6G无线应用晶振参数
| 项目 | 符号 | HSX221S |
| 频率 | f0 | 38.4MHz |
| 振动模式 |
|
Fundamental |
| 频率公差 | △ f/f0 | ±10ppm |
| 温度稳定性 | TC |
±10ppm |
| 负载电容 | CL | 10pf |
| 工作温度 | TOPR | －20℃～＋70℃ |
| 保存温度 | TSTR | －40℃～＋125℃ |
| 串联阻力 | R1 | 60Ω Max. |
| 驱动级别 | DL | 100μW Max |

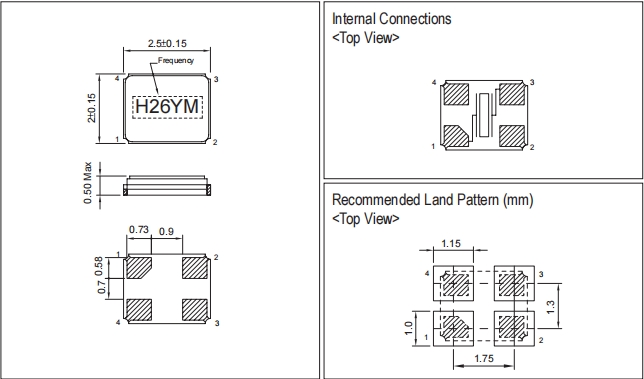

台湾加高晶振,HSX221SA石英晶体,X2B038400BA1H-U,6G无线应用晶振尺寸图
| 原厂编码 | 制造厂家 | 型号 | 频率 | 负载 | 频率容差 | 频率稳定性 | 工作温度 | 尺寸 |
| X2B02863ADC1H-W | HELE晶振 | HSX221SA | 28.636360MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B010000ADC1H-W | HELE晶振 | HSX221SA | 10MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B011000ADC1H-W | HELE晶振 | HSX221SA | 11MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B012000ADC1H-W | HELE晶振 | HSX221SA | 12MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B013000ADC1H-W | HELE晶振 | HSX221SA | 13MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B014000ADC1H-W | HELE晶振 | HSX221SA | 14MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B015000ADC1H-W | HELE晶振 | HSX221SA | 15MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B016000ADC1H-W | HELE晶振 | HSX221SA | 16MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B017000ADC1H-W | HELE晶振 | HSX221SA | 17MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B018000ADC1H-W | HELE晶振 | HSX221SA | 18MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B019000ADC1H-W | HELE晶振 | HSX221SA | 19MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B020000ADC1H-W | HELE晶振 | HSX221SA | 20MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B021000ADC1H-W | HELE晶振 | HSX221SA | 21MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B022000ADC1H-W | HELE晶振 | HSX221SA | 22MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B023000ADC1H-W | HELE晶振 | HSX221SA | 23MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B024000ADC1H-W | HELE晶振 | HSX221SA | 24MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B025000ADC1H-W | HELE晶振 | HSX221SA | 25MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B026000ADC1H-W | HELE晶振 | HSX221SA | 26MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B027000ADC1H-W | HELE晶振 | HSX221SA | 27MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B028000ADC1H-W | HELE晶振 | HSX221SA | 28MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B029000ADC1H-W | HELE晶振 | HSX221SA | 29MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B030000ADC1H-W | HELE晶振 | HSX221SA | 30MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B031000ADC1H-W | HELE晶振 | HSX221SA | 31MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B032000ADC1H-W | HELE晶振 | HSX221SA | 32MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B033000ADC1H-W | HELE晶振 | HSX221SA | 33MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B034000ADC1H-W | HELE晶振 | HSX221SA | 34MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B035000ADC1H-W | HELE晶振 | HSX221SA | 35MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B036000ADC1H-W | HELE晶振 | HSX221SA | 36MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B037000ADC1H-W | HELE晶振 | HSX221SA | 37MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B038000ADC1H-W | HELE晶振 | HSX221SA | 38MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B039000ADC1H-W | HELE晶振 | HSX221SA | 39MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B040000ADC1H-W | HELE晶振 | HSX221SA | 40MHz | 12pF | ±20PPM | ±20PPM | -20~70°C | 2.5×2.0mm |
| X2B038400BA1H-U | HELE晶振 | HSX221SA | 38.4MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B016000BA1H-U | HELE晶振 | HSX221SA | 16MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B017000BA1H-U | HELE晶振 | HSX221SA | 17MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B018000BA1H-U | HELE晶振 | HSX221SA | 18MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B019000BA1H-U | HELE晶振 | HSX221SA | 19MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B020000BA1H-U | HELE晶振 | HSX221SA | 20MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B021000BA1H-U | HELE晶振 | HSX221SA | 21MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B022000BA1H-U | HELE晶振 | HSX221SA | 22MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B023000BA1H-U | HELE晶振 | HSX221SA | 23MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B024000BA1H-U | HELE晶振 | HSX221SA | 24MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B025000BA1H-U | HELE晶振 | HSX221SA | 25MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B026000BA1H-U | HELE晶振 | HSX221SA | 26MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B027000BA1H-U | HELE晶振 | HSX221SA | 27MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B028000BA1H-U | HELE晶振 | HSX221SA | 28MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B029000BA1H-U | HELE晶振 | HSX221SA | 29MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B030000BA1H-U | HELE晶振 | HSX221SA | 30MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B031000BA1H-U | HELE晶振 | HSX221SA | 31MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B032000BA1H-U | HELE晶振 | HSX221SA | 32MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B033000BA1H-U | HELE晶振 | HSX221SA | 33MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B034000BA1H-U | HELE晶振 | HSX221SA | 34MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B035000BA1H-U | HELE晶振 | HSX221SA | 35MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B036000BA1H-U | HELE晶振 | HSX221SA | 36MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B037000BA1H-U | HELE晶振 | HSX221SA | 37MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B038000BA1H-U | HELE晶振 | HSX221SA | 38MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B039000BA1H-U | HELE晶振 | HSX221SA | 39MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B040000BA1H-U | HELE晶振 | HSX221SA | 40MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B041000BA1H-U | HELE晶振 | HSX221SA | 41MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B042000BA1H-U | HELE晶振 | HSX221SA | 42MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B043000BA1H-U | HELE晶振 | HSX221SA | 43MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B044000BA1H-U | HELE晶振 | HSX221SA | 44MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B045000BA1H-U | HELE晶振 | HSX221SA | 45MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
| X2B046000BA1H-U | HELE晶振 | HSX221SA | 46MHz | 10pF | ±10PPM | ±10PPM | -20~70°C | 2.5×2.0mm |
