ECS-184-18-1X|HC-49UX晶振|ECS无源晶振|18.432MHz

频率：18.432MHZ

尺寸：11.35×13.46mm

ECS-184-18-1X|HC-49UX晶振|ECS无源晶振|18.432MHz,ECS-184-18-1X晶振,HC-49UX晶振,ECS无源晶振,频率18.432MHz,两脚插件晶振,石英晶体谐振器,储存卡晶振,家用电视机顶盒晶振,家电影音系统晶振,摄像头晶振,数字水表晶振,ECS-480-S-1X,ECS-36-18-1X,ECS-240-S-1X,ECS-196.6-20-1X.

订购热线：0755-27837162

ECS-184-18-1X|HC-49UX晶振|ECS无源晶振|18.432MHz,ECS-184-18-1X晶振,HC-49UX晶振,ECS无源晶振,频率18.432MHz,两脚插件晶振,石英晶体谐振器,储存卡晶振,家用电视机顶盒晶振,家电影音系统晶振,摄像头晶振,数字水表晶振.

陶瓷面封装谐振器,4.0*2.5mm小体积SMD晶振,ECX-42晶振

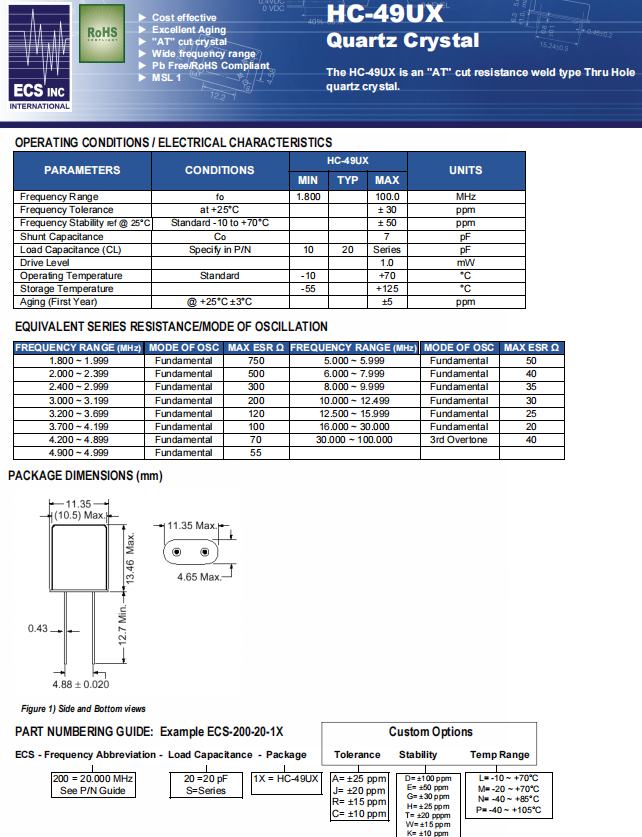

ECS-184-18-1X|HC-49UX晶振|ECS无源晶振|18.432MHz 参数表

参数	条件	HC-49UX
频率		18.432MHz
频率公差	at +25°C	± 30PPM
频率稳定性	-40°C to +85°C	± 50PPM
负载电容	Specify in P/N	18pF
激励功率		500 μW Max
工作温度		-10°C to +70°C
保存温度		-55°C to +125°C
并联电容	Co	7.0 pF
老化	@ +25°C ±3°C	±5ppm

陶瓷面封装谐振器,4.0*2.5mm小体积SMD晶振,ECX-42晶振

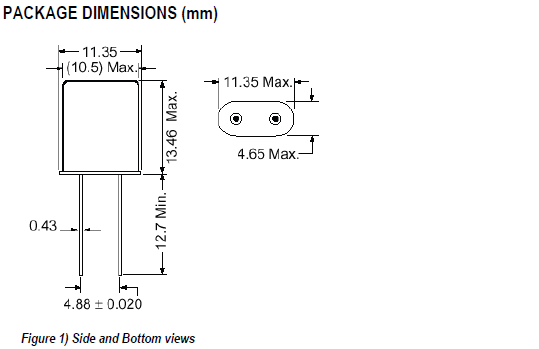

ECS-184-18-1X|HC-49UX晶振|ECS无源晶振|18.432MHz 尺寸图

ECS原厂编码	型号	频率	频率稳定度	频率偏差	负载电容	工作温度
ECS-100-S-1X	HC-49UX	10MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-110.5-20-1X	HC-49UX	11.0592MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-110.5-32-1X	HC-49UX	11.0592MHz	±50ppm	±30ppm	32pF	-10°C ~ 70°C
ECS-110.5-S-1X	HC-49UX	11.0592MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-110-S-1X	HC-49UX	11MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-120-32-1X	HC-49UX	12MHz	±50ppm	±30ppm	32pF	-10°C ~ 70°C
ECS-120-S-1X	HC-49UX	12MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-122.8-20-1X	HC-49UX	12.288MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-122.8-S-1X	HC-49UX	12.288MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-143-S-1X	HC-49UX	14.31818MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-147.4-20-1X	HC-49UX	14.7456MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-147.4-S-1X	HC-49UX	14.7456MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-150-S-1X	HC-49UX	15MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-160-20-1X	HC-49UX	16MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-160-S-1X	HC-49UX	16MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-180-20-1X	HC-49UX	18MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-18-13-1X	HC-49UX	1.8432MHz	±50ppm	±30ppm	13pF	-10°C ~ 70°C
ECS-184-18-1X	HC-49UX	18.432MHz	±50ppm	±30ppm	18pF	-10°C ~ 70°C
ECS-184-20-1X	HC-49UX	18.432MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-184-S-1X	HC-49UX	18.432MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-18-S-1X	HC-49UX	1.8432MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-196.6-20-1X	HC-49UX	19.6608MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-196.6-S-1X	HC-49UX	19.6608MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-20.48-12-1X	HC-49UX	2.048MHz	±50ppm	±30ppm	12pF	-10°C ~ 70°C
ECS-200-20-1X	HC-49UX	20MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-200-S-1X	HC-49UX	20MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-20-20-1X	HC-49UX	2MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-20-S-1X	HC-49UX	2MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-221-S-1X	HC-49UX	22.1184MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-240-20-1X	HC-49UX	24MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-240-S-1X	HC-49UX	24MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-24-32-1X	HC-49UX	2.4576MHz	±50ppm	±30ppm	32pF	-10°C ~ 70°C
ECS-25-S-1X	HC-49UX	2.5MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-30-S-1X	HC-49UX	3MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-32-17-1X	HC-49UX	3.2768MHz	±50ppm	±30ppm	17pF	-10°C ~ 70°C
ECS-35-17-1X	HC-49UX	3.579545MHz	±50ppm	±30ppm	17pF	-10°C ~ 70°C
ECS-35-S-1X	HC-49UX	3.579545MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-36-18-1X	HC-49UX	3.6864MHz	±50ppm	±30ppm	18pF	-10°C ~ 70°C
ECS-36-S-1X	HC-49UX	3.6864MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-39-17-1X	HC-49UX	3.93216MHz	±50ppm	±30ppm	17pF	-10°C ~ 70°C
ECS-40.3-20-1X	HC-49UX	4.032MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-40.3-S-1X	HC-49UX	4.032MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-40-20-1X	HC-49UX	4MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-40-S-1X	HC-49UX	4MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-41-20-1X	HC-49UX	4.096MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-42-12-1X	HC-49UX	4.194304MHz	±50ppm	±30ppm	12pF	-10°C ~ 70°C
ECS-44-20-1X	HC-49UX	4.433618MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-480-S-1X	HC-49UX	48MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-49-20-1X	HC-49UX	4.9152MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-49-S-1X	HC-49UX	4.9152MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-50-20-1X	HC-49UX	5MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-50-S-1X	HC-49UX	5MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-51-20-1X	HC-49UX	5.068MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-51-S-1X	HC-49UX	5.068MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-60-32-1X	HC-49UX	6MHz	±50ppm	±30ppm	32pF	-10°C ~ 70°C
ECS-60-S-1X	HC-49UX	6MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-65-12-1X	HC-49UX	6.5536MHz	±50ppm	±30ppm	12pF	-10°C ~ 70°C
ECS-73-20-1X	HC-49UX	7.3728MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-73-S-1X	HC-49UX	7.3728MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-80-18-1X	HC-49UX	8MHz	±50ppm	±30ppm	18pF	-10°C ~ 70°C
ECS-80-20-1X	HC-49UX	8MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-80-32-1X	HC-49UX	8MHz	±50ppm	±30ppm	32pF	-10°C ~ 70°C
ECS-80-S-1X	HC-49UX	8MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-92.1-20-1X	HC-49UX	9.216MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-92.1-S-1X	HC-49UX	9.216MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-98.3-20-1X	HC-49UX	9.8304MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-98.3-S-1X	HC-49UX	9.8304MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
