EB13E2E2H-48.000MTR,小型贴装晶振,Ecliptek日蚀晶振
频率：48 MHz

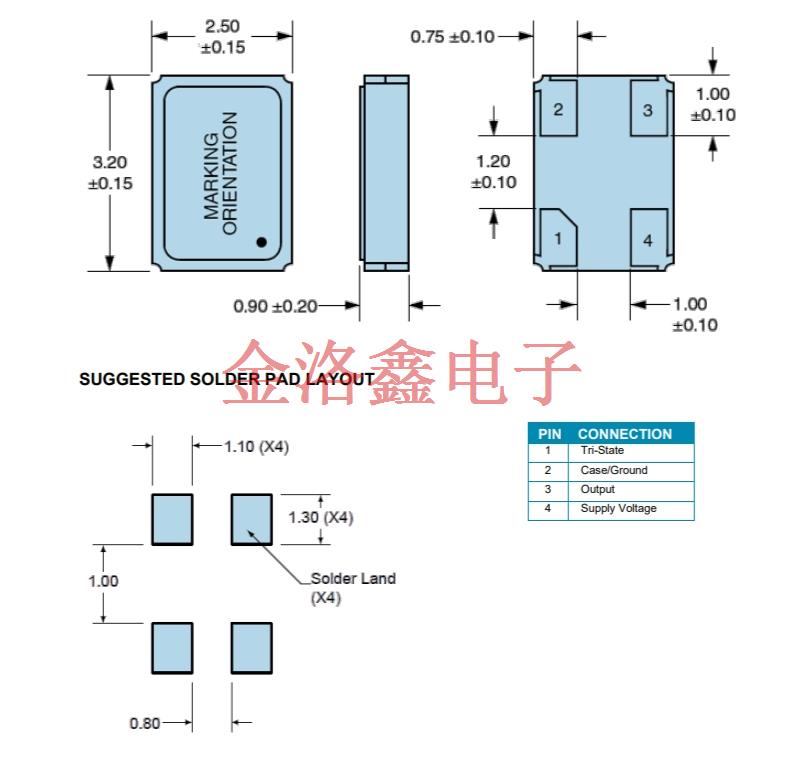

尺寸：3.20mm x 2.50mm
EB13E2E2H-48.000MTR,小型贴装晶振,Ecliptek日蚀晶振
EB13E2E2H-48.000MTR采用极致的小型化贴装封装,尺寸仅为3.2mm×2.5mm×0.8mm(长×宽×高),相比传统4.0mm×2.5mm规格的贴装晶振,体积缩小37.5%,可轻松嵌入高密度PCB板(如智能手机的射频模块,物联网网关的微型控制板).其贴装引脚采用"无铅焊盘设计",间距精准控制在0.5mm,完美兼容主流SMT生产线(如雅马哈YSM40R贴片机,三星SM481PLUS贴片机),无需调整设备参数即可实现自动化批量焊接,焊接良率达99.6%以上.对于追求轻薄化的产品(如超薄笔记本电脑,可穿戴健康监测设备),该晶振的小型化设计能为其他元器件(如电池,传感器)预留更多空间,助力设备实现"轻,薄,小"的设计目标,同时减少人工焊接成本,提升生产效率,契合电子设备高密度集成的发展趋势.
EB13E2E2H-48.000MTR,小型贴装晶振,Ecliptek日蚀晶振
| 原厂型号 Originalmodel： |
          EB13E2E2H-48.000M TR
|
品牌brand： | Ecliptek晶振 |
| Manufacturer品牌 | Ecliptek晶振 | OperatingTemperature温度 | -20°C ~ 70°C |
| Series型号 |
  EB13E2
|
Current-Supply(Max) | 6mA |
| Type类型 | XO (Standard) | PackageHeight高度 | 1.10mm |
| Frequency频率 |
  48 MHz
|
Termination 脚位 |
 4 pad
|
| 输出方式 Output： | CMOS | PackageType 封装类型 | 4-SMD |
| Voltage-Supply电压 | 3.3V | Packaging 包装 | TapeandReel |
| FrequencyStability频率稳定度 |
      ±25ppm
|
安装方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 3225石英晶振 | 最小包装数MPQ： | 3000 |
EB13E2E2H-48.000MTR,小型贴装晶振,Ecliptek日蚀晶振
EB13E2E2H-48.000MTR,小型贴装晶振,Ecliptek日蚀晶振
| EC5625ETTTS-8.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 8 MHz | LVCMOS | 3.3V | ±25ppm |
| EC3645ETTTS-8.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 8 MHz | LVCMOS | 3.3V | ±50ppm |
| EC3625ETTTS-32.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 32 MHz | LVCMOS | 3.3V | ±25ppm |
| EB13E2H2H-25.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 25 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-50.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 50 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-33.333M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 33.333 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-48.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 48 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-24.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 24 MHz | CMOS | 3.3V | ±50ppm |
| EC5645ETTTS-24.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 24 MHz | LVCMOS | 3.3V | ±50ppm |
| EC5645ETTTS-25.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±50ppm |
| EC2745ETTTS-25.000M TR | Ecliptek晶振 | EC27 | XO (Standard) | 25 MHz | LVCMOS | 2.5V | ±50ppm |
| EC3645TS-25.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±50ppm |
| EC3645TTS-25.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±50ppm |
| EC3645ETTTS-12.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 12 MHz | LVCMOS | 3.3V | ±50ppm |
| EC3625ETTTS-16.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 16 MHz | LVCMOS | 3.3V | ±25ppm |
| EC3625ETTTS-27.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 27 MHz | LVCMOS | 3.3V | ±25ppm |
| EC3645ETTTS-25.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±50ppm |
| EC3625ETTTS-25.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±25ppm |
| EC2645TS-25.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±50ppm |
| EC2645TTS-33.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 33 MHz | LVCMOS | 3.3V | ±50ppm |
| EC2600TS-40.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 40 MHz | LVCMOS | 3.3V | ±100ppm |
| EC2620TS-25.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±20ppm |
| EC2645ETTS-33.333M TR | Ecliptek晶振 | EC26 | XO (Standard) | 33.333 MHz | CMOS | 3.3V | ±50ppm |
| EQRD13K2J-156.250M TR | Ecliptek晶振 | EQRD | XO (Standard) | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| EC5625ETTTS-4.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 4 MHz | LVCMOS | 3.3V | ±25ppm |
| EC3625TTS-27.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 27 MHz | LVCMOS | 3.3V | ±25ppm |
| EC5945ETTS-26.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 26 MHz | CMOS | 1.8V | ±50ppm |
| EB13E2E2H-25.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 25 MHz | CMOS | 3.3V | ±25ppm |
| EB13E2E2H-50.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 50 MHz | CMOS | 3.3V | ±25ppm |
| EB13E2D2H-40.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 40 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2J2H-50.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 50 MHz | CMOS | 3.3V | ±25ppm |
| EB13E2H2H-16.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 16 MHz | CMOS | 3.3V | ±50ppm |
| EC5625ETTTS-12.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 12 MHz | LVCMOS | 3.3V | ±25ppm |
| EC5645ETTTS-32.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 32 MHz | LVCMOS | 3.3V | ±50ppm |
| EC2745TTS-25.000M TR | Ecliptek晶振 | EC27 | XO (Standard) | 25 MHz | LVCMOS | 2.5V | ±50ppm |
| EC3625ETTTS-10.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 10 MHz | LVCMOS | 3.3V | ±25ppm |
| EC3645ETTS-25.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±50ppm |
| EC3645TS-50.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 50 MHz | LVCMOS | 3.3V | ±50ppm |
| EC2620TS-12.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 12 MHz | CMOS | 3.3V | ±20ppm |
| EC2620TS-50.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 50 MHz | LVCMOS | 3.3V | ±20ppm |
| EV32C6A3A1-24.576M TR | Ecliptek晶振 | EV32 | XO (Standard) | 24.576 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2E2H-16.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 16 MHz | CMOS | 3.3V | ±25ppm |
| EC3600ETTS-18.432M TR | Ecliptek晶振 | EC36 | XO (Standard) | 18.432 MHz | LVCMOS | 3.3V | ±100ppm |
| EB13E2H2H-10.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 10 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-27.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 27 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-20.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 20 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-12.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 12 MHz | CMOS | 3.3V | ±50ppm |
| EC3645ETTTS-24.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 24 MHz | LVCMOS | 3.3V | ±50ppm |
| EB15E2C2H-40.000M TR | Ecliptek晶振 | EB15E2 | XO (Standard) | 40 MHz | LVCMOS | 2.5V | ±100ppm |
| EC2600TS-66.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 66 MHz | LVCMOS | 3.3V | ±100ppm |
| EC5645ETTTS-27.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 27 MHz | LVCMOS | 3.3V | ±50ppm |
| EC5645ETTTS-30.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 30 MHz | LVCMOS | 3.3V | ±50ppm |
| EC5645ETTTS-48.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 48 MHz | LVCMOS | 3.3V | ±50ppm |
| EB13E2H2H-8.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 8 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2E2H-48.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 48 MHz | CMOS | 3.3V | ±25ppm |
| EB13E2E2H-8.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 8 MHz | CMOS | 3.3V | ±25ppm |
| EB13E2H2H-24.576M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 24.576 MHz | CMOS | 3.3V | ±50ppm |
| EC5625ETTTS-10.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 10 MHz | LVCMOS | 3.3V | ±25ppm |
| EB13E2J2H-25.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 25 MHz | CMOS | 3.3V | ±25ppm |
| EB13E2H2H-14.7456M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 14.7456 MHz | CMOS | 3.3V | ±50ppm |
