FC3BQBBMM25.0-T3,5G网络基础设施晶振,FC3BQ晶振,3225晶振
频率：25 MHz
尺寸：3.20mm x 2.50mm
FC3BQBBMM25.0-T3,5G网络基础设施晶振,FC3BQ晶振,3225晶振,该晶振采用陶瓷封装工艺,具备良好的散热性能与机械强度,在5G终端设备(如5GCPE,工业物联网网关)中,可轻松集成到紧凑的电路板上,支持多电压供电(2.5V/3.3V),适配不同5G设备的电源架构.在5G工业物联网网关中,3225晶振为网关的通信模块提供时序基准,保障网关与5G基站,工业设备间的双向数据传输,在5G智能电表等终端设备中,其小型化与低功耗特性(动态电流≤5mA),可减少设备体积与能耗,适配终端设备长期稳定运行需求,同时稳定的频率输出确保电表数据采集与上传的时序精度,避免因频率偏差导致的计量误差.
订购热线：0755-27837162
FC3BQBBMM25.0-T3,5G网络基础设施晶振,FC3BQ晶振,3225晶振
FC3BQBBMM25.0-T3,FC3BQ晶振与3225无源晶振可构建"全链路覆盖"的5G网络频率方案：在5G宏基站系统中,5G网络基础设施高频率晶振(如50MHz型号)为基站的功率放大器提供高频时序,保障射频信号的稳定发射,提升基站覆盖范围(如实现3公里以上的有效覆盖),FC3BQBBMM25.0-T3则为基站基带处理单元(BBU)的高速接口模块提供25.0MHz基准频率,确保BBU与RRU间的光纤传输速率(如25Gbps)稳定,FC3BQ晶振适配5G微基站的信号处理单元,通过小型化封装与高稳定性,在密集城区场景下保障微基站的信号补盲质量,3225晶振则应用于5G终端设备(如5G工业传感器),为传感器数据采集与上传提供时序支撑.四者结合,覆盖5G网络"宏基站-微基站-核心网-终端"全链路的频率需求,且均具备高可靠性与抗干扰性,在5G复杂通信环境下,为5G网络的高速,低延迟,广覆盖提供核心时序保障.
FC3BQBBMM25.0-T3,5G网络基础设施晶振,FC3BQ晶振,3225晶振
| 原厂型号 Original model ： | FC3BQBBMM25.0-T3 | 品牌 brand ： | FOX无源晶振 |
| 品牌 brand ： | FOX超小型晶振 | ESR（等效串联电阻） Resistance) | 80 Ohms |
| 型号名称 Model name： | FC3BQ | 温度 Operating Temperature | -40°C ~ 85°C |
| Type 系列： | MHz Crystal | 脚位 Termination： | 4 pad |
| 频率 frequency ： | 25 MHz | 封装类型 Package Type： | 4-SMD |
| Frequency Stability频率稳定度 | ±50ppm | 高度 Package Height： | 1.10mm |
| frequency tolerance频率容差 | ±50ppm | 最小包装数 MPQ ： | 3000 |
| Load capacitance 负载电容 | 20pF | 包装 Packaging： | Tape and Reel |
| Size / Dimension 尺寸 | 3.20mm x 2.50mm | 安装方式 Mounting Style： | Surface Mount |
FC3BQBBMM25.0-T3,5G网络基础设施晶振,FC3BQ晶振,3225晶振
FC3BQBBMM25.0-T3,5G网络基础设施晶振,FC3BQ晶振,3225晶振
| FC4SDCBMF10.0-T1 | FOX无源晶振 | HC49SDLF石英晶振 | MHz Crystal | 10 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4SDCBMF8.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC4SDCBMF3.6864-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 3.6864 MHz | ±50ppm | ±30ppm | 20pF | 200 Ohms |
| FKFSREIHM0.032768-T3 | FOX无源晶振 | FSRLF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 50 kOhms |
| FC4STCBMF20.0 | FOX无源晶振 | HC49SLF | MHz Crystal | 20 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms |
| FK135EIHM0.032768-T3 | FOX无源晶振 | K135 | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 70 kOhms |
| FC5BQCCMC12.0-T1 | FOX无源晶振 | C5BQ | MHz Crystal | 12 MHz | ±30ppm | ±30ppm | 20pF | 80 Ohms |
| FC5BQCCMM25.0-T1 | FOX无源晶振 | C5BQ | MHz Crystal | 25 MHz | ±30ppm | ±30ppm | 20pF | 50 Ohms |
| FC5BQCCMM12.0-T1 | FOX无源晶振 | C5BQ | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC7BSCCMM8.0-T1 | FOX无源晶振 | C7BS | MHz Crystal | 8 MHz | ±30ppm | ±30ppm | 20pF | 110 Ohms |
| FC7BSCCMM7.3728-T1 | FOX无源晶振 | C7BS | MHz Crystal | 7.3728 MHz | ±30ppm | ±30ppm | 20pF | 110 Ohms |
| FKFSXEIHM0.032768-T3 | FOX无源晶振 | FSXLF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 65 kOhms |
| FKFSREIBM0.032768-T3 | FOX无源晶振 | FSRLF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 6pF | 50 kOhms |
| FC8AQCCMC3.6864-T1 | FOX无源晶振 | FC8AQ | MHz Crystal | 3.6864 MHz | ±30ppm | ±30ppm | 20pF | 150 Ohms |
| FC8AQCCMC4.0-T1 | FOX无源晶振 | FC8AQ | MHz Crystal | 4 MHz | ±30ppm | ±30ppm | 20pF | 150 Ohms |
| FC4SDCBMF11.0592-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 11.0592 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4SDCBMF25.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms |
| FC4SDCBMF16.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4SDCBMF12.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4SDCBMF24.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 24 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms |
| FC4SDCBMM25.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms |
| FC4SDCBMF14.7456-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 14.7456 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4SDCBMM8.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC4SDCBMF7.3728-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 7.3728 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC4SDCBMF6.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 6 MHz | ±50ppm | ±30ppm | 20pF | 120 Ohms |
| FC4SDCBMF4.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 20pF | 150 Ohms |
| FC3BQBBME12.0-T3 | FOX无源晶振 | FQ3225B | MHz Crystal | 12 MHz | ±50ppm | ±50ppm | 20pF | 120 Ohms |
| FC3BQBBMM25.0-T3 | FOX无源晶振 | FC3BQ | MHz Crystal | 25 MHz | ±50ppm | ±50ppm | 20pF | 80 Ohms |
| FKT38EIHD0.032768 | FOX无源晶振 | NC38LF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 35 kOhms |
| FC4STCBMF10.0 | FOX无源晶振 | HC49SLF | MHz Crystal | 10 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4STCBMF25.0 | FOX无源晶振 | HC49SLF | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms |
| FC4STCBMF16.0 | FOX无源晶振 | HC49SLF | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4STCBMF12.0 | FOX无源晶振 | HC49SLF | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4STCBMF11.0592 | FOX无源晶振 | HC49SLF | MHz Crystal | 11.0592 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4STCBMF8.0 | FOX无源晶振 | HC49SLF | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC4STCBMF7.3728 | FOX无源晶振 | HC49SLF | MHz Crystal | 7.3728 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC4STCBLF3.579545 | FOX无源晶振 | HC49SLF | MHz Crystal | 3.579545 MHz | ±50ppm | ±30ppm | 18pF | 200 Ohms |
| FC4STCBMF4.0 | FOX无源晶振 | HC49SLF | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 20pF | 150 Ohms |
| FC4STCBMF3.6864 | FOX无源晶振 | HC49SLF | MHz Crystal | 3.6864 MHz | ±50ppm | ±30ppm | 20pF | 200 Ohms |
| FKT26EIHD0.032768 | FOX无源晶振 | NC26LF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 50 kOhms |
| FKT38EIHQ0.032768 | FOX无源晶振 | NC38LF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 35 kOhms |
| FC5BQCCMC25.0-T1 | FOX无源晶振 | C5BQ | MHz Crystal | 25 MHz | ±30ppm | ±30ppm | 20pF | 50 Ohms |
| FC5BQCCMC24.0-T1 | FOX无源晶振 | C5BQ | MHz Crystal | 24 MHz | ±30ppm | ±30ppm | 20pF | 50 Ohms |
| FC5BQCCMC20.0-T1 | FOX无源晶振 | C5BQ | MHz Crystal | 20 MHz | ±30ppm | ±30ppm | 20pF | 50 Ohms |
| FC5BQCCMC16.0-T1 | FOX无源晶振 | C5BQ | MHz Crystal | 16 MHz | ±30ppm | ±30ppm | 20pF | 80 Ohms |
| FC7BSCCMC8.0-T1 | FOX无源晶振 | C7BS | MHz Crystal | 8 MHz | ±30ppm | ±30ppm | 20pF | 110 Ohms |
| FC7BSCCMM6.0-T1 | FOX无源晶振 | C7BS | MHz Crystal | 6 MHz | ±30ppm | ±30ppm | 20pF | 80 Ohms |
| FC7BSCCMC7.3728-T1 | FOX无源晶振 | C7BS | MHz Crystal | 7.3728 MHz | ±30ppm | ±30ppm | 20pF | 110 Ohms |
| FC8AQCCMC6.0-T1 | FOX无源晶振 | FC8AQ | MHz Crystal | 6 MHz | ±30ppm | ±30ppm | 20pF | 150 Ohms |
| FC4SDCBMF12.288-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 12.288 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4SDCBMM16.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4SDCBMF18.432-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 18.432 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4SDCBLF3.579545-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 3.579545 MHz | ±50ppm | ±30ppm | 18pF | 200 Ohms |
| FC4SDCBMM4.0-T1 | FOX无源晶振 | HC49SDLF | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 20pF | 150 Ohms |
| FC2BSBBMM16.0-T3 | FOX无源晶振 | FX252B | MHz Crystal | 16 MHz | ±50ppm | ±50ppm | 20pF | 200 Ohms |
| FC4STCBMF18.432 | FOX无源晶振 | HC49SLF | MHz Crystal | 18.432 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4STCBMF14.7456 | FOX无源晶振 | HC49SLF | MHz Crystal | 14.7456 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FKT26EIHQ0.032768 | FOX无源晶振 | NC26LF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 35 kOhms |
| FC3BACALI16.0-T3 | FOX无源晶振 | C3BA | MHz Crystal | 16 MHz | ±100ppm | ±30ppm | 18pF | 100 Ohms |
| FC3BACBDI16.0-T3 | FOX无源晶振 | C3BA | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 8pF | 100 Ohms |
公司名：深圳市金洛鑫电子有限公司
联系人：茹红青
手机：13510569637
电话：0755-27837162
QQ号：657116624
微信公众号：CITIZENCRYSTAL
搜狐公众号：晶振石英晶振NDK晶振
邮箱：jinluodz@163.com
地址：深圳市宝安区41区甲岸路19号
相关的产品 / Related Products
- AMPMDDB-21.0000,超高性能漫游器晶振,AMPM工业物联网晶振
- AMPMDDB-21.0000,超高性能漫游器晶振,AMPM工业物联网晶振,超高性能漫游器常工作于工业电磁干扰密集区或户外复杂电磁环境,对晶振的抗干扰能力要求极高.AMPMDDB-21.0000晶振采用AMPM专利的多层电磁屏蔽技术,外壳采用镍铜合金复合屏蔽结构,屏蔽效能可达40dB以上,同时内部振荡电路采用低噪声设计,相位噪声控制在-130dBc/Hz@1kHz.在工业车间场景中,即使周围存在变频器,大功率电机等强电磁干扰源,该晶振仍能保持21MHz频率输出的纯净度,避免干扰导致的时钟信号"抖动";在户外场景中,可抵御手机基站,无线电台等射频信号干扰,确保漫游器物联网模块的通信时序稳定,防止数据传输出现误码或中断,保障漫游器与后台控制系统的实时数据交互.
- ABLJO-V-98.304MHZ-T2,Abracon艾博康晶振,航空电子设备
- ABLJO-V-98.304MHZ-T2,Abracon艾博康晶振,航空电子设备,航空电子晶振关键控制系统(如飞行姿态控制系统,起落架控制系统)直接关系到飞机飞行安全,对元件可靠性要求达到军工级别.ABLJO-V-98.304MHZ-T2晶振作为Abracon艾博康的高端产品,经过严格的可靠性测试(包括振动测试,冲击测试,寿命测试等),具备极高的抗振动,抗冲击能力,且使用寿命远超普通民用晶振.在航空关键控制系统中,其稳定可靠的性能可确保系统时钟信号不中断,不偏差,保障控制系统精准执行指令,避免因元件故障引发的飞行安全事故.

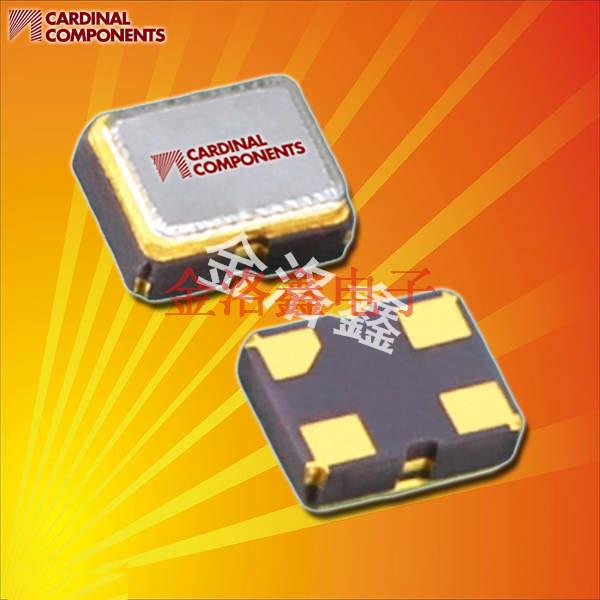

- CPPC7L-A3B6-8.0TS,车规晶振,耐高温晶振,Cardinal晶振
