DSC1001DI1-001.8432,2520mm晶振,Microchip有源晶振

频率：1.8432MHz

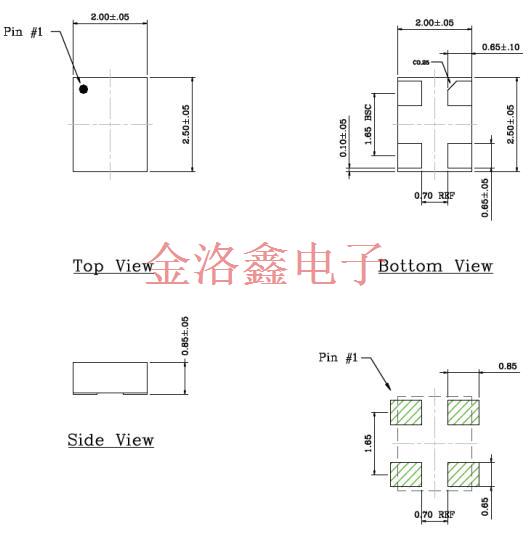

尺寸：2.50mm x 2.00mm

DSC1001DI1-001.8432,2520mm晶振,Microchip有源晶振,核心输出频率固定为1.8432MHz,属于低频时钟信号范畴,专为对时钟精度要求高且需简化电路设计的场景打造.作为有源晶振,其内置完整振荡驱动电路,无需外部额外提供激励信号,可直接输出稳定时钟,支持单端输出接口(如LVCMOS),适配1.8V/2.5V/3.3V多规格供电系统,能为各类电子设备提供低抖动,高稳定的基准时钟,保障设备时序逻辑的精准同步.

订购热线：0755-27837162

DSC1001DI1-001.8432,2520mm晶振,Microchip有源晶振

DSC1001DI1-001.8432是美国微芯(Microchip)推出的高精准有源晶振,采用行业标准的2520mm(2.5mm×2.0mm)微型表面贴装封装,封装高度仅0.6mm左右,相较于传统3225封装晶振,占位面积减少约37.5%,在PCB板布局中可节省大量空间,尤其适配智能可穿戴设备晶振(如智能手表,手环),小型传感器模块,便携式医疗设备等对体积要求严苛的产品.凭借1.8432MHz的低频特性,2520mm小封装及稳定性能,DSC1001DI1-001.8432广泛应用于多领域.在消费电子领域,可作为蓝牙模块,Wi-Fi模块的时钟源,保障无线通信的低延迟与信号稳定性,在工业自动化领域,适配小型PLC(可编程逻辑控制器),数据采集终端,为设备的指令传输与数据处理提供精准时序支持,在医疗电子领域,适用于小型血氧仪,血糖仪等便携式医疗设备,满足设备对低功耗(典型工作电流低于5mA)与长期稳定运行的需求,此外,还可用于智能家居网关,安防监控传感器等场景,助力设备实现高效,可靠的功能运转.

JLX-2

DSC1001DI1-001.8432,2520mm晶振,Microchip有源晶振

原厂型号 Originalmodel：	DSC1001DI1-001.8432	品牌brand：	Microchip
Manufacturer品牌	Microchip	OperatingTemperature温度	-40℃ ~ 85℃
Series型号	DSC1001	Current-Supply(Max)	6.3mA
Type类型	MEMS	PackageHeight高度	0.9mm
Frequency频率	1.8432MHz	Termination 脚位	4-pad
输出方式 Output：	CMOS	PackageType 封装类型	4-SMD
Voltage-Supply电压	1.8 V ~ 3.3 V	Packaging 包装	TapeandReel
FrequencyStability频率稳定度	±50ppm	安装方式 Installation：	Surfacemount
Size/Dimension尺寸	2520晶体振荡器	最小包装数MPQ：	3000

JLX-3

DSC1001DI1-001.8432,2520mm晶振,Microchip有源晶振

DSC1001-3

DSC1001DI1-001.8432,2520mm晶振,Microchip有源晶振

DSC1123CE1-156.2500	Microchip	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI2-150.0000	Microchip	DSC1123	MEMS	150MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI2-100.0000	Microchip	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V
DSC1103DI2-312.5000	Microchip	DSC1103	MEMS	312.5MHz	LVDS	2.25 V ~ 3.6 V
DSC1123DI2-050.0000	Microchip	DSC1123	MEMS	50MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI2-156.2500	Microchip	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V
DSC1123BL2-125.0000	Microchip	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI5-125.0000	Microchip	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1103CI5-300.0000	Microchip	DSC1103	MEMS	300MHz	LVDS	2.25 V ~ 3.6 V
DSC1123DL5-200.0000	Microchip	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC1123NL5-100.0000	Microchip	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V
MX574BBD322M265	Microchip	MX57	XO (Standard)	322.265625MHz	HCSL	2.375 V ~ 3.63 V
DSC1001CI2-018.4320	Microchip	DSC1001	MEMS	18.432MHz	CMOS	1.8 V ~ 3.3 V
DSC1123CI1-200.0000	Microchip	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI1-156.2500	Microchip	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AE2-300.0000	Microchip	DSC1123	MEMS	300MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI1-125.0000	Microchip	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI2-125.0000	Microchip	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1122CE1-125.0000	Microchip	DSC1122	MEMS	125MHz	LVPECL	2.25 V ~ 3.6 V
DSC1123AE2-200.0000	Microchip	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC1103CI1-075.0000	Microchip	DSC1103	MEMS	75MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI2-150.0000	Microchip	DSC1123	MEMS	150MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI1-200.0000	Microchip	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC557-0344SI1	Microchip	DSC557-03	MEMS	100MHz	HCSL	2.25 V ~ 3.6 V
DSC6003CI1A-033.0000	Microchip	DSC60XX	MEMS	33MHz	CMOS	1.71 V ~ 3.63 V
DSC6111CI1A-008.0000	Microchip	DSC6100	MEMS	8MHz	CMOS	1.71 V ~ 3.63 V
DSC6011JI1A-024.0000	Microchip	DSC60XX	MEMS	24MHz	CMOS	1.71 V ~ 3.63 V
DSC6083CI2A-032K800	Microchip	DSC60XX	MEMS	32.8kHz	CMOS	1.71 V ~ 3.63 V
DSC6083CI2A-307K000	Microchip	DSC60XX	MEMS	307kHz	CMOS	1.71 V ~ 3.63 V
DSC6001CI2A-004.0000	Microchip	DSC60XX	MEMS	4MHz	CMOS	1.71 V ~ 3.63 V
DSC6001CI2A-032.0000	Microchip	DSC60XX	MEMS	32MHz	CMOS	1.71 V ~ 3.63 V
DSC6083CI2A-250K000	Microchip	DSC60XX	MEMS	250kHz	CMOS	1.71 V ~ 3.63 V
DSC6083CI2A-002K000	Microchip	DSC60XX	MEMS	2kHz	CMOS	1.71 V ~ 3.63 V
DSC6101JI2A-024.0000	Microchip	DSC6100	MEMS	24MHz	CMOS	1.71 V ~ 3.63 V
DSC1001CC1-047.3333	Microchip	DSC1001	MEMS	47.3333MHz	CMOS	1.8 V ~ 3.3 V
DSC1030BC1-008.0000	Microchip	DSC1030	MEMS	8MHz	CMOS	3V
DSC1001BC1-024.0000	Microchip	DSC1001	MEMS	24MHz	CMOS	1.8 V ~ 3.3 V
DSC1033BC1-026.6000	Microchip	DSC1033	MEMS	26MHz	CMOS	3.3V
DSC1001DI1-001.8432	Microchip	DSC1001	MEMS	1.8432MHz	CMOS	1.8 V ~ 3.3 V
DSC1033CI1-048.0000	Microchip	DSC1033	MEMS	48MHz	CMOS	3.3V
DSC1033CI1-024.0000	Microchip	DSC1033	MEMS	24MHz	CMOS	3.3V
DSC1033DI1-012.0000	Microchip	DSC1033	MEMS	12MHz	CMOS	3.3V
DSC1033DI1-036.0000	Microchip	DSC1033	MEMS	36MHz	CMOS	3.3V
DSC1001CI1-027.0000	Microchip	DSC1001	MEMS	27MHz	CMOS	1.8 V ~ 3.3 V
DSC1033CI1-050.0000	Microchip	DSC1033	MEMS	50MHz	CMOS	3.3V
DSC6001CI1A-011.0592	Microchip	DSC60XX	MEMS	11.0592MHz	CMOS	1.71 V ~ 3.63 V
DSC1001CI2-024.0000	Microchip	DSC1001	MEMS	24MHz	CMOS	1.8 V ~ 3.3 V
DSC1033BE2-024.0000	Microchip	DSC1033	MEMS	24MHz	CMOS	3.3V
DSC1001DI2-038.4000	Microchip	DSC1001	MEMS	38.4MHz	CMOS	1.8 V ~ 3.3 V
DSC1001CI5-033.3333	Microchip	DSC1001	MEMS	33.3333MHz	CMOS	1.8 V ~ 3.3 V
DSC1101DM2-012.0000	Microchip	DSC1101	MEMS	12MHz	CMOS	2.25 V ~ 3.6 V
DSC1001DE5-018.4320	Microchip	DSC1001	MEMS	18.432MHz	CMOS	1.8 V ~ 3.3 V
DSC1101AI2-040.0000	Microchip	DSC1101	MEMS	40MHz	CMOS	2.25 V ~ 3.6 V
DSC1101AI2-080.0000	Microchip	DSC1101	MEMS	80MHz	CMOS	2.25 V ~ 3.6 V
DSC1101AI2-064.0000	Microchip	DSC1101	MEMS	64MHz	CMOS	2.25 V ~ 3.6 V
DSC1124CI5-100.0000	Microchip	DSC1124	MEMS	100MHz	HCSL	2.25 V ~ 3.6 V
DSC1121CM2-040.0000	Microchip	DSC1121	MEMS	40MHz	CMOS	2.25 V ~ 3.6 V
DSC1101DL5-020.0000	Microchip	DSC1101	MEMS	20MHz	CMOS	2.25 V ~ 3.6 V
DSC1101BI5-133.0000	Microchip	DSC1101	MEMS	133MHz	CMOS	2.25 V ~ 3.6 V
DSC1101CL5-100.0000	Microchip	DSC1101	MEMS	100MHz	CMOS	2.25 V ~ 3.6 V
