当前位置：首页 » 贴片晶振 » CTS晶振 » CTS晶振,ATSSMGL晶振,GL270F23IDT,6G网络应用晶振
CTS晶振,ATSSMGL晶振,GL270F23IDT,6G网络应用晶振
prevnext

CTS晶振,ATSSMGL晶振,GL270F23IDT,6G网络应用晶振

频率：27MHZ

尺寸：13.2mm x 5mm

CTS晶振,ATSSMGL晶振,GL270F23IDT,6G网络应用晶振,CTS晶振,欧美进口晶振,ATSSMGL石英贴片晶振,GL270F23IDT晶振,无源晶振,频率27MHz,负载18pF,频率稳定性30ppm,工作温度-40~85°C,高稳定性晶振,低成本晶振,6G网络应用晶振,通讯设备晶振,数码相机晶振,工业设备晶振.






订购热线：0755-27837162
QQ咨询 点击这里给我发消息

CTS

CTS晶振,ATSSMGL晶振,GL270F23IDT,6G网络应用晶振,CTS晶振,欧美进口晶振,ATSSMGL石英贴片晶振,GL270F23IDT晶振,无源晶振,频率27MHz,负载18pF,频率稳定性30ppm,工作温度-40~85°C,高稳定性晶振,低成本晶振,6G网络应用晶振,通讯设备晶振,数码相机晶振,工业设备晶振.

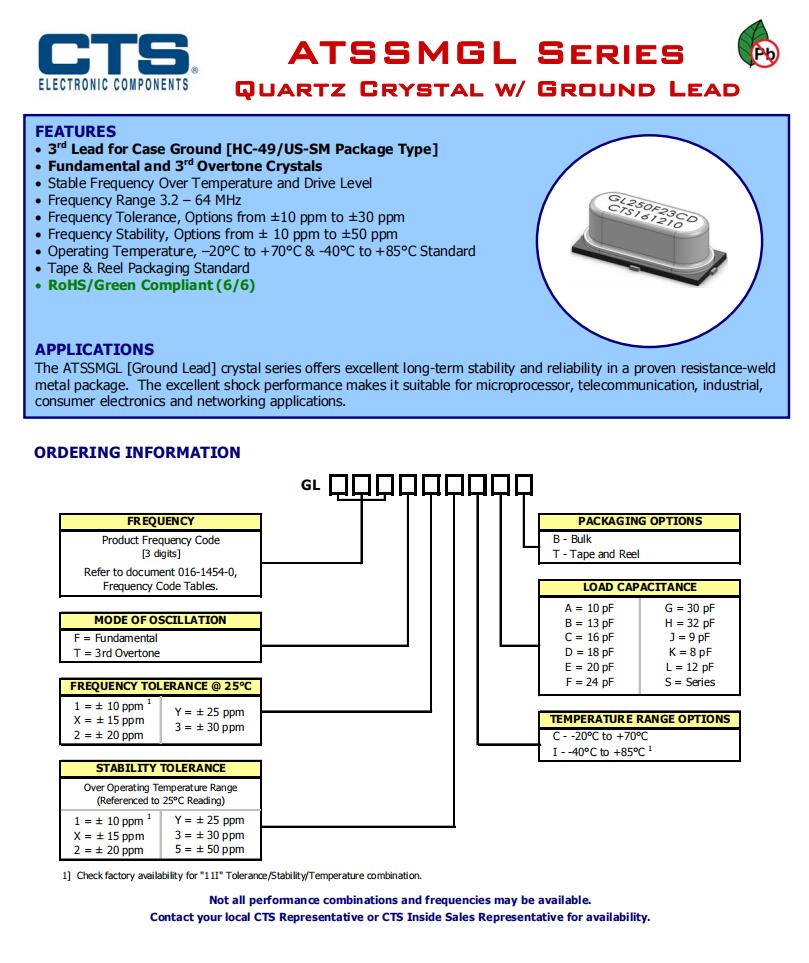

CTS晶振,ATSSMGL晶振,GL270F23IDT,6G网络应用晶振特征

•外壳接地的第三根导线[HC-49/US-SM封装类型]

•基本和第三泛音晶体

•稳定的频率超过温度和驱动电平

•频率范围3.2 - 64MHz

•频率公差，从±10ppm到±30ppm的选项

•频率稳定性，从±10ppm到±50ppm的选项

•工作温度，-20°C至+70°C和-40°C至+85°C标准

•胶带和卷轴包装可用

•符合RoHS/绿色标准[6/6]

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

CTS晶振,ATSSMGL晶振,GL270F23IDT,6G网络应用晶振参数表

项目 数值
频率 27MHz
操作模式 Fundamental
晶体切割 AT-Cut
工作温度  -40°C to +85°C
保存温度   -40°C to +85°C
频率公差 @ +25°C ± 20PPM

 工作温度范围内的频率稳定性 ( ref. to

+25°C)

± 30PPM
等效串联电阻(R1) 30 Ω
  并联电容 (C0) 7.0pF Maximum
负载电容 (CL) 18pF
激励功率 1000 μW Max
老化 @ +25°C ±3ppm/yr Typical

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

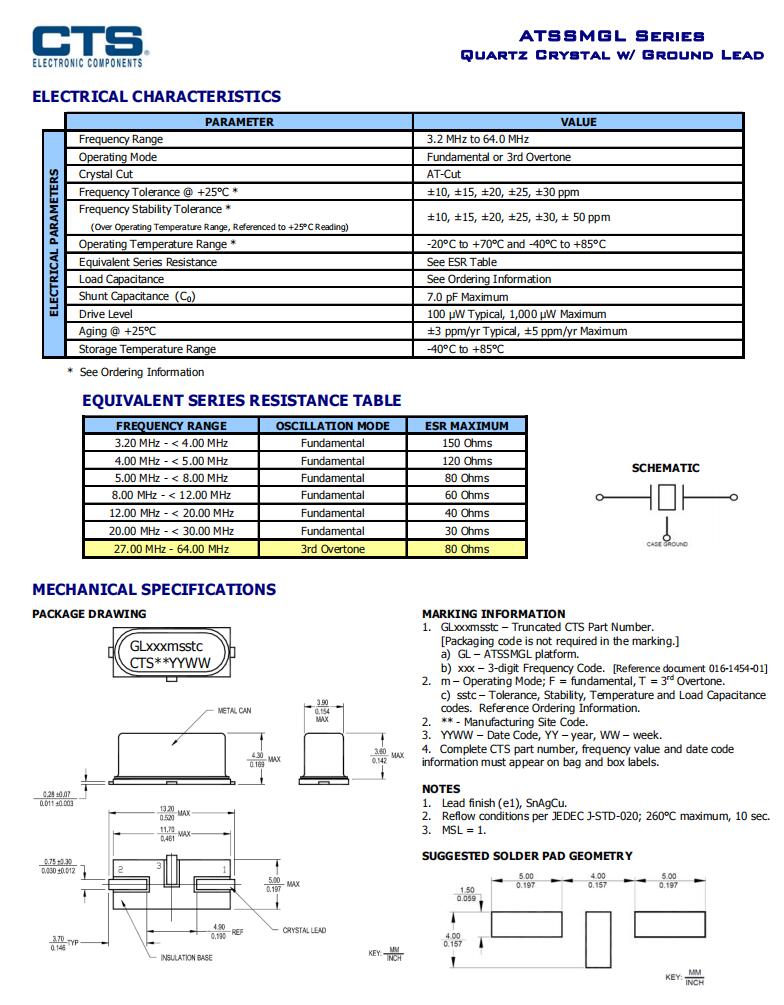

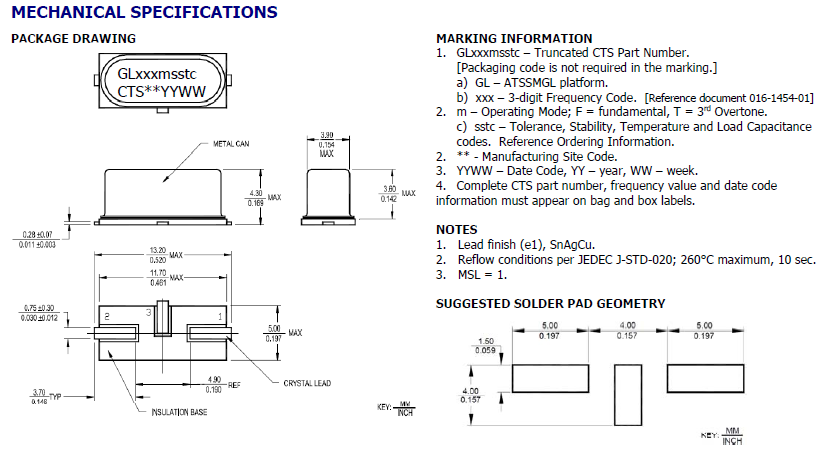

CTS晶振,ATSSMGL晶振,GL270F23IDT,6G网络应用晶振尺寸图

ATSSMGL 12.3-5

ATSSMGL

ATSSMGL-1

原厂编码 生产厂家 型号 频率 频率稳定度 频率偏差 负载电容 ESR电阻 工作温度
GL240F23CDT CTS 晶振 ATSSMGL 24MHz ±30ppm ±20ppm 18pF 30 Ohm -20°C ~ 70°C
GL240F23CET CTS 晶振 ATSSMGL 24MHz ±30ppm ±20ppm 20pF 30 Ohm -20°C ~ 70°C
GL240F33CDT CTS 晶振 ATSSMGL 24MHz ±30ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL240F33CET CTS 晶振 ATSSMGL 24MHz ±30ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL240F35CDT CTS 晶振 ATSSMGL 24MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL240F35CET CTS 晶振 ATSSMGL 24MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL240F35IDT CTS 晶振 ATSSMGL 24MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
GL240F35IET CTS 晶振 ATSSMGL 24MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
GL24CF23CDT CTS 晶振 ATSSMGL 24.576MHz ±30ppm ±20ppm 18pF 30 Ohm -20°C ~ 70°C
GL24CF23CET CTS 晶振 ATSSMGL 24.576MHz ±30ppm ±20ppm 20pF 30 Ohm -20°C ~ 70°C
GL24CF33CDT CTS 晶振 ATSSMGL 24.576MHz ±30ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL24CF33CET CTS 晶振 ATSSMGL 24.576MHz ±30ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL24CF35CDT CTS 晶振 ATSSMGL 24.576MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL24CF35CET CTS 晶振 ATSSMGL 24.576MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL24CF35IDT CTS 晶振 ATSSMGL 24.576MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
GL24CF35IET CTS 晶振 ATSSMGL 24.576MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
GL250F23CDT CTS 晶振 ATSSMGL 25MHz ±30ppm ±20ppm 18pF 30 Ohm -20°C ~ 70°C
GL250F23CET CTS 晶振 ATSSMGL 25MHz ±30ppm ±20ppm 20pF 30 Ohm -20°C ~ 70°C
GL250F33CDT CTS 晶振 ATSSMGL 25MHz ±30ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL250F33CET CTS 晶振 ATSSMGL 25MHz ±30ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL250F35CDT CTS 晶振 ATSSMGL 25MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL250F35CET CTS 晶振 ATSSMGL 25MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL250F35IDT CTS 晶振 ATSSMGL 25MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
GL250F35IET CTS 晶振 ATSSMGL 25MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
GL270F23CDT CTS 晶振 ATSSMGL 27MHz ±30ppm ±20ppm 18pF 30 Ohm -20°C ~ 70°C
GL270F23CET CTS 晶振 ATSSMGL 27MHz ±30ppm ±20ppm 20pF 30 Ohm -20°C ~ 70°C
GL270F33CDT CTS 晶振 ATSSMGL 27MHz ±30ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL270F33CET CTS 晶振 ATSSMGL 27MHz ±30ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL270F35CDT CTS 晶振 ATSSMGL 27MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL270F35CET CTS 晶振 ATSSMGL 27MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL270F35IDT CTS 晶振 ATSSMGL 27MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
GL270F35IET CTS 晶振 ATSSMGL 27MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
GL042F23CDT CTS 晶振 ATSSMGL 4.096MHz ±30ppm ±20ppm 18pF 120 Ohm -20°C ~ 70°C
GL042F23CET CTS 晶振 ATSSMGL 4.096MHz ±30ppm ±20ppm 20pF 120 Ohm -20°C ~ 70°C
GL042F33CDT CTS 晶振 ATSSMGL 4.096MHz ±30ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL042F33CET CTS 晶振 ATSSMGL 4.096MHz ±30ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL042F35CDT CTS 晶振 ATSSMGL 4.096MHz ±50ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL042F35CET CTS 晶振 ATSSMGL 4.096MHz ±50ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL042F35IDT CTS 晶振 ATSSMGL 4.096MHz ±50ppm ±30ppm 18pF 120 Ohm -40°C ~ 85°C
GL042F35IET CTS 晶振 ATSSMGL 4.096MHz ±50ppm ±30ppm 20pF 120 Ohm -40°C ~ 85°C
GL044F23CDT CTS 晶振 ATSSMGL 4.433619MHz ±30ppm ±20ppm 18pF 120 Ohm -20°C ~ 70°C
GL044F23CET CTS 晶振 ATSSMGL 4.433619MHz ±30ppm ±20ppm 20pF 120 Ohm -20°C ~ 70°C
GL044F33CDT CTS 晶振 ATSSMGL 4.433619MHz ±30ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL044F33CET CTS 晶振 ATSSMGL 4.433619MHz ±30ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL044F35CDT CTS 晶振 ATSSMGL 4.433619MHz ±50ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL044F35CET CTS 晶振 ATSSMGL 4.433619MHz ±50ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL044F35IDT CTS 晶振 ATSSMGL 4.433619MHz ±50ppm ±30ppm 18pF 120 Ohm -40°C ~ 85°C
GL044F35IET CTS 晶振 ATSSMGL 4.433619MHz ±50ppm ±30ppm 20pF 120 Ohm -40°C ~ 85°C
GL045F23CDT CTS 晶振 ATSSMGL 4.5MHz ±30ppm ±20ppm 18pF 120 Ohm -20°C ~ 70°C
GL045F23CET CTS 晶振 ATSSMGL 4.5MHz ±30ppm ±20ppm 20pF 120 Ohm -20°C ~ 70°C
GL045F33CDT CTS 晶振 ATSSMGL 4.5MHz ±30ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL045F33CET CTS 晶振 ATSSMGL 4.5MHz ±30ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL045F35CDT CTS 晶振 ATSSMGL 4.5MHz ±50ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL045F35CET CTS 晶振 ATSSMGL 4.5MHz ±50ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL045F35IDT CTS 晶振 ATSSMGL 4.5MHz ±50ppm ±30ppm 18pF 120 Ohm -40°C ~ 85°C
GL045F35IET CTS 晶振 ATSSMGL 4.5MHz ±50ppm ±30ppm 20pF 120 Ohm -40°C ~ 85°C
GL049F23CDT CTS 晶振 ATSSMGL 4.9152MHz ±30ppm ±20ppm 18pF 120 Ohm -20°C ~ 70°C
GL049F23CET CTS 晶振 ATSSMGL 4.9152MHz ±30ppm ±20ppm 20pF 120 Ohm -20°C ~ 70°C
GL049F33CDT CTS 晶振 ATSSMGL 4.9152MHz ±30ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL049F33CET CTS 晶振 ATSSMGL 4.9152MHz ±30ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL049F35CDT CTS 晶振 ATSSMGL 4.9152MHz ±50ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL049F35CET CTS 晶振 ATSSMGL 4.9152MHz ±50ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL049F35IDT CTS 晶振 ATSSMGL 4.9152MHz ±50ppm ±30ppm 18pF 120 Ohm -40°C ~ 85°C
GL049F35IET CTS 晶振 ATSSMGL 4.9152MHz ±50ppm ±30ppm 20pF 120 Ohm -40°C ~ 85°C
GL050F23CDT CTS 晶振 ATSSMGL 5MHz ±30ppm ±20ppm 18pF 80 Ohm -20°C ~ 70°C
GL050F23CET CTS 晶振 ATSSMGL 5MHz ±30ppm ±20ppm 20pF 80 Ohm -20°C ~ 70°C
GL050F33CDT CTS 晶振 ATSSMGL 5MHz ±30ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL050F33CET CTS 晶振 ATSSMGL 5MHz ±30ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL050F35CDT CTS 晶振 ATSSMGL 5MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL050F35CET CTS 晶振 ATSSMGL 5MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL050F35IDT CTS 晶振 ATSSMGL 5MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
GL050F35IET CTS 晶振 ATSSMGL 5MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
GL060F23CDT CTS 晶振 ATSSMGL 6MHz ±30ppm ±20ppm 18pF 80 Ohm -20°C ~ 70°C
GL060F23CET CTS 晶振 ATSSMGL 6MHz ±30ppm ±20ppm 20pF 80 Ohm -20°C ~ 70°C
GL060F33CDT CTS 晶振 ATSSMGL 6MHz ±30ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL060F33CET CTS 晶振 ATSSMGL 6MHz ±30ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL060F35CDT CTS 晶振 ATSSMGL 6MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL060F35CET CTS 晶振 ATSSMGL 6MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL060F35IDT CTS 晶振 ATSSMGL 6MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
GL060F35IET CTS 晶振 ATSSMGL 6MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
GL061F23CDT CTS 晶振 ATSSMGL 6.144MHz ±30ppm ±20ppm 18pF 80 Ohm -20°C ~ 70°C
GL061F23CET CTS 晶振 ATSSMGL 6.144MHz ±30ppm ±20ppm 20pF 80 Ohm -20°C ~ 70°C
GL061F33CDT CTS 晶振 ATSSMGL 6.144MHz ±30ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL061F33CET CTS 晶振 ATSSMGL 6.144MHz ±30ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL061F35CDT CTS 晶振 ATSSMGL 6.144MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL061F35CET CTS 晶振 ATSSMGL 6.144MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL061F35IDT CTS 晶振 ATSSMGL 6.144MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
GL061F35IET CTS 晶振 ATSSMGL 6.144MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
GL073F23CDT CTS 晶振 ATSSMGL 7.3728MHz ±30ppm ±20ppm 18pF 80 Ohm -20°C ~ 70°C
GL073F23CET CTS 晶振 ATSSMGL 7.3728MHz ±30ppm ±20ppm 20pF 80 Ohm -20°C ~ 70°C
GL073F33CDT CTS 晶振 ATSSMGL 7.3728MHz ±30ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL073F33CET CTS 晶振 ATSSMGL 7.3728MHz ±30ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL073F35CDT CTS 晶振 ATSSMGL 7.3728MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL073F35CET CTS 晶振 ATSSMGL 7.3728MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL073F35IDT CTS 晶振 ATSSMGL 7.3728MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
GL073F35IET CTS 晶振 ATSSMGL 7.3728MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
GL080F23CDT CTS 晶振 ATSSMGL 8MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL080F23CET CTS 晶振 ATSSMGL 8MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL080F33CDT CTS 晶振 ATSSMGL 8MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL080F33CET CTS 晶振 ATSSMGL 8MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL080F35CDT CTS 晶振 ATSSMGL 8MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL080F35CET CTS 晶振 ATSSMGL 8MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL080F35IDT CTS 晶振 ATSSMGL 8MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL080F35IET CTS 晶振 ATSSMGL 8MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL092F23CDT CTS 晶振 ATSSMGL 9.216MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL092F23CET CTS 晶振 ATSSMGL 9.216MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL092F33CDT CTS 晶振 ATSSMGL 9.216MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL092F33CET CTS 晶振 ATSSMGL 9.216MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL092F35CDT CTS 晶振 ATSSMGL 9.216MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL092F35CET CTS 晶振 ATSSMGL 9.216MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL092F35IDT CTS 晶振 ATSSMGL 9.216MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL092F35IET CTS 晶振 ATSSMGL 9.216MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL098F23CDT CTS 晶振 ATSSMGL 9.8304MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL098F23CET CTS 晶振 ATSSMGL 9.8304MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL098F33CDT CTS 晶振 ATSSMGL 9.8304MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL098F33CET CTS 晶振 ATSSMGL 9.8304MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL098F35CDT CTS 晶振 ATSSMGL 9.8304MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL098F35CET CTS 晶振 ATSSMGL 9.8304MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL098F35IDT CTS 晶振 ATSSMGL 9.8304MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL098F35IET CTS 晶振 ATSSMGL 9.8304MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL100F23CDT CTS 晶振 ATSSMGL 10MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL100F23CET CTS 晶振 ATSSMGL 10MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL100F33CDT CTS 晶振 ATSSMGL 10MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL100F33CET CTS 晶振 ATSSMGL 10MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL100F35CDT CTS 晶振 ATSSMGL 10MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL100F35CET CTS 晶振 ATSSMGL 10MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL100F35IDT CTS 晶振 ATSSMGL 10MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL100F35IET CTS 晶振 ATSSMGL 10MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL102F23CDT CTS 晶振 ATSSMGL 10.24MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL102F23CET CTS 晶振 ATSSMGL 10.24MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL102F33CDT CTS 晶振 ATSSMGL 10.24MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL102F33CET CTS 晶振 ATSSMGL 10.24MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL102F35CDT CTS 晶振 ATSSMGL 10.24MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL102F35CET CTS 晶振 ATSSMGL 10.24MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL102F35IDT CTS 晶振 ATSSMGL 10.24MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL102F35IET CTS 晶振 ATSSMGL 10.24MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL111F23CDT CTS 晶振 ATSSMGL 11.0592MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL111F23CET CTS 晶振 ATSSMGL 11.0592MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL111F33CDT CTS 晶振 ATSSMGL 11.0592MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL111F33CET CTS 晶振 ATSSMGL 11.0592MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL111F35CDT CTS 晶振 ATSSMGL 11.0592MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL111F35CET CTS 晶振 ATSSMGL 11.0592MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL111F35IDT CTS 晶振 ATSSMGL 11.0592MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL111F35IET CTS 晶振 ATSSMGL 11.0592MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL120F23CDT CTS 晶振 ATSSMGL 12MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL120F23CET CTS 晶振 ATSSMGL 12MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL120F33CDT CTS 晶振 ATSSMGL 12MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL120F33CET CTS 晶振 ATSSMGL 12MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL120F35CDT CTS 晶振 ATSSMGL 12MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL120F35CET CTS 晶振 ATSSMGL 12MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL120F35IDT CTS 晶振 ATSSMGL 12MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
GL120F35IET CTS 晶振 ATSSMGL 12MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
GL122F23CDT CTS 晶振 ATSSMGL 12.288MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL122F23CET CTS 晶振 ATSSMGL 12.288MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL122F33CDT CTS 晶振 ATSSMGL 12.288MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL122F33CET CTS 晶振 ATSSMGL 12.288MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL122F35CDT CTS 晶振 ATSSMGL 12.288MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL122F35CET CTS 晶振 ATSSMGL 12.288MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL122F35IDT CTS 晶振 ATSSMGL 12.288MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
GL122F35IET CTS 晶振 ATSSMGL 12.288MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
GL130F23CDT CTS 晶振 ATSSMGL 13MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL130F23CET CTS 晶振 ATSSMGL 13MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL130F33CDT CTS 晶振 ATSSMGL 13MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL130F33CET CTS 晶振 ATSSMGL 13MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL130F35CDT CTS 晶振 ATSSMGL 13MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL130F35CET CTS 晶振 ATSSMGL 13MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL130F35IDT CTS 晶振 ATSSMGL 13MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
GL130F35IET CTS 晶振 ATSSMGL 13MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
GL135F23CDT CTS 晶振 ATSSMGL 13.5MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL135F23CET CTS 晶振 ATSSMGL 13.5MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL135F33CDT CTS 晶振 ATSSMGL 13.5MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL135F33CET CTS 晶振 ATSSMGL 13.5MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL135F35CDT CTS 晶振 ATSSMGL 13.5MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL135F35CET CTS 晶振 ATSSMGL 13.5MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL135F35IDT CTS 晶振 ATSSMGL 13.5MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
GL135F35IET CTS 晶振 ATSSMGL 13.5MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
GL143F23CDT CTS 晶振 ATSSMGL 14.31818MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL143F23CET CTS 晶振 ATSSMGL 14.31818MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL143F33CDT CTS 晶振 ATSSMGL 14.31818MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL143F33CET CTS 晶振 ATSSMGL 14.31818MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL143F35CDT CTS 晶振 ATSSMGL 14.31818MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL143F35CET CTS 晶振 ATSSMGL 14.31818MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL143F35IDT CTS 晶振 ATSSMGL 14.31818MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
GL143F35IET CTS 晶振 ATSSMGL 14.31818MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
GL147F23CDT CTS 晶振 ATSSMGL 14.7456MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL147F23CET CTS 晶振 ATSSMGL 14.7456MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL147F33CDT CTS 晶振 ATSSMGL 14.7456MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL147F33CET CTS 晶振 ATSSMGL 14.7456MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL147F35CDT CTS 晶振 ATSSMGL 14.7456MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL147F35CET CTS 晶振 ATSSMGL 14.7456MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C







JLX-6

RB-6

wxewm

公司名：深圳市金洛鑫电子有限公司

联系人：茹红青

手机：13510569637

电话：0755-27837162

QQ号：657116624

微信公众号：CITIZENCRYSTAL

搜狐公众号：晶振石英晶振NDK晶振

邮箱：jinluodz@163.com

地址：深圳市宝安区41区甲岸路19号

网址：http://www.quartzcrystal.cn/

关键词：CTS晶振 ATSSMGL晶振 GL270F23IDT 6G网络应用晶振

相关的产品 / Related Products

XJDDDLNANF-8.000000,Taitien台产晶振,49SMD晶振
XJDDDLNANF-8.000000,Taitien台产晶振,49SMD晶振
XJDDDLNANF-8.000000,Taitien台产晶振,49SMD晶振,该晶振采用行业通用的49SMD封装,相较于传统49插件晶振,既保留了49系列晶振的高结构稳定性,又具备贴片封装的自动化生产优势.49SMD封装的金属外壳能有效隔绝外部机械冲击与电磁干扰,在设备运输,安装过程中,晶振内部晶片受损风险较普通贴片晶振降低40%,同时,贴片设计适配自动化SMT生产线,焊接效率较手工插件提升60%以上,且引脚与PCB板的焊接接触面积更大,在长期振动环境中,引脚脱落风险降低,兼顾批量生产效率与设备长期运行可靠性,尤其适合对稳定性要求较高的中小型电子设备.
XXHCCCNANF-25.000000,Taitien泰艺晶振,3225贴片无源晶振
XXHCCCNANF-25.000000,Taitien泰艺晶振,3225贴片无源晶振
XXHCCCNANF-25.000000,Taitien泰艺晶振,3225贴片无源晶振,该晶振采用行业通用的3225标准贴片封装(尺寸3.2mm×2.5mm×0.7mm),相较于传统插件式晶振,体积缩小60%以上,完美适配消费电子,便携设备对内部空间的严苛要求--例如在智能手表,无线耳机等小型设备中,可灵活嵌入PCB板边缘或多层板夹层,为电池,传感器等关键元器件预留更多安装空间.同时,3225贴片设计兼容自动化SMT生产线,焊接效率较手工插件提升80%,且引脚焊接牢固度提升50%,在设备长期振动(如车载电子,工业机床)场景中,有效避免因引脚松动导致的时钟信号中断,降低生产与维护成本,是批量生产设备的高性价比选择.
XRCGB40M000F1S1JR0,村田muRata晶振,2016贴片晶振
XRCGB40M000F1S1JR0,村田muRata晶振,2016贴片晶振
XRCGB40M000F1S1JR0,村田muRata晶振,2016贴片晶振,作为典型的2016超小型贴片晶振,XRCGB40M000F1S1JR0在尺寸上大幅节省PCB板空间,完美适配消费电子,工业控制,物联网终端等对小型化设计要求较高的场景,如智能穿戴设备,微型传感器模块,便携式医疗仪器等.其贴片式结构支持自动化SMT贴片工艺,可提升生产效率并降低人工组装误差,同时兼容无铅焊接标准,符合RoHS环保要求,满足全球主流市场的环保法规,适配多领域产品的量产需求.

JLX-PD

金洛鑫产品系列

PRODUCT LINE

石英晶振
QuartzCrystal

贴片晶振
SMDcrystal

谐振器滤波器
Resonator

温补晶振
TCXOcrystal

32.768K
32768Kcrystal

雾化片
AtomizationPiece

智能穿戴

车载安防

通讯网络

智能玩具

金洛鑫联系方式
咨询热线：0755-27837162

手机：13510569637

QQ：QQ

邮箱：jinluodz@163.com

地址：广东省深圳市宝安区宝安41区甲岸路

地址：广东省深圳市宝安区宝安41区甲岸路

E-mail：jinluodz@163.com

电话：0755-27837162

手机:135 1056 9637

在线ＱＱ：657116624 在线QQ

网站：www.quartzcrystal.cn

金洛鑫公众号
金洛鑫微信号
Copyright © 1996-2017 金洛鑫电子备案号：粤ICP备17072356号-1版权归金洛鑫电子有限公司所有©
