CM8V-T1A-32.768KHZ-7PF-20PPM-TA-QC,Micro瑞士微晶,32.768KHz晶振

当前位置：首页 » 贴片晶振 » CM8V-T1A-32.768KHZ-7PF-20PPM-TA-QC,Micro瑞士微晶,32.768KHz晶振

prevnext

CM8V-T1A-32.768KHZ-7PF-20PPM-TA-QC,Micro瑞士微晶,32.768KHz晶振

频率：32.768kHz

尺寸：2012mm

CM8V-T1A-32.768KHZ-7PF-20PPM-TA-QC,Micro瑞士微晶,32.768KHz晶振标准频率搭配±20PPM高精度偏差,满足工业控制,医疗设备晶振等场景对信号稳定性的高要求.7PF负载电容设计适配多种电路拓扑,TA环境适应性优化使其在高低温波动环境下仍保持频率输出稳定,有效避免因温度变化导致的设备误判或数据偏差.此外,产品通过QC全项检测,从原材料到成品的全流程管控,确保长期运行中的低失效率与高可靠性.

订购热线：0755-27837162

CM8V-T1A-32.768KHZ-7PF-20PPM-TA-QC,Micro瑞士微晶,32.768KHz晶振

CM8V-T1A是Micro瑞士微晶推出的32.768KHz通用性晶振,凭借±20PPM的频率偏差精度,为各类电子设备提供稳定的时间基准信号.完美匹配实时时钟(RTC),蓝牙模块等电路的低功耗需求.7PF的负载电容参数可有效降低电路驱动能耗,配合±20PPM的频率精度,在延长设备续航的同时避免时间偏差问题.产品通过严格的TA温度特性测试,能在复杂环境中稳定工作,且QC品质管控体系确保每批次产品性能一致性,是消费电子与工业控制领域的优选元件.

JLX-2

CM8V-T1A-32.768KHZ-7PF-20PPM-TA-QC,Micro瑞士微晶,32.768KHz晶振

原厂型号 Originalmodel：	CM8V-T1A-32.768KHZ-7PF-20PPM-TA-QC	品牌brand：	Micro(瑞士微晶)
品牌brand：	Micro(瑞士微晶)	ESR（等效串联电阻）Resistance)	-
型号名称 Modelname：	CM8V-T1A	温度OperatingTemperature	-40+85
Type系列：	KHZ Crystal	脚位Termination：	2pad
频率 frequency：	32.768K	封装类型PackageType：	2-SMD
FrequencyStability频率稳定度	-	高度PackageHeight：	0.6mm
frequencytolerance频率容差	±20PPm	最小包装数MPQ：	3000
Loadcapacitance 负载电容	7 pF	包装Packaging：	TapeandReel
Size/Dimension尺寸	2012小型贴装晶振	安装方式MountingStyle：	SurfaceMount

JLX-3

CM8V-T1A-32.768KHZ-7PF-20PPM-TA-QC,Micro瑞士微晶,32.768KHz晶振

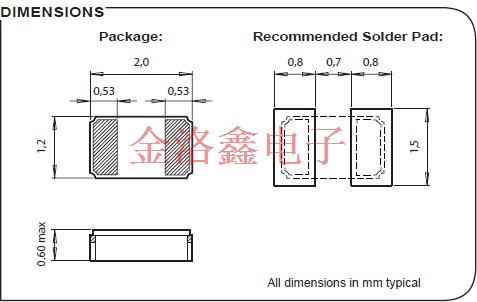

CM8V-T1A 2012

CM8V-T1A-32.768KHZ-7PF-20PPM-TA-QC,Micro瑞士微晶,32.768KHz晶振

DSC1123AI1-200.0000	Microchip	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V	±50ppm
DSC557-0344SI1	Microchip	DSC557-03	MEMS	100MHz	HCSL	2.25 V ~ 3.6 V	±50ppm
DSC6003CI1A-033.0000	Microchip	DSC60XX	MEMS	33MHz	CMOS	1.71 V ~ 3.63 V	±50ppm
DSC6111CI1A-008.0000	Microchip	DSC6100	MEMS	8MHz	CMOS	1.71 V ~ 3.63 V	±50ppm
DSC6011JI1A-024.0000	Microchip	DSC60XX	MEMS	24MHz	CMOS	1.71 V ~ 3.63 V	±50ppm
DSC6083CI2A-032K800	Microchip	DSC60XX	MEMS	32.8kHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC6083CI2A-307K000	Microchip	DSC60XX	MEMS	307kHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC6001CI2A-004.0000	Microchip	DSC60XX	MEMS	4MHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC6001CI2A-032.0000	Microchip	DSC60XX	MEMS	32MHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC6083CI2A-250K000	Microchip	DSC60XX	MEMS	250kHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC6083CI2A-002K000	Microchip	DSC60XX	MEMS	2kHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC6101JI2A-024.0000	Microchip	DSC6100	MEMS	24MHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC1001CC1-047.3333	Microchip	DSC1001	MEMS	47.3333MHz	CMOS	1.8 V ~ 3.3 V	±50ppm
DSC1030BC1-008.0000	Microchip	DSC1030	MEMS	8MHz	CMOS	3V	±50ppm
DSC1001BC1-024.0000	Microchip	DSC1001	MEMS	24MHz	CMOS	1.8 V ~ 3.3 V	±50ppm
DSC1033BC1-026.6000	Microchip	DSC1033	MEMS	26MHz	CMOS	3.3V	±50ppm
DSC1001DI1-001.8432	Microchip	DSC1001	MEMS	1.8432MHz	CMOS	1.8 V ~ 3.3 V	±50ppm
DSC1033CI1-048.0000	Microchip	DSC1033	MEMS	48MHz	CMOS	3.3V	±50ppm
DSC1033CI1-024.0000	Microchip	DSC1033	MEMS	24MHz	CMOS	3.3V	±50ppm
DSC1033DI1-012.0000	Microchip	DSC1033	MEMS	12MHz	CMOS	3.3V	±50ppm
DSC1033DI1-036.0000	Microchip	DSC1033	MEMS	36MHz	CMOS	3.3V	±50ppm
DSC1001CI1-027.0000	Microchip	DSC1001	MEMS	27MHz	CMOS	1.8 V ~ 3.3 V	±50ppm
DSC1033CI1-050.0000	Microchip	DSC1033	MEMS	50MHz	CMOS	3.3V	±50ppm
DSC6001CI1A-011.0592	Microchip	DSC60XX	MEMS	11.0592MHz	CMOS	1.71 V ~ 3.63 V	±50ppm
DSC1001CI2-024.0000	Microchip	DSC1001	MEMS	24MHz	CMOS	1.8 V ~ 3.3 V	±25ppm
DSC1033BE2-024.0000	Microchip	DSC1033	MEMS	24MHz	CMOS	3.3V	±25ppm
DSC1001DI2-038.4000	Microchip	DSC1001	MEMS	38.4MHz	CMOS	1.8 V ~ 3.3 V	±25ppm
DSC1001CI5-033.3333	Microchip	DSC1001	MEMS	33.3333MHz	CMOS	1.8 V ~ 3.3 V	±10ppm
DSC1101DM2-012.0000	Microchip	DSC1101	MEMS	12MHz	CMOS	2.25 V ~ 3.6 V	±25ppm
DSC1001DE5-018.4320	Microchip	DSC1001	MEMS	18.432MHz	CMOS	1.8 V ~ 3.3 V	±10ppm
DSC1101AI2-040.0000	Microchip	DSC1101	MEMS	40MHz	CMOS	2.25 V ~ 3.6 V	±25ppm
DSC1101AI2-080.0000	Microchip	DSC1101	MEMS	80MHz	CMOS	2.25 V ~ 3.6 V	±25ppm
DSC1101AI2-064.0000	Microchip	DSC1101	MEMS	64MHz	CMOS	2.25 V ~ 3.6 V	±25ppm
DSC1124CI5-100.0000	Microchip	DSC1124	MEMS	100MHz	HCSL	2.25 V ~ 3.6 V	±10ppm
DSC1121CM2-040.0000	Microchip	DSC1121	MEMS	40MHz	CMOS	2.25 V ~ 3.6 V	±25ppm
DSC1101DL5-020.0000	Microchip	DSC1101	MEMS	20MHz	CMOS	2.25 V ~ 3.6 V	±10ppm
DSC1101BI5-133.0000	Microchip	DSC1101	MEMS	133MHz	CMOS	2.25 V ~ 3.6 V	±10ppm
DSC1101CL5-100.0000	Microchip	DSC1101	MEMS	100MHz	CMOS	2.25 V ~ 3.6 V	±10ppm
DSC1122NE1-025.0000	Microchip	DSC1122	MEMS	25MHz	LVPECL	2.25 V ~ 3.6 V	±50ppm
DSC1123CE1-125.0000	Microchip	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V	±50ppm
DSC1122DI2-200.0000	Microchip	DSC1122	MEMS	200MHz	LVPECL	2.25 V ~ 3.6 V	±25ppm
DSC1123CI2-333.3333	Microchip	DSC1123	MEMS	333.3333MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1123CI2-020.0000	Microchip	DSC1123	MEMS	20MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1103CE1-125.0000	Microchip	DSC1103	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V	±50ppm
DSC1123CI1-027.0000	Microchip	DSC1123	MEMS	27MHz	LVDS	2.25 V ~ 3.6 V	±50ppm
DSC1123CI2-333.3300	Microchip	DSC1123	MEMS	333.33MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1123AI2-156.2570	Microchip	DSC1123	MEMS	156.257MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1123AI2-148.5000	Microchip	DSC1123	MEMS	148.5MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1123BL5-156.2500	Microchip	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V	±10ppm
DSC1123BI2-100.0000	Microchip	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1103BI2-148.5000	Microchip	DSC1103	MEMS	148.5MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1103BI2-135.0000	Microchip	DSC1103	MEMS	135MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1102BI2-125.0000	Microchip	DSC1102	MEMS	125MHz	LVPECL	2.25 V ~ 3.6 V	±25ppm
DSC1102BI2-153.6000	Microchip	DSC1102	MEMS	153.6MHz	LVPECL	2.25 V ~ 3.6 V	±25ppm
DSC1123CI5-100.0000	Microchip	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V	±10ppm
DSC1123CI5-156.2500	Microchip	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V	±10ppm
DSC1123DL1-125.0000	Microchip	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V	±50ppm
MX575ABC70M0000	Microchip	MX57	XO (Standard)	70MHz	LVCMOS	2.375 V ~ 3.63 V	±50ppm
MX553BBD156M250	Microchip	MX55	XO (Standard)	156.25MHz	HCSL	2.375 V ~ 3.63 V	±50ppm
MX575ABB50M0000	Microchip	MX57	XO (Standard)	50MHz	LVDS	2.375 V ~ 3.63 V	±50ppm
