ASAAIG-24.000MHZ-K-C-S-T,2016有源贴片晶振,Abracon车规晶振
频率：24.000MHZ
尺寸：2016mm
ASAAIG-24.000MHZ-K-C-S-T,2016有源贴片晶振,Abracon车规晶振
ASAAIG-24.000MHZ-K-C-S-T是Abracon艾博康晶振专为车载中控系统打造的2016有源贴片车规晶振,24MHz精准频点为中控主机的多媒体解码,导航定位,车机互联等功能提供稳定时序.其2.0mm×1.6mm的2016超小封装适配中控主板紧凑布局,同时通过AEC-Q200车规认证,可耐受-40℃至+125℃的车内极端温差,抗电磁干扰与抗振动性能优异,为车载中控系统的流畅运行筑牢时基根基.
ASAAIG-24.000MHZ-K-C-S-T,2016有源贴片晶振,Abracon车规晶振
|
原厂型号 Originalmodel： |
ASAAIG-24.000MHZ-K-C-S-T |
品牌brand： |
Abracon |
|
Manufacturer品牌 |
Abracon |
OperatingTemperature温度 |
-40+125℃ |
|
Series型号 |
ASAAIG |
Current-Supply(Max) |
- |
|
Type类型 |
XO |
PackageHeight高度 |
0.7mm |
|
Frequency频率 |
24M |
Termination 脚位 |
4-pad |
|
输出方式 Output： |
CMOS |
PackageType 封装类型 |
4-Smd |
|
Voltage-Supply电压 |
3.3V |
Packaging 包装 |
TapeandReel |
|
FrequencyStability频率稳定度 |
50PP |
安装方式 Installation： |
Surfacemount |
|

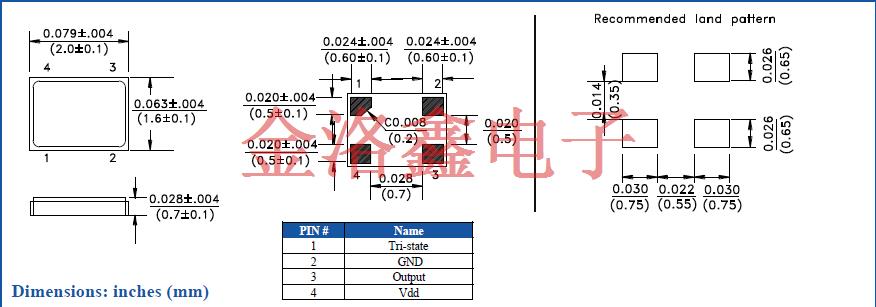

Size/Dimension尺寸 |
最小包装数MPQ： |
3000 |
ASAAIG-24.000MHZ-K-C-S-T,2016有源贴片晶振,Abracon车规晶振
