AB26TRQ-32.768KHZ-T|32.768KHz|方体SMD晶振|12.5pf
频率：32.768KHz
尺寸：5.2mm x 1.45mm
AB26TRQ-32.768KHZ-T|32.768KHz|方体SMD晶振|12.5pf,Abracon晶振,欧美无源晶振,AB26TRQ-32.768KHZ-T晶振,32.768KHz晶振,方体SMD晶振,AB26TRQ石英晶体,负载12.5pf,工作温度-40~85°C,实时时钟晶振,测量仪器晶振,蓝牙模块晶振,无线应用晶振,网络终端晶振,家电影音系统晶振.
订购热线：0755-27837162
AB26TRQ-32.768KHZ-T|32.768KHz|方体SMD晶振|12.5pf,Abracon晶振,欧美无源晶振,AB26TRQ-32.768KHZ-T晶振,32.768KHz晶振,方体SMD晶振,AB26TRQ石英晶体,负载12.5pf,工作温度-40~85°C,实时时钟晶振,测量仪器晶振,蓝牙模块晶振,无线应用晶振,网络终端晶振,家电影音系统晶振.

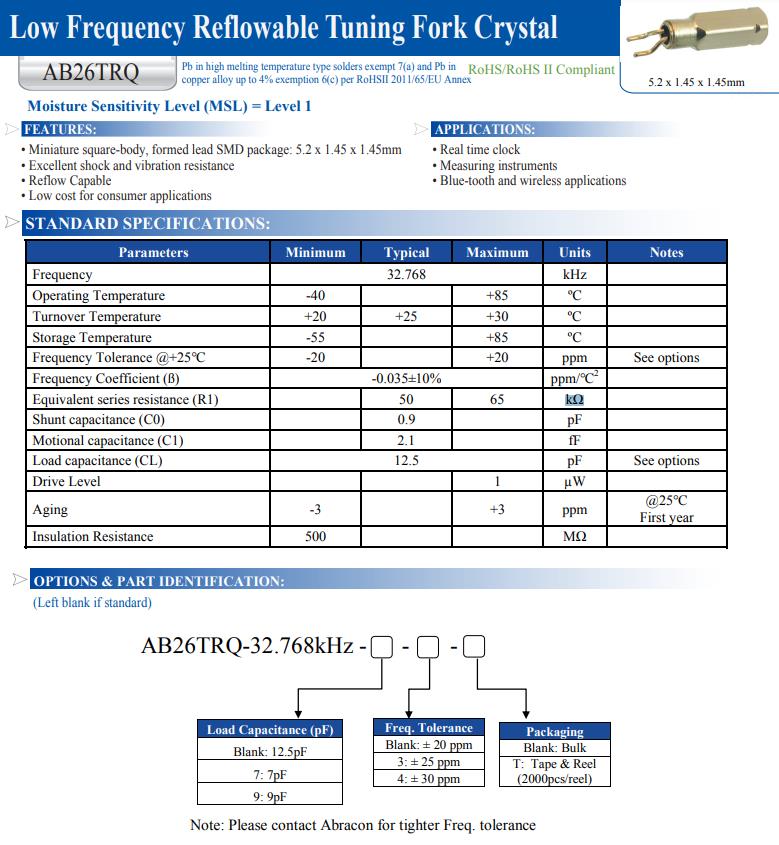

AB26TRQ-32.768KHZ-T|32.768KHz|方体SMD晶振|12.5pf 参数
| ABRACON P/N | AB26TRQ Series | ||
| 频率 | 32.768Hz | ||
| 工作温度 | -40°C to +85°C | ||
| 保存温度 | -55°C to +85°C | ||
| 频率公差 |
± 20PPM Max |
||
| 温度系数频率公差 | -0.035±10% ppm/°C2 | ||
| 等效串联电阻(R1) | 65 KΩ Max | ||
| 并联电容 (C0) | 0.9 pF typ | ||
| 负载电容 (CL) | 12.5 pF | ||
| 动态电容（C1） | 2.1fF | ||
| 激励功率 | 1 μW max | ||
| 老化性 | ±3 ppm max | ||
| 绝缘电阻 | 500 MΩ | ||
AB26TRQ-32.768KHZ-T|32.768KHz|方体SMD晶振|12.5pf 尺寸图
| 原厂编码 | 生产厂家 | 型号 | 频率 | 频率偏差 | 负载电容 | 工作温度 |
| AB26TRQ-32.768KHZ-T | Abracon晶振 | AB26TRQ | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| AB26TRQ-32.768KHZ-T | Abracon晶振 | AB26TRQ | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| AB26TRQ-32.768KHZ-T | Abracon晶振 | AB26TRQ | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| AB26T-32.768KHZ | Abracon晶振 | AB26T | 32.768kHz | ±20ppm | 12.5pF | -10°C ~ 60°C |
| AB26TRB-32.768KHZ-T | Abracon晶振 | AB26TRB | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| AB26TRB-32.768KHZ-T | Abracon晶振 | AB26TRB | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| AB26TRB-32.768KHZ-T | Abracon晶振 | AB26TRB | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| AB15T-32.768KHZ-T | Abracon晶振 | AB15T | 32.768kHz | ±20ppm | 12.5pF | -20°C ~ 70°C |
| AB308-4.000MHZ | Abracon晶振 | AB308 | 4MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-10.000MHZ | Abracon晶振 | AB308 | 10MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-12.000MHZ | Abracon晶振 | AB308 | 12MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-12.288MHZ | Abracon晶振 | AB308 | 12.288MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-12.352MHZ | Abracon晶振 | AB308 | 12.352MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-14.31818MHZ | Abracon晶振 | AB308 | 14.31818MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-14.7456MHZ | Abracon晶振 | AB308 | 14.7456MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-16.000MHZ | Abracon晶振 | AB308 | 16MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-16.257MHZ | Abracon晶振 | AB308 | 16.257MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-16.667MHZ | Abracon晶振 | AB308 | 16.667MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-20.000MHZ | Abracon晶振 | AB308 | 20MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-4.9152MHZ | Abracon晶振 | AB308 | 4.9152MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-5.000MHZ | Abracon晶振 | AB308 | 5MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-6.000MHZ | Abracon晶振 | AB308 | 6MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-7.3728MHZ | Abracon晶振 | AB308 | 7.3728MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-8.000MHZ | Abracon晶振 | AB308 | 8MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-28.000MHZ | Abracon晶振 | AB308 | 28MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-28.6363MHZ | Abracon晶振 | AB308 | 28.6363MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-29.4912MHZ | Abracon晶振 | AB308 | 29.4912MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-53.125MHZ | Abracon晶振 | AB308 | 53.125MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-8.000MHZ | Abracon晶振 | AB308 | 8MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-10.000MHZ | Abracon晶振 | AB308 | 10MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-12.000MHZ | Abracon晶振 | AB308 | 12MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-16.000MHZ | Abracon晶振 | AB308 | 16MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-20.000MHZ | Abracon晶振 | AB308 | 20MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-5.000MHZ | Abracon晶振 | AB308 | 5MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-6.000MHZ | Abracon晶振 | AB308 | 6MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-7.3728MHZ | Abracon晶振 | AB308 | 7.3728MHz | ±30ppm | 16pF | -10°C ~ 60°C |
