445C33D24M57600-18pF-5032mm-6G低成本晶振
prevnext

445C33D24M57600-18pF-5032mm-6G低成本晶振

频率：24.576MHZ

尺寸：5.0mm x 3.2mm

445C33D24M57600-18pF-5032mm-6G低成本晶振,美国西迪斯晶振,445石英晶体谐振器,无源晶振,445C33D24M57600晶振,5032mm晶振,进口贴片晶振,频率24.576MHz,负载18pF,频率稳定性30ppm,工作温度-20~70°C,6G低成本晶振,笔记本电脑晶振,计算机外围设备晶振,视听设备晶振,USB接口应用晶振.






订购热线：0755-27837162
QQ咨询 点击这里给我发消息

CTS

445C33D24M57600-18pF-5032mm-6G低成本晶振,美国西迪斯晶振,445石英晶体谐振器,无源晶振,445C33D24M57600晶振,5032mm晶振,进口贴片晶振,频率24.576MHz,负载18pF,频率稳定性30ppm,工作温度-20~70°C,6G低成本晶振,笔记本电脑晶振,计算机外围设备晶振,视听设备晶振,USB接口应用晶振.

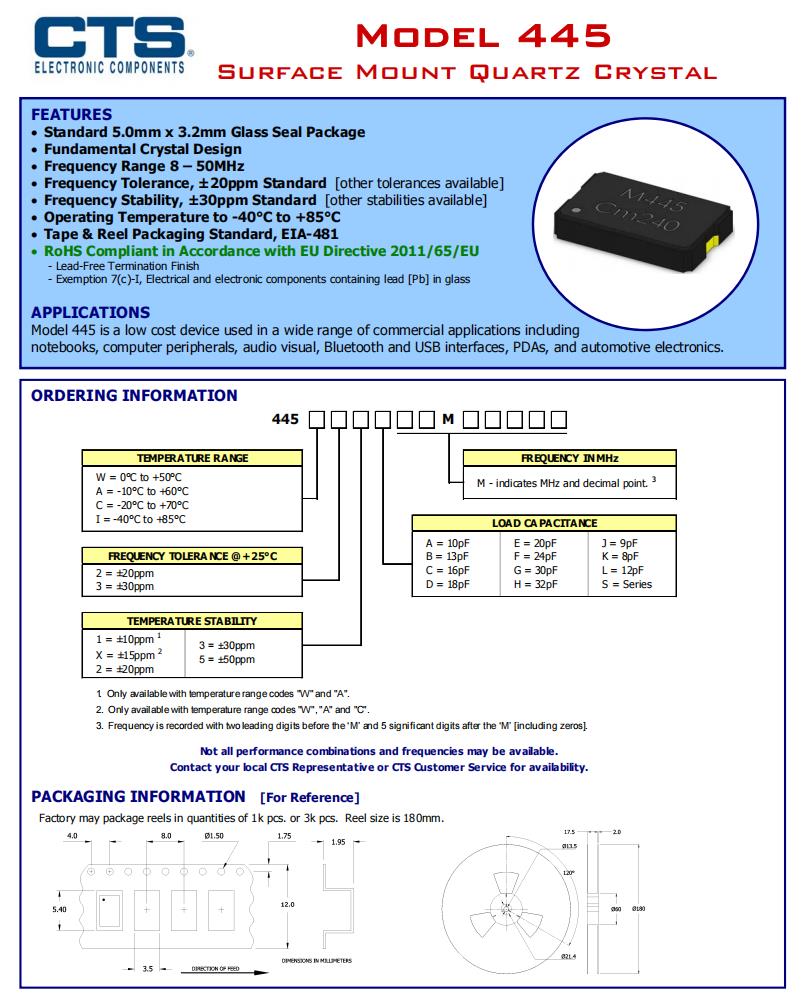

445C33D24M57600-18pF-5032mm-6G低成本晶振特征

•标准5.0mm x 3.2mm玻璃密封包装

•基本晶体设计
•频率范围8 - 50MHz
•频率公差，±20ppm标准[可提供其他公差]
•频率稳定性，±30ppm标准[其他稳定性可用]
•工作温度-40℃~ +85℃
•胶带和卷轴包装标准，EIA-481
•符合欧盟指令2011/65/EU的RoHS标准
-无铅终止剂
-豁免7(c)- 1，玻璃中含铅的电气和电子元件

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

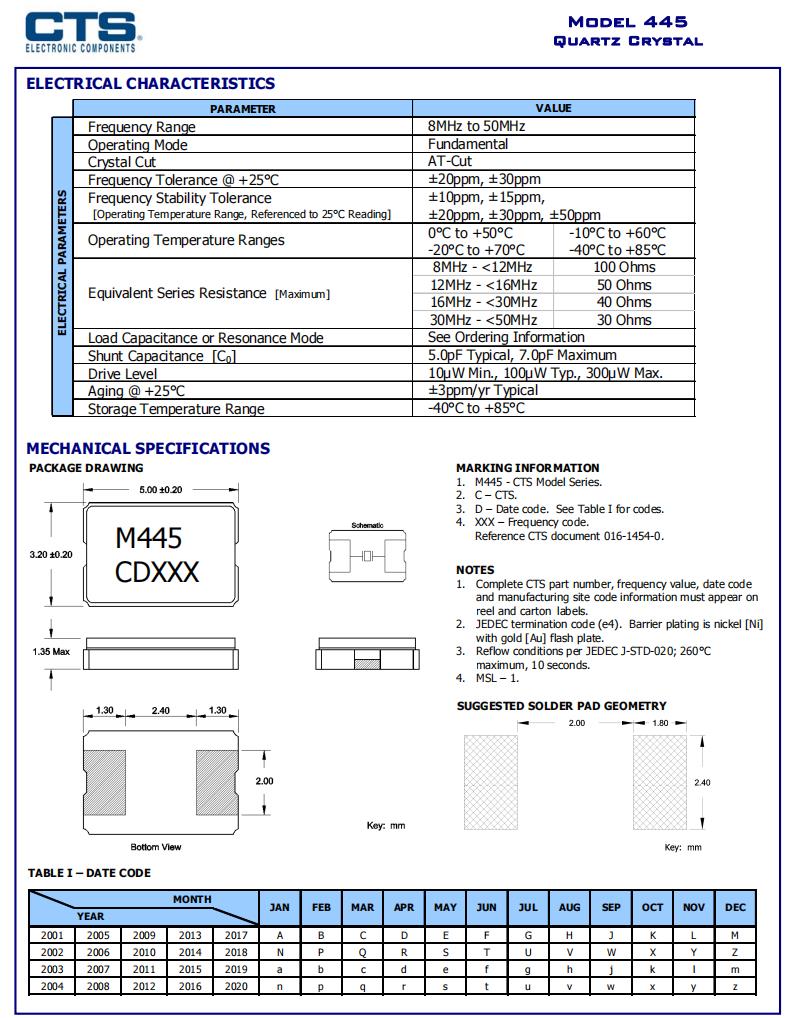

445C33D24M57600-18pF-5032mm-6G低成本晶振参数

项目 数值
频率 24.576MHz
操作模式 Fundamental
晶体切割 AT-Cut
工作温度  -20°C to +70°C
保存温度   -40°C to +85°C
频率公差 @ +25°C ± 30PPM

 工作温度范围内的频率稳定性 ( ref. to

+25°C)

± 30PPM
等效串联电阻(R1) 40 Ω
  并联电容 (C0) 5.0pF Typical, 7.0pF Maximum
负载电容 (CL) 18pF
激励功率 300 μW Max
老化 @ +25°C ±3ppm/yr Typical
绝缘电阻 500MΩ  @ +100Vdc ±15Vdc

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

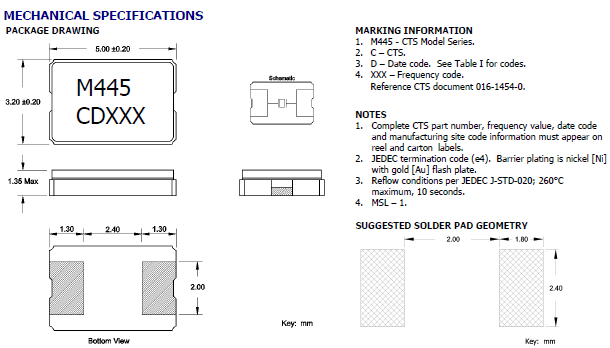

445C33D24M57600-18pF-5032mm-6G低成本晶振 尺寸图

445 5032

原厂编码 生产厂家 型号 频率 频率稳定度 频率偏差 负载电容 ESR电阻 工作温度
445C35A12M00000 CTS 晶振 445 12MHz ±50ppm ±30ppm 10pF 50 Ohm -20°C ~ 70°C
445C25D25M00000 CTS 晶振 445 25MHz ±50ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
445C25D24M00000 CTS 晶振 445 24MHz ±50ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
445C25D12M00000 CTS 晶振 445 12MHz ±50ppm ±20ppm 18pF 50 Ohm -20°C ~ 70°C
445C25D20M00000 CTS 晶振 445 20MHz ±50ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
445C25D27M00000 CTS 晶振 445 27MHz ±50ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
445I23D12M00000 CTS 晶振 445 12MHz ±30ppm ±20ppm 18pF 50 Ohm -40°C ~ 85°C
445I23D25M00000 CTS 晶振 445 25MHz ±30ppm ±20ppm 18pF 40 Ohm -40°C ~ 85°C
445I23D24M00000 CTS 晶振 445 24MHz ±30ppm ±20ppm 18pF 40 Ohm -40°C ~ 85°C
445I23D30M00000 CTS 晶振 445 30MHz ±30ppm ±20ppm 18pF 30 Ohm -40°C ~ 85°C
445C33A20M00000 CTS 晶振 445 20MHz ±30ppm ±30ppm 10pF 40 Ohm -20°C ~ 70°C
445C33D25M00000 CTS 晶振 445 25MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
445C35K16M00000 CTS 晶振 445 16MHz ±50ppm ±30ppm 8pF 40 Ohm -20°C ~ 70°C
445I23D27M00000 CTS 晶振 445 27MHz ±30ppm ±20ppm 18pF 40 Ohm -40°C ~ 85°C
445I23D14M31818 CTS 晶振 445 14.31818MHz ±30ppm ±20ppm 18pF 50 Ohm -40°C ~ 85°C
445I23D20M00000 CTS 晶振 445 20MHz ±30ppm ±20ppm 18pF 40 Ohm -40°C ~ 85°C
445I23E25M00000 CTS 晶振 445 25MHz ±30ppm ±20ppm 20pF 40 Ohm -40°C ~ 85°C
445C33D24M00000 CTS 晶振 445 24MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
445C33S12M00000 CTS 晶振 445 12MHz ±30ppm ±30ppm Series 50 Ohm -20°C ~ 70°C
445C33A12M00000 CTS 晶振 445 12MHz ±30ppm ±30ppm 10pF 50 Ohm -20°C ~ 70°C
445C33D12M00000 CTS 晶振 445 12MHz ±30ppm ±30ppm 18pF 50 Ohm -20°C ~ 70°C
445C33E12M00000 CTS 晶振 445 12MHz ±30ppm ±30ppm 20pF 50 Ohm -20°C ~ 70°C
445C33C12M00000 CTS 晶振 445 12MHz ±30ppm ±30ppm 16pF 50 Ohm -20°C ~ 70°C
445C33S13M00000 CTS 晶振 445 13MHz ±30ppm ±30ppm Series 50 Ohm -20°C ~ 70°C
445C33A13M00000 CTS 晶振 445 13MHz ±30ppm ±30ppm 10pF 50 Ohm -20°C ~ 70°C
445C33D13M00000 CTS 晶振 445 13MHz ±30ppm ±30ppm 18pF 50 Ohm -20°C ~ 70°C
445C33E13M00000 CTS 晶振 445 13MHz ±30ppm ±30ppm 20pF 50 Ohm -20°C ~ 70°C
445C33S14M31818 CTS 晶振 445 14.31818MHz ±30ppm ±30ppm Series 50 Ohm -20°C ~ 70°C
445C33A14M31818 CTS 晶振 445 14.31818MHz ±30ppm ±30ppm 10pF 50 Ohm -20°C ~ 70°C
445C33D14M31818 CTS 晶振 445 14.31818MHz ±30ppm ±30ppm 18pF 50 Ohm -20°C ~ 70°C
445C33E14M31818 CTS 晶振 445 14.31818MHz ±30ppm ±30ppm 20pF 50 Ohm -20°C ~ 70°C
445C33K14M31818 CTS 晶振 445 14.31818MHz ±30ppm ±30ppm 8pF 50 Ohm -20°C ~ 70°C
445C33L14M31818 CTS 晶振 445 14.31818MHz ±30ppm ±30ppm 12pF 50 Ohm -20°C ~ 70°C
445C33C14M31818 CTS 晶振 445 14.31818MHz ±30ppm ±30ppm 16pF 50 Ohm -20°C ~ 70°C
445C33K16M00000 CTS 晶振 445 16MHz ±30ppm ±30ppm 8pF 40 Ohm -20°C ~ 70°C
445C33L16M00000 CTS 晶振 445 16MHz ±30ppm ±30ppm 12pF 40 Ohm -20°C ~ 70°C
445C33C16M00000 CTS 晶振 445 16MHz ±30ppm ±30ppm 16pF 40 Ohm -20°C ~ 70°C
445C33S20M00000 CTS 晶振 445 20MHz ±30ppm ±30ppm Series 40 Ohm -20°C ~ 70°C
445C33D20M00000 CTS 晶振 445 20MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
445C33E20M00000 CTS 晶振 445 20MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
445C33K20M00000 CTS 晶振 445 20MHz ±30ppm ±30ppm 8pF 40 Ohm -20°C ~ 70°C
445C33L20M00000 CTS 晶振 445 20MHz ±30ppm ±30ppm 12pF 40 Ohm -20°C ~ 70°C
445C33C20M00000 CTS 晶振 445 20MHz ±30ppm ±30ppm 16pF 40 Ohm -20°C ~ 70°C
445C33S24M00000 CTS 晶振 445 24MHz ±30ppm ±30ppm Series 40 Ohm -20°C ~ 70°C
445C33L24M00000 CTS 晶振 445 24MHz ±30ppm ±30ppm 12pF 40 Ohm -20°C ~ 70°C
445C33C24M00000 CTS 晶振 445 24MHz ±30ppm ±30ppm 16pF 40 Ohm -20°C ~ 70°C
445C33S24M57600 CTS 晶振 445 24.576MHz ±30ppm ±30ppm Series 40 Ohm -20°C ~ 70°C
445C33A24M57600 CTS 晶振 445 24.576MHz ±30ppm ±30ppm 10pF 40 Ohm -20°C ~ 70°C
445C33D24M57600 CTS 晶振 445 24.576MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
445C33E24M57600 CTS 晶振 445 24.576MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
445C33L25M00000 CTS 晶振 445 25MHz ±30ppm ±30ppm 12pF 40 Ohm -20°C ~ 70°C
445C33S27M00000 CTS 晶振 445 27MHz ±30ppm ±30ppm Series 40 Ohm -20°C ~ 70°C
445C33C27M00000 CTS 晶振 445 27MHz ±30ppm ±30ppm 16pF 40 Ohm -20°C ~ 70°C
445C33S30M00000 CTS 晶振 445 30MHz ±30ppm ±30ppm Series 30 Ohm -20°C ~ 70°C
445C33A30M00000 CTS 晶振 445 30MHz ±30ppm ±30ppm 10pF 30 Ohm -20°C ~ 70°C
445C33D30M00000 CTS 晶振 445 30MHz ±30ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
445C33E30M00000 CTS 晶振 445 30MHz ±30ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
445C33K30M00000 CTS 晶振 445 30MHz ±30ppm ±30ppm 8pF 30 Ohm -20°C ~ 70°C
445C33L30M00000 CTS 晶振 445 30MHz ±30ppm ±30ppm 12pF 30 Ohm -20°C ~ 70°C
445C33C30M00000 CTS 晶振 445 30MHz ±30ppm ±30ppm 16pF 30 Ohm -20°C ~ 70°C
445C35S12M00000 CTS 晶振 445 12MHz ±50ppm ±30ppm Series 50 Ohm -20°C ~ 70°C
445C35D12M00000 CTS 晶振 445 12MHz ±50ppm ±30ppm 18pF 50 Ohm -20°C ~ 70°C
445C35E12M00000 CTS 晶振 445 12MHz ±50ppm ±30ppm 20pF 50 Ohm -20°C ~ 70°C
445C35K12M00000 CTS 晶振 445 12MHz ±50ppm ±30ppm 8pF 50 Ohm -20°C ~ 70°C
445C35L12M00000 CTS 晶振 445 12MHz ±50ppm ±30ppm 12pF 50 Ohm -20°C ~ 70°C
445C35C12M00000 CTS 晶振 445 12MHz ±50ppm ±30ppm 16pF 50 Ohm -20°C ~ 70°C
445C35S13M00000 CTS 晶振 445 13MHz ±50ppm ±30ppm Series 50 Ohm -20°C ~ 70°C
445C35A13M00000 CTS 晶振 445 13MHz ±50ppm ±30ppm 10pF 50 Ohm -20°C ~ 70°C
445C35D13M00000 CTS 晶振 445 13MHz ±50ppm ±30ppm 18pF 50 Ohm -20°C ~ 70°C
445C35E13M00000 CTS 晶振 445 13MHz ±50ppm ±30ppm 20pF 50 Ohm -20°C ~ 70°C
445C35K13M00000 CTS 晶振 445 13MHz ±50ppm ±30ppm 8pF 50 Ohm -20°C ~ 70°C
445C35L13M00000 CTS 晶振 445 13MHz ±50ppm ±30ppm 12pF 50 Ohm -20°C ~ 70°C
445C35C13M00000 CTS 晶振 445 13MHz ±50ppm ±30ppm 16pF 50 Ohm -20°C ~ 70°C
445C35S14M31818 CTS 晶振 445 14.31818MHz ±50ppm ±30ppm Series 50 Ohm -20°C ~ 70°C
445C35A14M31818 CTS 晶振 445 14.31818MHz ±50ppm ±30ppm 10pF 50 Ohm -20°C ~ 70°C
445C35D14M31818 CTS 晶振 445 14.31818MHz ±50ppm ±30ppm 18pF 50 Ohm -20°C ~ 70°C
445C35E14M31818 CTS 晶振 445 14.31818MHz ±50ppm ±30ppm 20pF 50 Ohm -20°C ~ 70°C
445C35K14M31818 CTS 晶振 445 14.31818MHz ±50ppm ±30ppm 8pF 50 Ohm -20°C ~ 70°C
445C35L14M31818 CTS 晶振 445 14.31818MHz ±50ppm ±30ppm 12pF 50 Ohm -20°C ~ 70°C
445C35C14M31818 CTS 晶振 445 14.31818MHz ±50ppm ±30ppm 16pF 50 Ohm -20°C ~ 70°C
445C35S16M00000 CTS 晶振 445 16MHz ±50ppm ±30ppm Series 40 Ohm -20°C ~ 70°C
445C35A16M00000 CTS 晶振 445 16MHz ±50ppm ±30ppm 10pF 40 Ohm -20°C ~ 70°C
445C35D16M00000 CTS 晶振 445 16MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
445C35E16M00000 CTS 晶振 445 16MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
445C35L16M00000 CTS 晶振 445 16MHz ±50ppm ±30ppm 12pF 40 Ohm -20°C ~ 70°C
445C35C16M00000 CTS 晶振 445 16MHz ±50ppm ±30ppm 16pF 40 Ohm -20°C ~ 70°C
445C35S20M00000 CTS 晶振 445 20MHz ±50ppm ±30ppm Series 40 Ohm -20°C ~ 70°C
445C35A20M00000 CTS 晶振 445 20MHz ±50ppm ±30ppm 10pF 40 Ohm -20°C ~ 70°C
445C35D20M00000 CTS 晶振 445 20MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
445C35E20M00000 CTS 晶振 445 20MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
445C35K20M00000 CTS 晶振 445 20MHz ±50ppm ±30ppm 8pF 40 Ohm -20°C ~ 70°C
445C35L20M00000 CTS 晶振 445 20MHz ±50ppm ±30ppm 12pF 40 Ohm -20°C ~ 70°C
445C35C20M00000 CTS 晶振 445 20MHz ±50ppm ±30ppm 16pF 40 Ohm -20°C ~ 70°C
445C35S24M00000 CTS 晶振 445 24MHz ±50ppm ±30ppm Series 40 Ohm -20°C ~ 70°C
445C35A24M00000 CTS 晶振 445 24MHz ±50ppm ±30ppm 10pF 40 Ohm -20°C ~ 70°C
445C35D24M00000 CTS 晶振 445 24MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
445C35E24M00000 CTS 晶振 445 24MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
445C35K24M00000 CTS 晶振 445 24MHz ±50ppm ±30ppm 8pF 40 Ohm -20°C ~ 70°C
445C35L24M00000 CTS 晶振 445 24MHz ±50ppm ±30ppm 12pF 40 Ohm -20°C ~ 70°C
445C35C24M00000 CTS 晶振 445 24MHz ±50ppm ±30ppm 16pF 40 Ohm -20°C ~ 70°C
445C35S24M57600 CTS 晶振 445 24.576MHz ±50ppm ±30ppm Series 40 Ohm -20°C ~ 70°C
445C35A24M57600 CTS 晶振 445 24.576MHz ±50ppm ±30ppm 10pF 40 Ohm -20°C ~ 70°C
445C35D24M57600 CTS 晶振 445 24.576MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
445C35E24M57600 CTS 晶振 445 24.576MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
445C35K24M57600 CTS 晶振 445 24.576MHz ±50ppm ±30ppm 8pF 40 Ohm -20°C ~ 70°C
445C35L24M57600 CTS 晶振 445 24.576MHz ±50ppm ±30ppm 12pF 40 Ohm -20°C ~ 70°C
445C35C24M57600 CTS 晶振 445 24.576MHz ±50ppm ±30ppm 16pF 40 Ohm -20°C ~ 70°C
445C35S25M00000 CTS 晶振 445 25MHz ±50ppm ±30ppm Series 40 Ohm -20°C ~ 70°C
445C35A25M00000 CTS 晶振 445 25MHz ±50ppm ±30ppm 10pF 40 Ohm -20°C ~ 70°C
445C35D25M00000 CTS 晶振 445 25MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
445C35E25M00000 CTS 晶振 445 25MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
445C35K25M00000 CTS 晶振 445 25MHz ±50ppm ±30ppm 8pF 40 Ohm -20°C ~ 70°C
445C35L25M00000 CTS 晶振 445 25MHz ±50ppm ±30ppm 12pF 40 Ohm -20°C ~ 70°C
445C35S27M00000 CTS 晶振 445 27MHz ±50ppm ±30ppm Series 40 Ohm -20°C ~ 70°C
445C35A27M00000 CTS 晶振 445 27MHz ±50ppm ±30ppm 10pF 40 Ohm -20°C ~ 70°C
445C35D27M00000 CTS 晶振 445 27MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
445C35E27M00000 CTS 晶振 445 27MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
445C35K27M00000 CTS 晶振 445 27MHz ±50ppm ±30ppm 8pF 40 Ohm -20°C ~ 70°C
445C35L27M00000 CTS 晶振 445 27MHz ±50ppm ±30ppm 12pF 40 Ohm -20°C ~ 70°C
445C35C27M00000 CTS 晶振 445 27MHz ±50ppm ±30ppm 16pF 40 Ohm -20°C ~ 70°C
445C35S30M00000 CTS 晶振 445 30MHz ±50ppm ±30ppm Series 30 Ohm -20°C ~ 70°C
445C35A30M00000 CTS 晶振 445 30MHz ±50ppm ±30ppm 10pF 30 Ohm -20°C ~ 70°C
445C35D30M00000 CTS 晶振 445 30MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
445C35E30M00000 CTS 晶振 445 30MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
445C35K30M00000 CTS 晶振 445 30MHz ±50ppm ±30ppm 8pF 30 Ohm -20°C ~ 70°C
445C35L30M00000 CTS 晶振 445 30MHz ±50ppm ±30ppm 12pF 30 Ohm -20°C ~ 70°C
445C35C30M00000 CTS 晶振 445 30MHz ±50ppm ±30ppm 16pF 30 Ohm -20°C ~ 70°C
445A33S12M00000 CTS 晶振 445 12MHz ±30ppm ±30ppm Series 50 Ohm -10°C ~ 60°C
445A33A12M00000 CTS 晶振 445 12MHz ±30ppm ±30ppm 10pF 50 Ohm -10°C ~ 60°C
445A33D12M00000 CTS 晶振 445 12MHz ±30ppm ±30ppm 18pF 50 Ohm -10°C ~ 60°C
445A33E12M00000 CTS 晶振 445 12MHz ±30ppm ±30ppm 20pF 50 Ohm -10°C ~ 60°C
445A33K12M00000 CTS 晶振 445 12MHz ±30ppm ±30ppm 8pF 50 Ohm -10°C ~ 60°C
445A33L12M00000 CTS 晶振 445 12MHz ±30ppm ±30ppm 12pF 50 Ohm -10°C ~ 60°C
445A33C12M00000 CTS 晶振 445 12MHz ±30ppm ±30ppm 16pF 50 Ohm -10°C ~ 60°C
445A33S13M00000 CTS 晶振 445 13MHz ±30ppm ±30ppm Series 50 Ohm -10°C ~ 60°C
445A33A13M00000 CTS 晶振 445 13MHz ±30ppm ±30ppm 10pF 50 Ohm -10°C ~ 60°C
445A33D13M00000 CTS 晶振 445 13MHz ±30ppm ±30ppm 18pF 50 Ohm -10°C ~ 60°C
445A33E13M00000 CTS 晶振 445 13MHz ±30ppm ±30ppm 20pF 50 Ohm -10°C ~ 60°C
445A33K13M00000 CTS 晶振 445 13MHz ±30ppm ±30ppm 8pF 50 Ohm -10°C ~ 60°C
445A33L13M00000 CTS 晶振 445 13MHz ±30ppm ±30ppm 12pF 50 Ohm -10°C ~ 60°C
445A33C13M00000 CTS 晶振 445 13MHz ±30ppm ±30ppm 16pF 50 Ohm -10°C ~ 60°C
445A33S14M31818 CTS 晶振 445 14.31818MHz ±30ppm ±30ppm Series 50 Ohm -10°C ~ 60°C
445A33A14M31818 CTS 晶振 445 14.31818MHz ±30ppm ±30ppm 10pF 50 Ohm -10°C ~ 60°C
445A33D14M31818 CTS 晶振 445 14.31818MHz ±30ppm ±30ppm 18pF 50 Ohm -10°C ~ 60°C
445A33E14M31818 CTS 晶振 445 14.31818MHz ±30ppm ±30ppm 20pF 50 Ohm -10°C ~ 60°C
445A33K14M31818 CTS 晶振 445 14.31818MHz ±30ppm ±30ppm 8pF 50 Ohm -10°C ~ 60°C
445A33L14M31818 CTS 晶振 445 14.31818MHz ±30ppm ±30ppm 12pF 50 Ohm -10°C ~ 60°C
445A33C14M31818 CTS 晶振 445 14.31818MHz ±30ppm ±30ppm 16pF 50 Ohm -10°C ~ 60°C
445A33S16M00000 CTS 晶振 445 16MHz ±30ppm ±30ppm Series 40 Ohm -10°C ~ 60°C
445A33A16M00000 CTS 晶振 445 16MHz ±30ppm ±30ppm 10pF 40 Ohm -10°C ~ 60°C
445A33D16M00000 CTS 晶振 445 16MHz ±30ppm ±30ppm 18pF 40 Ohm -10°C ~ 60°C
445A33E16M00000 CTS 晶振 445 16MHz ±30ppm ±30ppm 20pF 40 Ohm -10°C ~ 60°C
445A33K16M00000 CTS 晶振 445 16MHz ±30ppm ±30ppm 8pF 40 Ohm -10°C ~ 60°C
445A33L16M00000 CTS 晶振 445 16MHz ±30ppm ±30ppm 12pF 40 Ohm -10°C ~ 60°C
445A33C16M00000 CTS 晶振 445 16MHz ±30ppm ±30ppm 16pF 40 Ohm -10°C ~ 60°C
445A33S20M00000 CTS 晶振 445 20MHz ±30ppm ±30ppm Series 40 Ohm -10°C ~ 60°C
445A33A20M00000 CTS 晶振 445 20MHz ±30ppm ±30ppm 10pF 40 Ohm -10°C ~ 60°C
445A33D20M00000 CTS 晶振 445 20MHz ±30ppm ±30ppm 18pF 40 Ohm -10°C ~ 60°C
445A33E20M00000 CTS 晶振 445 20MHz ±30ppm ±30ppm 20pF 40 Ohm -10°C ~ 60°C
445A33K20M00000 CTS 晶振 445 20MHz ±30ppm ±30ppm 8pF 40 Ohm -10°C ~ 60°C
445A33L20M00000 CTS 晶振 445 20MHz ±30ppm ±30ppm 12pF 40 Ohm -10°C ~ 60°C
445A33C20M00000 CTS 晶振 445 20MHz ±30ppm ±30ppm 16pF 40 Ohm -10°C ~ 60°C
445A33S24M00000 CTS 晶振 445 24MHz ±30ppm ±30ppm Series 40 Ohm -10°C ~ 60°C
445A33A24M00000 CTS 晶振 445 24MHz ±30ppm ±30ppm 10pF 40 Ohm -10°C ~ 60°C
445A33D24M00000 CTS 晶振 445 24MHz ±30ppm ±30ppm 18pF 40 Ohm -10°C ~ 60°C
445A33E24M00000 CTS 晶振 445 24MHz ±30ppm ±30ppm 20pF 40 Ohm -10°C ~ 60°C
445A33K24M00000 CTS 晶振 445 24MHz ±30ppm ±30ppm 8pF 40 Ohm -10°C ~ 60°C
445A33L24M00000 CTS 晶振 445 24MHz ±30ppm ±30ppm 12pF 40 Ohm -10°C ~ 60°C
445A33C24M00000 CTS 晶振 445 24MHz ±30ppm ±30ppm 16pF 40 Ohm -10°C ~ 60°C
445A33S24M57600 CTS 晶振 445 24.576MHz ±30ppm ±30ppm Series 40 Ohm -10°C ~ 60°C
445A33A24M57600 CTS 晶振 445 24.576MHz ±30ppm ±30ppm 10pF 40 Ohm -10°C ~ 60°C
445A33D24M57600 CTS 晶振 445 24.576MHz ±30ppm ±30ppm 18pF 40 Ohm -10°C ~ 60°C
445A33E24M57600 CTS 晶振 445 24.576MHz ±30ppm ±30ppm 20pF 40 Ohm -10°C ~ 60°C
445A33K24M57600 CTS 晶振 445 24.576MHz ±30ppm ±30ppm 8pF 40 Ohm -10°C ~ 60°C
445A33L24M57600 CTS 晶振 445 24.576MHz ±30ppm ±30ppm 12pF 40 Ohm -10°C ~ 60°C
445A33C24M57600 CTS 晶振 445 24.576MHz ±30ppm ±30ppm 16pF 40 Ohm -10°C ~ 60°C
445A33S25M00000 CTS 晶振 445 25MHz ±30ppm ±30ppm Series 40 Ohm -10°C ~ 60°C
445A33D25M00000 CTS 晶振 445 25MHz ±30ppm ±30ppm 18pF 40 Ohm -10°C ~ 60°C
445A33E25M00000 CTS 晶振 445 25MHz ±30ppm ±30ppm 20pF 40 Ohm -10°C ~ 60°C
445A33K25M00000 CTS 晶振 445 25MHz ±30ppm ±30ppm 8pF 40 Ohm -10°C ~ 60°C
445A33L25M00000 CTS 晶振 445 25MHz ±30ppm ±30ppm 12pF 40 Ohm -10°C ~ 60°C
445A33S27M00000 CTS 晶振 445 27MHz ±30ppm ±30ppm Series 40 Ohm -10°C ~ 60°C
445A33A27M00000 CTS 晶振 445 27MHz ±30ppm ±30ppm 10pF 40 Ohm -10°C ~ 60°C
445A33D27M00000 CTS 晶振 445 27MHz ±30ppm ±30ppm 18pF 40 Ohm -10°C ~ 60°C
445A33E27M00000 CTS 晶振 445 27MHz ±30ppm ±30ppm 20pF 40 Ohm -10°C ~ 60°C
445A33K27M00000 CTS 晶振 445 27MHz ±30ppm ±30ppm 8pF 40 Ohm -10°C ~ 60°C
445A33L27M00000 CTS 晶振 445 27MHz ±30ppm ±30ppm 12pF 40 Ohm -10°C ~ 60°C
445A33C27M00000 CTS 晶振 445 27MHz ±30ppm ±30ppm 16pF 40 Ohm -10°C ~ 60°C
445A33S30M00000 CTS 晶振 445 30MHz ±30ppm ±30ppm Series 30 Ohm -10°C ~ 60°C
445A33A30M00000 CTS 晶振 445 30MHz ±30ppm ±30ppm 10pF 30 Ohm -10°C ~ 60°C
445A33D30M00000 CTS 晶振 445 30MHz ±30ppm ±30ppm 18pF 30 Ohm -10°C ~ 60°C
445A33E30M00000 CTS 晶振 445 30MHz ±30ppm ±30ppm 20pF 30 Ohm -10°C ~ 60°C
445A33K30M00000 CTS 晶振 445 30MHz ±30ppm ±30ppm 8pF 30 Ohm -10°C ~ 60°C
445A33L30M00000 CTS 晶振 445 30MHz ±30ppm ±30ppm 12pF 30 Ohm -10°C ~ 60°C
445A33C30M00000 CTS 晶振 445 30MHz ±30ppm ±30ppm 16pF 30 Ohm -10°C ~ 60°C
445A35S12M00000 CTS 晶振 445 12MHz ±50ppm ±30ppm Series 50 Ohm -10°C ~ 60°C
445A35A12M00000 CTS 晶振 445 12MHz ±50ppm ±30ppm 10pF 50 Ohm -10°C ~ 60°C
445A35D12M00000 CTS 晶振 445 12MHz ±50ppm ±30ppm 18pF 50 Ohm -10°C ~ 60°C
445A35E12M00000 CTS 晶振 445 12MHz ±50ppm ±30ppm 20pF 50 Ohm -10°C ~ 60°C
445A35K12M00000 CTS 晶振 445 12MHz ±50ppm ±30ppm 8pF 50 Ohm -10°C ~ 60°C
445A35L12M00000 CTS 晶振 445 12MHz ±50ppm ±30ppm 12pF 50 Ohm -10°C ~ 60°C
445A35C12M00000 CTS 晶振 445 12MHz ±50ppm ±30ppm 16pF 50 Ohm -10°C ~ 60°C
445A35S13M00000 CTS 晶振 445 13MHz ±50ppm ±30ppm Series 50 Ohm -10°C ~ 60°C
445A35A13M00000 CTS 晶振 445 13MHz ±50ppm ±30ppm 10pF 50 Ohm -10°C ~ 60°C
445A35D13M00000 CTS 晶振 445 13MHz ±50ppm ±30ppm 18pF 50 Ohm -10°C ~ 60°C
445A35E13M00000 CTS 晶振 445 13MHz ±50ppm ±30ppm 20pF 50 Ohm -10°C ~ 60°C
445A35K13M00000 CTS 晶振 445 13MHz ±50ppm ±30ppm 8pF 50 Ohm -10°C ~ 60°C
445A35L13M00000 CTS 晶振 445 13MHz ±50ppm ±30ppm 12pF 50 Ohm -10°C ~ 60°C
445A35C13M00000 CTS 晶振 445 13MHz ±50ppm ±30ppm 16pF 50 Ohm -10°C ~ 60°C
445A35S14M31818 CTS 晶振 445 14.31818MHz ±50ppm ±30ppm Series 50 Ohm -10°C ~ 60°C
445A35A14M31818 CTS 晶振 445 14.31818MHz ±50ppm ±30ppm 10pF 50 Ohm -10°C ~ 60°C
445A35D14M31818 CTS 晶振 445 14.31818MHz ±50ppm ±30ppm 18pF 50 Ohm -10°C ~ 60°C
445A35E14M31818 CTS 晶振 445 14.31818MHz ±50ppm ±30ppm 20pF 50 Ohm -10°C ~ 60°C
445A35K14M31818 CTS 晶振 445 14.31818MHz ±50ppm ±30ppm 8pF 50 Ohm -10°C ~ 60°C
445A35L14M31818 CTS 晶振 445 14.31818MHz ±50ppm ±30ppm 12pF 50 Ohm -10°C ~ 60°C
445A35C14M31818 CTS 晶振 445 14.31818MHz ±50ppm ±30ppm 16pF 50 Ohm -10°C ~ 60°C
445A35S16M00000 CTS 晶振 445 16MHz ±50ppm ±30ppm Series 40 Ohm -10°C ~ 60°C
445A35A16M00000 CTS 晶振 445 16MHz ±50ppm ±30ppm 10pF 40 Ohm -10°C ~ 60°C
445A35D16M00000 CTS 晶振 445 16MHz ±50ppm ±30ppm 18pF 40 Ohm -10°C ~ 60°C
445A35E16M00000 CTS 晶振 445 16MHz ±50ppm ±30ppm 20pF 40 Ohm -10°C ~ 60°C
445A35K16M00000 CTS 晶振 445 16MHz ±50ppm ±30ppm 8pF 40 Ohm -10°C ~ 60°C
445A35L16M00000 CTS 晶振 445 16MHz ±50ppm ±30ppm 12pF 40 Ohm -10°C ~ 60°C
445A35C16M00000 CTS 晶振 445 16MHz ±50ppm ±30ppm 16pF 40 Ohm -10°C ~ 60°C
445A35S20M00000 CTS 晶振 445 20MHz ±50ppm ±30ppm Series 40 Ohm -10°C ~ 60°C
445A35A20M00000 CTS 晶振 445 20MHz ±50ppm ±30ppm 10pF 40 Ohm -10°C ~ 60°C
445A35D20M00000 CTS 晶振 445 20MHz ±50ppm ±30ppm 18pF 40 Ohm -10°C ~ 60°C
445A35E20M00000 CTS 晶振 445 20MHz ±50ppm ±30ppm 20pF 40 Ohm -10°C ~ 60°C
445A35K20M00000 CTS 晶振 445 20MHz ±50ppm ±30ppm 8pF 40 Ohm -10°C ~ 60°C
445A35L20M00000 CTS 晶振 445 20MHz ±50ppm ±30ppm 12pF 40 Ohm -10°C ~ 60°C
445A35C20M00000 CTS 晶振 445 20MHz ±50ppm ±30ppm 16pF 40 Ohm -10°C ~ 60°C
445A35S24M00000 CTS 晶振 445 24MHz ±50ppm ±30ppm Series 40 Ohm -10°C ~ 60°C
445A35A24M00000 CTS 晶振 445 24MHz ±50ppm ±30ppm 10pF 40 Ohm -10°C ~ 60°C
445A35D24M00000 CTS 晶振 445 24MHz ±50ppm ±30ppm 18pF 40 Ohm -10°C ~ 60°C
445A35E24M00000 CTS 晶振 445 24MHz ±50ppm ±30ppm 20pF 40 Ohm -10°C ~ 60°C
445A35K24M00000 CTS 晶振 445 24MHz ±50ppm ±30ppm 8pF 40 Ohm -10°C ~ 60°C
445A35L24M00000 CTS 晶振 445 24MHz ±50ppm ±30ppm 12pF 40 Ohm -10°C ~ 60°C
445A35C24M00000 CTS 晶振 445 24MHz ±50ppm ±30ppm 16pF 40 Ohm -10°C ~ 60°C
445A35S24M57600 CTS 晶振 445 24.576MHz ±50ppm ±30ppm Series 40 Ohm -10°C ~ 60°C
445A35A24M57600 CTS 晶振 445 24.576MHz ±50ppm ±30ppm 10pF 40 Ohm -10°C ~ 60°C
445A35D24M57600 CTS 晶振 445 24.576MHz ±50ppm ±30ppm 18pF 40 Ohm -10°C ~ 60°C
445A35E24M57600 CTS 晶振 445 24.576MHz ±50ppm ±30ppm 20pF 40 Ohm -10°C ~ 60°C
445A35K24M57600 CTS 晶振 445 24.576MHz ±50ppm ±30ppm 8pF 40 Ohm -10°C ~ 60°C
445A35L24M57600 CTS 晶振 445 24.576MHz ±50ppm ±30ppm 12pF 40 Ohm -10°C ~ 60°C
445A35C24M57600 CTS 晶振 445 24.576MHz ±50ppm ±30ppm 16pF 40 Ohm -10°C ~ 60°C
445A35S25M00000 CTS 晶振 445 25MHz ±50ppm ±30ppm Series 40 Ohm -10°C ~ 60°C
445A35D25M00000 CTS 晶振 445 25MHz ±50ppm ±30ppm 18pF 40 Ohm -10°C ~ 60°C
445A35E25M00000 CTS 晶振 445 25MHz ±50ppm ±30ppm 20pF 40 Ohm -10°C ~ 60°C
445A35K25M00000 CTS 晶振 445 25MHz ±50ppm ±30ppm 8pF 40 Ohm -10°C ~ 60°C
445A35L25M00000 CTS 晶振 445 25MHz ±50ppm ±30ppm 12pF 40 Ohm -10°C ~ 60°C
445A35S27M00000 CTS 晶振 445 27MHz ±50ppm ±30ppm Series 40 Ohm -10°C ~ 60°C
445A35A27M00000 CTS 晶振 445 27MHz ±50ppm ±30ppm 10pF 40 Ohm -10°C ~ 60°C
445A35D27M00000 CTS 晶振 445 27MHz ±50ppm ±30ppm 18pF 40 Ohm -10°C ~ 60°C
445A35E27M00000 CTS 晶振 445 27MHz ±50ppm ±30ppm 20pF 40 Ohm -10°C ~ 60°C
445A35K27M00000 CTS 晶振 445 27MHz ±50ppm ±30ppm 8pF 40 Ohm -10°C ~ 60°C
445A35L27M00000 CTS 晶振 445 27MHz ±50ppm ±30ppm 12pF 40 Ohm -10°C ~ 60°C
445A35C27M00000 CTS 晶振 445 27MHz ±50ppm ±30ppm 16pF 40 Ohm -10°C ~ 60°C
445A35S30M00000 CTS 晶振 445 30MHz ±50ppm ±30ppm Series 30 Ohm -10°C ~ 60°C
445A35A30M00000 CTS 晶振 445 30MHz ±50ppm ±30ppm 10pF 30 Ohm -10°C ~ 60°C
445A35D30M00000 CTS 晶振 445 30MHz ±50ppm ±30ppm 18pF 30 Ohm -10°C ~ 60°C
445A35E30M00000 CTS 晶振 445 30MHz ±50ppm ±30ppm 20pF 30 Ohm -10°C ~ 60°C
445A35K30M00000 CTS 晶振 445 30MHz ±50ppm ±30ppm 8pF 30 Ohm -10°C ~ 60°C
445A35L30M00000 CTS 晶振 445 30MHz ±50ppm ±30ppm 12pF 30 Ohm -10°C ~ 60°C
445A35C30M00000 CTS 晶振 445 30MHz ±50ppm ±30ppm 16pF 30 Ohm -10°C ~ 60°C
445W33S12M00000 CTS 晶振 445 12MHz ±30ppm ±30ppm Series 50 Ohm 0°C ~ 50°C
445W33A12M00000 CTS 晶振 445 12MHz ±30ppm ±30ppm 10pF 50 Ohm 0°C ~ 50°C
445W33D12M00000 CTS 晶振 445 12MHz ±30ppm ±30ppm 18pF 50 Ohm 0°C ~ 50°C
445W33E12M00000 CTS 晶振 445 12MHz ±30ppm ±30ppm 20pF 50 Ohm 0°C ~ 50°C
445W33K12M00000 CTS 晶振 445 12MHz ±30ppm ±30ppm 8pF 50 Ohm 0°C ~ 50°C
445W33L12M00000 CTS 晶振 445 12MHz ±30ppm ±30ppm 12pF 50 Ohm 0°C ~ 50°C
445W33C12M00000 CTS 晶振 445 12MHz ±30ppm ±30ppm 16pF 50 Ohm 0°C ~ 50°C
445W33S13M00000 CTS 晶振 445 13MHz ±30ppm ±30ppm Series 50 Ohm 0°C ~ 50°C
445W33A13M00000 CTS 晶振 445 13MHz ±30ppm ±30ppm 10pF 50 Ohm 0°C ~ 50°C
445W33D13M00000 CTS 晶振 445 13MHz ±30ppm ±30ppm 18pF 50 Ohm 0°C ~ 50°C
445W33E13M00000 CTS 晶振 445 13MHz ±30ppm ±30ppm 20pF 50 Ohm 0°C ~ 50°C
445W33K13M00000 CTS 晶振 445 13MHz ±30ppm ±30ppm 8pF 50 Ohm 0°C ~ 50°C
445W33L13M00000 CTS 晶振 445 13MHz ±30ppm ±30ppm 12pF 50 Ohm 0°C ~ 50°C
445W33C13M00000 CTS 晶振 445 13MHz ±30ppm ±30ppm 16pF 50 Ohm 0°C ~ 50°C
445W33S14M31818 CTS 晶振 445 14.31818MHz ±30ppm ±30ppm Series 50 Ohm 0°C ~ 50°C
445W33A14M31818 CTS 晶振 445 14.31818MHz ±30ppm ±30ppm 10pF 50 Ohm 0°C ~ 50°C
445W33D14M31818 CTS 晶振 445 14.31818MHz ±30ppm ±30ppm 18pF 50 Ohm 0°C ~ 50°C
445W33E14M31818 CTS 晶振 445 14.31818MHz ±30ppm ±30ppm 20pF 50 Ohm 0°C ~ 50°C
445

445-1






JLX-6

RB-6

wxewm

公司名：深圳市金洛鑫电子有限公司

联系人：茹红青

手机：13510569637

电话：0755-27837162

QQ号：657116624

微信公众号：CITIZENCRYSTAL

搜狐公众号：晶振石英晶振NDK晶振

邮箱：jinluodz@163.com

地址：深圳市宝安区41区甲岸路19号

网址：http://www.quartzcrystal.cn/

关键词：445C33D24M57600 18pF 5032mm 6G低成本晶振

相关的产品 / Related Products

XJDDDLNANF-8.000000,Taitien台产晶振,49SMD晶振
XJDDDLNANF-8.000000,Taitien台产晶振,49SMD晶振
XJDDDLNANF-8.000000,Taitien台产晶振,49SMD晶振,该晶振采用行业通用的49SMD封装,相较于传统49插件晶振,既保留了49系列晶振的高结构稳定性,又具备贴片封装的自动化生产优势.49SMD封装的金属外壳能有效隔绝外部机械冲击与电磁干扰,在设备运输,安装过程中,晶振内部晶片受损风险较普通贴片晶振降低40%,同时,贴片设计适配自动化SMT生产线,焊接效率较手工插件提升60%以上,且引脚与PCB板的焊接接触面积更大,在长期振动环境中,引脚脱落风险降低,兼顾批量生产效率与设备长期运行可靠性,尤其适合对稳定性要求较高的中小型电子设备.
XXHCCCNANF-25.000000,Taitien泰艺晶振,3225贴片无源晶振
XXHCCCNANF-25.000000,Taitien泰艺晶振,3225贴片无源晶振
XXHCCCNANF-25.000000,Taitien泰艺晶振,3225贴片无源晶振,该晶振采用行业通用的3225标准贴片封装(尺寸3.2mm×2.5mm×0.7mm),相较于传统插件式晶振,体积缩小60%以上,完美适配消费电子,便携设备对内部空间的严苛要求--例如在智能手表,无线耳机等小型设备中,可灵活嵌入PCB板边缘或多层板夹层,为电池,传感器等关键元器件预留更多安装空间.同时,3225贴片设计兼容自动化SMT生产线,焊接效率较手工插件提升80%,且引脚焊接牢固度提升50%,在设备长期振动(如车载电子,工业机床)场景中,有效避免因引脚松动导致的时钟信号中断,降低生产与维护成本,是批量生产设备的高性价比选择.
XRCGB40M000F1S1JR0,村田muRata晶振,2016贴片晶振
XRCGB40M000F1S1JR0,村田muRata晶振,2016贴片晶振
XRCGB40M000F1S1JR0,村田muRata晶振,2016贴片晶振,作为典型的2016超小型贴片晶振,XRCGB40M000F1S1JR0在尺寸上大幅节省PCB板空间,完美适配消费电子,工业控制,物联网终端等对小型化设计要求较高的场景,如智能穿戴设备,微型传感器模块,便携式医疗仪器等.其贴片式结构支持自动化SMT贴片工艺,可提升生产效率并降低人工组装误差,同时兼容无铅焊接标准,符合RoHS环保要求,满足全球主流市场的环保法规,适配多领域产品的量产需求.

JLX-PD

金洛鑫产品系列

PRODUCT LINE

石英晶振
QuartzCrystal

贴片晶振
SMDcrystal

谐振器滤波器
Resonator

温补晶振
TCXOcrystal

32.768K
32768Kcrystal

雾化片
AtomizationPiece

智能穿戴

车载安防

通讯网络

智能玩具

金洛鑫联系方式
咨询热线：0755-27837162

手机：13510569637

QQ：QQ

邮箱：jinluodz@163.com

地址：广东省深圳市宝安区宝安41区甲岸路

地址：广东省深圳市宝安区宝安41区甲岸路

E-mail：jinluodz@163.com

电话：0755-27837162

手机:135 1056 9637

在线ＱＱ：657116624 在线QQ

网站：www.quartzcrystal.cn

金洛鑫公众号
金洛鑫微信号
Copyright © 1996-2017 金洛鑫电子备案号：粤ICP备17072356号-1版权归金洛鑫电子有限公司所有©
