NKG晶振,S4M27.0000F16E1Y-EXT,4025mm晶振,6G通信设备晶振
频率：27MHZ
尺寸：4.0×2.5×0.7mm
NKG晶振,S4M27.0000F16E1Y-EXT,4025mm晶振,6G通信设备晶振,NKG晶振,S4M无源晶振,石英晶振,S4M27.0000F16E1Y-EXT晶振,4025mm晶振,四脚贴片晶振,SMD晶体,晶体谐振器,频率27MHz,负载16pF,频率容差10ppm,工作温度-20~70°C,无铅环保晶振,高精度晶振,抗震动晶振,6G通信设备晶振,无线局域网晶振,智能手机晶振,平板电脑晶振.
NKG晶振,S4M27.0000F16E1Y-EXT,4025mm晶振,6G通信设备晶振,NKG晶振,S4M无源晶振,石英晶振,S4M27.0000F16E1Y-EXT晶振,4025mm晶振,四脚贴片晶振,SMD晶体,晶体谐振器,频率27MHz,负载16pF,频率容差10ppm,工作温度-20~70°C,无铅环保晶振,高精度晶振,抗震动晶振,6G通信设备晶振,无线局域网晶振,智能手机晶振,平板电脑晶振.
NKG晶振,S4M27.0000F16E1Y-EXT,4025mm晶振,6G通信设备晶振特点：

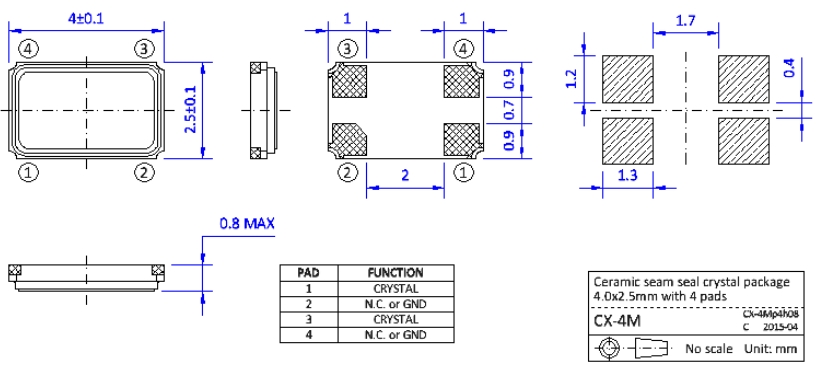

●微型包装尺寸4.0 x 2.5x 0.7mm与4个垫
●优异的耐热性和抗震性
●高可靠的缝封封装，低老化
●符合AEC-Q200标准的汽车级产品可供选择

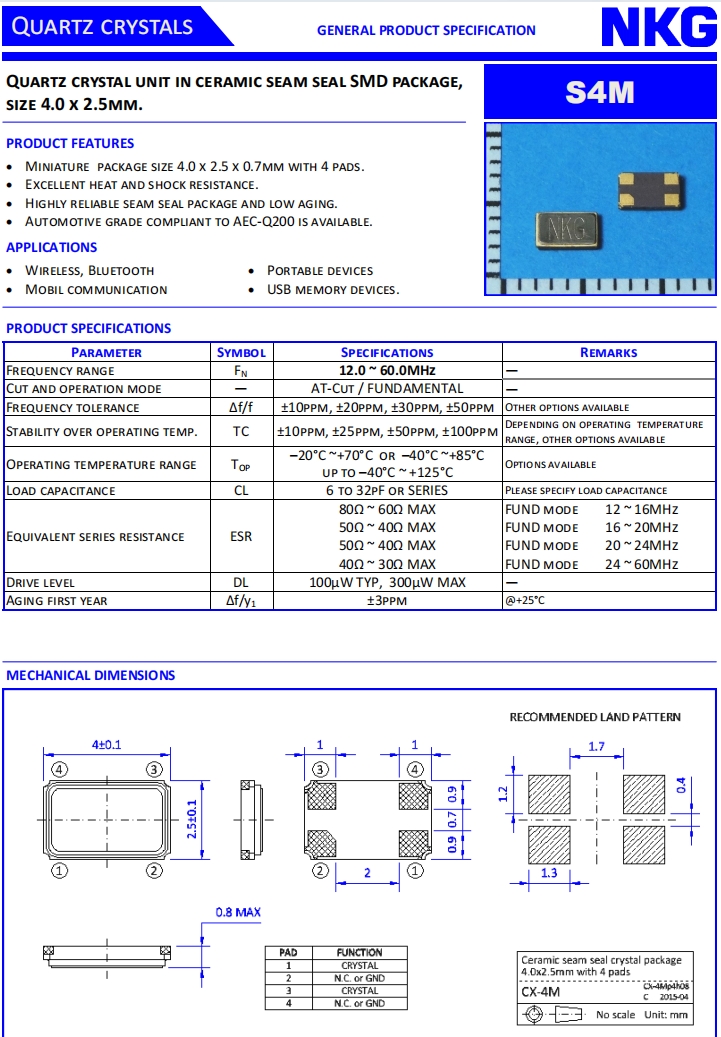

NKG晶振,S4M27.0000F16E1Y-EXT,4025mm晶振,6G通信设备晶振规格表
Parameter
Symbol
Specifications
Remarks
Frequency range
FN
27MHz
-
Cut and operation mode
-
FUNDAMENTAL
-
Frequency tolerance
Δf/f
±10ppm
Other options available
Stability over operating temp.
TC
±15ppm
Depending on operating temperature range, other options available
Operating temperature range
TOP
–20°C ~+70°C
Options available
Load capacitance
CL
16pF
Please specify load capacitance
Equivalent series resistance
ESR
40Ω~30Ω MAX
FUND MODE 24~ 60MHz
Drive level
DL
100µW TYP, 300µW MAX
-
Aging first year
Δf/y1
±3ppm
@+25°C
