M60551JSN52.0000MHz,军事通信晶振,MtronPTl欧美晶振,3225晶振,3V晶振

频率：52.0000MHz

尺寸：2.5 x 3.2 mm

M60551JSN52.0000MHz,军事通信晶振,MtronPTl欧美晶振,3225晶振,3V晶振,是一款专为军事通信场景设计的3225封装3V晶振,52.0000MHz频率经过军工级精密校准,能精准匹配军事电台,卫星通信终端的射频信号处理需求.作为欧美市场主流的军事通信晶振,其通过了严格的电磁兼容性(EMC)测试,在30MHz-18GHz频段的电磁辐射抑制比＞85dB,可抵御战场复杂电磁环境(如雷达干扰,电子对抗信号)的影响,避免通信信号失真或中断.3225无线通信模块晶振封装采用加固型陶瓷外壳与镀金引脚,防护等级达IP67,能承受沙尘,雨水浸泡等恶劣战场环境,且抗振动性能优异

订购热线：0755-27837162

JLX-1

M60551JSN52.0000MHz,军事通信晶振,MtronPTl欧美晶振,3225晶振,3V晶振

这款M60551JSN52.0000MHz是MtronPTl晶振(麦特伦皮)为欧美军事通信领域定制的3225封装3V晶振,52.0000MHz频率适配军事卫星通信的Ka频段信号解调需求.作为军事通信晶振,其采用了独特的温度补偿技术,内置高精度铂电阻温度传感器(精度±0.05℃)与多阶温度补偿算法,在-55℃至+125℃全温范围内,频率漂移可控制在±1ppm以内,确保卫星通信终端在高空低温(-55℃)或沙漠高温(+60℃)环境下,仍能精准接收卫星信号,避免因频率偏差导致的通信链路断开.3225封装的引脚布局符合欧美军事设备的标准化设计,支持自动化贴片与X射线检测,焊接良品率＞99.98%,大幅提升军事通信设备的量产效率.3V供电电压输入具备反接保护功能,可防止战场紧急维修时的接线错误损坏晶振,同时其启动时间＜3ms,在通信设备断电重启或热插拔时,能迅速恢复时钟输出,缩短战场通信中断时间.

JLX-2

M60551JSN52.0000MHz,军事通信晶振,MtronPTl欧美晶振,3225晶振,3V晶振

原厂型号 Original model ：	M60551JSN52.0000MHz	品牌 brand ：	MtronPTl晶振
Manufacturer品牌	MtronPTl晶振	Operating Temperature温度	0 °C to +70 °C
Series型号	M6055	Current - Supply (Max)	-
Type 类型	TCXO	Package Height高度	1.0mm
Frequency 频率	52.000 MHz	Termination 脚位	4 pads
输出方式 Output：	削峰正弦波晶振	Package Type 封装类型	4-SMD
Voltage - Supply电压	3.0V	Packaging 包装	Tape and Reel
Frequency Stability频率稳定度	±1.0 ppm	安装方式 Installation ：	Surface mount

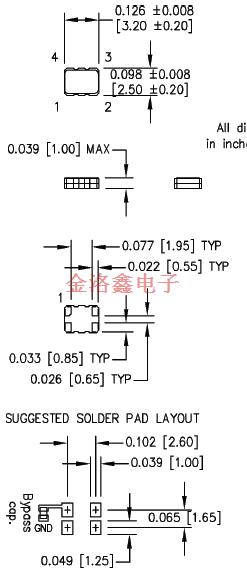

Size / Dimension 尺寸	2.5 x 3.2 mm	最小包装数 MPQ ：	3000

JLX-3

JLXNR-3

M60551JSN52.0000MHz,军事通信晶振,MtronPTl欧美晶振,3225晶振,3V晶振

M6055 M6056 3225 TCXO VCTCXO
