MH13FAD-R 16.000000,HCMOS输出晶振,MtronPTI正方型钟振

当前位置：首页 » 贴片晶振 » MtronPTI晶振 » MH13FAD-R 16.000000,HCMOS输出晶振,MtronPTI正方型钟振

prevnext

MH13FAD-R 16.000000,HCMOS输出晶振,MtronPTI正方型钟振

频率：16MHz

尺寸：13.2x13.2x5.97mm

MH13FAD-R 16.000000,HCMOS输出晶振,MtronPTI正方型钟振，美国进口晶振，MtronPTI晶振，麦特伦皮晶振，型号：MH系列，编码为：MH13FAD-R 16.000000，频率：16MHz，电压：5.0V，频率稳定性：±100ppm，工作温度范围：0℃至+70℃，HCMOS输出晶振，小体积晶振尺寸：13.2x13.2x5.97mm封装，8 pin DIP正方型钟振，有源晶振，时钟振荡器，石英晶振，石英晶体振荡器。具有高性能，高精度，高品质，高可靠性，低抖动等特点。应用于：电信晶振，仪器设备晶振，通信设备晶振，导航仪等应用。

订购热线：0755-27837162

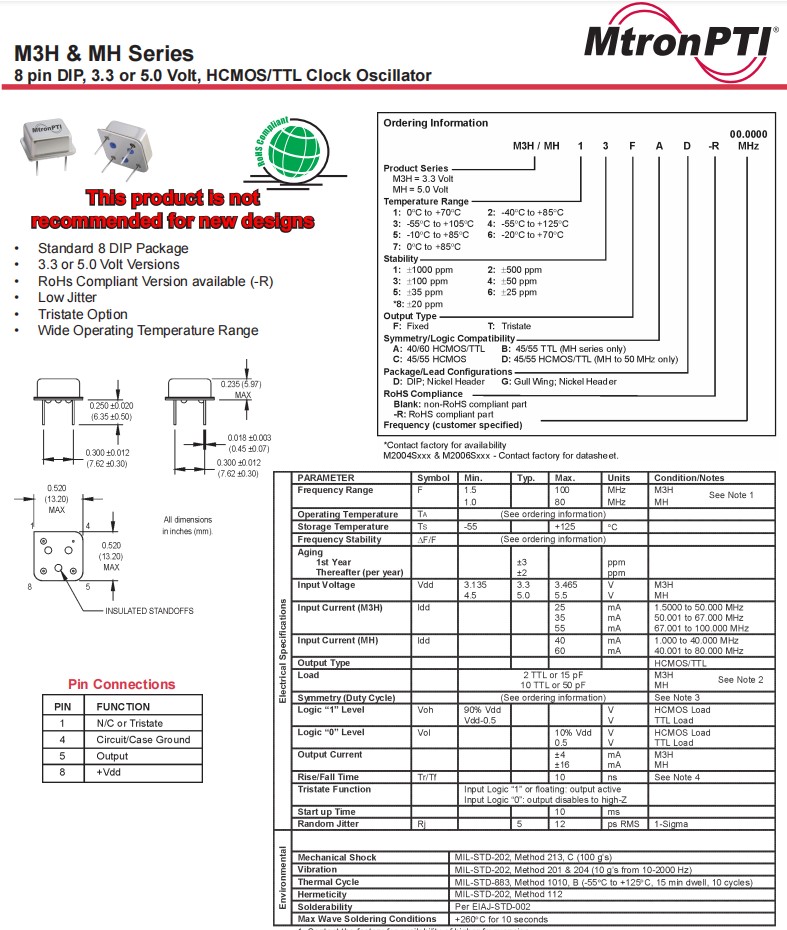

MH13FAD-R 16.000000,HCMOS输出晶振,MtronPTI正方型钟振,参数表

品牌	MtronPTI麦特伦皮晶振
型号	MH
物料编码	MH13FAD-R 16.000000
频率	16MHz
频率稳定性	±100ppm
输出	HCMOS
电源电压	5.0V
工作温度	0℃至+70℃
尺寸	13.2x13.2x5.97mm

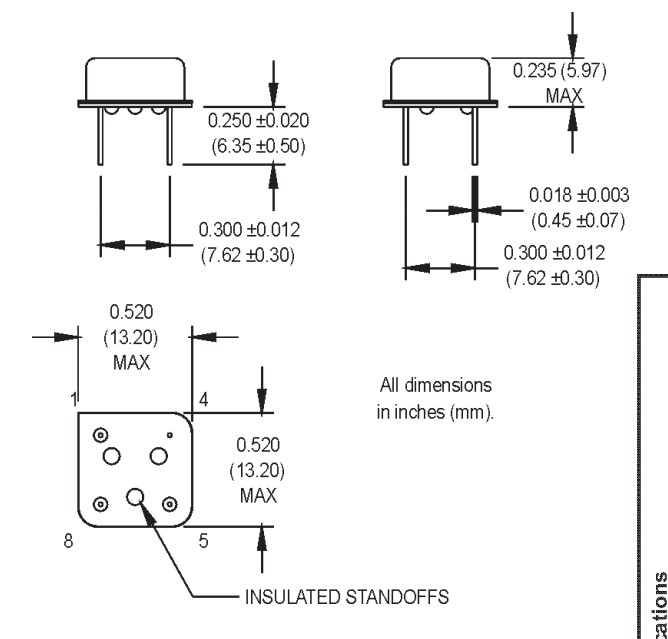

MH13FAD-R 16.000000,HCMOS输出晶振,MtronPTI正方型钟振,尺寸图

产品编码	型号	振荡器类型	频率稳定性	频率	频率容差
MH13FAD-R 16.000000	M3H and MH	XO	±100 ppm	16	±100 ppm
60103-339-R 12.000000	M3H and MH	XO	±100 ppm	12	±100 ppm
60110-239-R 1.000000	M3H and MH	XO	±100 ppm	1	±100 ppm
60153-139-R 24.576000	M3H and MH	XO	±100 ppm	24.576	±100 ppm
60184-269-R 18.432000	M3H and MH	XO	±25 ppm	18.432	±25 ppm
M2004S036 70.656000	M3H and MH	XO	±50 ppm	70.656	±50 ppm
M2004S037 70.656000	M3H and MH	XO	±25 ppm	70.656	±25 ppm
M2006S051 16.000000	M3H and MH	XO	±100 ppm	16	±100 ppm
M2006S052 10.000000	M3H and MH	XO	±100 ppm	10	±100 ppm
M2006S067 16.632000	M3H and MH	有源晶振	±50 ppm	16.632	±50 ppm
M2006S076 16.632000	M3H and MH	XO	±50 ppm	16.632	±50 ppm
1073-005 20.000000	M3H and MH	XO	±100 ppm	20	±100 ppm
1242-003 3.686400	M3H and MH	XO	±50 ppm	3.6864	±50 ppm
1242-004 4.000000	M3H and MH	XO	±1000 ppm	4	±1000 ppm
1242-008 8.515625	M3H and MH	XO	±50 ppm	8.5156	±50 ppm
1242-014 14.318180	M3H and MH	XO	±50 ppm	14.3182	±50 ppm
1242-016 16.571000	M3H and MH	XO	±100 ppm	16.571	±100 ppm
1242-019 19.998000	M3H and MH	XO	±50 ppm	19.998	±50 ppm
1242-024 24.002500	M3H and MH	XO	±50 ppm	24.0025	±50 ppm
1242-025 24.997500	M3H and MH	XO	±50 ppm	24.9975	±50 ppm
1242-031 31.996875	M3H and MH	XO	±50 ppm	31.9969	±50 ppm
1242-032 32.001300	M3H and MH	XO	±50 ppm	32.0013	±50 ppm
1242-040 40.000000	M3H and MH	XO	±50 ppm	40	±50 ppm
1242-048 48.005000	M3H and MH	XO	±100 ppm	48.005	±100 ppm
1242-049 49.300000	M3H and MH	XO	±100 ppm	49.3	±100 ppm
1242-079 7.999200	M3H and MH	XO	±100 ppm	7.9992	±100 ppm
1242-080 8.000000	M3H and MH	XO	±100 ppm	8	±100 ppm
1242-100 1.600000	M3H and MH	XO	±100 ppm	1.6	±100 ppm
1242-115 15.998400	M3H and MH	XO	±100 ppm	15.9984	±100 ppm
1242-124 24.002500	M3H and MH	XO	±100 ppm	24.0025	±100 ppm
1242-160 16.551720	M3H and MH	XO	±100 ppm	16.5517	±100 ppm
1242-204 4.000000	M3H and MH	XO	±25 ppm	4	±25 ppm
1242-215 15.281000	M3H and MH	XO	±100 ppm	15.281	±100 ppm
1268-015-R 34.560000	M3H and MH	XO	±25 ppm	34.56	±25 ppm
1348-017-R 76.800000	M3H and MH	XO	±25 ppm	76.8	±25 ppm
1698-587-R 81.920000	M3H and MH	XO	±50 ppm	81.92	±50 ppm
60101-236-R 12.000000	M3H and MH	XO	±100 ppm	12	±100 ppm
60101-246-R 32.000000	M3H and MH	XO	±50 ppm	32	±50 ppm
60101-246-R 4.000000	M3H and MH	XO	±50 ppm	4	±50 ppm
M2006S073 23.400000	M3H and MH	XO	±50 ppm	23.4	±20 ppm
