当前位置：首页 » 贴片晶振 » Suntsu晶振 » SXT11410AA38-32.000M,10pf,-30~85°C,SUNTSU晶振
SXT11410AA38-32.000M,10pf,-30~85°C,SUNTSU晶振
prevnext

SXT11410AA38-32.000M,10pf,-30~85°C,SUNTSU晶振

频率：32MHz

尺寸：1.6mm x 1.2mm

SXT11410AA38-32.000M,10pf,-30~85°C,SUNTSU晶振,SXT11410AA38-32.000M晶振,负载10pf,工作温度-30~85°C,美国SUNTSU晶振,1612mm晶振,四脚贴片晶振,石英晶体谐振器,SXT114无源晶振 ,蓝牙模块晶振,无线网络晶振,高密度应用晶振.




订购热线：0755-27837162
QQ咨询 点击这里给我发消息

ConnorWinfield-1SXT11410AA38-32.000M,10pf,-30~85°C,SUNTSU晶振,SXT11410AA38-32.000M晶振,负载10pf,工作温度-30~85°C,美国SUNTSU晶振,1612mm晶振,四脚贴片晶振,石英晶体谐振器,SXT114无源晶振 ,蓝牙模块晶振,无线网络晶振,高密度应用晶振.

SXT11410AA38-32.000M,10pf,-30~85°C,SUNTSU晶振 特征

•±10 ppm /±10 ppm(公差/稳定)可用

•超小型封装

•AT-Cut基本原理

•磁带和卷轴

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

SXT11410AA38-32.000M,10pf,-30~85°C,SUNTSU晶振 参数

项目 数值 附注
频率 32MHz AT-Cut Fundamental.
频率公差 @ +25°C ±50PPM See part numbering guide for options.
频率稳定性 ±50PPM See part numbering guide for options.
频率稳定性与老化 ±3ppm Max First year @ +25ºC.
工作温度 -30°C to +85°C See part numbering guide for options.
保存温度 -40°C to +95°C
并联电容 (C0) 3pF Max
负载电容 (CL) 10pF See part numbering guide for options.
激励功率 100μW Max
绝缘电阻 500MΩ @ 100VDC ± 15V.
ESR-24.000MHz~29.999MHz 150Ω AT-Cut Fundamental.
ESR-30.000MHz~54.000MHz 150Ω AT-Cut Fundamental.

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

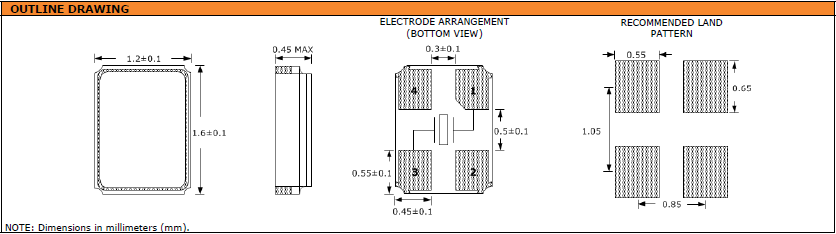

SXT11410AA38-32.000M,10pf,-30~85°C,SUNTSU晶振 尺寸图

SXT114 1612

SUNTSU晶振编码 尺寸 负载 频率公差 频率稳定度 工作温度 频率
SXT11410AA07-24.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm 0°C - +70°C 24.000M
SXT11410AA07-25.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm 0°C - +70°C 25.000M
SXT11410AA07-26.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm 0°C - +70°C 26.000M
SXT11410AA07-27.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm 0°C - +70°C 27.000M
SXT11410AA07-27.120M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm 0°C - +70°C 27.120M
SXT11410AA07-30.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm 0°C - +70°C 30.000M
SXT11410AA07-32.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm 0°C - +70°C 32.000M
SXT11410AA07-38.400M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm 0°C - +70°C 38.400M
SXT11410AA07-40.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm 0°C - +70°C 40.000M
SXT11410AA16-24.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -10°C - +60°C 24.000M
SXT11410AA16-25.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -10°C - +60°C 25.000M
SXT11410AA16-26.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -10°C - +60°C 26.000M
SXT11410AA16-27.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -10°C - +60°C 27.000M
SXT11410AA16-27.120M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -10°C - +60°C 27.120M
SXT11410AA16-30.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -10°C - +60°C 30.000M
SXT11410AA16-32.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -10°C - +60°C 32.000M
SXT11410AA16-38.400M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -10°C - +60°C 38.400M
SXT11410AA16-40.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -10°C - +60°C 40.000M
SXT11410AA17-24.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -10°C - +70°C 24.000M
SXT11410AA17-25.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -10°C - +70°C 25.000M
SXT11410AA17-26.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -10°C - +70°C 26.000M
SXT11410AA17-27.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -10°C - +70°C 27.000M
SXT11410AA17-27.120M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -10°C - +70°C 27.120M
SXT11410AA17-30.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -10°C - +70°C 30.000M
SXT11410AA17-32.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -10°C - +70°C 32.000M
SXT11410AA17-38.400M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -10°C - +70°C 38.400M
SXT11410AA17-40.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -10°C - +70°C 40.000M
SXT11410AA27-24.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -20°C - +70°C 24.000M
SXT11410AA27-25.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -20°C - +70°C 25.000M
SXT11410AA27-26.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -20°C - +70°C 26.000M
SXT11410AA27-27.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -20°C - +70°C 27.000M
SXT11410AA27-27.120M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -20°C - +70°C 27.120M
SXT11410AA27-30.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -20°C - +70°C 30.000M
SXT11410AA27-32.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -20°C - +70°C 32.000M
SXT11410AA27-38.400M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -20°C - +70°C 38.400M
SXT11410AA27-40.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -20°C - +70°C 40.000M
SXT11410AA38-24.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -30°C - +85°C 24.000M
SXT11410AA38-25.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -30°C - +85°C 25.000M
SXT11410AA38-26.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -30°C - +85°C 26.000M
SXT11410AA38-27.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -30°C - +85°C 27.000M
SXT11410AA38-27.120M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -30°C - +85°C 27.120M
SXT11410AA38-30.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -30°C - +85°C 30.000M
SXT11410AA38-32.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -30°C - +85°C 32.000M
SXT11410AA38-38.400M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -30°C - +85°C 38.400M
SXT11410AA38-40.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -30°C - +85°C 40.000M
SXT11410AA48-24.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -40°C - +85°C 24.000M
SXT11410AA48-25.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -40°C - +85°C 25.000M
SXT11410AA48-26.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -40°C - +85°C 26.000M
SXT11410AA48-27.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -40°C - +85°C 27.000M
SXT11410AA48-27.120M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -40°C - +85°C 27.120M
SXT11410AA48-30.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -40°C - +85°C 30.000M
SXT11410AA48-32.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -40°C - +85°C 32.000M
SXT11410AA48-38.400M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -40°C - +85°C 38.400M
SXT11410AA48-40.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm ±50ppm -40°C - +85°C 40.000M
SXT11410BA07-24.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm 0°C - +70°C 24.000M
SXT11410BA07-25.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm 0°C - +70°C 25.000M
SXT11410BA07-26.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm 0°C - +70°C 26.000M
SXT11410BA07-27.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm 0°C - +70°C 27.000M
SXT11410BA07-27.120M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm 0°C - +70°C 27.120M
SXT11410BA07-30.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm 0°C - +70°C 30.000M
SXT11410BA07-32.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm 0°C - +70°C 32.000M
SXT11410BA07-38.400M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm 0°C - +70°C 38.400M
SXT11410BA07-40.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm 0°C - +70°C 40.000M
SXT11410BA16-24.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -10°C - +60°C 24.000M
SXT11410BA16-25.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -10°C - +60°C 25.000M
SXT11410BA16-26.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -10°C - +60°C 26.000M
SXT11410BA16-27.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -10°C - +60°C 27.000M
SXT11410BA16-27.120M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -10°C - +60°C 27.120M
SXT11410BA16-30.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -10°C - +60°C 30.000M
SXT11410BA16-32.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -10°C - +60°C 32.000M
SXT11410BA16-38.400M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -10°C - +60°C 38.400M
SXT11410BA16-40.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -10°C - +60°C 40.000M
SXT11410BA17-24.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -10°C - +70°C 24.000M
SXT11410BA17-25.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -10°C - +70°C 25.000M
SXT11410BA17-26.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -10°C - +70°C 26.000M
SXT11410BA17-27.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -10°C - +70°C 27.000M
SXT11410BA17-27.120M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -10°C - +70°C 27.120M
SXT11410BA17-30.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -10°C - +70°C 30.000M
SXT11410BA17-32.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -10°C - +70°C 32.000M
SXT11410BA17-38.400M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -10°C - +70°C 38.400M
SXT11410BA17-40.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -10°C - +70°C 40.000M
SXT11410BA27-24.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -20°C - +70°C 24.000M
SXT11410BA27-25.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -20°C - +70°C 25.000M
SXT11410BA27-26.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -20°C - +70°C 26.000M
SXT11410BA27-27.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -20°C - +70°C 27.000M
SXT11410BA27-27.120M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -20°C - +70°C 27.120M
SXT11410BA27-30.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -20°C - +70°C 30.000M
SXT11410BA27-32.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -20°C - +70°C 32.000M
SXT11410BA27-38.400M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -20°C - +70°C 38.400M
SXT11410BA27-40.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -20°C - +70°C 40.000M
SXT11410BA38-24.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -30°C - +85°C 24.000M
SXT11410BA38-25.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -30°C - +85°C 25.000M
SXT11410BA38-26.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -30°C - +85°C 26.000M
SXT11410BA38-27.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -30°C - +85°C 27.000M
SXT11410BA38-27.120M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -30°C - +85°C 27.120M
SXT11410BA38-30.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -30°C - +85°C 30.000M
SXT11410BA38-32.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -30°C - +85°C 32.000M
SXT11410BA38-38.400M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -30°C - +85°C 38.400M
SXT11410BA38-40.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±30ppm ±50ppm -30°C - +85°C 40.000M

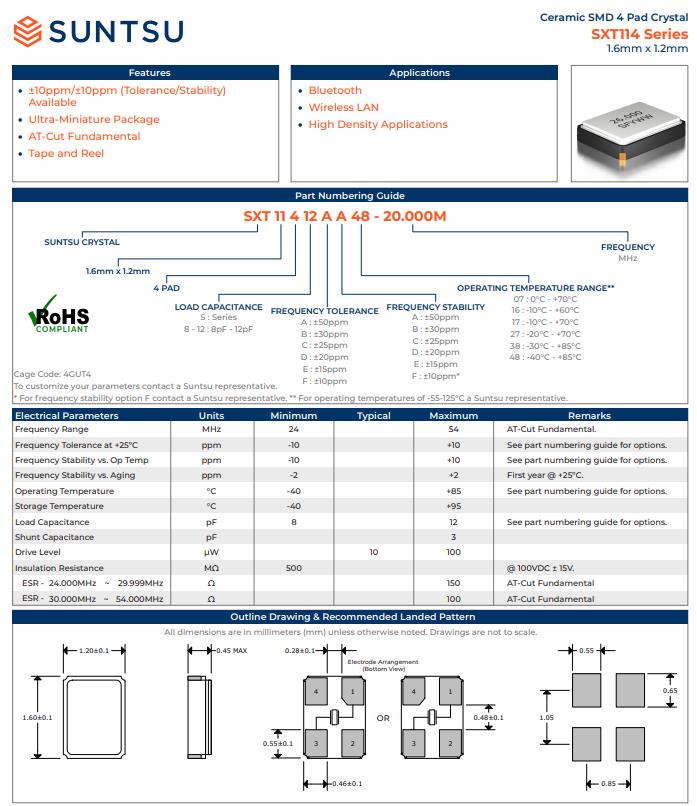

SXT11410AA38-32.000M,10pf,-30~85°C,SUNTSU晶振规格书与内部识别码
