当前位置：首页 » 贴片晶振 » 瑞萨renesas晶振 » Renesas晶振,XPL53525.000000K,低抖动晶振,航空航天设备晶振
Renesas晶振,XPL53525.000000K,低抖动晶振,航空航天设备晶振
prevnext

Renesas晶振,XPL53525.000000K,低抖动晶振,航空航天设备晶振

频率：25MHZ

尺寸：5.0mm x 3.2mm

Renesas晶振,XPL53525.000000K,低抖动晶振,航空航天设备晶振,Renesas晶振,XP石英晶体振荡器,XPL53525.000000K晶振,5032mm晶振,低抖动差分晶振,频率25MHz,工作温度-40~105°C,电压3.3V,耐高温晶振,高品质晶振,航空航天设备晶振,测试与测量设备晶振,低端路由器晶振,全球定位系统晶振.





订购热线：0755-27837162
QQ咨询 点击这里给我发消息

ConnorWinfield-1Renesas晶振,XPL53525.000000K,低抖动晶振,航空航天设备晶振,Renesas晶振,XP石英晶体振荡器,XPL53525.000000K晶振,5032mm晶振,低抖动差分晶振,频率25MHz,工作温度-40~105°C,电压3.3V,耐高温晶振,高品质晶振,航空航天设备晶振,测试与测量设备晶振,低端路由器晶振,全球定位系统晶振.

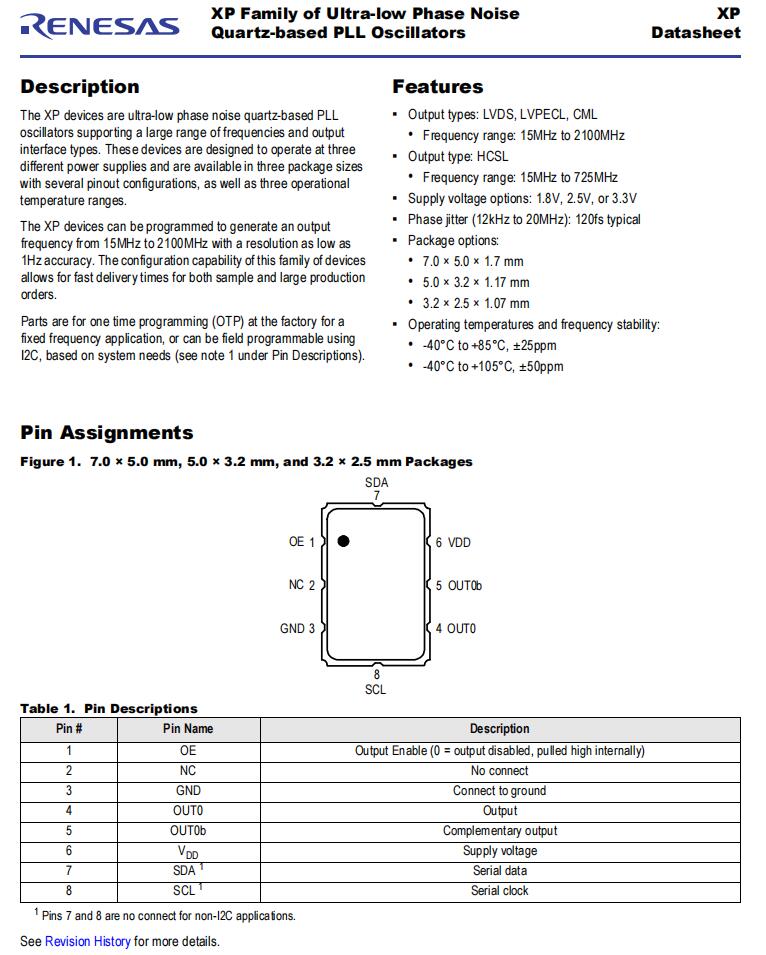

Renesas晶振,XPL53525.000000K,低抖动晶振,航空航天设备晶振特点：

•输出类型:LVDS, LVPECL, CML

•频率范围:15MHz至2100MHz

•输出类型:HCSL

•频率范围:15MHz至725MHz

•供电电压选项:1.8V, 2.5V，或3.3V

•相位抖动(12kHz至20MHz): 120fs典型

•包装选项:

•7.0 × 5.0 × 1.7 mm

•5.0 × 3.2 × 1.17毫米

•3.2 × 2.5 × 1.07 mm

•工作温度和频率稳定性:

•-40°C至+85°C，±25ppm

•-40°C至+105°C，±50ppm

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

Renesas晶振,XPL53525.000000K,低抖动晶振,航空航天设备晶振参数表

项目 符号 规格说明 条件
额定频率 f_nom 25MHz 请联系我们以便获取其它可用频率的相关信息
电源电压 Vcc 3.3V±0.3V
储存温度 T_stg -55℃~+125℃ 裸存
工作温度 T_use -40℃~ +105℃
频率公差（标准） f_tol ±50ppm  +25℃,超出标准的规格说明请联系我们以便获取相关信息
供电电流 IDD 67mA Max   LVDS  40+MHz to 220MHz
差分输出电压 VOD 0.6V Max VDD = 3.3V ±5%.
对称性 SYM 48%~52% At outputs crossing  point
输出负载 L_LVDS 100Ω LVDS Differential.
输入电压 VIH 70%VDD Min LVDS
VIL 30%VDD Max
上升下降时间 tr/tf 400ps Max LVDS 20% to 80% Vpp
起始时间 t str 5ms Typ VDD达到最小指定水平后输出有效时间
周期抖动 JPER

3ps Typ

LVDS
相位抖动 tpj 115 fs Typ 12KHZ~20MHz
老化 f_aging ±3ppm/year  +25℃,第一年

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

Renesas晶振,XPL53525.000000K,低抖动晶振,航空航天设备晶振尺寸图

XP-5032

XP

XP-1

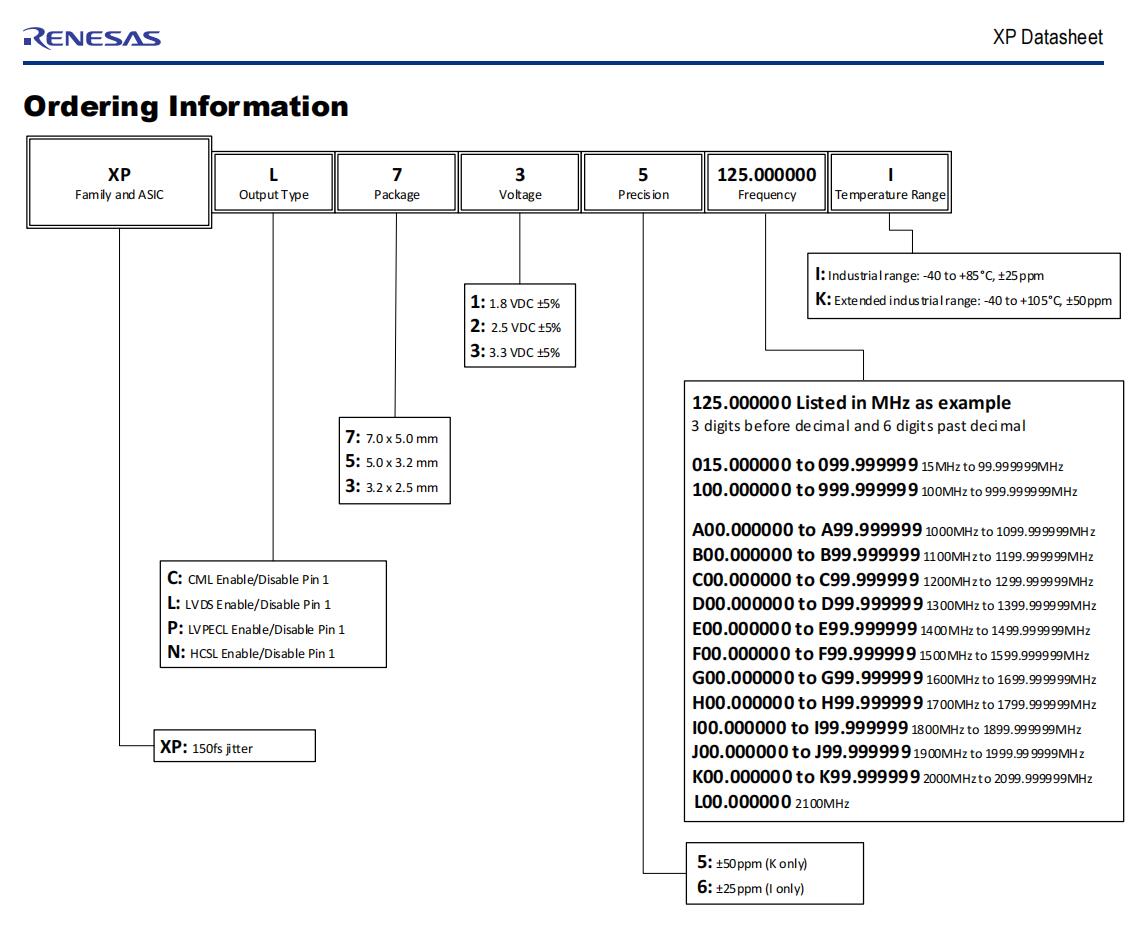

原厂编码 品牌 型号 频率 输出 电压 频率稳定性 工作温度 电流(Max)
XPP336100.000000I Renesas Electronics America Inc XP 100 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 94mA
XPL536800.000000I Renesas Electronics America Inc XP 800 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 85mA
XPP736161.132812I Renesas Electronics America Inc XP 161.132812 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 94mA
XPL526200.000000I Renesas Electronics America Inc XP 200 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C 66mA
XPP736125.000000I Renesas Electronics America Inc XP 125 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 94mA
XPC736174.703000I Renesas Electronics America Inc XP 174.703 MHz CML 3.3V ±25ppm -40°C ~ 85°C 61mA
XPL316133.333333I Renesas Electronics America Inc XP 133.333333 MHz LVDS 1.8V ±25ppm -40°C ~ 85°C 66mA
XPC316800.000000I Renesas Electronics America Inc XP 800 MHz CML 1.8V ±25ppm -40°C ~ 85°C 61mA
XPC336212.500000I Renesas Electronics America Inc XP 212.5 MHz CML 3.3V ±25ppm -40°C ~ 85°C 61mA
XPL336016.000000I Renesas Electronics America Inc XP 16 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 67mA
XPP316156.250000I Renesas Electronics America Inc XP 156.25 MHz LVPECL 1.8V ±25ppm -40°C ~ 85°C 93mA
XPL536C10.937500I Renesas Electronics America Inc XP 1.2109375 GHz LVDS 3.3V ±25ppm -40°C ~ 85°C 85mA
XPP736212.500000I Renesas Electronics America Inc XP 212.5 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 94mA
XPL736156.250000I Renesas Electronics America Inc XP 156.25 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 67mA
XPL536148.500000I Renesas Electronics America Inc XP 148.5 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 67mA
XPP736156.253906I Renesas Electronics America Inc XP 156.253906 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 94mA
XPC536020.000000I Renesas Electronics America Inc XP 20 MHz CML 3.3V ±25ppm -40°C ~ 85°C 61mA
XPC736174.000000I Renesas Electronics America Inc XP 174 MHz CML 3.3V ±25ppm -40°C ~ 85°C 61mA
XPP736175.000000I Renesas Electronics America Inc XP 175 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 94mA
XPL736148.500000I Renesas Electronics America Inc XP 148.5 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 67mA
XPL336148.500000I Renesas Electronics America Inc XP 148.5 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 67mA
XPL336156.250000I Renesas Electronics America Inc XP 156.25 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 67mA
XPL336125.000000I Renesas Electronics America Inc XP 125 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 67mA
XPL316050.000000I Renesas Electronics America Inc XP 50 MHz LVDS 1.8V ±25ppm -40°C ~ 85°C 66mA
XPP736100.000000I Renesas Electronics America Inc XP 100 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 94mA
XPC736625.000000I Renesas Electronics America Inc XP 625 MHz CML 3.3V ±25ppm -40°C ~ 85°C 61mA
XPP736106.250000I Renesas Electronics America Inc XP 106.25 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 94mA
XPL316032.000000I Renesas Electronics America Inc XP 32 MHz LVDS 1.8V ±25ppm -40°C ~ 85°C 66mA
XPL516156.250000I Renesas Electronics America Inc XP 156.25 MHz LVDS 1.8V ±25ppm -40°C ~ 85°C 66mA
XPP735156.250005I Renesas Electronics America Inc XP 156.250005 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C 94mA
XPP736122.880000I Renesas Electronics America Inc XP 122.88 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 94mA
XPN336078.125000I Renesas Electronics America Inc XP 78.125 MHz HCSL 3.3V ±25ppm -40°C ~ 85°C 83mA
XPP736124.992000I Renesas Electronics America Inc XP 124.992 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 94mA
XPL336100.000000I Renesas Electronics America Inc XP 100 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 67mA
XPL736125.000000I Renesas Electronics America Inc XP 125 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 67mA
XPC316156.250000I Renesas Electronics America Inc XP 156.25 MHz CML 1.8V ±25ppm -40°C ~ 85°C 61mA
XPL536148.163548I Renesas Electronics America Inc XP 148.163548 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 67mA
XPL736300.000000I Renesas Electronics America Inc XP 300 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 67mA
XPL316156.000000I Renesas Electronics America Inc XP 156 MHz LVDS 1.8V ±25ppm -40°C ~ 85°C 66mA
XPL326200.000000I Renesas Electronics America Inc XP 200 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C 66mA
XPP736200.000000I Renesas Electronics America Inc XP 200 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 94mA
XPL526312.500000I Renesas Electronics America Inc XP 312.5 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C 66mA
XPL336040.000000I Renesas Electronics America Inc XP 40 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 67mA
XPP526156.250000I Renesas Electronics America Inc XP 156.25 MHz LVPECL 2.5V ±25ppm -40°C ~ 85°C 94mA
XPN326312.500000I Renesas Electronics America Inc XP 312.5 MHz HCSL 2.5V ±25ppm -40°C ~ 85°C 95mA
XPC736100.000000I Renesas Electronics America Inc XP 100 MHz CML 3.3V ±25ppm -40°C ~ 85°C 61mA
XPN336025.000000I Renesas Electronics America Inc XP 25 MHz HCSL 3.3V ±25ppm -40°C ~ 85°C 83mA
XPM736625.000000I Renesas Electronics America Inc XP 625 MHz - 3.3V ±25ppm -40°C ~ 85°C -
XPN336100.000000I Renesas Electronics America Inc XP 100 MHz HCSL 3.3V ±25ppm -40°C ~ 85°C 83mA
XPL736800.000000I Renesas Electronics America Inc XP 800 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 85mA
XPP726212.500000I Renesas Electronics America Inc XP 212.5 MHz LVPECL 2.5V ±25ppm -40°C ~ 85°C 110mA
XPL536070.656000I Renesas Electronics America Inc XP 70.656 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 67mA
XPP736250.000000I Renesas Electronics America Inc XP 250 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 110mA
XPP726312.510900I Renesas Electronics America Inc XP 312.5109 MHz LVPECL 2.5V ±25ppm -40°C ~ 85°C 110mA
XPP736915.000000I Renesas Electronics America Inc XP 915 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 110mA
XPP336830.000000I Renesas Electronics America Inc XP 830 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 110mA
XPN336156.250000I Renesas Electronics America Inc XP 156.25 MHz HCSL 3.3V ±25ppm -40°C ~ 85°C 83mA
XPN316161.132812I Renesas Electronics America Inc XP 161.132812 MHz HCSL 1.8V ±25ppm -40°C ~ 85°C 95mA
XPP336156.253906I Renesas Electronics America Inc XP 156.253906 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 94mA
XPL316033.333333I Renesas Electronics America Inc XP 33.333333 MHz LVDS 1.8V ±25ppm -40°C ~ 85°C 66mA
XPN536156.250000I Renesas Electronics America Inc XP 156.25 MHz HCSL 3.3V ±25ppm -40°C ~ 85°C 83mA
XPP336250.000000I Renesas Electronics America Inc XP 250 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 110mA
XPN316100.000000I Renesas Electronics America Inc XP 100 MHz HCSL 1.8V ±25ppm -40°C ~ 85°C 95mA
XPL316080.000000I Renesas Electronics America Inc XP 80 MHz LVDS 1.8V ±25ppm -40°C ~ 85°C 66mA
XPL336200.000000I Renesas Electronics America Inc XP 200 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 67mA
XPL336644.531250I Renesas Electronics America Inc XP 644.53125 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 85mA
XPL326156.250000I Renesas Electronics America Inc XP 156.25 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C 66mA
XPP736161.132580I Renesas Electronics America Inc XP 161.13258 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 94mA
XPP726445.500000I Renesas Electronics America Inc XP 445.5 MHz LVPECL 2.5V ±25ppm -40°C ~ 85°C 110mA
XPL326500.000000I Renesas Electronics America Inc XP 500 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C 85mA
XPL336830.000000I Renesas Electronics America Inc XP 830 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 85mA
XPP726160.000000I Renesas Electronics America Inc XP 160 MHz LVPECL 2.5V ±25ppm -40°C ~ 85°C 110mA
XPL516625.000000I Renesas Electronics America Inc XP 625 MHz LVDS 1.8V ±25ppm -40°C ~ 85°C 85mA
XPL316322.265625I Renesas Electronics America Inc XP 322.265625 MHz LVDS 1.8V ±25ppm -40°C ~ 85°C 66mA
XPP336312.500000I Renesas Electronics America Inc XP 312.5 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 110mA
XPC336156.250000I Renesas Electronics America Inc XP 156.25 MHz CML 3.3V ±25ppm -40°C ~ 85°C 61mA
XPN716156.253906I Renesas Electronics America Inc XP 156.253906 MHz HCSL 1.8V ±25ppm -40°C ~ 85°C 95mA
XPL526156.250000I Renesas Electronics America Inc XP 156.25 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C 66mA
XPP516625.000000I Renesas Electronics America Inc XP 625 MHz LVPECL 1.8V ±25ppm -40°C ~ 85°C 110mA
XPL726B00.000000I Renesas Electronics America Inc XP 1.1 GHz LVDS 2.5V ±25ppm -40°C ~ 85°C 85mA
XPL336049.152000I Renesas Electronics America Inc XP 49.152 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 67mA
XPP336050.000000I Renesas Electronics America Inc XP 50 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 94mA
XPL316026.000000I Renesas Electronics America Inc XP 26 MHz LVDS 1.8V ±25ppm -40°C ~ 85°C 66mA
XPL736016.254000I Renesas Electronics America Inc XP 16.254 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 67mA
XPP336207.500000I Renesas Electronics America Inc XP 207.5 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 94mA
XPL336070.656000I Renesas Electronics America Inc XP 70.656 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 67mA
XPP726312.500000I Renesas Electronics America Inc XP 312.5 MHz LVPECL 2.5V ±25ppm -40°C ~ 85°C 110mA
XPP336040.000000I Renesas Electronics America Inc XP 40 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 94mA
XPL726C00.000000I Renesas Electronics America Inc XP 1.2 GHz LVDS 2.5V ±25ppm -40°C ~ 85°C 85mA
XPP336A00.000000I Renesas Electronics America Inc XP 1 GHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 110mA
XPC536156.250000I Renesas Electronics America Inc XP 156.25 MHz CML 3.3V ±25ppm -40°C ~ 85°C 61mA
XPL536200.000000I Renesas Electronics America Inc XP 200 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 67mA
XPL326161.132800I Renesas Electronics America Inc XP 161.1328 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C 66mA
XPL336160.000000I Renesas Electronics America Inc XP 160 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 67mA
XPN326156.250000I Renesas Electronics America Inc XP 156.25 MHz HCSL 2.5V ±25ppm -40°C ~ 85°C 95mA
XPL336830.078125I Renesas Electronics America Inc XP 830.078125 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 85mA
XPL336312.500000I Renesas Electronics America Inc XP 312.5 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 67mA
XPP736159.375000I Renesas Electronics America Inc XP 159.375 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 94mA
XPL526027.000000I Renesas Electronics America Inc XP 27 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C 66mA
XPP536161.132812I Renesas Electronics America Inc XP 161.132812 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 94mA
XPP726156.257813I Renesas Electronics America Inc XP 156.257813 MHz LVPECL 2.5V ±25ppm -40°C ~ 85°C 94mA
XPP726100.000000I Renesas Electronics America Inc XP 100 MHz LVPECL 2.5V ±25ppm -40°C ~ 85°C 94mA
XPP526155.520000I Renesas Electronics America Inc XP 155.52 MHz LVPECL 2.5V ±25ppm -40°C ~ 85°C 94mA
XPL516125.000000I Renesas Electronics America Inc XP 125 MHz LVDS 1.8V ±25ppm -40°C ~ 85°C 66mA
XPL726156.250000I Renesas Electronics America Inc XP 156.25 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C 66mA
XPL726200.000000I Renesas Electronics America Inc XP 200 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C 66mA
XPP516100.000000I Renesas Electronics America Inc XP 100 MHz LVPECL 1.8V ±25ppm -40°C ~ 85°C 93mA
XPP536156.250000I Renesas Electronics America Inc XP 156.25 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 94mA
XPN736156.250000I Renesas Electronics America Inc XP 156.25 MHz HCSL 3.3V ±25ppm -40°C ~ 85°C 83mA
XPP726127.500000I Renesas Electronics America Inc XP 127.5 MHz LVPECL 2.5V ±25ppm -40°C ~ 85°C 94mA
XPL736148.351648I Renesas Electronics America Inc XP 148.351648 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 67mA
XPL526125.000000I Renesas Electronics America Inc XP 125 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C 66mA
XPN736100.000000I Renesas Electronics America Inc XP 100 MHz HCSL 3.3V ±25ppm -40°C ~ 85°C 83mA
XPP526150.000000I Renesas Electronics America Inc XP 150 MHz LVPECL 2.5V ±25ppm -40°C ~ 85°C 94mA
XPP736A00.000000I Renesas Electronics America Inc XP 1 GHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 110mA
XPL736F00.000000I Renesas Electronics America Inc XP 1.5 GHz LVDS 3.3V ±25ppm -40°C ~ 85°C 85mA
XPN536100.000000I Renesas Electronics America Inc XP 100 MHz HCSL 3.3V ±25ppm -40°C ~ 85°C 83mA
XPL736165.000000I Renesas Electronics America Inc XP 165 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 67mA
XPL736200.000000I Renesas Electronics America Inc XP 200 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 67mA
XPL726125.000000I Renesas Electronics America Inc XP 125 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C 66mA
XPL726166.666000I Renesas Electronics America Inc XP 166.666 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C 66mA
XPL736322.265625I Renesas Electronics America Inc XP 322.265625 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C 67mA
XPP535156.25000I Renesas Electronics America Inc XP 156.25 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C 94mA

JLX-6

RB-6

wxewm

公司名：深圳市金洛鑫电子有限公司

联系人：茹红青

手机：13510569637

电话：0755-27837162

QQ号：657116624

微信公众号：CITIZENCRYSTAL

搜狐公众号：晶振石英晶振NDK晶振

邮箱：jinluodz@163.com

地址：深圳市宝安区41区甲岸路19号

网址：http://www.quartzcrystal.cn/

关键词：Renesas晶振 XPL53525.000000K 低抖动晶振 航空航天设备晶振

相关的产品 / Related Products

ASAAIG-24.000MHZ-K-C-S-T,2016有源贴片晶振,Abracon车规晶振
ASAAIG-24.000MHZ-K-C-S-T,2016有源贴片晶振,Abracon车规晶振
ASAAIG-24.000MHZ-K-C-S-T,2016有源贴片晶振,Abracon车规晶振,面向车载以太网网关,CAN总线网关等车载通信枢纽,ASAAIG-24.000MHZ-K-C-S-TAbracon车规晶振以24MHz频点和HCMOS兼容输出,实现多总线数据的精准同步传输.其2016有源贴片封装适配网关主板高密度布局,车规级品质可抵御车内复杂电磁环境和长期振动工况,保障网关在高速数据交互场景下的时序稳定性,提升车载多系统通信的协同效率与数据准确率.
NX3225GD-8MHZ-STD-CRA-3,日产NDK陶瓷晶振,车载设备应用晶振
NX3225GD-8MHZ-STD-CRA-3,日产NDK陶瓷晶振,车载设备应用晶振
NX3225GD-8MHZ-STD-CRA-3,日产NDK陶瓷晶振,车载设备应用晶振,3225标准贴片封装,尺寸紧凑且兼容性强,可轻松融入车载PCB板的高密度布局中,适配车载ECU(电子控制单元),车载传感器等空间受限的设备.贴片式结构支持自动化SMT生产线作业,不仅提升生产效率,还能减少人工焊接误差,保障车载设备批量生产时的一致性与可靠性.
ABM11AIG-40.000MHZ-4-1Z-T3,ABRACO品牌晶振,2016mm宽温晶振
ABM11AIG-40.000MHZ-4-1Z-T3,ABRACO品牌晶振,2016mm宽温晶振
ABM11AIG-40.000MHZ-4-1Z-T3,ABRACON品牌晶振,2016mm宽温晶振,凭借高可靠性与环境耐受性,成为多行业核心设备的优选时钟器件:在工业自动化领域,可作为PLC,变频器的时钟源,抵御车间高低温与电磁干扰;在汽车电子晶振领域,适配车载导航,ADAS系统,满足-40℃至+85℃的车内温度波动需求;在户外通信设备中,为5G基站,卫星接收器提供稳定时钟信号,应对野外极端气候.

JLX-PD

金洛鑫产品系列

PRODUCT LINE

石英晶振
QuartzCrystal

贴片晶振
SMDcrystal

谐振器滤波器
Resonator

温补晶振
TCXOcrystal

32.768K
32768Kcrystal

雾化片
AtomizationPiece

智能穿戴

车载安防

通讯网络

智能玩具

金洛鑫联系方式
咨询热线：0755-27837162

手机：13510569637

QQ：QQ

邮箱：jinluodz@163.com

地址：广东省深圳市宝安区宝安41区甲岸路

地址：广东省深圳市宝安区宝安41区甲岸路

E-mail：jinluodz@163.com

电话：0755-27837162

手机:135 1056 9637

在线ＱＱ：657116624 在线QQ

网站：www.quartzcrystal.cn

金洛鑫公众号
金洛鑫微信号
Copyright © 1996-2017 金洛鑫电子备案号：粤ICP备17072356号-1版权归金洛鑫电子有限公司所有©
