X1M0002210004|6G无线模块晶振|LVDS输出差分晶振

频率：266.5MHZ

尺寸：5.0mm×3.2mm×1.4mm

X1M0002210004|6G无线模块晶振|LVDS输出差分晶振 ,日本爱普生晶振,进口有源晶振,EG-2102CB六脚贴片晶振,X1M0002210004晶振,LVDS输出差分晶振,5032mm石英晶体振荡器,频率266.5MHz,电压3.3V,工作温度-20~70°C,频率稳定性50ppm,低相位抖动晶振,无铅环保晶振,6G无线模块晶振,便携式多媒体设备晶振,网络系统晶振,测试与测量设备晶振,,服务器和存储系统晶振.

订购热线：0755-27837162

X1M0002210004|6G无线模块晶振|LVDS输出差分晶振 ,日本爱普生晶振,进口有源晶振,EG-2102CB六脚贴片晶振,X1M0002210004晶振,LVDS输出差分晶振,5032mm石英晶体振荡器,频率266.5MHz,电压3.3V,工作温度-20~70°C,频率稳定性50ppm,低相位抖动晶振,无铅环保晶振,6G无线模块晶振,便携式多媒体设备晶振,网络系统晶振,测试与测量设备晶振,,服务器和存储系统晶振.

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

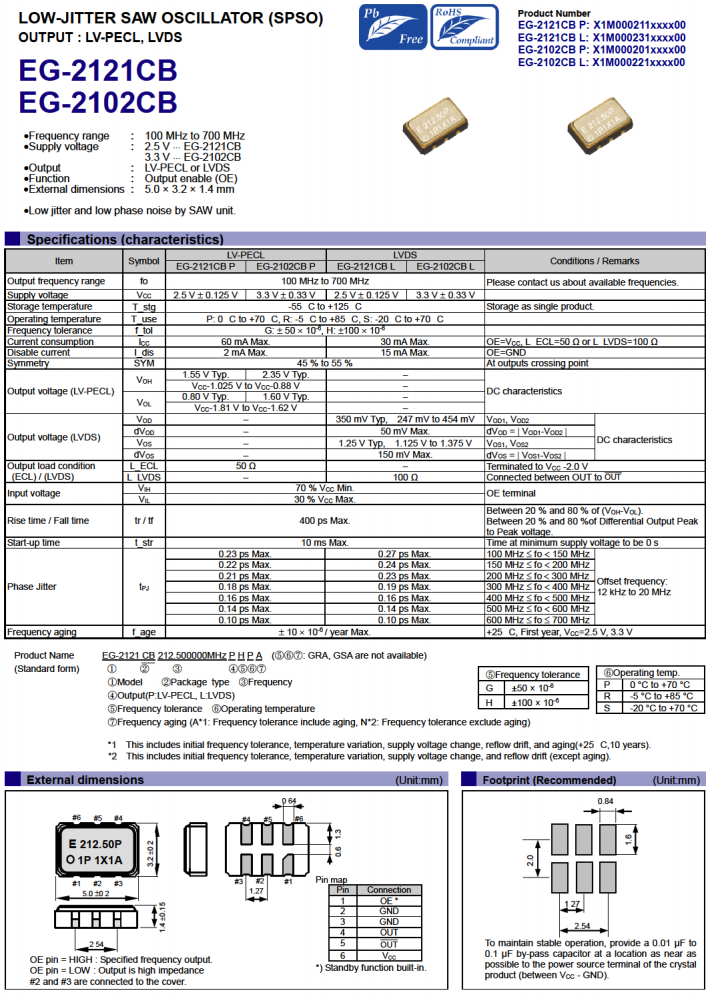

X1M0002210004|6G无线模块晶振|LVDS输出差分晶振参数表

项目	符号	规格说明	条件
额定频率	f_nom	266.5MHz	请联系我们以便获取其它可用频率的相关信息
电源电压	Vcc	3.3V±0.3V
储存温度	T_stg	-55℃~+125℃	裸存
工作温度	T_use	-20℃~ +70℃
频率公差（标准）	f_tol	±50 ppm	+25℃,超出标准的规格说明请联系我们以便获取相关信息
电流消耗	f_tem	30mA Max	OE=Vcc,L LVDS=100Ω
禁用电流	I_dis	15mA Max	OE=GND
对称性	SYM	45%~55%	At outputs crossing point
输出电压	VOD	350MV Typ	DC charactenistics
输出电压	VOS	1.25V Typ	DC charactenistics
输出负载条件（LVDS）	L_LVDS	100Ω	Terminated to GND
输入电压	VIH	70%Vcc Min	OE terminal
输入电压	VIL	30%Vcc Max	OE terminal
上升下降时间	tr/tf	400ps Max	Between 0.175V and 0.525V of output
起始时间	t str	10ms Max	Time at minimum supply voltage to be 0
相位抖动	tpj	0.23ps Max	200MHz≤fo<300MHz
老化	f_aging	±10ppm/year	+25℃,第一年，Vcc=2.5V,3.3V

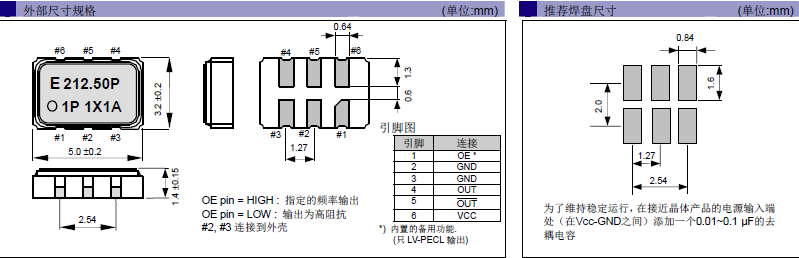

X1M0002210004|6G无线模块晶振|LVDS输出差分晶振尺寸图

编码	型号	频率	LxWxH/尺寸	输出方式	电源电压	工作温度	频率偏差
X1M0002010001	EG-2102CB	133.330000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C	+/-50 ppm
X1M0002010002	EG-2102CB	150.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C	+/-50 ppm
X1M0002010003	EG-2102CB	133.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C	+/-50 ppm
X1M0002010004	EG-2102CB	156.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C	+/-50 ppm
X1M0002010005	EG-2102CB	212.500000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1M0002010006	EG-2102CB	644.531300 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C	+/-50 ppm
X1M0002010007	EG-2102CB	625.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C	+/-100 ppm
X1M0002010008	EG-2102CB	100.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M0002010009	EG-2102CB	150.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C	+/-50 ppm
X1M0002010010	EG-2102CB	106.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M0002110001	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C	+/-50 ppm
X1M0002110002	EG-2121CB	212.500000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C	+/-50 ppm
X1M0002110003	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C	+/-50 ppm
X1M0002110004	EG-2121CB	322.265625 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C	+/-50 ppm
X1M0002210002	EG-2102CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C	+/-100 ppm
X1M0002210003	EG-2102CB	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C	+/-100 ppm
X1M0002210004	EG-2102CB	266.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1M0002210005	EG-2102CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1M0002210006	EG-2102CB	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1M0002210007	EG-2102CB	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M0002210008	EG-2102CB	148.351648 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C	+/-50 ppm
X1M0002210009	EG-2102CB	148.350000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1M0002210010	EG-2102CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1M0002210011	EG-2102CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C	+/-50 ppm
X1M0002310002	EG-2121CB	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C	+/-100 ppm
X1M0002310003	EG-2121CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C	+/-50 ppm
X1M0002310004	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C	+/-100 ppm
X1M0002310005	EG-2121CB	402.832000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C	+/-100 ppm
X1M0002310006	EG-2121CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	-20 to 70 °C	+/-50 ppm
X1M0002310007	EG-2121CB	133.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C	+/-50 ppm
X1M0002310010	EG-2121CB	500.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C	+/-50 ppm
X1M0002310011	EG-2121CB	402.832031 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C	+/-50 ppm
X1M0002310013	EG-2121CB	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C	+/-50 ppm
X1M0002310014	EG-2121CB	441.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C	+/-50 ppm
X1M0002310015	EG-2121CB	625.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C	+/-50 ppm
X1M0002310016	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C	+/-50 ppm
X1M0002310017	EG-2121CB	644.531250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C	+/-100 ppm
X1M0002310018	EG-2121CB	322.265625 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C	+/-100 ppm
X1M0002310019	EG-2121CB	233.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C	+/-50 ppm
X1M0002310020	EG-2121CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C	+/-50 ppm
X1M0002310021	EG-2121CB	644.531250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C	+/-50 ppm
X1M0002810003	EG-2103CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C	+/-100 ppm
X1M0002810004	EG-2103CB	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C	+/-100 ppm
X1M0002810006	EG-2103CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C	+/-100 ppm
