XXHCCCNANF-25.000000,Taitien泰艺晶振,3225贴片无源晶振

当前位置：首页 » 石英晶振 » XXHCCCNANF-25.000000,Taitien泰艺晶振,3225贴片无源晶振

prevnext

XXHCCCNANF-25.000000,Taitien泰艺晶振,3225贴片无源晶振

频率：25MHz

尺寸：3.20mm x 2.50mm

XXHCCCNANF-25.000000,Taitien泰艺晶振,3225贴片无源晶振,该晶振采用行业通用的3225标准贴片封装(尺寸3.2mm×2.5mm×0.7mm),相较于传统插件式晶振,体积缩小60%以上,完美适配消费电子,便携设备对内部空间的严苛要求--例如在智能手表,无线耳机等小型设备中,可灵活嵌入PCB板边缘或多层板夹层,为电池,传感器等关键元器件预留更多安装空间.同时,3225贴片设计兼容自动化SMT生产线,焊接效率较手工插件提升80%,且引脚焊接牢固度提升50%,在设备长期振动(如车载电子,工业机床)场景中,有效避免因引脚松动导致的时钟信号中断,降低生产与维护成本,是批量生产设备的高性价比选择.

订购热线：0755-27837162

XXHCCCNANF-25.000000,Taitien泰艺晶振,3225贴片无源晶振

XXHCCCNANF-25.000000作为Taitien泰艺旗下经典的3225贴片无源晶振,以25.000000MHz超高精度频率输出,精准匹配消费电子,工业控制,物联网终端晶振等多领域的时钟信号诉求.在消费电子领域,如智能电视,机顶盒的音视频同步场景中,该频率可确保音画传输延迟≤10ms,避免出现画面卡顿,声音错位等问题,在工业控制领域,适配PLC(可编程逻辑控制器)的指令执行时序,保障电机驱动,传感器数据采集的同步性,误差控制在±0.1%以内,在物联网终端(如智能门锁,环境监测设备)中,稳定的时钟信号能支撑无线通信模块(如WiFi,蓝牙)的高频数据交互,传输速率可达2Mbps以上.其出厂前经泰艺专利的"激光微调校准工艺",频率误差严格控制在±10ppm以内,可直接与主流主控芯片(如联发科MTK系列,STM32F系列)无缝兼容,无需额外调试即可集成,从源头保障设备稳定运行.

JLX-2

XXHCCCNANF-25.000000,Taitien泰艺晶振,3225贴片无源晶振

原厂型号 Originalmodel：	XXHCCCNANF-25.000000	品牌brand：	Taitien
品牌brand：	Taitien	ESR（等效串联电阻）Resistance)	-
型号名称 Modelname：	XX	温度OperatingTemperature	-20+70
Type系列：	MHz Crystal	脚位Termination：	4pad
频率 frequency：	25M	封装类型PackageType：	4-SMD
FrequencyStability频率稳定度	-	高度PackageHeight：	0.65 mm
frequencytolerance频率容差	±20PPm	最小包装数MPQ：	3000
Loadcapacitance 负载电容	20PF	包装Packaging：	TapeandReel
Size/Dimension尺寸	3225mm谐振器	安装方式MountingStyle：	SurfaceMount

JLX-3

XXHCCCNANF-25.000000,Taitien泰艺晶振,3225贴片无源晶振

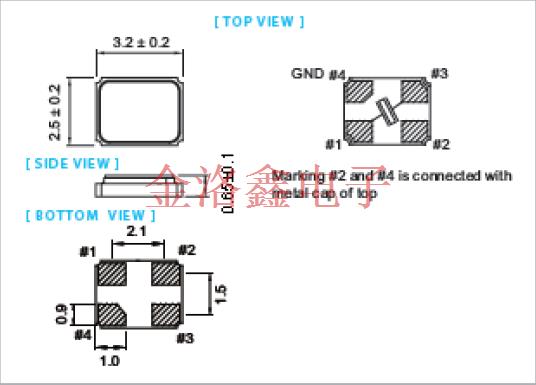

XX 3225

XXHCCCNANF-25.000000,Taitien泰艺晶振,3225贴片无源晶振

NI-10M-3510	Taitien	NI-10M-3500	OCXO	10 MHz	CMOS	5V	±0.2ppb
NI-10M-3560	Taitien	NI-10M-3500	OCXO	10 MHz	CMOS	5V	±0.1ppb
OXETECJANF-40.000000	Taitien	OX	XO (Standard)	40 MHz	CMOS	2.8V ~ 3.3V	±30ppm
OXETGCJANF-25.000000	Taitien	OX	XO (Standard)	25 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXETGLJANF-24.576000	Taitien	OX	XO (Standard)	24.576 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXETHEJANF-12.000000	Taitien	OX	XO (Standard)	12 MHz	CMOS	2.8V ~ 3.3V	±100ppm
OXETGCJANF-36.000000	Taitien	OX	XO (Standard)	36 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXETGLJANF-40.000000	Taitien	OX	XO (Standard)	40 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXETGCJANF-16.000000	Taitien	OX	XO (Standard)	16 MHz	CMOS	3.3V	±50ppm
OXETGCJANF-24.576000	Taitien	OX	XO (Standard)	24.576 MHz	CMOS	3.3V	±50ppm
OXETGCJANF-27.000000	Taitien	OX	XO (Standard)	27 MHz	CMOS	3.3V	±50ppm
OXETGLJANF-16.000000	Taitien	OX	XO (Standard)	16 MHz	CMOS	3.3V	±50ppm
OXKTGLJANF-19.200000	Taitien	OX	XO (Standard)	19.2 MHz	CMOS	1.8V	±50ppm
OXKTGLJANF-26.000000	Taitien	OX	XO (Standard)	26 MHz	CMOS	1.8V	±50ppm
OXETGCJANF-50.000000	Taitien	OX	XO (Standard)	50 MHz	CMOS	3.3V	±50ppm
OXETGCJANF-54.000000	Taitien	OX	XO (Standard)	54 MHz	CMOS	3.3V	±50ppm
OXETGLJANF-27.000000	Taitien	OX	XO (Standard)	27 MHz	CMOS	3.3V	±50ppm
OXKTGLKANF-26.000000	Taitien	OX	XO (Standard)	26 MHz	CMOS	1.8V	±50ppm
OCETDCJTNF-66.000000MHZ	Taitien	OC	XO (Standard)	66 MHz	CMOS	2.8V ~ 3.3V	±25ppm
OXETECJANF-27.000000	Taitien	OX	XO (Standard)	27 MHz	CMOS	2.8V ~ 3.3V	±30ppm
OXETGJJANF-7.680000	Taitien	OX	XO (Standard)	7.68 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OYETCCJANF-12.288000	Taitien	OY	XO (Standard)	12.288 MHz	CMOS	2.8V ~ 3.3V	±20ppm
OXETGLJANF-38.880000	Taitien	OX	XO (Standard)	38.88 MHz	CMOS	3.3V	±50ppm
OCETDCKANF-12.800000	Taitien	OC	XO (Standard)	12.8 MHz	CMOS	3.3V	±25ppm
OCETECJANF-25.000000	Taitien	OC	XO (Standard)	25 MHz	CMOS	3.3V	±30ppm
OCETCCJANF-12.000000	Taitien	OC	XO (Standard)	12 MHz	CMOS	3.3V	±20ppm
OCETCCJANF-25.000000	Taitien	OC	XO (Standard)	25 MHz	CMOS	3.3V	±20ppm
OCETDCKTNF-50.000000	Taitien	OC	XO (Standard)	50 MHz	CMOS	3.3V	±25ppm
OCETDLJANF-2.048000	Taitien	OC	XO (Standard)	2.048 MHz	CMOS	3.3V	±25ppm
OCETELJANF-8.000000	Taitien	OC	XO (Standard)	8 MHz	CMOS	3.3V	±30ppm
OCETGCJANF-12.000000	Taitien	OC	XO (Standard)	12 MHz	CMOS	3.3V	±50ppm
OCETGCJANF-24.576000	Taitien	OC	XO (Standard)	24.576 MHz	CMOS	3.3V	±50ppm
OCETGCJANF-4.000000	Taitien	OC	XO (Standard)	4 MHz	CMOS	3.3V	±50ppm
OCETGCJTNF-100.000000	Taitien	OC	XO (Standard)	100 MHz	CMOS	3.3V	±50ppm
OCETGLJTNF-50.000000	Taitien	OC	XO (Standard)	50 MHz	CMOS	3.3V	±50ppm
OCETGLKANF-20.000000	Taitien	OC	XO (Standard)	20 MHz	CMOS	3.3V	±50ppm
OCETGLKANF-25.000000	Taitien	OC	XO (Standard)	25 MHz	CMOS	3.3V	±50ppm
OCETHCJTNF-100.000000	Taitien	OC	XO (Standard)	100 MHz	CMOS	1.8V	±100ppm
OCKTGLJANF-20.000000	Taitien	OC	XO (Standard)	20 MHz	CMOS	1.8V	±50ppm
OCKTGLJANF-30.000000	Taitien	OC	XO (Standard)	30 MHz	CMOS	1.8V	±50ppm
OCKTGLJANF-12.000000	Taitien	OC	XO (Standard)	12 MHz	CMOS	1.8V	±50ppm
OCKTGLJANF-31.250000	Taitien	OC	XO (Standard)	31.25 MHz	CMOS	1.8V	±50ppm
OCETDCJANF-12.000000	Taitien	OC	XO (Standard)	12 MHz	CMOS	3.3V	±25ppm
OCETDCJTNF-50.000000	Taitien	OC	XO (Standard)	50 MHz	CMOS	3.3V	±25ppm
OCETGCJANF-33.333000	Taitien	OC	XO (Standard)	33.333 MHz	CMOS	3.3V	±50ppm
OCETGLJTNF-66.667000	Taitien	OC	XO (Standard)	66.667 MHz	CMOS	3.3V	±50ppm
OCETGLJANF-27.000000	Taitien	OC	XO (Standard)	27 MHz	CMOS	3.3V	±50ppm
OCETGLJANF-33.333000	Taitien	OC	XO (Standard)	33.333 MHz	CMOS	3.3V	±50ppm
OCETGLJTNF-66.000000	Taitien	OC	XO (Standard)	66 MHz	CMOS	3.3V	±50ppm
OCETGLJTNF-80.000000	Taitien	OC	XO (Standard)	80 MHz	CMOS	3.3V	±50ppm
OCJTDCJANF-25.000000	Taitien	OC	XO (Standard)	25 MHz	CMOS	2.5V	±25ppm
OCKTGLJANF-24.000000	Taitien	OC	XO (Standard)	24 MHz	CMOS	1.8V	±50ppm
OXETGLJANF-12.000000	Taitien	OX	XO (Standard)	12 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXETDLJANF-8.704000	Taitien	OX	XO (Standard)	8.704 MHz	CMOS	2.8V ~ 3.3V	±25ppm
OXKTGCJANF-37.125000	Taitien	OX	XO (Standard)	37.125 MHz	CMOS	1.8V	±50ppm
OXETCLJANF-26.000000	Taitien	OX	XO (Standard)	26 MHz	CMOS	2.8V ~ 3.3V	±20ppm
OXETDLJANF-25.000000	Taitien	OX	XO (Standard)	25 MHz	CMOS	2.8V ~ 3.3V	±25ppm
OXETGLJANF-48.000000	Taitien	OX	XO (Standard)	48 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXJTDLJANF-25.000000	Taitien	OX	XO (Standard)	25 MHz	CMOS	2.5V	±25ppm
OXJTGLJANF-25.000000	Taitien	OX	XO (Standard)	25 MHz	CMOS	2.5V	±50ppm
