XRCHH26M000F1QD8P0|26MHz|2520mm|-30~85°C
频率：26MHZ

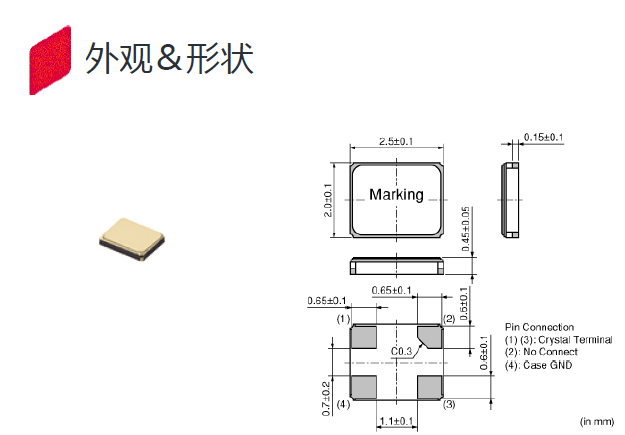

尺寸：2.5mm×2.0mm
XRCHH26M000F1QD8P0|26MHz|2520mm|-30~85°C ,XRCHH26M000F1QD8P0晶振,频率26MHz,尺寸2520mm,工作温度-30~85°C,数码相机晶振,无线通讯设备晶振,超小体积贴片晶振,蓝牙音响耳机晶振,电脑主板晶振,网络终端晶振.
XRCHH26M000F1QD8P0|26MHz|2520mm|-30~85°C ,XRCHH26M000F1QD8P0晶振,频率26MHz,尺寸2520mm,工作温度-30~85°C,数码相机晶振,无线通讯设备晶振,超小体积贴片晶振,蓝牙音响耳机晶振,电脑主板晶振,网络终端晶振.
XRCHH26M000F1QD8P0|26MHz|2520mm|-30~85°C
| 型号 | TAS-2520F |
| 频率 | 26.0000MHz |
| 频率公差 | ±10ppm max.(25±3℃) |
| 工作温度范围 | -30℃ to 85℃ |
| 频率温度特性 | ±15ppm max. |
| 频率老化 | ±1ppm max./year |
| 清洗 | Notavailable |
| 负载电容量 | 8pF |
| 等效串联电阻(max.) | 60Ω |
| 驱动电平(max.) | 60μW |
| 形状 | SMD |
XRCHH26M000F1QD8P0|26MHz|2520mm|-30~85°C
| 原厂编码 | 型号 | 频率 | 频率公差 | 频率温度特性 | 负载电容量 | 工作温度 |
| XRCHH16M000F1QB7P0 | TAS-2520F | 16.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH20M000F1QB1P0 | TAS-2520F | 20.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH26M000F1QD8P0 | TAS-2520F | 26.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH36M000F1QA3P0 | TAS-2520F | 36.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH27M000F1QB3P0 | TAS-2520F | 27.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH28M000F1QB3P0 | TAS-2520F | 28.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH29M000F1QB3P0 | TAS-2520F | 29.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH30M000F1QB3P0 | TAS-2520F | 30.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH31M000F1QB3P0 | TAS-2520F | 31.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH32M000F1QB3P0 | TAS-2520F | 32.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH33M000F1QB3P0 | TAS-2520F | 33.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH34M000F1QB3P0 | TAS-2520F | 34.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH35M000F1QB3P0 | TAS-2520F | 35.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH42M000F1QB3P0 | TAS-2520F | 42.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH37M000F1QB3P0 | TAS-2520F | 37.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH38M000F1QB3P0 | TAS-2520F | 38.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH39M000F1QB3P0 | TAS-2520F | 39.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH40M000F1QB3P0 | TAS-2520F | 40.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH48M000F1QB3P0 | TAS-2520F | 48.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH52M000F1QA2P0 | TAS-2520F | 52.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
