XRCGB27M120F0Z00R0,2016mm,27.12MHz,100ppm,6pf

频率：27.12MHZ

尺寸：2.0mm×1.6mm

XRCGB27M120F0Z00R0,2016mm,27.12MHz,100ppm,6pf,XRCGB27M120F0Z00R0晶振,HCR2016石英晶体,尺寸2016mm,频率27.12MHz,精度100ppm,负载电容6pf,数字电表晶振,智能家居晶振,医疗设备晶振,无线模块应用晶振.

订购热线：0755-27837162

CT-1

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

XRCGB27M120F0Z00R0,2016mm,27.12MHz,100ppm,6pf

型号	HCR2016
频率	27.1200MHz
频率公差	±10ppm max.(25±3℃)
工作温度范围	-40℃ to 105℃
频率温度特性	±100ppm max.
频率老化	±5ppm max./year
清洗	Notavailable
负载电容量	6pF
等效串联电阻(max.)	150Ω
驱动电平(max.)	300μW
形状	SMD

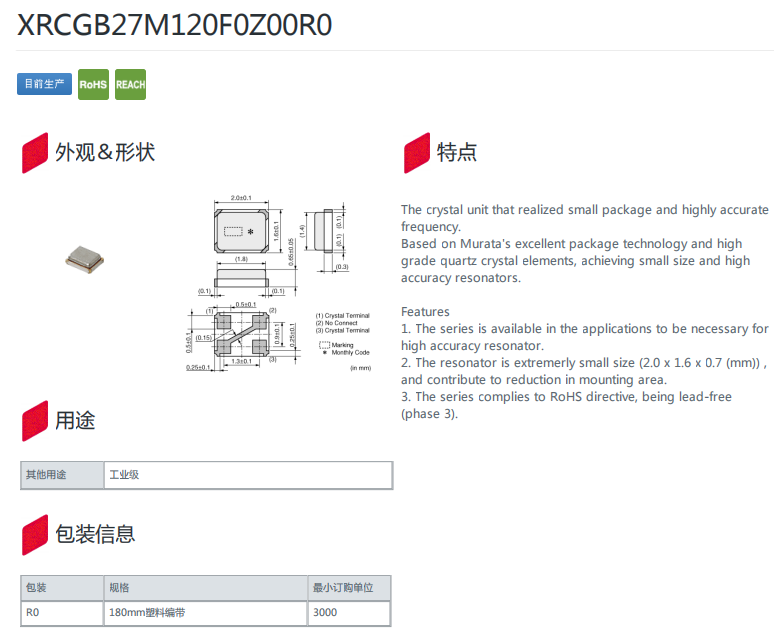

XRCGB27M120F0Z00R0,2016mm,27.12MHz,100ppm,6pf 特性

1. 该系列适用于各种应用场合，是高精度谐振器

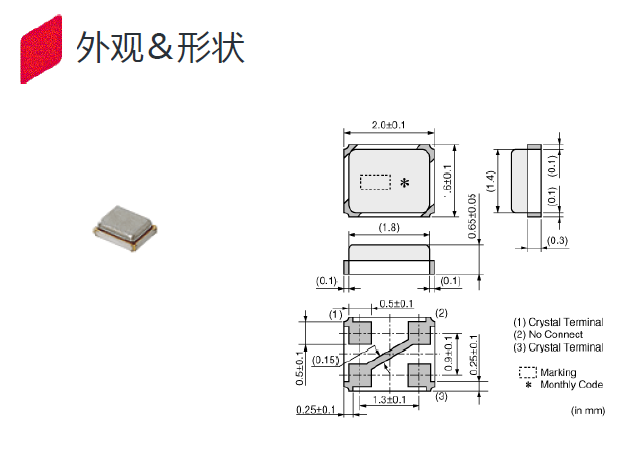

2.谐振器的尺寸非常小(2.0 x 1.6 x 0.7 (mm))，并有助于减少安装面积

3.该系列产品符合RoHS指令，无铅

4.基于村田公司优良的封装技术和高优质石英晶体元件，实现小尺寸、高品质准确性谐振器

XRCGB27M120F0Z00R0,2016mm,27.12MHz,100ppm,6pf

原厂编码	型号	频率	频率公差	频率温度特性	负载电容量	工作温度
XRCGB24M000F0G00R0	HCR2016	24.0000MHz	±100ppm	±50ppm	6pF	-40℃ to 85℃
XRCGB24M000F0L00R0	HCR2016	24.0000MHz	±100ppm	±50ppm	6pF	-30℃ to 85℃
XRCGB24M000F0Z00R0	HCR2016	24.0000MHz	±100ppm	±100ppm	6pF	-40℃ to 105℃
XRCGB24M000F1H00R0	HCR2016	24.0000MHz	±10ppm	±10ppm	6pF	-20℃ to 70℃
XRCGB24M000F1H01R0	HCR2016	24.0000MHz	±10ppm	±10ppm	8pF	-20℃ to 70℃
XRCGB24M000F1H02R0	HCR2016	24.0000MHz	±10ppm	±10ppm	10pF	-20℃ to 70℃
XRCGB24M000F1H03R0	HCR2016	24.0000MHz	±10ppm	±10ppm	12pF	-20℃ to 70℃
XRCGB24M000F2P00R0	HCR2016	24.0000MHz	±20ppm	±20ppm	6pF	-30℃ to 85℃
XRCGB24M000F2P01R0	HCR2016	24.0000MHz	±20ppm	±20ppm	8pF	-30℃ to 85℃
XRCGB24M000F2P02R0	HCR2016	24.0000MHz	±20ppm	±20ppm	10pF	-30℃ to 85℃
XRCGB24M000F3A00R0	HCR2016	24.0000MHz	±30ppm	±35ppm	6pF	-40℃ to 125℃
XRCGB24M000F3G00R0	HCR2016	24.0000MHz	±30ppm	±50ppm	6pF	-40℃ to 85℃
XRCGB24M000F3M00R0	HCR2016	24.0000MHz	±30ppm	±40ppm	6pF	-30℃ to 85℃
XRCGB24M000F3M01R0	HCR2016	24.0000MHz	±30ppm	±40ppm	8pF	-30℃ to 85℃
XRCGB24M000F3M02R0	HCR2016	24.0000MHz	±30ppm	±40ppm	10pF	-30℃ to 85℃
XRCGB24M000F3M13R0	HCR2016	24.0000MHz	±30ppm	±40ppm	8.5pF	-30℃ to 85℃
XRCGB24M000F3M19R0	HCR2016	24.0000MHz	±30ppm	±40ppm	6pF	-40℃ to 85℃
XRCGB24M000F3N00R0	HCR2016	24.0000MHz	±30ppm	±30ppm	6pF	-20℃ to 85℃
XRCGB24M000FAN00R0	HCR2016	24.0000MHz	±25ppm	±25ppm	6pF	-10℃ to 70℃
XRCGB24M000FBP12R0	HCR2016	24.0000MHz	±15ppm	±20ppm	6pF	-30℃ to 85℃
XRCGB24M576F0G00R0	HCR2016	24.5760MHz	±100ppm	±50ppm	6pF	-40℃ to 85℃
XRCGB24M576F0L00R0	HCR2016	24.5760MHz	±100ppm	±50ppm	6pF	-30℃ to 85℃
XRCGB24M576F0Z00R0	HCR2016	24.5760MHz	±100ppm	±100ppm	6pF	-40℃ to 100℃
XRCGB24M576F3G00R0	HCR2016	24.5760MHz	±30ppm	±50ppm	6pF	-40℃ to 85℃
XRCGB24M576F3M00R0	HCR2016	24.5760MHz	±30ppm	±40ppm	6pF	-30℃ to 85℃
XRCGB24M576F3M01R0	HCR2016	24.5760MHz	±30ppm	±40ppm	8pF	-30℃ to 85℃
XRCGB24M576F3M02R0	HCR2016	24.5760MHz	±30ppm	±40ppm	10pF	-30℃ to 85℃
XRCGB24M576F3N00R0	HCR2016	24.5760MHz	±30ppm	±30ppm	6pF	-30℃ to 85℃
XRCGB24M576FAN00R0	HCR2016	24.5760MHz	±25ppm	±25ppm	6pF	-10℃ to 70℃
XRCGB25M000F0G00R0	HCR2016	25.0000MHz	±100ppm	±50ppm	6pF	-40℃ to 85℃
XRCGB25M000F0L00R0	HCR2016	25.0000MHz	±100ppm	±50ppm	6pF	-30℃ to 85℃
XRCGB25M000F0Z00R0	HCR2016	25.0000MHz	±100ppm	±100ppm	6pF	-40℃ to 105℃
XRCGB25M000F1H00R0	HCR2016	25.0000MHz	±10ppm	±10ppm	6pF	-20℃ to 70℃
XRCGB25M000F1H01R0	HCR2016	25.0000MHz	±10ppm	±10ppm	8pF	-20℃ to 70℃
XRCGB25M000F1H02R0	HCR2016	25.0000MHz	±10ppm	±10ppm	10pF	-20℃ to 70℃
XRCGB25M000F1H03R0	HCR2016	25.0000MHz	±10ppm	±10ppm	12pF	-20℃ to 70℃
XRCGB25M000F2P00R0	HCR2016	25.0000MHz	±20ppm	±20ppm	6pF	-30℃ to 85℃
XRCGB25M000F2P01R0	HCR2016	25.0000MHz	±20ppm	±20ppm	8pF	-30℃ to 85℃
XRCGB25M000F2P02R0	HCR2016	25.0000MHz	±20ppm	±20ppm	10pF	-30℃ to 85℃
XRCGB25M000F3A00R0	HCR2016	25.0000MHz	±30ppm	±35ppm	6pF	-40℃ to 125℃
XRCGB25M000F3G00R0	HCR2016	25.0000MHz	±30ppm	±50ppm	6pF	-40℃ to 85℃
XRCGB25M000F3M00R0	HCR2016	25.0000MHz	±30ppm	±40ppm	6pF	-30℃ to 85℃
XRCGB25M000F3M01R0	HCR2016	25.0000MHz	±30ppm	±40ppm	8pF	-30℃ to 85℃
XRCGB25M000F3M02R0	HCR2016	25.0000MHz	±30ppm	±40ppm	10pF	-30℃ to 85℃
XRCGB25M000F3M04R0	HCR2016	25.0000MHz	±30ppm	±40ppm	4.5pF	-30℃ to 85℃
XRCGB25M000F3M18R0	HCR2016	25.0000MHz	±30ppm	±40ppm	12pF	-30℃ to 85℃
XRCGB25M000F3N00R0	HCR2016	25.0000MHz	±30ppm	±30ppm	6pF	-20℃ to 85℃
