当前位置：首页 » 石英晶振 » 加高晶振 » X2B016000BZ1H-V晶振,加高台产石英晶体,航空航天晶振
X2B016000BZ1H-V晶振,加高台产石英晶体,航空航天晶振
prevnext

X2B016000BZ1H-V晶振,加高台产石英晶体,航空航天晶振

频率：16MHZ

尺寸：2.5x 2.0mm

X2B016000BZ1H-V晶振,加高台产石英晶体,航空航天晶振，台湾加高晶振公司，HELE晶振，6G无线应用晶振，HSX221SA晶振，进口晶振，2520晶振，X2B016000BZ1H-V晶振,耐热性晶振，高稳定性晶振，6G无线应用晶振，射频应用晶振，物料网应用晶振，RFID应用晶振.特点 :微型超薄贴片产品尺寸（2.5×2.0× 0.5 max)精度高，可靠性好，耐热性好射频应用、无线模块设备、RFID应用和其他消费类产品的最佳解决方案
订购热线：0755-27837162
QQ咨询 点击这里给我发消息

JG-2

X2B016000BZ1H-V晶振,加高台产石英晶体,航空航天晶振，台湾加高晶振公司，HELE晶振，6G无线应用晶振，HSX221SA晶振，进口晶振，2520晶振，X2B016000BZ1H-V晶振,耐热性晶振，高稳定性晶振，6G无线应用晶振，射频应用晶振，物料网应用晶振，RFID应用晶振.特点 :微型超薄贴片产品尺寸（2.5×2.0× 0.5 max)精度高，可靠性好，耐热性好射频应用、无线模块设备、RFID应用和其他消费类产品的最佳解决方案

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

X2B016000BZ1H-V晶振,加高台产石英晶体,航空航天晶振

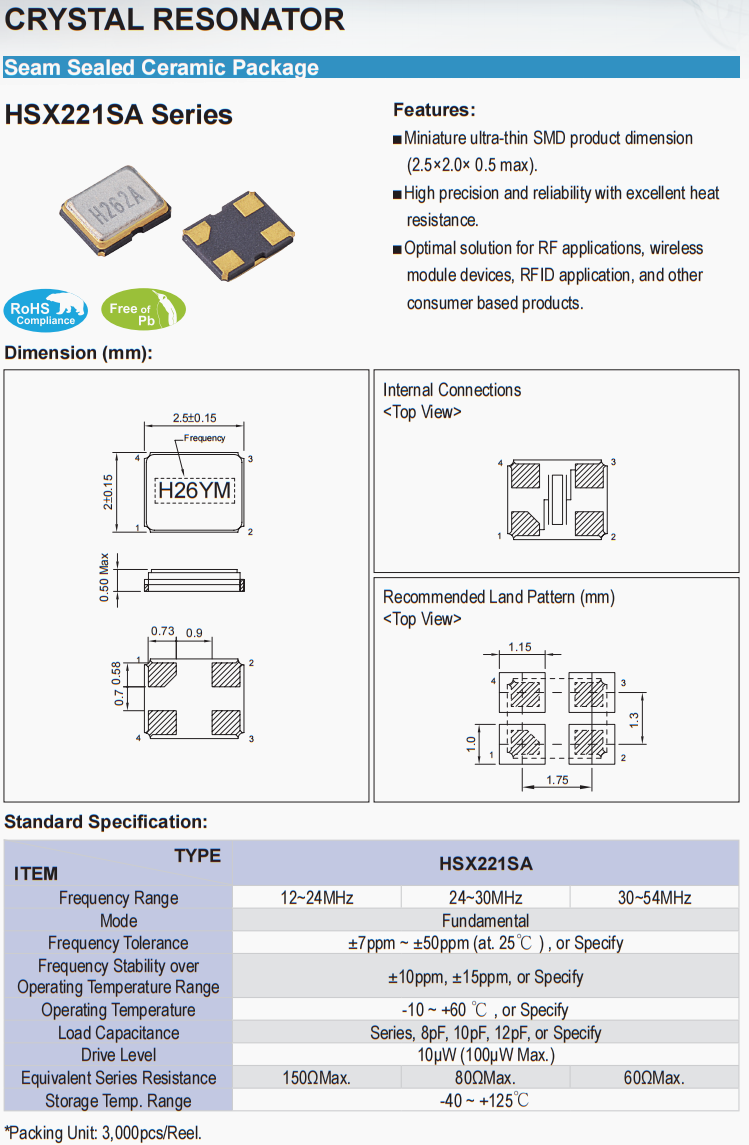

项目 HSX221SA
频率范围 12~24MHz 24~30MHz 30~54MHz
工作模式 Fundamental
频率容差 ±7ppm ~ ±50ppm (at. 25℃ ) , or Specify
温度范围内的频率稳定度 ±10ppm, ±15ppm, or Specify
工作温度 -10 ~ +60 ℃ , or Specify
负载电荷 Series, 8pF, 10pF, 12pF, or Specify
驱动电平 10μW (100μW Max.)
等效串联电阻 150ΩMax. 80ΩMax. 60ΩMax.
储存温度范围 ‘-40 ~ +125℃

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

X2B016000BZ1H-V晶振,加高台产石英晶体,航空航天晶振

HSX221SA 2520

HSX221SA

原厂编码 制造厂家 型号 频率 负载 频率容差 频率稳定性 工作温度 尺寸
X2B02863ADC1H-W HELE晶振 HSX221SA 28.636360MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B010000ADC1H-W HELE晶振 HSX221SA 10MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B011000ADC1H-W HELE晶振 HSX221SA 11MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B012000ADC1H-W HELE晶振 HSX221SA 12MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B013000ADC1H-W HELE晶振 HSX221SA 13MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B014000ADC1H-W HELE晶振 HSX221SA 14MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B015000ADC1H-W HELE晶振 HSX221SA 15MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B016000ADC1H-W HELE晶振 HSX221SA 16MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B017000ADC1H-W HELE晶振 HSX221SA 17MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B018000ADC1H-W HELE晶振 HSX221SA 18MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B019000ADC1H-W HELE晶振 HSX221SA 19MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B020000ADC1H-W HELE晶振 HSX221SA 20MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B021000ADC1H-W HELE晶振 HSX221SA 21MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B022000ADC1H-W HELE晶振 HSX221SA 22MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B023000ADC1H-W HELE晶振 HSX221SA 23MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B024000ADC1H-W HELE晶振 HSX221SA 24MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B025000ADC1H-W HELE晶振 HSX221SA 25MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B026000ADC1H-W HELE晶振 HSX221SA 26MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B027000ADC1H-W HELE晶振 HSX221SA 27MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B028000ADC1H-W HELE晶振 HSX221SA 28MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B029000ADC1H-W HELE晶振 HSX221SA 29MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B030000ADC1H-W HELE晶振 HSX221SA 30MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B031000ADC1H-W HELE晶振 HSX221SA 31MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B032000ADC1H-W HELE晶振 HSX221SA 32MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B033000ADC1H-W HELE晶振 HSX221SA 33MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B034000ADC1H-W HELE晶振 HSX221SA 34MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B035000ADC1H-W HELE晶振 HSX221SA 35MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B036000ADC1H-W HELE晶振 HSX221SA 36MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B037000ADC1H-W HELE晶振 HSX221SA 37MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B038000ADC1H-W HELE晶振 HSX221SA 38MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B039000ADC1H-W HELE晶振 HSX221SA 39MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B040000ADC1H-W HELE晶振 HSX221SA 40MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B038400BA1H-U HELE晶振 HSX221SA 38.4MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B016000BA1H-U HELE晶振 HSX221SA 16MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B017000BA1H-U HELE晶振 HSX221SA 17MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B018000BA1H-U HELE晶振 HSX221SA 18MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B019000BA1H-U HELE晶振 HSX221SA 19MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B020000BA1H-U HELE晶振 HSX221SA 20MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B021000BA1H-U HELE晶振 HSX221SA 21MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B022000BA1H-U HELE晶振 HSX221SA 22MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B023000BA1H-U HELE晶振 HSX221SA 23MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B024000BA1H-U HELE晶振 HSX221SA 24MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B025000BA1H-U HELE晶振 HSX221SA 25MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B026000BA1H-U HELE晶振 HSX221SA 26MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B027000BA1H-U HELE晶振 HSX221SA 27MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B028000BA1H-U HELE晶振 HSX221SA 28MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B029000BA1H-U HELE晶振 HSX221SA 29MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B030000BA1H-U HELE晶振 HSX221SA 30MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B031000BA1H-U HELE晶振 HSX221SA 31MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B032000BA1H-U HELE晶振 HSX221SA 32MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B033000BA1H-U HELE晶振 HSX221SA 33MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B034000BA1H-U HELE晶振 HSX221SA 34MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B035000BA1H-U HELE晶振 HSX221SA 35MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B036000BA1H-U HELE晶振 HSX221SA 36MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B037000BA1H-U HELE晶振 HSX221SA 37MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B038000BA1H-U HELE晶振 HSX221SA 38MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B039000BA1H-U HELE晶振 HSX221SA 39MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B040000BA1H-U HELE晶振 HSX221SA 40MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B041000BA1H-U HELE晶振 HSX221SA 41MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B042000BA1H-U HELE晶振 HSX221SA 42MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B043000BA1H-U HELE晶振 HSX221SA 43MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B044000BA1H-U HELE晶振 HSX221SA 44MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B045000BA1H-U HELE晶振 HSX221SA 45MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B046000BA1H-U HELE晶振 HSX221SA 46MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
