NX2012SA-32.768K-STD-MUB-1,NDK小体积晶振,-40~85°C

频率：32.768KHz

尺寸：2.0mm×1.2mm

NX2012SA-32.768K-STD-MUB-1,NDK小体积晶振,-40~85°C ,NX2012SA-32.768K-STD-MUB-1晶振,日本NDK晶振,小体积晶振,工作温度-40~85°C,负载12.5pf,精度20ppm,32.768KHz晶振,2012mm晶振,石英晶体谐振器,无线通信晶振,小型移动设备晶振,家电影音系统晶振,办公自动化晶振.

订购热线：0755-27837162

NX2012SA-32.768K-STD-MUB-1,NDK小体积晶振,-40~85°C 特点

超紧凑,薄,重量轻音叉晶体单位

●紧凑,轻薄(2.0× 1.2 × 0.55mm)

●优异的电气性能，适用于移动通信、办公办公自动化)和AV(视听)应用展示

●表面贴装晶体振荡器(回流焊是可能的)

●通过无铅认证,满足使用无铅焊料的回流剖面要求

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

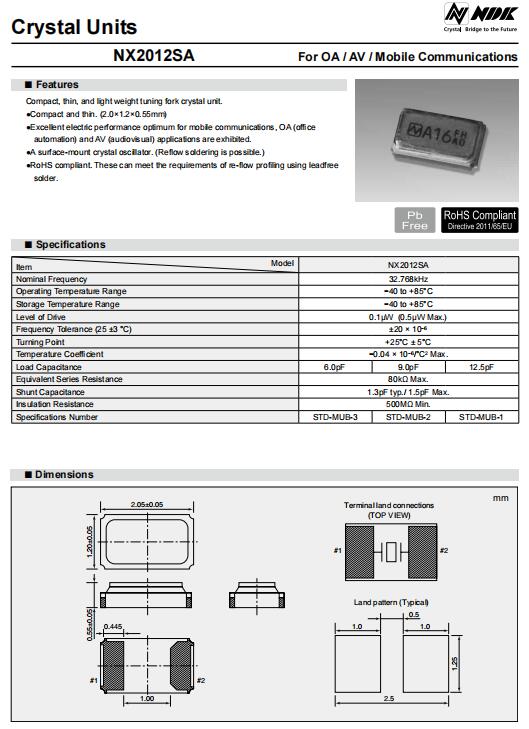

NX2012SA-32.768K-STD-MUB-1,NDK小体积晶振,-40~85°C 参数表

规格参数	NX2012SA
频率	32.768KHz
频率公差 (25 ±3 °C)	± 20PPM
温度系数	−0.04 × 10−6/°C2 Max.
工作温度	-40°C to +85°C
保存温度	-40°C to +85°C
等效串联电阻(ESR)	80 KΩ
驱动电平	0.5 μW Max
负载电容 (CL)	12.5 pF
并联电容	1.3pF typ./ 1.5pF Max
绝缘电阻	500MΩ Min.
规格编号	STD-MUD-1

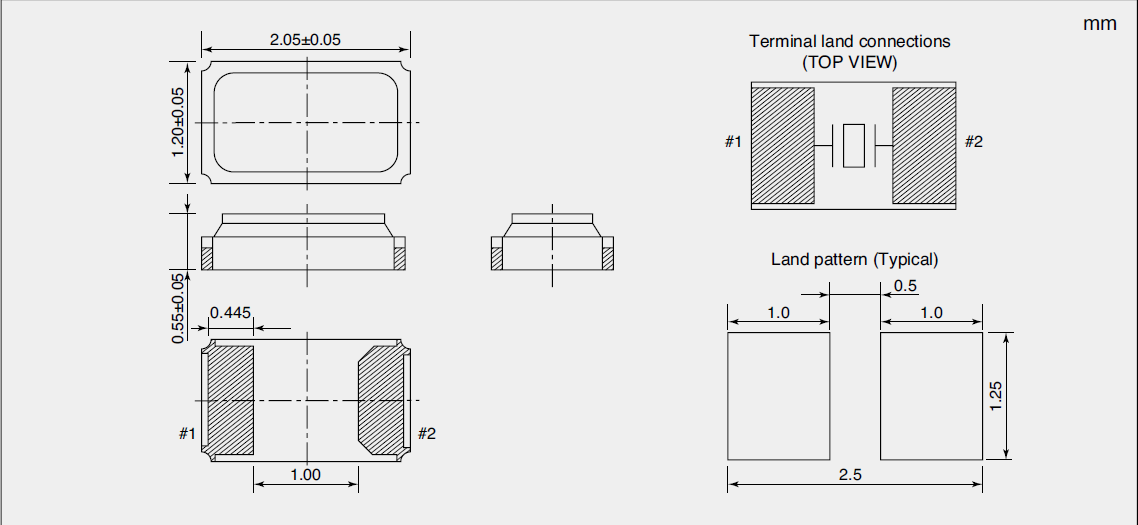

NX2012SA-32.768K-STD-MUB-1,NDK小体积晶振,-40~85°C 尺寸图

原厂编码	生产厂家	型号	频率	频率偏差	负载电容	工作温度	尺寸
NX3215SA-32.768K-STD-MUA-8	NDK晶振	NX3215SA	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
NX3215SA-32.768K-STD-MUA-8	NDK晶振	NX3215SA	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
NX3215SA-32.768K-STD-MUA-8	NDK晶振	NX3215SA	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
NX3215SA-32.768K-STD-MUA-9	NDK晶振	NX3215SA	32.768kHz	±20ppm	9pF	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
NX3215SA-32.768K-STD-MUA-9	NDK晶振	NX3215SA	32.768kHz	±20ppm	9pF	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
NX3215SA-32.768K-STD-MUA-9	NDK晶振	NX3215SA	32.768kHz	±20ppm	9pF	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
NX3215SA-32.768K-STD-MUA-14	NDK晶振	NX3215SA	32.768kHz	±20ppm	6pF	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
NX3215SA-32.768K-STD-MUA-14	NDK晶振	NX3215SA	32.768kHz	±20ppm	6pF	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
NX3215SA-32.768K-STD-MUA-14	NDK晶振	NX3215SA	32.768kHz	±20ppm	6pF	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
NX3215SA-32.768K-STD-MUS-2	NDK晶振	NX3215SA	32.768kHz	±20ppm	12.5pF	-40°C ~ 125°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
NX3215SA-32.768K-STD-MUS-2	NDK晶振	NX3215SA	32.768kHz	±20ppm	12.5pF	-40°C ~ 125°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
NX3215SA-32.768K-STD-MUS-2	NDK晶振	NX3215SA	32.768kHz	±20ppm	12.5pF	-40°C ~ 125°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
NX2012SA-32.768K-STD-MUB-1	NDK晶振	NX2012SA	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C	0.081" L x 0.047" W (2.05mm x 1.20mm)
NX2012SA-32.768K-STD-MUB-1	NDK晶振	NX2012SA	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C	0.081" L x 0.047" W (2.05mm x 1.20mm)
NX2012SA-32.768K-STD-MUB-1	NDK晶振	NX2012SA	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C	0.081" L x 0.047" W (2.05mm x 1.20mm)
NX1610SA-32.768KHZ-EXS00A-MU00658	NDK晶振	NX1610SA	32.768kHz	±20ppm	6pF	-40°C ~ 85°C	0.063" L x 0.039" W (1.60mm x 1.00mm)
NX1610SA-32.768KHZ-EXS00A-MU00658	NDK晶振	NX1610SA	32.768kHz	±20ppm	6pF	-40°C ~ 85°C	0.063" L x 0.039" W (1.60mm x 1.00mm)
NX1610SA-32.768KHZ-EXS00A-MU00658	NDK晶振	NX1610SA	32.768kHz	±20ppm	6pF	-40°C ~ 85°C	0.063" L x 0.039" W (1.60mm x 1.00mm)
