NX1610SA-32.768KHZ-EXS00A-MU00658,32.768KHz,1610mm
频率：32.768KHz
尺寸：1.6mm×1.0mm
NX1610SA-32.768KHZ-EXS00A-MU00658,32.768KHz,1610mm ,日本NDK晶振,NX1610SA-32.768KHZ-EXS00A-MU00658晶振,32.768KHz晶振,1610mm晶振,超小型晶振,两脚贴片晶振,石英晶体谐振器,移动通信晶振,办公自动化晶振,多媒体视听设备晶振,影音设备晶振.
NX1610SA-32.768KHZ-EXS00A-MU00658,32.768KHz,1610mm ,日本NDK晶振,NX1610SA-32.768KHZ-EXS00A-MU00658晶振,32.768KHz晶振,1610mm晶振,超小型晶振,两脚贴片晶振,石英晶体谐振器,移动通信晶振,办公自动化晶振,多媒体视听设备晶振,影音设备晶振.
NX1610SA-32.768KHZ-EXS00A-MU00658,32.768KHz,1610mm 特点
超紧凑,薄,重量轻音叉晶体单位
●超薄紧凑(1.6× 1.0 × 0.45mm)
●优异的电气性能，适用于移动通信、办公办公自动化)和AV(视听)应用展示
●表面贴装晶体振荡器(回流焊是可能的)
●无铅。满足使用无铅焊料的回流剖面要求

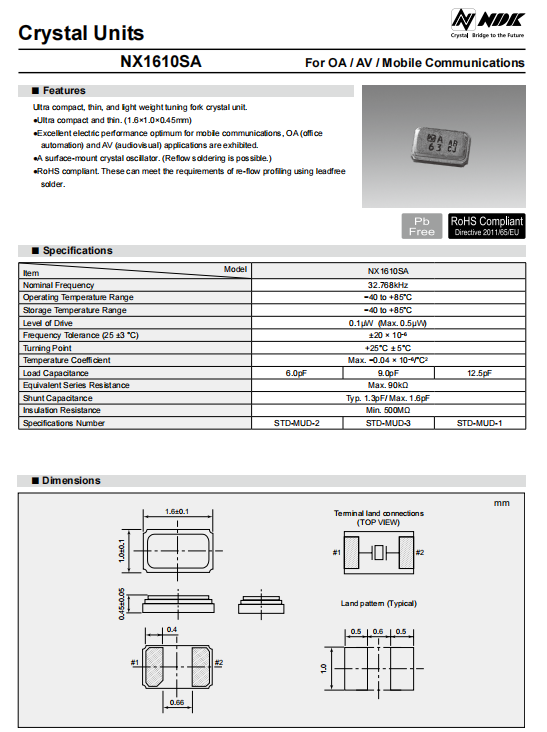

NX1610SA-32.768KHZ-EXS00A-MU00658,32.768KHz,1610mm 参数表
| 规格参数 | NX1610SA |
| 频率 | 32.768KHz |
| 频率公差 (25 ±3 °C) | ± 20PPM |
| 温度系数 | Max. −0.04 × 10−6/°C2 |
| 工作温度 | -40°C to +85°C |
| 保存温度 | -40°C to +85°C |
| 等效串联电阻(ESR) | 90 KΩ |
| 驱动电平 | 5.0 μW Max |
| 负载电容 (CL) | 6 pF |
| 并联电容 |
Typ. 1.3pF/ Max. 1.6pF |
| 绝缘电阻 |
Min. 500MΩ |
| 规格编号 | STD-MUD-2 |

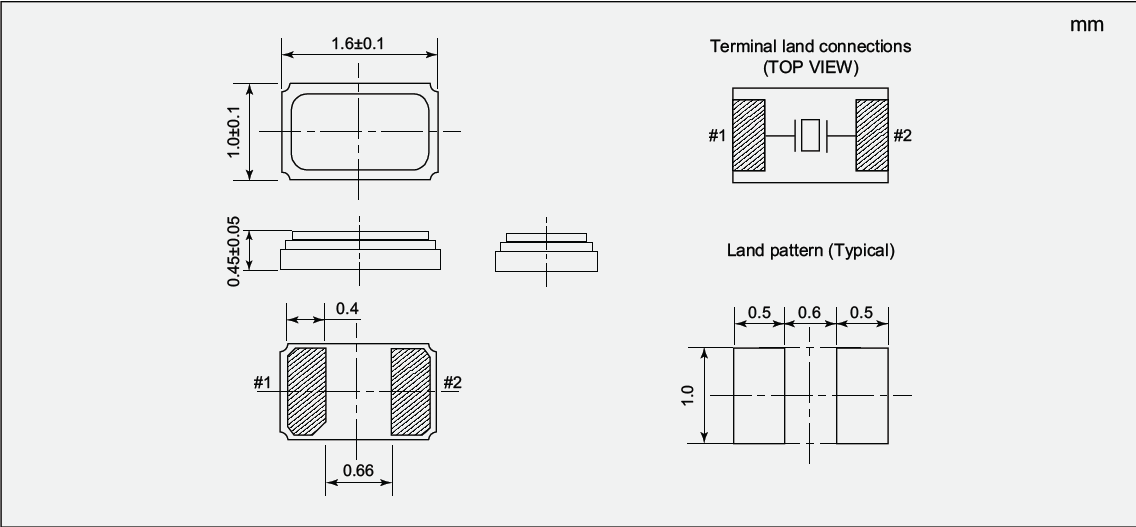

NX1610SA-32.768KHZ-EXS00A-MU00658,32.768KHz,1610mm 尺寸图
| 原厂编码 | 生产厂家 | 型号 | 频率 | 频率偏差 | 负载电容 | 工作温度 | 尺寸 |
| NX3215SA-32.768K-STD-MUA-8 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| NX3215SA-32.768K-STD-MUA-8 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| NX3215SA-32.768K-STD-MUA-8 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| NX3215SA-32.768K-STD-MUA-9 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 9pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| NX3215SA-32.768K-STD-MUA-9 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 9pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| NX3215SA-32.768K-STD-MUA-9 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 9pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| NX3215SA-32.768K-STD-MUA-14 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 6pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| NX3215SA-32.768K-STD-MUA-14 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 6pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| NX3215SA-32.768K-STD-MUA-14 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 6pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| NX3215SA-32.768K-STD-MUS-2 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 125°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| NX3215SA-32.768K-STD-MUS-2 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 125°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| NX3215SA-32.768K-STD-MUS-2 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 125°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| NX2012SA-32.768K-STD-MUB-1 | NDK晶振 | NX2012SA | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C | 0.081" L x 0.047" W (2.05mm x 1.20mm) |
| NX2012SA-32.768K-STD-MUB-1 | NDK晶振 | NX2012SA | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C | 0.081" L x 0.047" W (2.05mm x 1.20mm) |
| NX2012SA-32.768K-STD-MUB-1 | NDK晶振 | NX2012SA | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C | 0.081" L x 0.047" W (2.05mm x 1.20mm) |
| NX1610SA-32.768KHZ-EXS00A-MU00658 | NDK晶振 | NX1610SA | 32.768kHz | ±20ppm | 6pF | -40°C ~ 85°C | 0.063" L x 0.039" W (1.60mm x 1.00mm) |
| NX1610SA-32.768KHZ-EXS00A-MU00658 | NDK晶振 | NX1610SA | 32.768kHz | ±20ppm | 6pF | -40°C ~ 85°C | 0.063" L x 0.039" W (1.60mm x 1.00mm) |
| NX1610SA-32.768KHZ-EXS00A-MU00658 | NDK晶振 | NX1610SA | 32.768kHz | ±20ppm | 6pF | -40°C ~ 85°C | 0.063" L x 0.039" W (1.60mm x 1.00mm) |
