ECS-200-20-4VX,ECS进口晶振,20MHz,20pf

频率：20MHZ

尺寸：11.35×5.0mm

ECS-200-20-4VX,ECS进口晶振,20MHz,20pf,ECS-200-20-4VX晶振,ECS进口晶振,HC-49USSX插件晶振,美国晶振,石英晶体谐振器,频率20MHz,负载20pf,工作温度-10~70°C,无源晶振,无铅环保晶振,家用电视机顶盒晶振,智能家居晶振,数码影音晶振,数字水表晶振.

订购热线：0755-27837162

陶瓷面封装谐振器,4.0*2.5mm小体积SMD晶振,ECX-42晶振

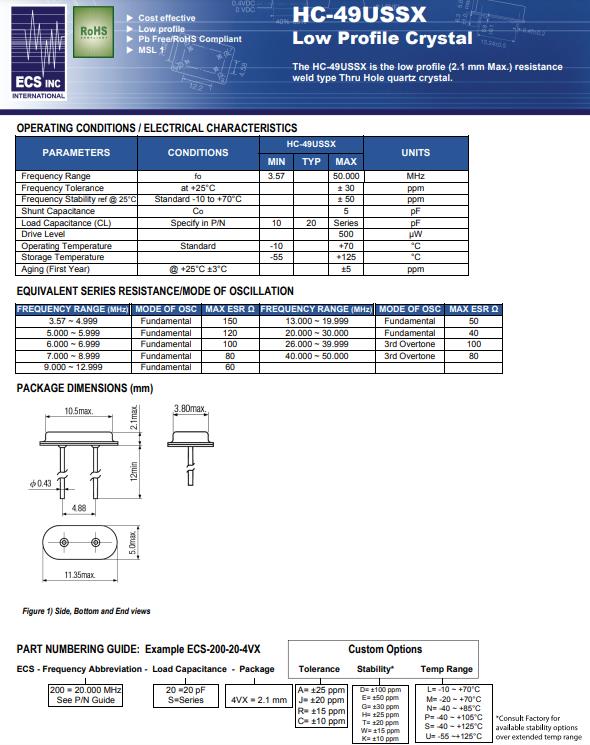

ECS-200-20-4VX,ECS进口晶振,20MHz,20pf 参数表

参数	条件	HC-49USSX
频率		20MHz
频率公差	at +25°C	± 30PPM
频率稳定性	-10°C to +70°C	± 50PPM
负载电容	Specify in P/N	20pF
激励功率		500 μW Max
工作温度		-10°C to +70°C
保存温度		-55°C to +125°C
并联电容	Co	5.0 pF
老化	@ +25°C ±3°C	±5ppm

陶瓷面封装谐振器,4.0*2.5mm小体积SMD晶振,ECX-42晶振

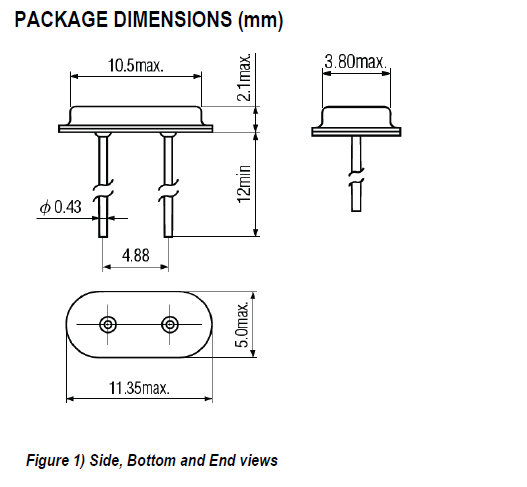

ECS-200-20-4VX,ECS进口晶振,20MHz,20pf 尺寸图

ECS原厂编码	型号	频率	频率稳定度	频率偏差	负载电容	工作温度
ECS-100-20-4VX	HC-49USSX	10MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-110.5-20-4VX	HC-49USSX	11.0592MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-120-18-4VX	HC-49USSX	12MHz	±50ppm	±30ppm	18pF	-10°C ~ 70°C
ECS-120-32-4VX	HC-49USSX	12MHz	±50ppm	±30ppm	32pF	-10°C ~ 70°C
ECS-122.8-20-4VX	HC-49USSX	12.288MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-143-20-4VX	HC-49USSX	14.31818MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-147.4-20-4VX	HC-49USSX	14.7456MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-160-20-4VX	HC-49USSX	16MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-184-20-4VX	HC-49USSX	18.432MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-200-20-4VX	HC-49USSX	20MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-240-20-4VX	HC-49USSX	24MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-245.7-20-4VX	HC-49USSX	24.576MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-250-20-4VX	HC-49USSX	25MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-270-20-4VX	HC-49USSX	27MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-35-18-4VX	HC-49USSX	3.579545MHz	±50ppm	±30ppm	18pF	-10°C ~ 70°C
ECS-36-20-4VX	HC-49USSX	3.6864MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-40-20-4VX	HC-49USSX	4MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-60-20-4VX	HC-49USSX	6MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-80-20-4VX	HC-49USSX	8MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-98.3-20-4VX	HC-49USSX	9.8304MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
