CPPV7-BR-40.000,Cardinal卡迪纳尔晶振,CPPV7差分输出晶振

频率：40 MHz

尺寸：7.00mm x 5.00mm

CPPV7-BR-40.000,Cardinal卡迪纳尔晶振,CPPV7差分输出晶振,作为一款典型的差分输出晶振,CPPV7-BR-40.000通过两路相位相反的差分信号输出,大幅提升了信号抗干扰能力和传输距离.在高速数据处理场景中,差分信号可有效抵消线路间的串扰和外部电磁辐射影响,确保40MHz频率信号在长距离传输后仍保持低抖动特性,实测抖动值可控制在工业级严苛标准范围内.此外,差分输出设计还能降低对电源电压波动的敏感度,在宽电压输入条件下(通常兼容3.3V/5V主流供电),仍维持频率稳定度在±20ppm甚至更高精度,满足精密仪器,通信设备对时钟信号的高要求.

订购热线：0755-27837162

CPPV7-BR-40.000,Cardinal卡迪纳尔晶振,CPPV7差分输出晶振

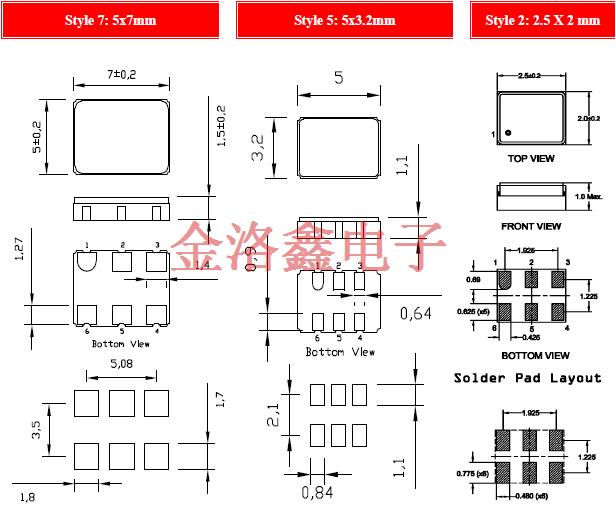

CPPV7-BR-40.000是Cardinal(卡迪纳尔)推出的高性能差分输出有源晶振,采用7050贴片晶振封装(长7.0mm×宽5.0mm×高1.9mm),兼顾性能与安装便利性,适配中高端电子设备的PCB布局需求.其标称频率精准设定为40.000MHz,作为差分输出晶振,核心优势在于通过LVPECL/LVDS标准差分信号输出(可根据需求选择信号格式),区别于单端输出晶振,能有效抑制共模噪声,大幅提升时钟信号在长距离传输中的稳定性,常温(25℃)下频率公差严格控制在±5ppm,频率稳定度达到工业级高精度标准,可满足高速通信,数据处理设备对时钟信号的严苛要求(如FPGA,处理器时钟模块).

JLX-2

CPPV7-BR-40.000,Cardinal卡迪纳尔晶振,CPPV7差分输出晶振

原厂型号 Originalmodel：	CPPV7-BR-40.000	品牌brand：	Cardinal
Manufacturer品牌	Cardinal	OperatingTemperature温度	0°C ~ 70°C
Series型号	CPPV7	Current-Supply(Max)	50mA
Type类型	XO	PackageHeight高度	2.00mm
Frequency频率	40 MHz	Termination 脚位	6-pad
输出方式 Output：	LVDS差分晶振	PackageType 封装类型	6-SMD
Voltage-Supply电压	3.3V	Packaging 包装	TapeandReel
FrequencyStability频率稳定度	±25ppm	安装方式 Installation：	Surfacemount
Size/Dimension尺寸	7.00mm x 5.00mm	最小包装数MPQ：	1000

JLX-3

CPPV7-BR-40.000,Cardinal卡迪纳尔晶振,CPPV7差分输出晶振

CJVDA 7050 5032 2520 MEMS VCXO

CPPV7-BR-40.000,Cardinal卡迪纳尔晶振,CPPV7差分输出晶振

CPPC7L-A7BR-200.0TS	Cardinal	CPP	XO	200 MHz	CMOS	3.3V	±25ppm
CPPC7L-A7B6-75.0TS	Cardinal	CPP	XO	75 MHz	CMOS	3.3V	±100ppm
CPPC7-A7BR-162.0TS	Cardinal	CPP	XO	162 MHz	CMOS	5V	±25ppm
CPPC7L-A7BP-33.333TS	Cardinal	CPP	XO	33.333 MHz	CMOS	3.3V	±50ppm
CPPC7-BP-12.096TS	Cardinal	CPP	XO	12.096 MHz	CMOS	5V	±50ppm
CPPC7L-B6-30.0TS	Cardinal	CPP	XO	30 MHz	CMOS	3.3V	±100ppm
CPPC7L-A7B6-8.0PD	Cardinal	CPP	XO	8 MHz	CMOS	3.3V	±100ppm
CPPC7L-A7BR-25.1658TS	Cardinal	CPP	XO	25.1658 MHz	CMOS	3.3V	±25ppm
CPPC7L-A7BP-40.0000TS	Cardinal	CPP	XO	40 MHz	CMOS	3.3V	±50ppm
CPPC7L-B6-33.1776PD	Cardinal	CPP	XO	33.1776 MHz	CMOS	3.3V	±100ppm
CPPC7-A7BR-166.0TS	Cardinal	CPP	XO	166 MHz	CMOS	5V	±25ppm
CPPC7-BP-2.5TS	Cardinal	CPP	XO	2.5 MHz	CMOS	5V	±50ppm
CPPC7LZ-A7B6-81.1TS	Cardinal	CPP	XO	81.1 MHz	CMOS	3.3V	±100ppm
CPPC7L-A7BP-1.0TS	Cardinal	CPP	XO	1 MHz	CMOS	3.3V	±50ppm
CPPC7L-A7BP-41.6666TS	Cardinal	CPP	XO	41.6666 MHz	CMOS	3.3V	±50ppm
CPPC7L-B6-36.864TS	Cardinal	CPP	XO	36.864 MHz	CMOS	3.3V	±100ppm
CPPC7-A5B6-66.0TS	Cardinal	CPP	XO	66 MHz	CMOS	5V	±100ppm
CPPC7-A7BP-24.0TS	Cardinal	CPP	XO	24 MHz	CMOS	5V	±50ppm
CPPC5L-A7BP-25.0TS	Cardinal	CPP	XO	25 MHz	CMOS	3.3V	±50ppm
CPPC5LZ-A7BP-33.0PD	Cardinal	CPP	XO	33 MHz	CMOS	3.3V	±50ppm
CPPC5-A7BP-27.12TS	Cardinal	CPP	XO	27.12 MHz	CMOS	5V	±50ppm
CPPC5L-A7BR-100.0TS	Cardinal	CPP	XO	100 MHz	CMOS	3.3V	±25ppm
CPPC5-A7BP-40.68TS	Cardinal	CPP	XO	40.68 MHz	CMOS	5V	±50ppm
CPPC7-A5B6-32.0TS	Cardinal	CPP	XO	32 MHz	CMOS	5V	±100ppm
CPPC7L-A7B6-25.0TS	Cardinal	CPP	XO	25 MHz	CMOS	3.3V	±100ppm
CPPC7-A7BR-32.0TS	Cardinal	CPP	XO	32 MHz	CMOS	5V	±25ppm
CPPC7L-A7BR-11.392TS	Cardinal	CPP	XO	11.392 MHz	CMOS	3.3V	±25ppm
CPPC7L-A7BP-24.0TS	Cardinal	CPP	XO	24 MHz	CMOS	3.3V	±50ppm
CPPC7-A7BP-4.352TS	Cardinal	CPP	XO	4.352 MHz	CMOS	5V	±50ppm
CPPC7L-A7BR-12.0TS	Cardinal	CPP	XO	12 MHz	CMOS	3.3V	±25ppm
CPPC7Z-A7BR-4.0TS	Cardinal	CPP	XO	4 MHz	CMOS	5V	±25ppm
CPPC7L-A7BP-25.0PD	Cardinal	CPP	XO	25 MHz	CMOS	3.3V	±50ppm
CPPC7-A7BP-50.0TS	Cardinal	CPP	XO	50 MHz	CMOS	5V	±50ppm
CPPC7-A7BR-7.5TS	Cardinal	CPP	XO	7.5 MHz	CMOS	5V	±25ppm
CPPC7L-A7BR-120.0TS	Cardinal	CPP	XO	120 MHz	CMOS	3.3V	±25ppm
CPPC7L-A7B6-28.636TS	Cardinal	CPP	XO	28.636 MHz	CMOS	3.3V	±100ppm
CPPC7L-A7BR-60.0TS	Cardinal	CPP	XO	60 MHz	CMOS	3.3V	±25ppm
CPPC7L-A7BP-25.0TS	Cardinal	CPP	XO	25 MHz	CMOS	3.3V	±50ppm
CPPC7-A7BR-134.0TS	Cardinal	CPP	XO	134 MHz	CMOS	5V	±25ppm
CPPC7L-A7BR-127.6TS	Cardinal	CPP	XO	127.6 MHz	CMOS	3.3V	±25ppm
CPPC7-B6-12.0TS	Cardinal	CPP	XO	12 MHz	CMOS	5V	±100ppm
CPPC7L-A7BR-66.666TS	Cardinal	CPP	XO	66.666 MHz	CMOS	3.3V	±25ppm
CPPC7L-A7B6-3.6864TS	Cardinal	CPP	XO	3.6864 MHz	CMOS	3.3V	±100ppm
CPPC7-A7BR-14.7456TS	Cardinal	CPP	XO	14.7456 MHz	CMOS	5V	±25ppm
CPPC7-B6-14.7456TS	Cardinal	CPP	XO	14.7456 MHz	CMOS	5V	±100ppm
CPPC7L-A7B6-32.0TS	Cardinal	CPP	XO	32 MHz	CMOS	3.3V	±100ppm
CPPC7L-A7BR-144.0TS	Cardinal	CPP	XO	144 MHz	CMOS	3.3V	±25ppm
CPPC7L-A7BP-29.4912TS	Cardinal	CPP	XO	29.4912 MHz	CMOS	3.3V	±50ppm
CPPC7-A7BR-140.0TS	Cardinal	CPP	XO	140 MHz	CMOS	5V	±25ppm
CPPC7-A7BR-200.0TS	Cardinal	CPP	XO	200 MHz	CMOS	5V	±25ppm
CPPC7L-A5BP-60.0TS	Cardinal	CPP	XO	60 MHz	CMOS	3.3V	±50ppm
CPPC7L-A5BP-62.5TS	Cardinal	CPP	XO	62.5 MHz	CMOS	3.3V	±50ppm
CPPC7L-A7BP-125.0TS	Cardinal	CPP	XO	125 MHz	CMOS	3.3V	±50ppm
CPPC7L-A5BP-66.0TS	Cardinal	CPP	XO	66 MHz	CMOS	3.3V	±50ppm
CPPC7L-A5BR-16.896TS	Cardinal	CPP	XO	16.896 MHz	CMOS	3.3V	±25ppm
CPPC7L-A7BR-33.3333TS	Cardinal	CPP	XO	33.3333 MHz	CMOS	3.3V	±25ppm
CPPC7L-A5BR-24.4196TS	Cardinal	CPP	XO	24.4196 MHz	CMOS	3.3V	±25ppm
CPPC7-A7BR-210.0TS	Cardinal	CPP	XO	210 MHz	CMOS	5V	±25ppm
CPPC7L-A5BR-24.6945TS	Cardinal	CPP	XO	24.6945 MHz	CMOS	3.3V	±25ppm
CPPC7L-A5BR-25.0TS	Cardinal	CPP	XO	25 MHz	CMOS	3.3V	±25ppm
