TXC晶振,AT-20.500MDHQ-T晶振,汽车音响系统晶振

频率：20.5MHZ

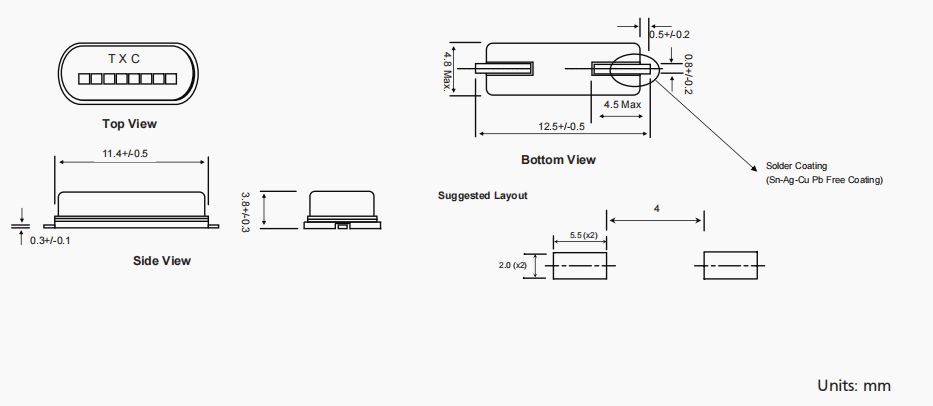

尺寸：12.5*4.8mm

TXC晶振,AT-20.500MDHQ-T晶振,汽车音响系统晶振,台湾TXC晶振公司，晶技晶振，台湾晶振，进口晶振，四脚晶振，AT-20.500MDHQ-T晶振，贴片晶振，无源晶振，网络设备晶振，汽车晶振，高品质晶振，汽车氛围灯晶振，大灯控制器晶振，小尺寸晶振，耐高温晶振，金属罐型，晶体， AT系列HC-49S SMD，特征，表面贴装型晶体单元。工作温度范围宽。·恶劣环境下性能优越可靠。符合RoHS标准/无铅。

订购热线：0755-27837162

TXC晶振,AT-20.500MDHQ-T晶振,汽车音响系统晶振,台湾TXC晶振公司，晶技晶振，台湾晶振，进口晶振，四脚晶振，AT-20.500MDHQ-T晶振，贴片晶振，无源晶振，网络设备晶振，汽车晶振，高品质晶振，汽车氛围灯晶振，大灯控制器晶振，小尺寸晶振，耐高温晶振，金属罐型，晶体， AT系列HC-49S SMD，特征，表面贴装型晶体单元。工作温度范围宽。·恶劣环境下性能优越可靠。符合RoHS标准/无铅。

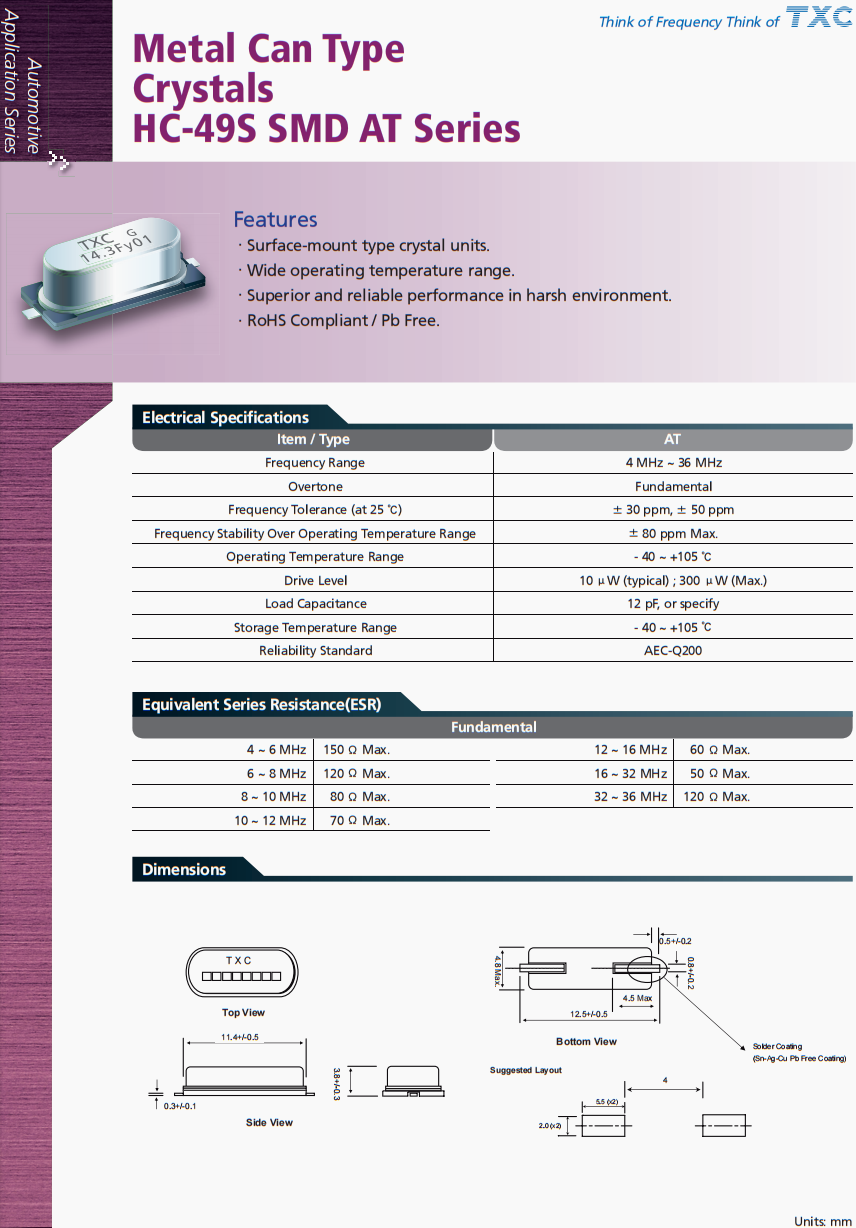

TXC晶振,AT-20.500MDHQ-T晶振,汽车音响系统晶振

型号	AT
频率范围	4 MHz ~ 36 MHz
工作模式	Fundamental
频率容差	± 30 ppm, ± 50 ppm
温度范围内的频率稳定度	± 80 ppm Max.
工作温度	- 40 ~ +105 ℃
驱动电平	10 μW (typical) ; 300 μW (Max.)
负载电容	12 pF, or specify
储存温度范围	- 40 ~ +105 ℃
可靠性标准	AEC-Q200

TXC晶振,AT-20.500MDHQ-T晶振,汽车音响系统晶振

TXC原厂编码	生产商品牌	Series	频率	频率稳定度	频率容差	负载电容	工作温度
AT-6.000MAGB-T	TXC晶振	AT	6MHz	±50ppm	±30ppm	8.5pF	-40°C ~ 85°C
AT-16.000MAOQ-T	TXC晶振	AT	16MHz	±100ppm	±30ppm	10pF	-40°C ~ 105°C
AT-16.000MAPY-T	TXC晶振	AT	16MHz	±50ppm	±30ppm	7pF	-40°C ~ 105°C
AT-16.000MAQE-T	TXC晶振	AT	16MHz	±30ppm	±30ppm	12pF	-40°C ~ 105°C
AT-16.000MBGJ-T	TXC晶振	AT	16MHz	±50ppm	±50ppm	18pF	-40°C ~ 85°C
AT-16.000MDHE-T	TXC晶振	AT	16MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
AT-16.000MDHK-T	TXC晶振	AT	16MHz	±30ppm	±20ppm	20pF	-40°C ~ 85°C
AT-16.000MDIE-T	TXC晶振	AT	16MHz	±20ppm	±20ppm	12pF	-40°C ~ 85°C
AT-16.000MDIJ-T	TXC晶振	AT	16MHz	±20ppm	±20ppm	18pF	-40°C ~ 85°C
AT-16.000MDIV-T	TXC晶振	AT	16MHz	±20ppm	±20ppm	8pF	-40°C ~ 85°C
AT-16.666MBGJ-T	TXC晶振	AT	16.666MHz	±50ppm	±50ppm	18pF	-40°C ~ 85°C
AT-16.9344MAHE-T	TXC晶振	AT	16.9344MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AT-16.9344MDHE-T	TXC晶振	AT	16.9344MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
AT-18.000MAGI-T	TXC晶振	AT	18MHz	±50ppm	±30ppm	16pF	-40°C ~ 85°C
AT-18.432MAPQ-T	TXC晶振	AT	18.432MHz	±50ppm	±30ppm	10pF	-40°C ~ 105°C
AT-20.000MDGE-T	TXC晶振	AT	20MHz	±50ppm	±20ppm	12pF	-40°C ~ 85°C
AT-20.49978MDHQ-T	TXC晶振	AT	20.49978MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
AT-20.500MDHQ-T	TXC晶振	AT	20.5MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
AT-23.51222MFHE-T	TXC晶振	AT	23.51222MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
AT-24.000MAHE-T	TXC晶振	AT	24MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AT-24.000MAHJ-T	TXC晶振	AT	24MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
AT-24.000MAHK-T	TXC晶振	AT	24MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
AT-24.576MAGD-T	TXC晶振	AT	24.576MHz	±50ppm	±30ppm	11pF	-40°C ~ 85°C
AT-24.576MDHK-T	TXC晶振	AT	24.576MHz	±30ppm	±20ppm	20pF	-40°C ~ 85°C
AT-25.000MAHE-T	TXC晶振	AT	25MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AT-27.000MAGI-T	TXC晶振	AT	27MHz	±50ppm	±30ppm	16pF	-40°C ~ 85°C
AT-27.000MAHK-T	TXC晶振	AT	27MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
AT-27.000MAOJ-T	TXC晶振	AT	27MHz	±100ppm	±30ppm	18pF	-40°C ~ 105°C
AT-27.000MAPJ-T	TXC晶振	AT	27MHz	±50ppm	±30ppm	18pF	-40°C ~ 105°C
AT-27.120MAHQ-T	TXC晶振	AT	27.12MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
AT-28.63636MAGK-T	TXC晶振	AT	28.63636MHz	±50ppm	±30ppm	20pF	-40°C ~ 85°C
AT-28.63636MAHE-T	TXC晶振	AT	28.63636MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AT-28.63636MAHI-T	TXC晶振	AT	28.63636MHz	±30ppm	±30ppm	16pF	-40°C ~ 85°C
AT-28.63636MDGE-T	TXC晶振	AT	28.63636MHz	±50ppm	±20ppm	12pF	-40°C ~ 85°C
AT-30.429MAGE-T	TXC晶振	AT	30.429MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AT-33.8688MAHQ-T	TXC晶振	AT	33.8688MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
AT-33.8688MDHJ-T	TXC晶振	AT	33.8688MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
AT-33.8688MDHQ-T	TXC晶振	AT	33.8688MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
AT-37.050MAHV-T	TXC晶振	AT	37.05MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
AT-4.000MAFK-T	TXC晶振	AT	4MHz	±100ppm	±30ppm	20pF	-40°C ~ 85°C
AT-4.000MAGH-T	TXC晶振	AT	4MHz	±50ppm	±30ppm	15pF	-40°C ~ 85°C
AT-4.000MAGJ-T	TXC晶振	AT	4MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
AT-4.000MAHE-T	TXC晶振	AT	4MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AT-4.000MAHI-T	TXC晶振	AT	4MHz	±30ppm	±30ppm	16pF	-40°C ~ 85°C
AT-4.000MAHK-T	TXC晶振	AT	4MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
AT-4.000MAPE-T	TXC晶振	AT	4MHz	±50ppm	±30ppm	12pF	-40°C ~ 105°C
AT-4.000MBFI-T	TXC晶振	AT	4MHz	±100ppm	±50ppm	16pF	-40°C ~ 85°C
AT-4.000MDGE-T	TXC晶振	AT	4MHz	±50ppm	±20ppm	12pF	-40°C ~ 85°C
AT-4.000MDGI-T	TXC晶振	AT	4MHz	±50ppm	±20ppm	16pF	-40°C ~ 85°C
AT-4.000MDGJ-T	TXC晶振	AT	4MHz	±50ppm	±20ppm	18pF	-40°C ~ 85°C
AT-4.000MDHC-T	TXC晶振	AT	4MHz	±30ppm	±20ppm	9pF	-40°C ~ 85°C
AT-4.000MDHJ-T	TXC晶振	AT	4MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
AT-4.000MFHH-T	TXC晶振	AT	4MHz	±30ppm	±15ppm	15pF	-40°C ~ 85°C
AT-4.007MAHQ-T	TXC晶振	AT	4.007MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
AT-4.9152MDGE-T	TXC晶振	AT	4.9152MHz	±50ppm	±20ppm	12pF	-40°C ~ 85°C
AT-41.600MDGQ-T	TXC晶振	AT	41.6MHz	±50ppm	±20ppm	10pF	-40°C ~ 85°C
AT-5.000MAHE-T	TXC晶振	AT	5MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AT-5.000MAHI-T	TXC晶振	AT	5MHz	±30ppm	±30ppm	16pF	-40°C ~ 85°C
AT-6.000MABK-T	TXC晶振	AT	6MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
